Transmission functions of transmissive multilayer inhomogeneous holographic photopolymer liquid crystal diffraction structures
- Authors: Sharangovich S.N.1, Dolgirev V.O.1
-
Affiliations:
- Tomsk State University of Control and Radioelectronics Systems
- Issue: Vol 87, No 1 (2023)
- Pages: 12-18
- Section: Articles
- URL: https://journals.rcsi.science/0367-6765/article/view/135239
- DOI: https://doi.org/10.31857/S0367676522700028
- EDN: https://elibrary.ru/JGPCXN
- ID: 135239
Cite item
Abstract

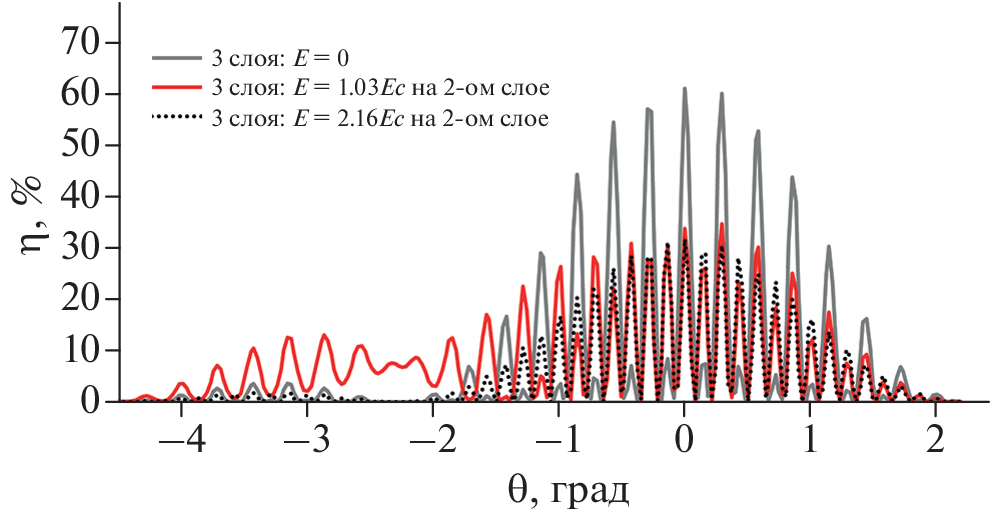

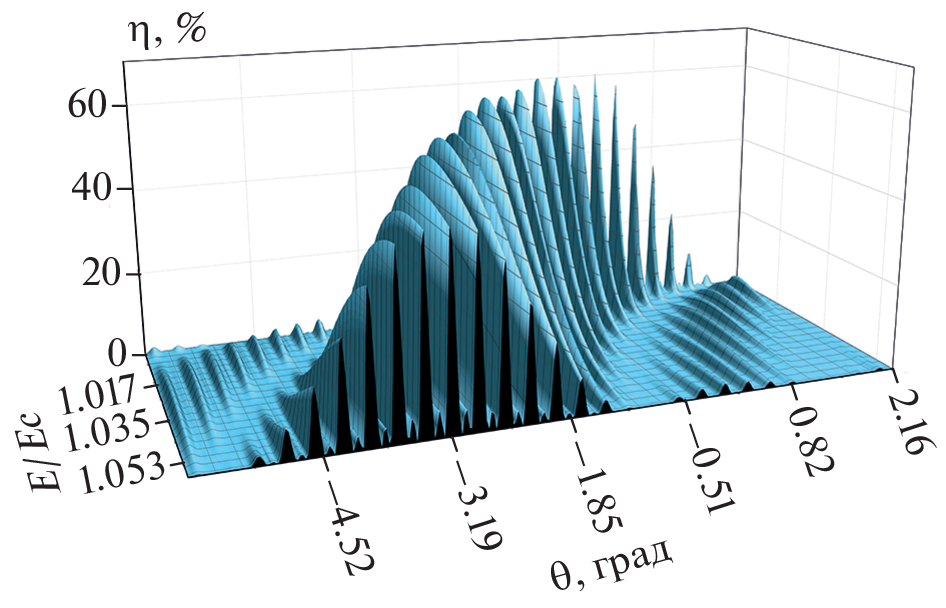

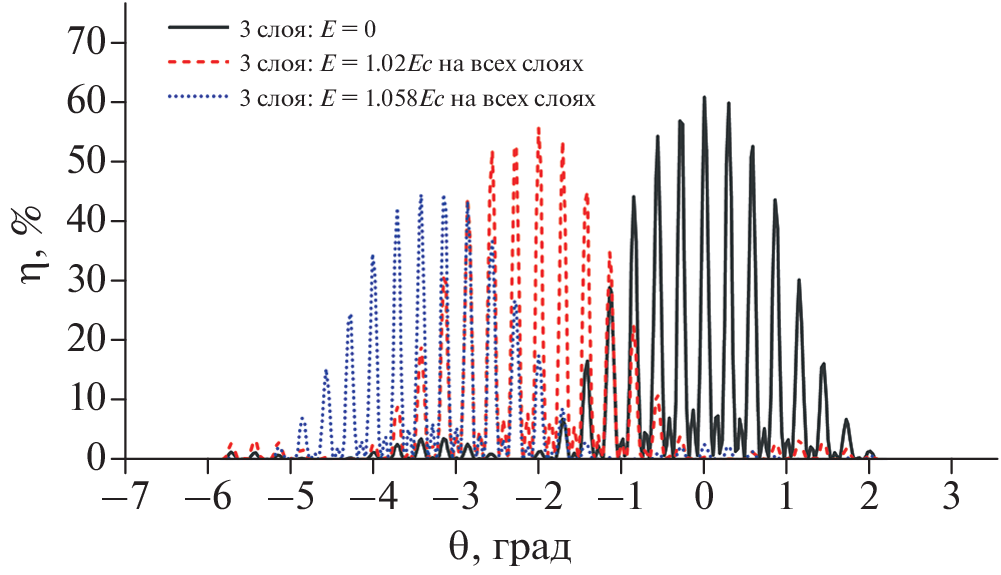

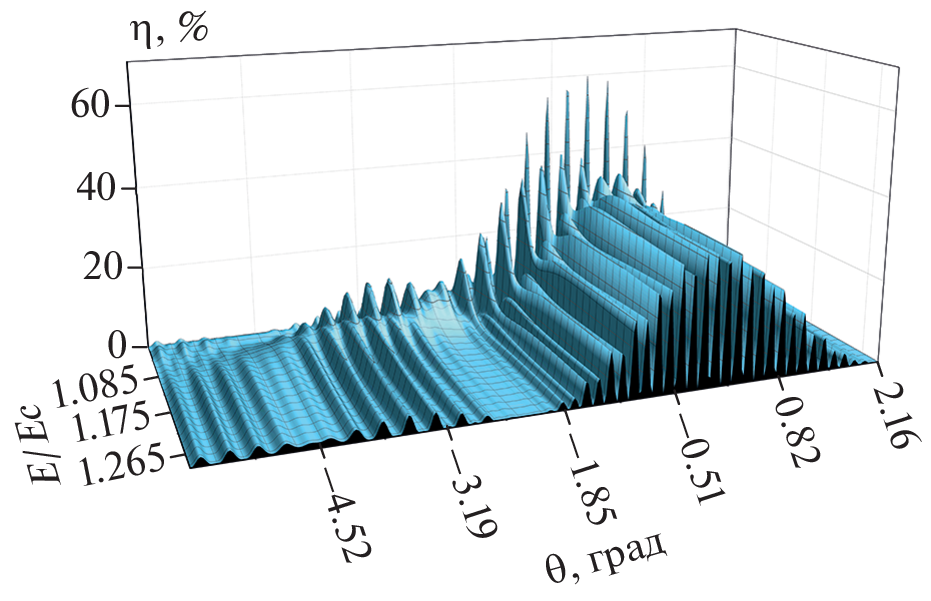

A new analytical model of diffraction of quasimonochromatic light beams on spatially inhomogeneous multilayer diffraction structures formed in photopolymer material with nematic liquid crystals having smooth optical inhomogeneity in the thickness of layers is presented. It is shown that when an applied electric field isapplied to diffraction layers containing a photopolymer composition with a high proportion of liquid crystalline component, a transformation of the selective response with a significant shift in angular selectivity occurs
About the authors
S. N. Sharangovich
Tomsk State University of Control and Radioelectronics Systems
Author for correspondence.
Email: shr@tusur.ru
Russia, 634050, Tomsk
V. O. Dolgirev
Tomsk State University of Control and Radioelectronics Systems
Email: shr@tusur.ru
Russia, 634050, Tomsk
References
- Malallah R., Li H., Qi Y. et al. // J. Opt. Soc. Amer. A. 2019. V. 36. No. 3. P. 320.
- Malallah R., Li H., Qi Y. et al. // J. Opt. Soc. Amer. A. 2019. V. 36. No. 3. P. 334.
- Pen E.F., Rodionov M.Yu., Chubakov P.A. // Optoelectron. Instrum. Data Process. 2017. V. 53. No. 1. P. 59.
- Pen E.F., Rodionov M.Yu. // Quantum Electron. 2017. V. 40. No. 10. P. 919.
- Шарангович С.Н., Дудник Д.И.// Изв. РАН. Сер. физ. 2021. Т. 85. № 1. С. 14; Sharangovich S.N., Dudnik. D.I. // Bull. Russ. Acad. Sci: Phys. 2021. V. 85. No. 1. P. 8.
- Dudnik D.I., Semkin A.O., Sharangovich S.N. // J. Phys. Conf. Ser. 2021. V. 1745. Art. No. 012018.
- Yan X., Wang X., Chen Y. et al. // Appl. Phys. B. 2019. V. 125. Art. No. 67.
- Yan X., Gao L., Yang X., Dai Y. // Opt. Express. 2014. V. 22. No. 21. P. 26140.
- Kazanskiy N.L., Khonina S.N., Karpeev S.V., Porfirev A.P. // Quantum Electron. 2020. V. 50. No. 7. P. 629.
- Kudryashov S.I. // Appl. Surface Sci. 2019. V. 484. P. 948.
- Pavlov D. // Opt. Lett. 2019. V. 44. No. 2. P. 283.
- Sharangovich S.N., Dolgirev V.O. // J. Phys. Conf. Ser. 2021. Art. No. 012023.
- Sharangovich S.N., Dolgirev V.O. // IEEE Proc. 2021. Art. No. 21430788.
- Шарангович С.Н., Долгирев В.О. // Изв. РАН. Сер. физ. 2022. Т. 86. № 1. С. 35; Sharangovich S.N., Dolgirev V.O. // Bull. Russ. Acad. Sci. Phys. 2022. V. 86. No. 1. P. 18.
- Semkin A.O., Sharangovich S.N. // Polymers. 2019. V. 11. No. 861. P. 1.
- Ноздреватых Б.Ф., Устюжанин С.В., Шарангович С.Н. // Доклады ТУСУР. 2007. № 2. С. 192.
- Доволнов Е.А., Шарангович С.Н. // Опт. и спектроск. 2008. Т. 105. № 2. С. 336; Dovolnov E.A., Sharangovich S.N. // Opt. Spectrosс. 2008. V. 105. No. 2. P. 310.
