Free-Boundary Plasma Equilibrium Computation
in Spherical Globus-M2 Tokamak by Means of the pyGSS Code

E. O. Kiselev; Киселев Е. О.; I. M. Balachenkov; Балаченков И. М.; N. N. Bakharev; Бахарев Н. Н.; V. I. Varfolomeev; Варфоломеев В. И.; V. K. Gusev; Гусев В. К.; N. S. Zhiltsov; Жильцов Н. С.; O. A. Zenkova; Зенкова О. А.; A. A. Kavin; Кавин А. А.; G. S. Kurskiev; Курскиев Г. С.; V. B. Minaev; Минаев В. Б.; I. V. Miroshnikov; Мирошников И. В.; M. I. Patrov; Патров М. И.; Yu. V. Petrov; Петров Ю. В.; N. V. Sakharov; Сахаров Н. В.; O. M. Skrekel; Скрекель О. М.; V. V. Solokha; Солоха В. В.; A. Yu. Telnova; Тельнова А. Ю.; E. E. Tkachenko; Ткаченко Е. Е.; V. A. Tokarev; Токарев В. А.; E. A. Tukhmeneva; Тюхменева Е. А.; N. A. Khromov; Хромов Н. А.; P. B. Shchegolev; Щеголев П. Б.

doi:10.31857/S0367292123601224

Free-Boundary Plasma Equilibrium Computation in Spherical Globus-M2 Tokamak by Means of the pyGSS Code

Authors: Kiselev E.O.¹^,2, Balachenkov I.M.¹, Bakharev N.N.¹, Varfolomeev V.I.¹, Gusev V.K.¹, Zhiltsov N.S.¹, Zenkova O.A.¹^,2, Kavin A.A.³, Kurskiev G.S.¹, Minaev V.B.¹, Miroshnikov I.V.¹, Patrov M.I.¹, Petrov Y.V.¹, Sakharov N.V.¹, Skrekel O.M.¹, Solokha V.V.¹, Telnova A.Y.¹, Tkachenko E.E.¹, Tokarev V.A.¹, Tukhmeneva E.A.¹, Khromov N.A.¹, Shchegolev P.B.¹
Affiliations:
1. Ioffe Institute, Russian Academy of Sciences
2. Peter the Great St. Petersburg Polytechnic University
3. Efremov Institute of Electrophysical Apparatus
Issue: Vol 49, No 12 (2023)
Pages: 1357-1374
Section: TOKAMAKS
URL: https://journals.rcsi.science/0367-2921/article/view/233150
DOI: https://doi.org/10.31857/S0367292123601224
EDN: https://elibrary.ru/CHJYYZ
ID: 233150

Cite item

Full Text

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

The pyGSS code constructed for computation of free-boundary plasma equilibrium in spherical
Globus-M2 tokamak is described. Currents in the coils of the electromagnetic system, their coordinates,
plasma current, positions of the limiter and current-conducting wall, etc., are used as the input parameters.

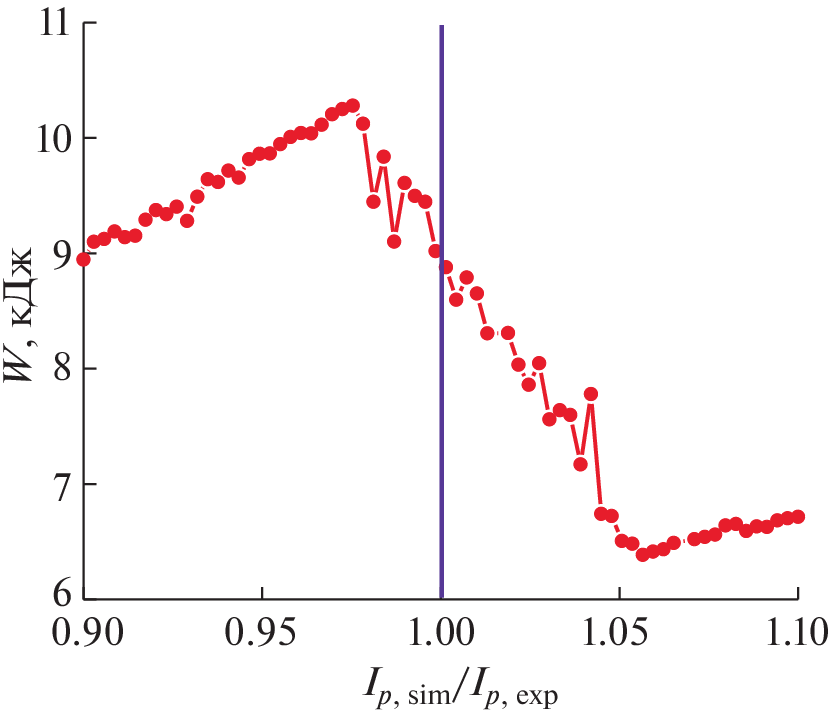

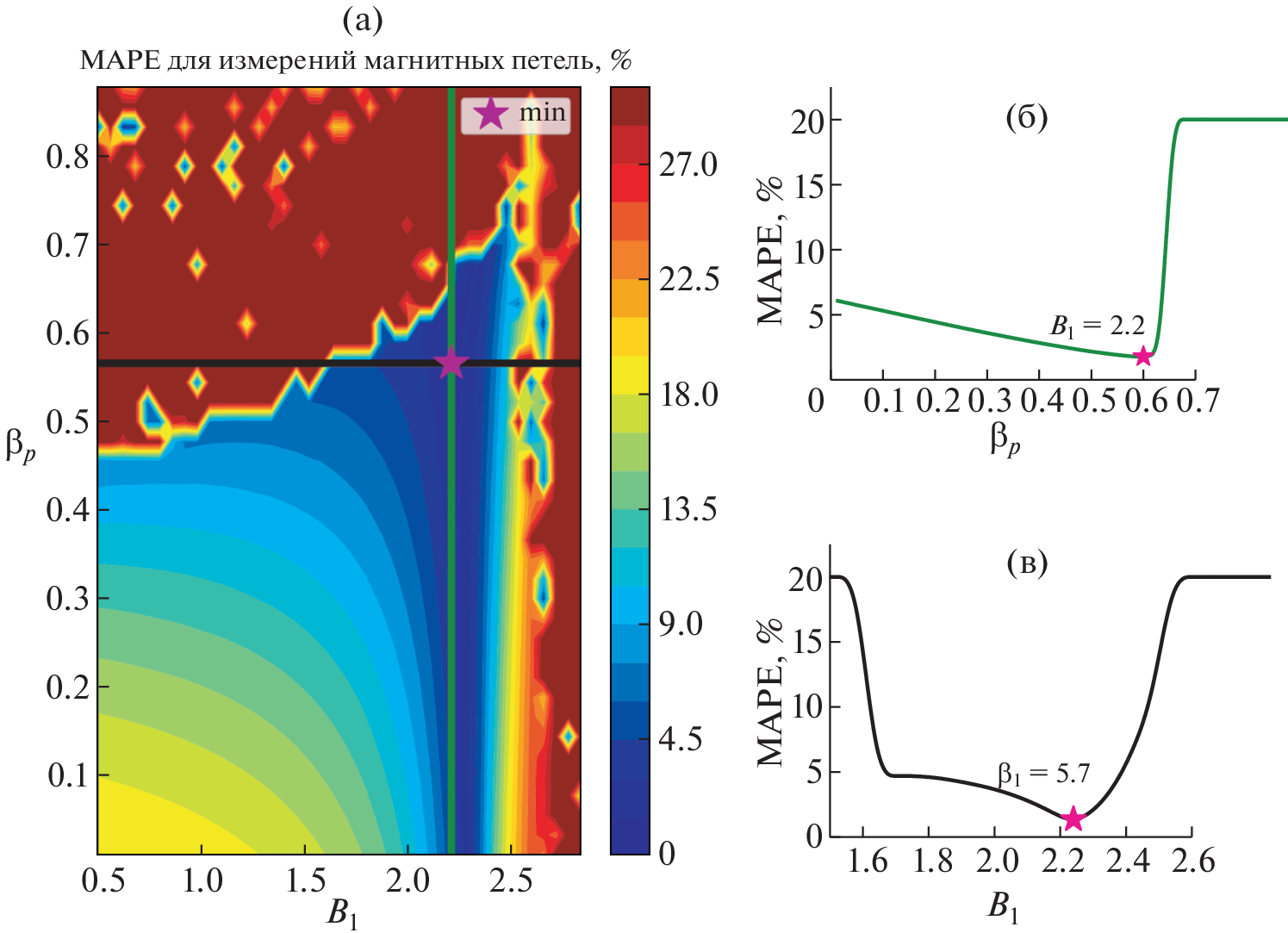

Free parameters determining spatial distribution of equilibrium pressure and current density are selected in
the course of code execution in such a way that the results of reconstruction would agree with the experimental

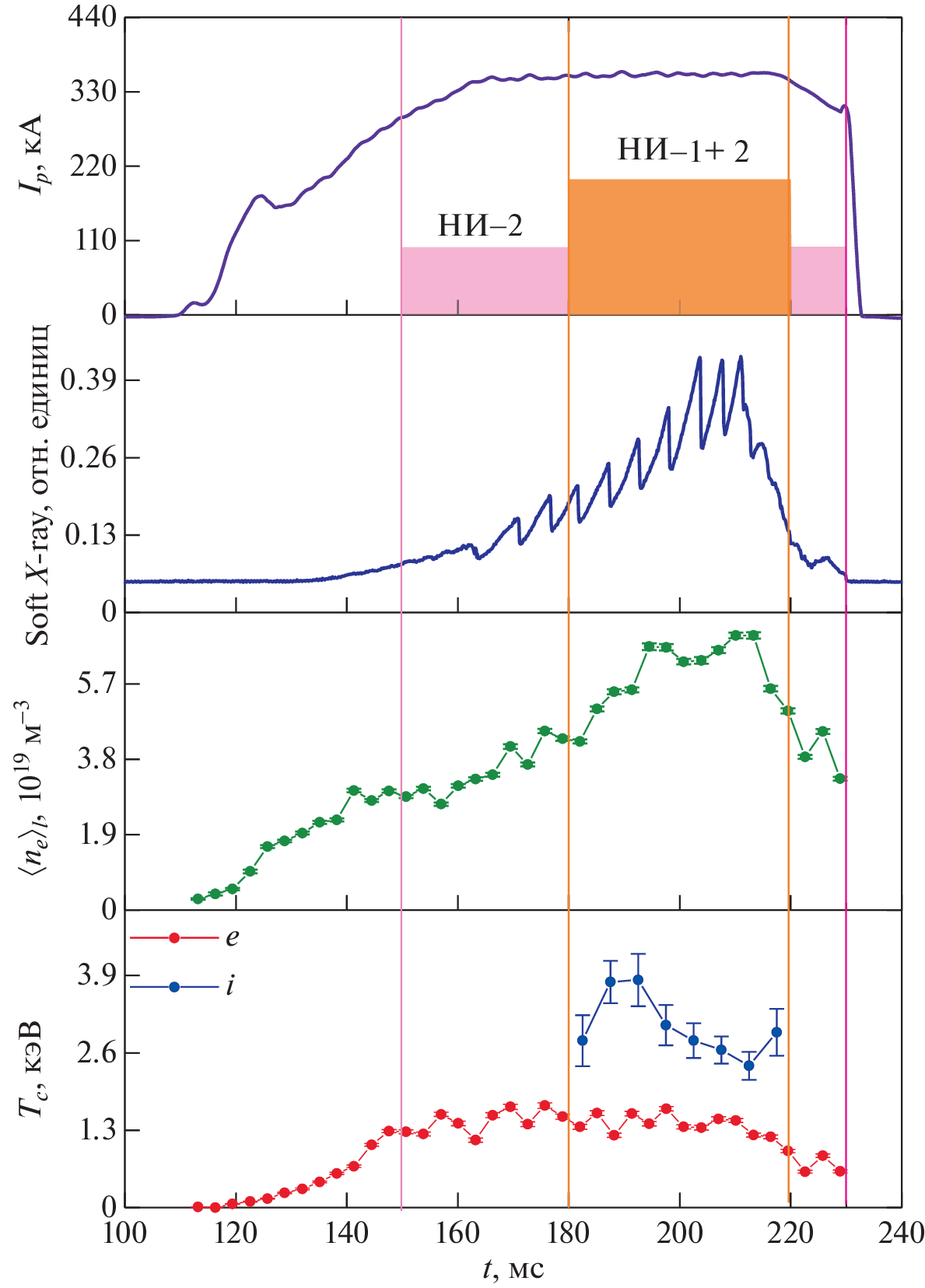

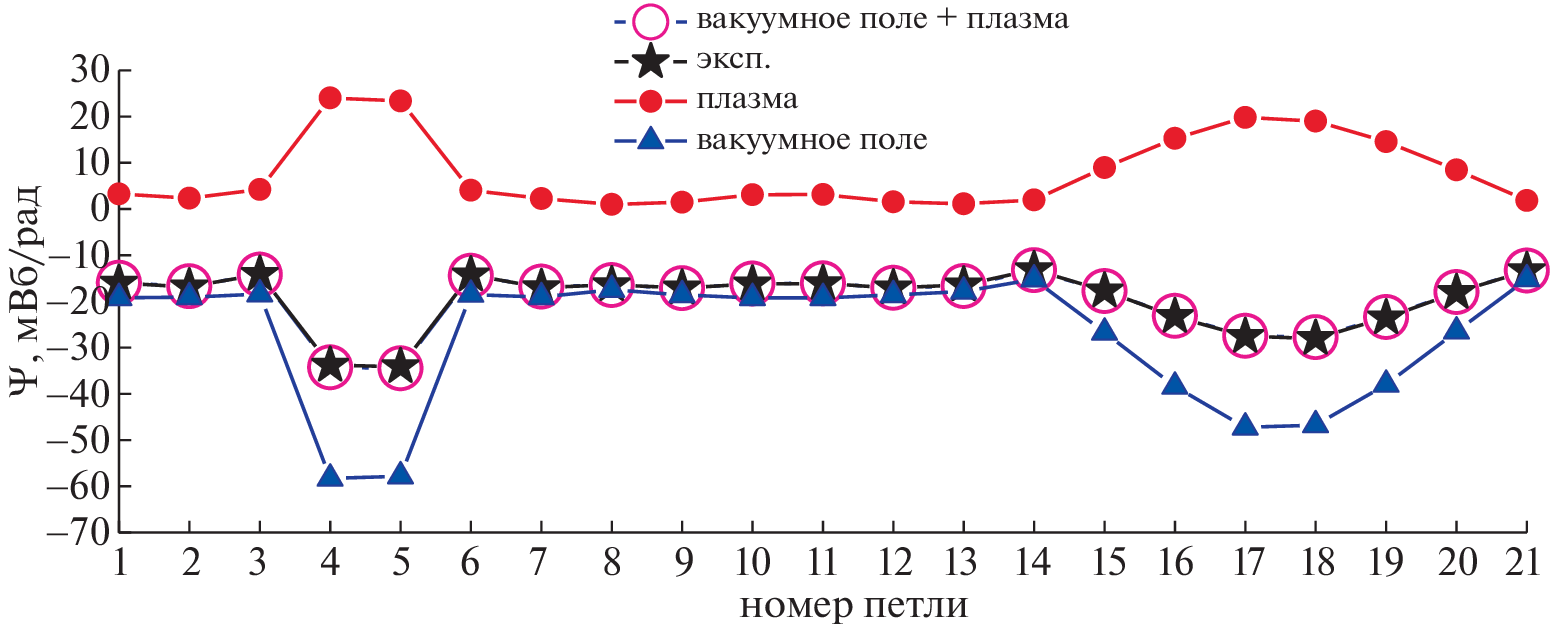

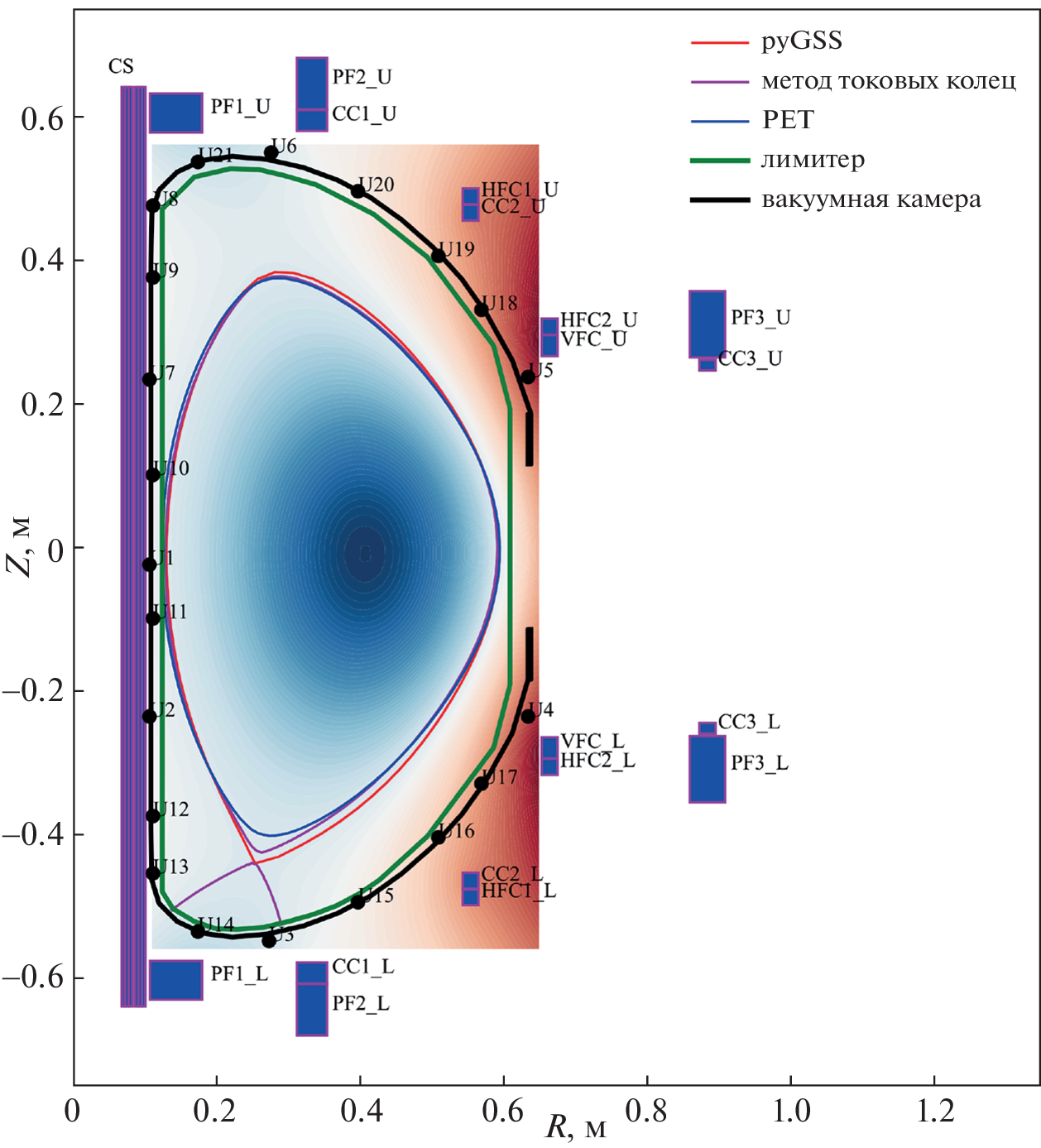

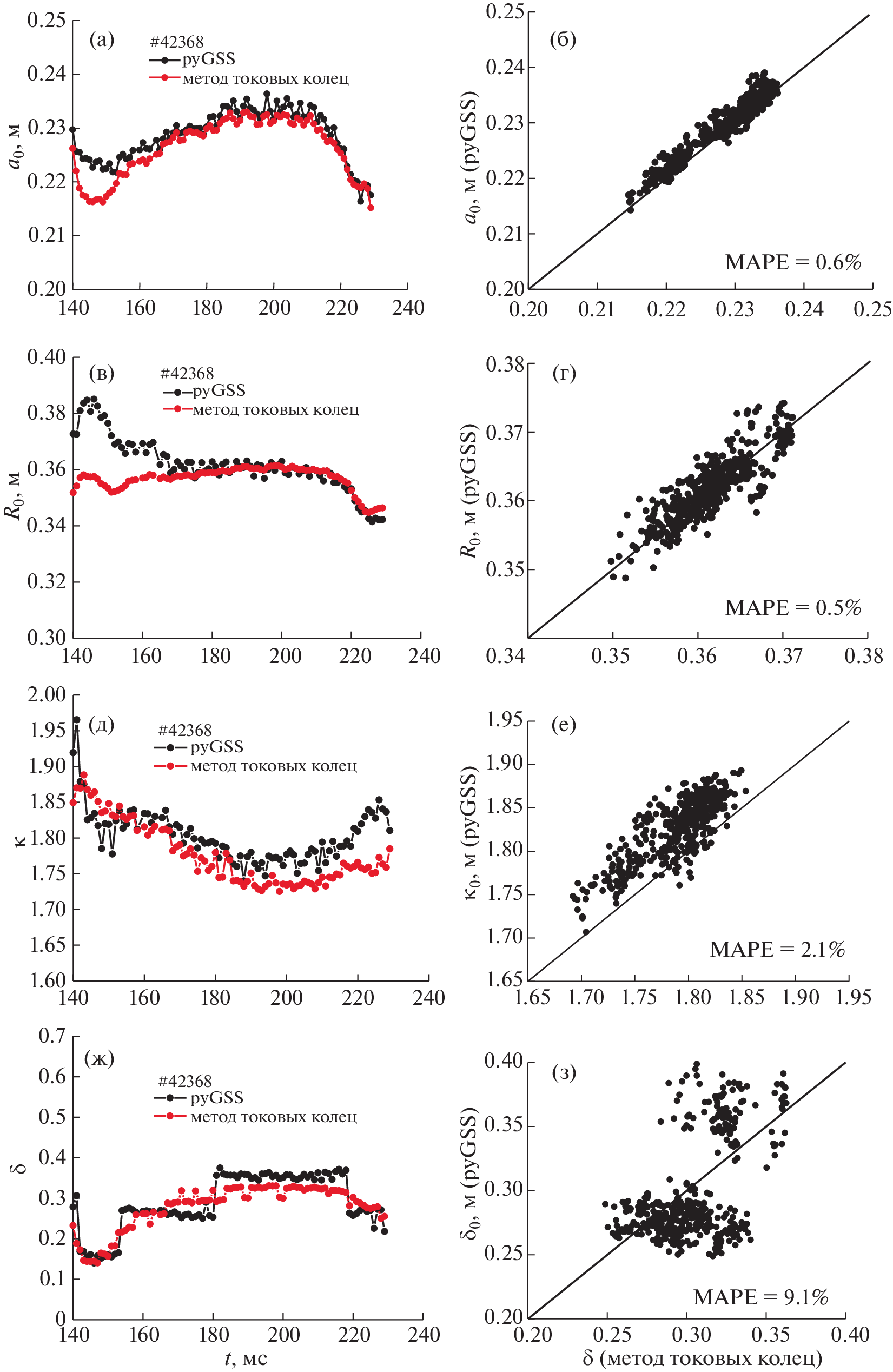

measurements of the poloidal magnetic flux by means of toroidally closed loops. The results of computation

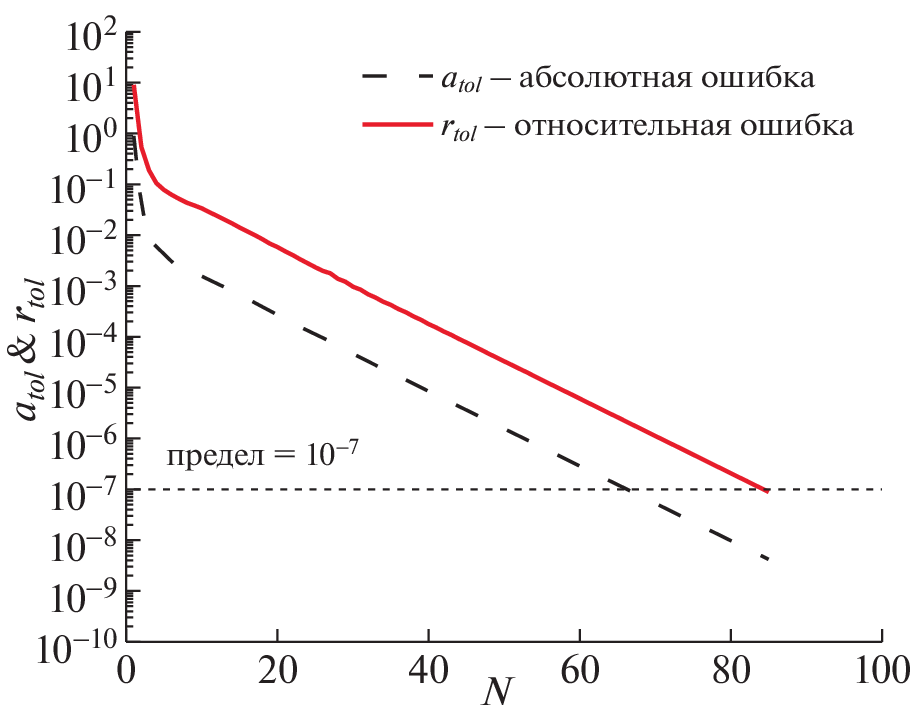

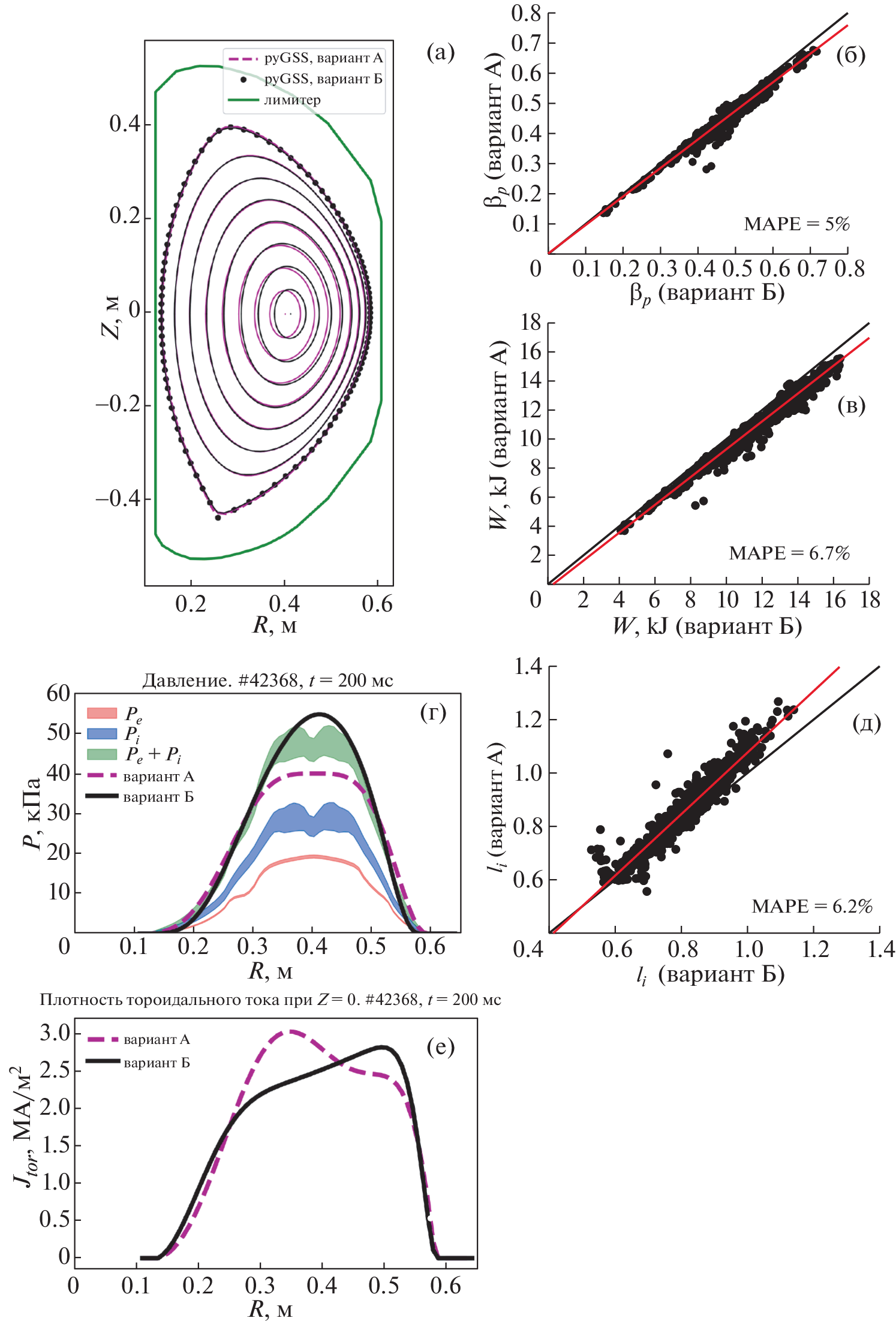

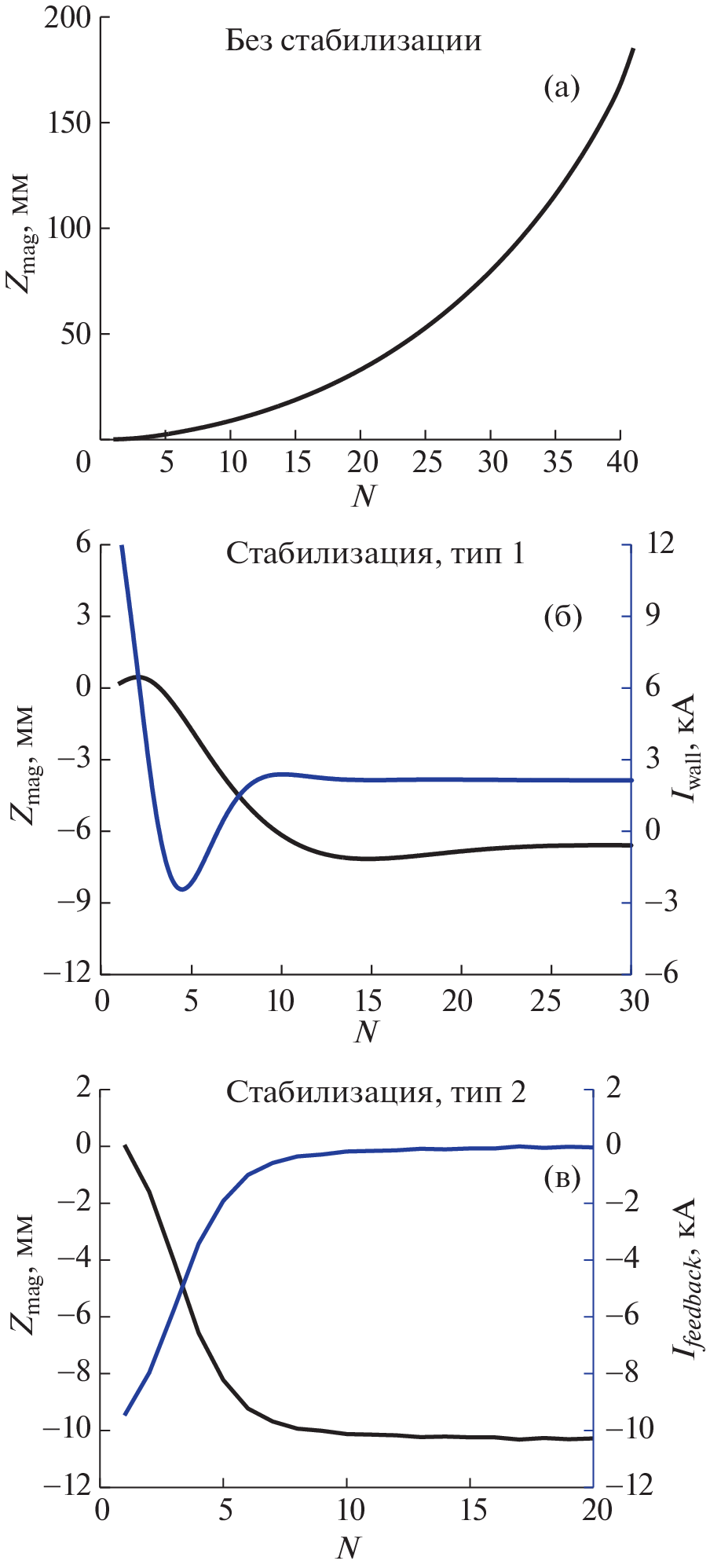

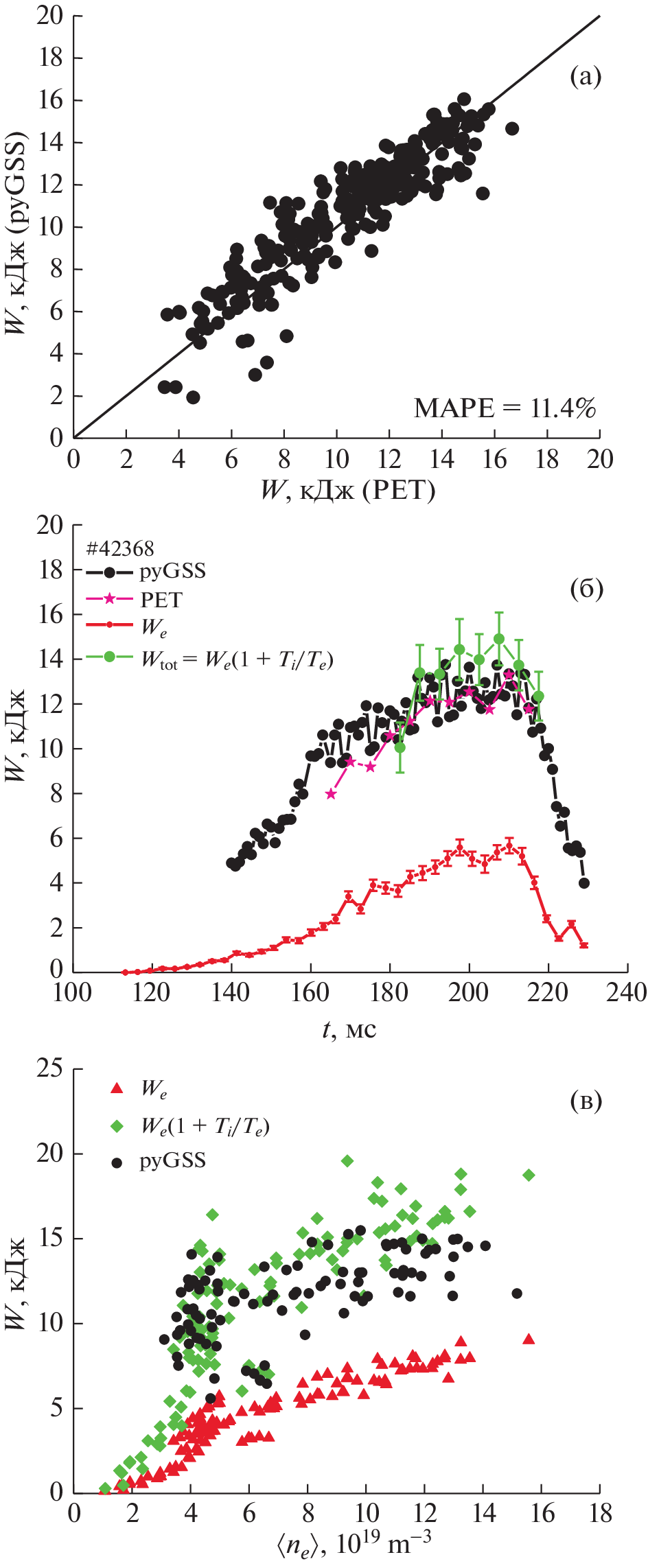

of equilibrium are compared with those obtained by means of other codes and experimentally measured

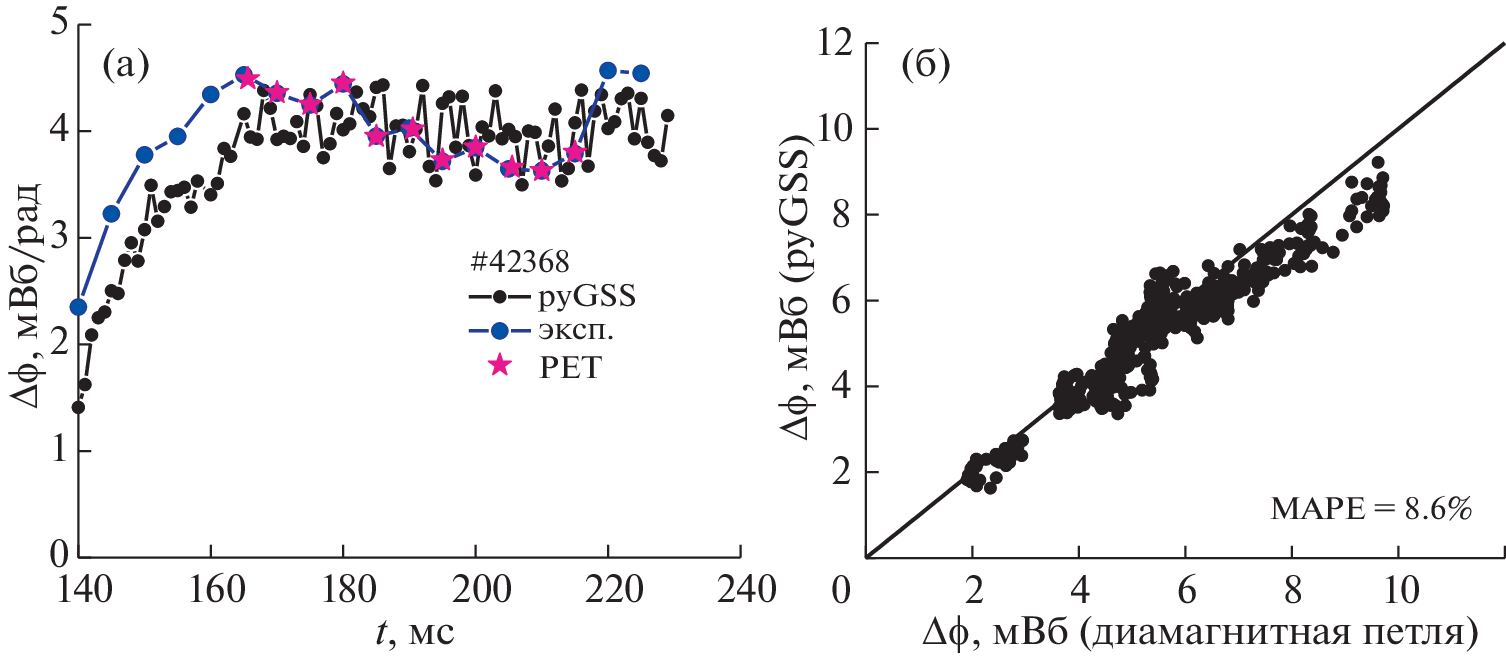

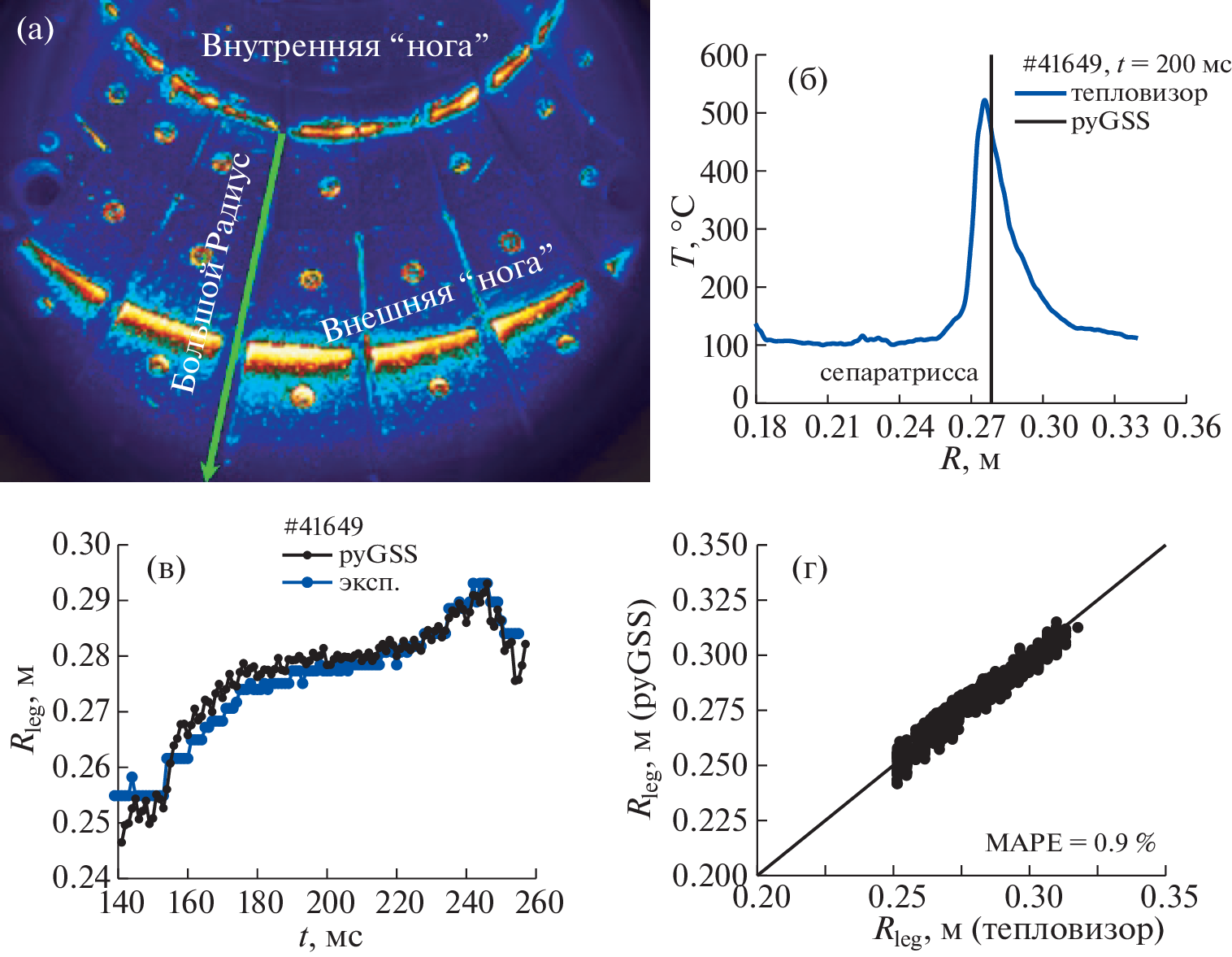

thermal plasma energy, position of the separatrix outer leg, the diamagnetic-loop signal, etc.

Keywords

spherical tokamak, high-temperature plasma, equilibrium, Grad–Shafranov equation

References

Shafranov V.D. // JETP. 1958. V. 33. P. 710.
Grad H., Rubin H. // Proc. 2nd Int. Conf. on the Peaceful Uses of Atomics Energy. 1958. V. 31 P. 1901.
Hawryluk R. // Course on Physics of Plasma Close to Thermonuclear Conditions. Varenna, Italy 1979.
Pereverzev G.V., Yushmanov P.N. // IPP-Report. 2002. IPP 5/98.
Dannert T., Jenko F. // Phys. Plasmas. 2005. V. 12. P. 072309.
Peeters A.G., Camenen Y., Casson F.J., Hornsby W.A., Snodin A.P., Strintzi D., Szepesi G. // Computer Phys. Communications. 2009. V. 180. P. 2650.https://doi.org/10.1016/j.cpc.2009.07.001
Luetjens H., Bondeson A., Sauter O. // Computer Phys. Communications. 1996. V. 97. P. 219.
Lao L.L., John H. St., Stambaugh R.D., Kellman A.G., Pfeiffer W. // Nuclear Fusion. 1985. V. 25. P. 1611.
Иванов А.А., Мартынов А.А., Медведев С.Ю., Пошехонов Ю.Ю., Коновалов С.В., Хайрутдинов Р.Р. // ВАНТ. Сер. Термоядерный синтез. 2014. Т. 37. В. 1.
Jardin S.C., Pomphrey N., Delucia J. // J. Computational Phys. 1986. V. 66. P. 481.
Masayoshi S., Lukash V., Khayrutdinov R., Neyatani Y. // Plasma Phys. Control. Fusion. 2004. V. 46. P. 1581.
Crotinger J., LoDestro L., Pearlstein L., Tarditi A., Cas-per T., Hooper E. // LLNL Report UCRL-ID126284, available from NTIS #PB2005-102154. 1997.
Bonnin X., Dekeyser W., Pitts R., Coster D. // Plasma Fusion Res. 2016. V. 11. P. 1403102.
Dudson B.D., Umansky M.V., Xu X.Q., Snyder P.B., Wilson H.R. // Commun. Comput. Phys. 2009. V. 180. P. 1467.
Pankin A., McCune D., Andre R., Bateman G., Kritz A. // Computer Phys. Communications. 2004. V. 159. P. 157.
Geiger B., Stagner L., Heidbrink W.W., Dux R., Fi-scher R., Fujiwara Y., Garcia A.V., Jacobsen A.S., Vuu-ren A. Jansen van, Karpushov A.N., Liu D., Schnei-der P.A., Sfiligoi I., Poloskei P.Zs., Weiland M. // Plasma Phys. Control. Fusion. 2020. V. 62 P. 105008.
https://github.com/D3DEnergetic/FIDASIM.
Гусев В.К., Голант В.Е., Гусаков Е.З., Дьяченко В.В., Ирзак М.А., Минаев В.Б., Мухин Е.Е., Новохац-кий А.Н., Подушникова К.А., Раздобарин Г.Т., Сахаров Н.В., Трегубова Е.Н., Узлов В.С., Щербинин О.Н., Беляков В.А., Кавин А.А., Косцов Ю.А., Кузьмин Е.Г., Сойкин В.Ф., Кузнецов Е.А., Ягнов В.А. // ЖТФ. 1999. Т. 69. С. 58.
Gusev V.K., Bakharev N.N., Belyakov V.A., Ber B.Y., Bondarchuk E.N., Bulanin V.V., Bykov A.S., Cherny-shev F.V., Demina E.V., Dyachenko V.V., Goncharov P.R., Gorodetsky A.E., Gusakov E.Z., Iblyaminova A.D., Iva-nov A.A., Irzak M.A., Kaveeva E.G., Khitrov S.A., Khokhlov M.V., Khromov N.A., Kolmogorov V.V., Kor-nev V.A., Krasnov S.V., Kurskiev G.S., Labusov A.N., Lepikhov S.A., Litunovsky N.V., Mazul I.V., Melnik A.D., Mikov V.V., Minaev V.B., Mineev A.B., Mironov M.I., Miroshnikov I.V., Mukhin E.E., Novokhatsky A.N., Ovsyannikov A.D., Patrov M.I., Petrov A.V., Petrov Yu.V., Rozhansky V.A., Sakharov N.V., Saveliev A.N., Senichenkov I.Yu., Sergeev V.Yu., Shchegolev P.B., Shcherbi-nin O.N., Shikhovtsev I.V., Tanaev V.S., Tanchuk V.N., Tolstyakov S.Y., Varfolomeev V.I., Vekshina E.O., Voronin A.V., Voskoboinikov S.P., Wagner F., Yashin A.Y., Zadvitskiy G.V., Zakharov A.P., Zalavutdinov R.K., Zhi-lin E.G. // Plasma Phys. Control. Fusion. 2015. V. 58. P. 014032.https://doi.org/10.1088/0029-5515/55/10/104016
Minaev V.B., Gusev V.K., Sakharov N.V., Varfolomeev V.I., Bakharev N.N., Belyakov V.A., Bondarchuk E.N., Brunkov P.N., Chernyshev F.V., Davydenko V.I., Dyachen-ko V.V., Kavin A.A., Khitrov S.A., Khromov N.A., Kise-lev E.O., Konovalov A.N., Kornev V.A., Kurskiev G.S., Labusov A.N., Melnik A.D., Mineev A.B., Mironov M.I., Miroshnikov I.V., Patrov M.I., Petrov Yu.V., Rozhan-sky V.A., Saveliev A.N., Senichenkov I.Yu., Shchego-lev P.B., Shcherbinin O.N., Shikhovtsev I.V., Sladkomedova A.D., Solokha V.V., Tanchuk V.N., Telnova A.Yu., Tokarev V.A., Tolstyakov S.Yu., Zhilin E.G. // Nuclear Fusion. 2017. V. 57. P. 066047.https://doi.org/10.1088/1741-4326/aa69e0
Vasiliev V.I., Kostsov Yu.A., Lobanov K.M., Makaro-va L.P., Mineev A.B., Gusev V.K., Levin R.G., Petrov Yu.V., Sakharov N.V. // Nuclear Fusion. 1997. V. 46. P. S625.
Jeon Y.M. // J. Korean Phys. Society. 2015. V. 67. P. 843. https://doi.org/10.3938/jkps.67.843
https://github.com/freegs-plasma/freegs.
Galkin S.A., Ivanov A.A., Medvedev S.Yu., Poshekhonov Yu.Yu. // Nuclear Fusion. 1997. V. 37. P. 1455.
Курскиев Г.С., Жильцов, Коваль А.Н., Корнев А.Ф., Макаров А.М., Мухин Е.Е., Петров Ю.В., Саха-ров Н.В., Соловей В.А., Ткаченко Е.Е., Толстяков С.Ю., Чернаков П.В. // Письма в ЖТФ. 2021. Т. 47. С. 24.
Zhiltsov N.S. 2022 submitted to Nuclear Fusion.
Avdeeva G.F., Miroshnikov I.V., Bakharev N.N., Kurskiev G.S., Patrov M.I., Sergeev V.Yu., Schegolev P.B. // J. Phys.: Conf. Ser. 2016. V. 666. P. 012002.
Larionova M.M., Miroshnikov I.V., Gusev V.K., Mina-ev V.B., Patrov M.I., Petrov Yu.V., Sakharov N.V., Schegolev P.B., Telnova A.Yu., Bakharev N.N. // J. Phys.: Conf. Ser. 2019. V. 1400. P. 077018.https://doi.org/10.1088/1742-6596/1400/7/077018
Тельнова А.Ю., Мирошников И.В., Митранкова М.М., Бахарев Н.Н., Гусев В.К., Жильцов Н.С., Киселев Е.О., Курскиев Г.С., Минаев В.Б., Петров Ю.В., Саха-ров Н.В., Щеголев П.Б., Тюхменева Е.А. // Письма ЖТФ. 2021. Т. 47. С. 25.https://doi.org/10.21883/PJTF.2021.09.50903.18618
Petrov Yu.V., Gusev V.K., Sakharov N.V., Minaev V.B., Varfolomeev V.I., Dyachenko V.V., Balachenkov I.M., Bakharev N.N., Bondarchuk E.N., Bulanin V.V., Chernyshev F.V., Iliasova M.V., Kavin A.A., Khilkevitch E.M., Khromov N.A., Kiselev E.O., Konovalov A.N., Kor-nev V.A., Krikunov S.V., Kurskiev G.S., Melnik A.D., Miroshnikov I.V., Novokhatskii A.N., Zhiltsov N.S., Patrov M.I., Petrov A.V., Ponomarenko A.M., Shulyati-ev K.D., Shchegolev P.B., Shevelev A.E., Skrekel O.M., Telnova A.Yu., Tukhmeneva E.A., Tokarev V.A., Tolstyakov S.Yu., Voronin A.V., Yashin A.Yu., Bagryansky P.A., Zhilin E.G., Goryainov V.A. // Nuclear Fusion. 2022. V. 62. P. 042009.https://doi.org/10.1088/1741-4326/ac27c7
Днестровский Ю.Н., Костомаров Д.П. Математическое моделирование плазмы // М., Наука, 1982.
Sabbagh S.A., Kayeb S.M., Menardb J., Paolettia F., Bellb M., Bellb R.E., Bialeka J.M., Bitterb M., Fredricksonb E.D., Gatesb D.A., Glasserc A.H., Kugelb H., Laod L.L., LeBlancb B.P., Maingie R., Maquedac R.J., Mazzucatob E., Muellerb D., Onob M., Paulb S.F., Penge M., Skinnerb C.H., Stutmanf D., Wurdenc G.A., Zhua W., NSTX Research Team // Nuclear Fusion. 2001. V. 41. P.1601.
Kreyszig E. Advanced Engineering Mathematics, 8th Edition. John Wiley & Sons, 1998.
Tikhonov A.N., Arsenin V.Y. Solutions of Ill-posed Problems. Washington: Winston and Sons, 1977.
Johnson J.L., Dalhed H.E., Greene J.M., Grimm R.C., Hsieh Y.Y., Jardin S.C., Manickam J., Okabayashi M., Storer R.G., Todd A.M.M., Voss D.E., Weimer K.E. // J. Comp. Phys. 1979. V. 32. P. 212.
https://github.com/bayesian-optimization/BayesianOptimization.
https://w3.pppl.gov/ntcc/TORAY/G_EQDSK.pdf.
