Real-Time Plasma Magnetic Control System
with Equilibrium Reconstruction Algorithm in the Feedback
for the Globus-M2 Tokamak

A. E. Konkov; Коньков А. Е.; P. S. Korenev; Коренев П. С.; Yu. V. Mitrishkin; Митришкин Ю. В.; I. M. Balachenkov; Балаченков И. М.; E. O. Kiselev; Киселев Е. О.

doi:10.31857/S0367292123600760

Real-Time Plasma Magnetic Control System with Equilibrium Reconstruction Algorithm in the Feedback for the Globus-M2 Tokamak

作者: Konkov A.E.¹, Korenev P.S.¹, Mitrishkin Y.V.¹^,2, Balachenkov I.M.³, Kiselev E.O.³
隶属关系:
1. Trapeznikov Institute of Control Sciences, Russian Academy of Sciences
2. Moscow State University
3. Ioffe Institute, Russian Academy of Sciences
期: 卷 49, 编号 12 (2023)
页面: 1348-1356
栏目: TOKAMAKS
URL: https://journals.rcsi.science/0367-2921/article/view/233148
DOI: https://doi.org/10.31857/S0367292123600760
EDN: https://elibrary.ru/APGEWX
ID: 233148

如何引用文章

全文:

详细
作者简介
参考
补充文件
统计

详细

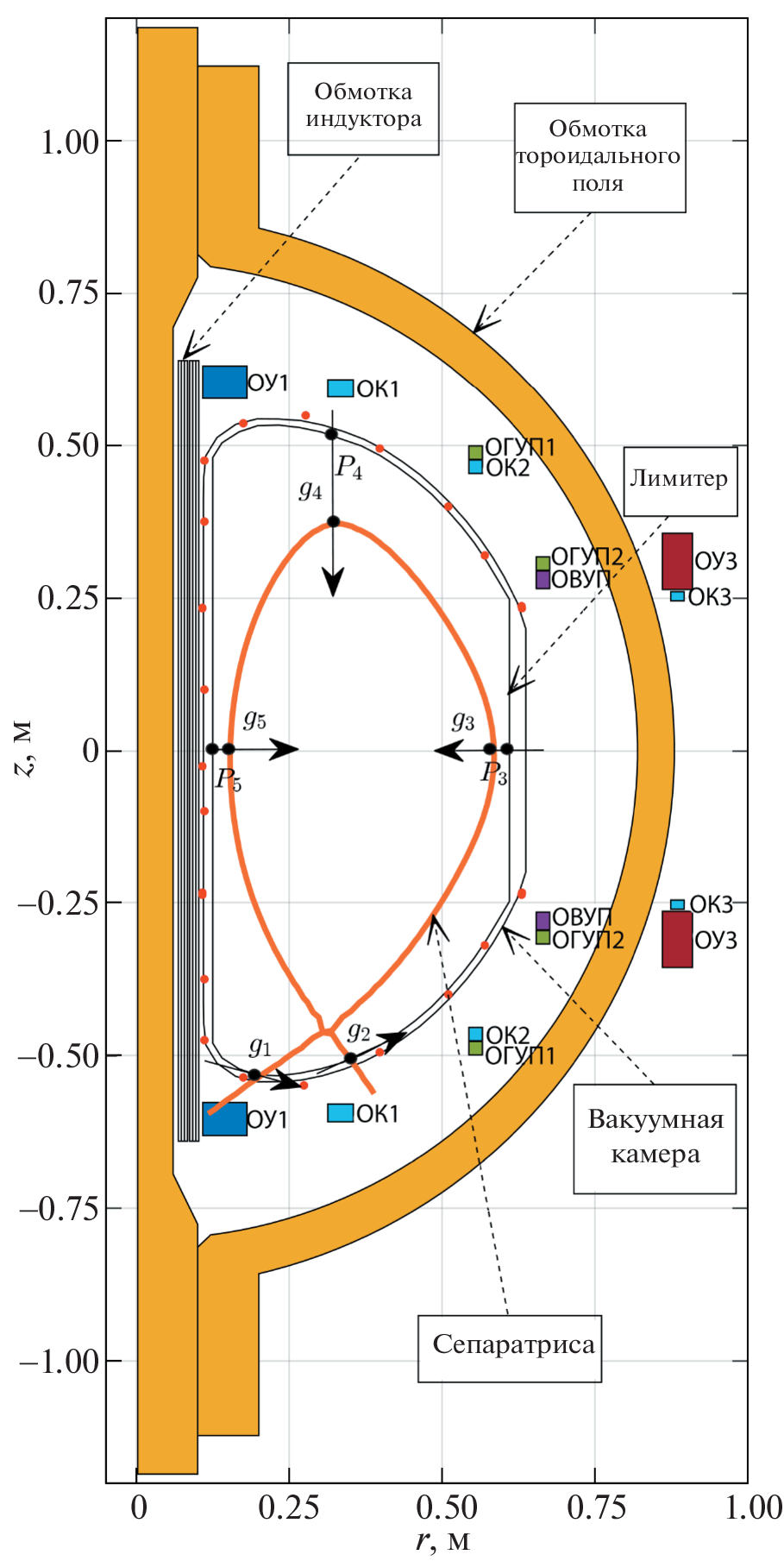

To control the plasma shape during a tokamak discharge, it is necessary to calculate the plasma
shape in real-time. The rate requirements for the shape calculations are especially high for tokamaks with a

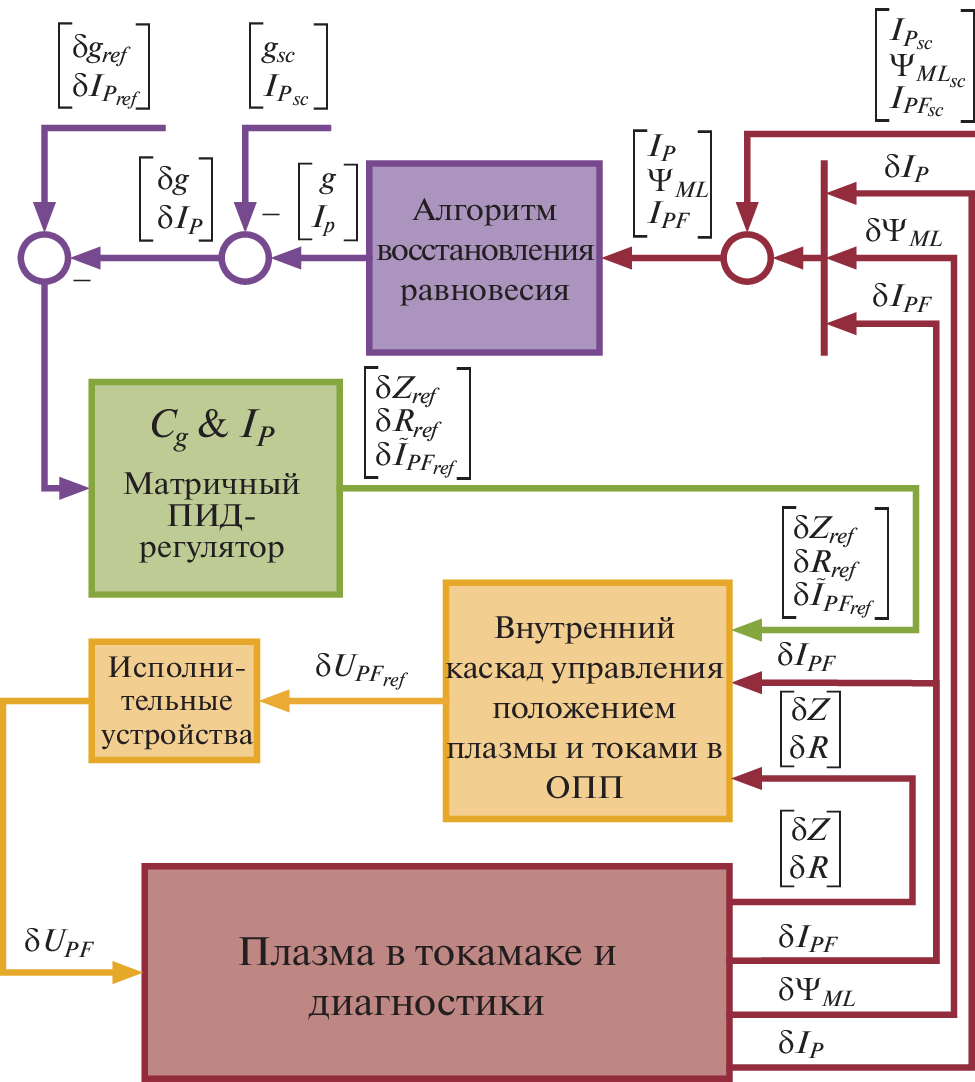

small radius, such as Globus-M2 (St. Petersburg, Russia). A real-time magnetic plasma control system for
the Globus-M2 tokamak with flux and current distribution identification (FCDI) algorithm for the plasma

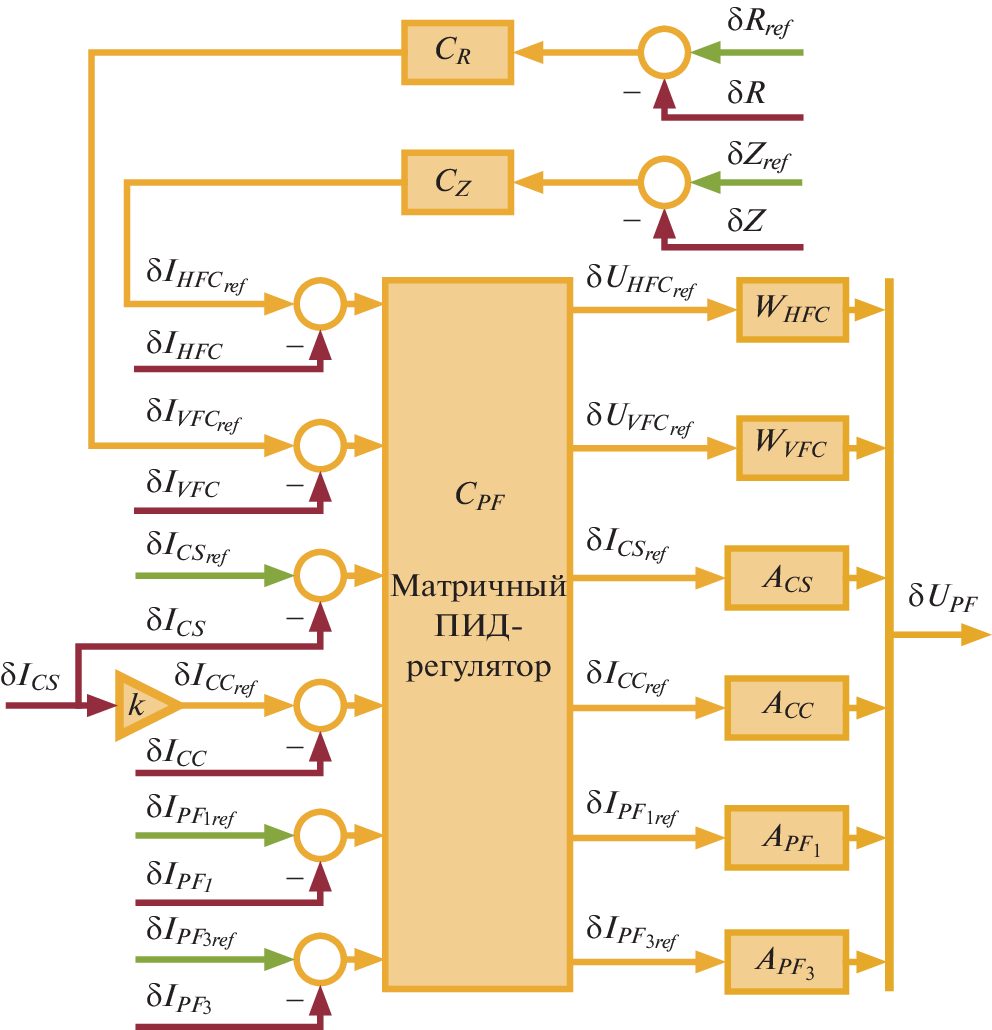

equilibrium reconstruction in feedback is presented. The control system contains discrete one-dimensional
and matrix proportional-integral-derivative controllers synthesized by the matrix inequality method using
the plasma LPV model calculated on experimental data, and carries out the coordinated control of the plasma
position and shape as well as the compensation for the scattered field of the central solenoid. The FCDI algorithm

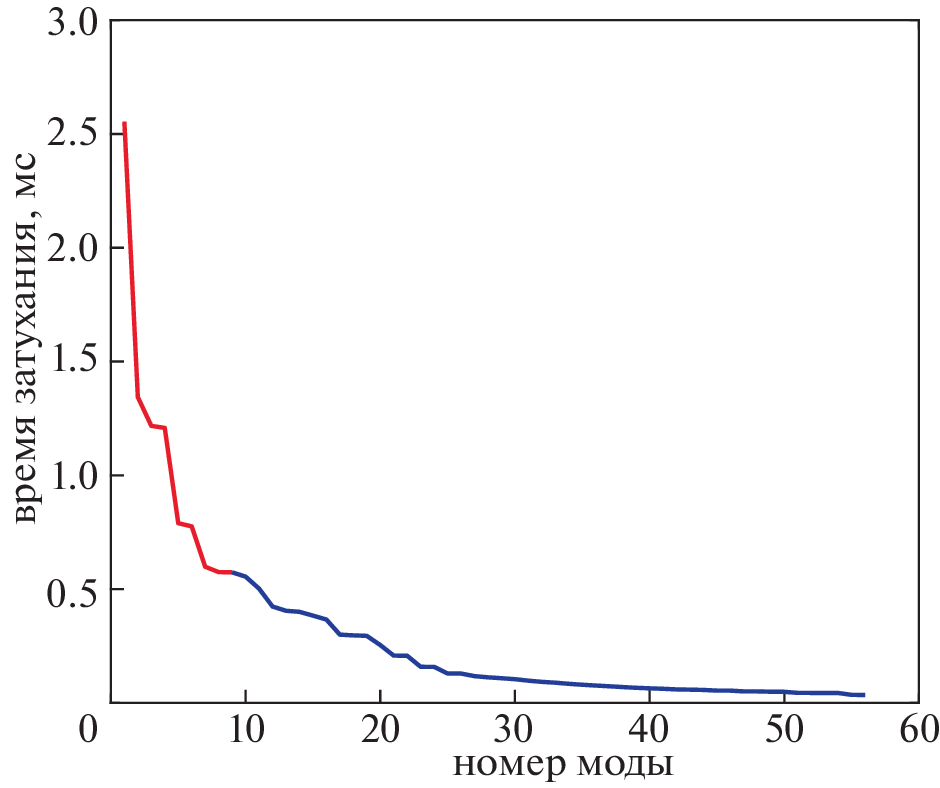

is improved for the operation in the real-time mode, and makes it possible to reconstruct the plasma

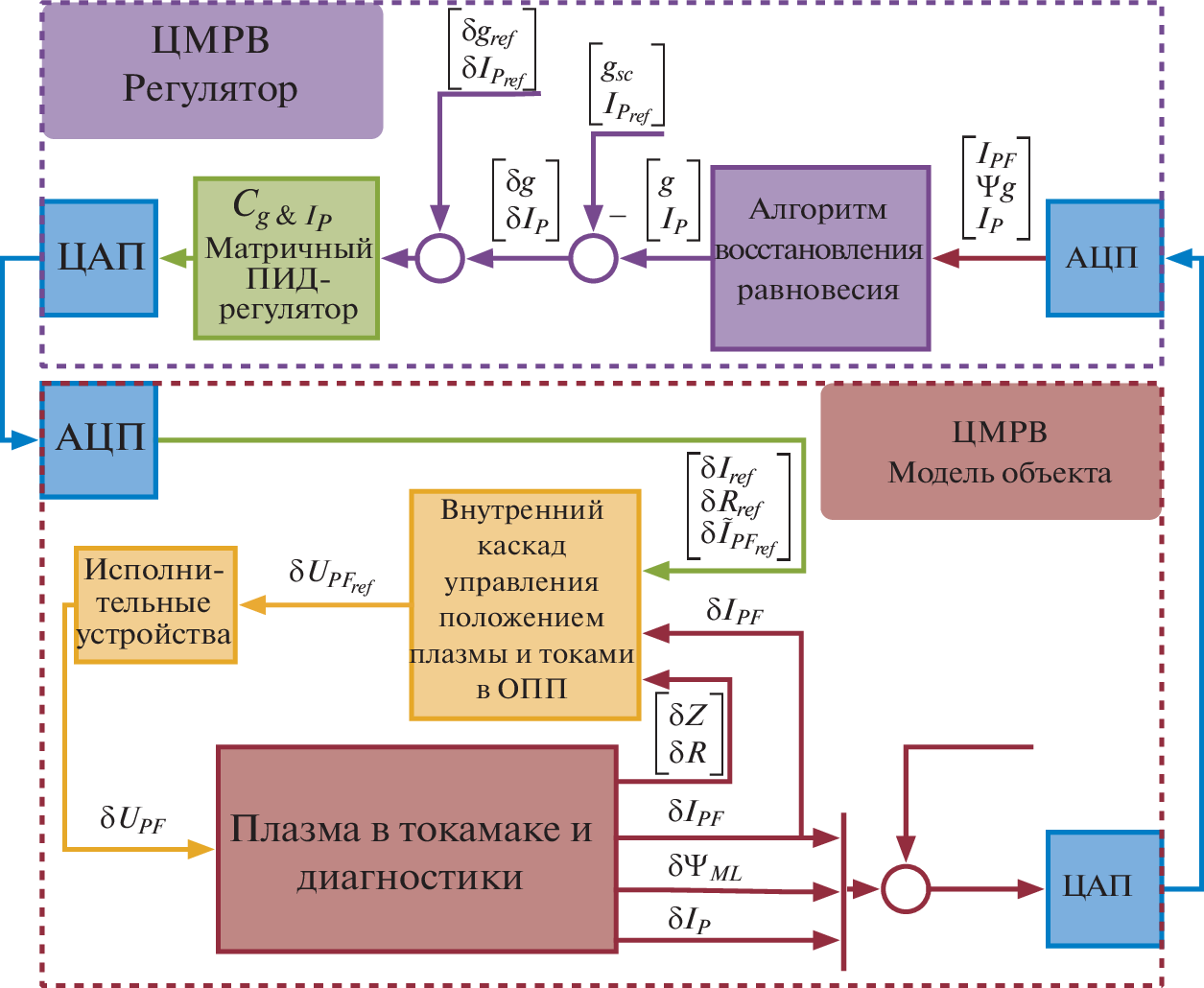

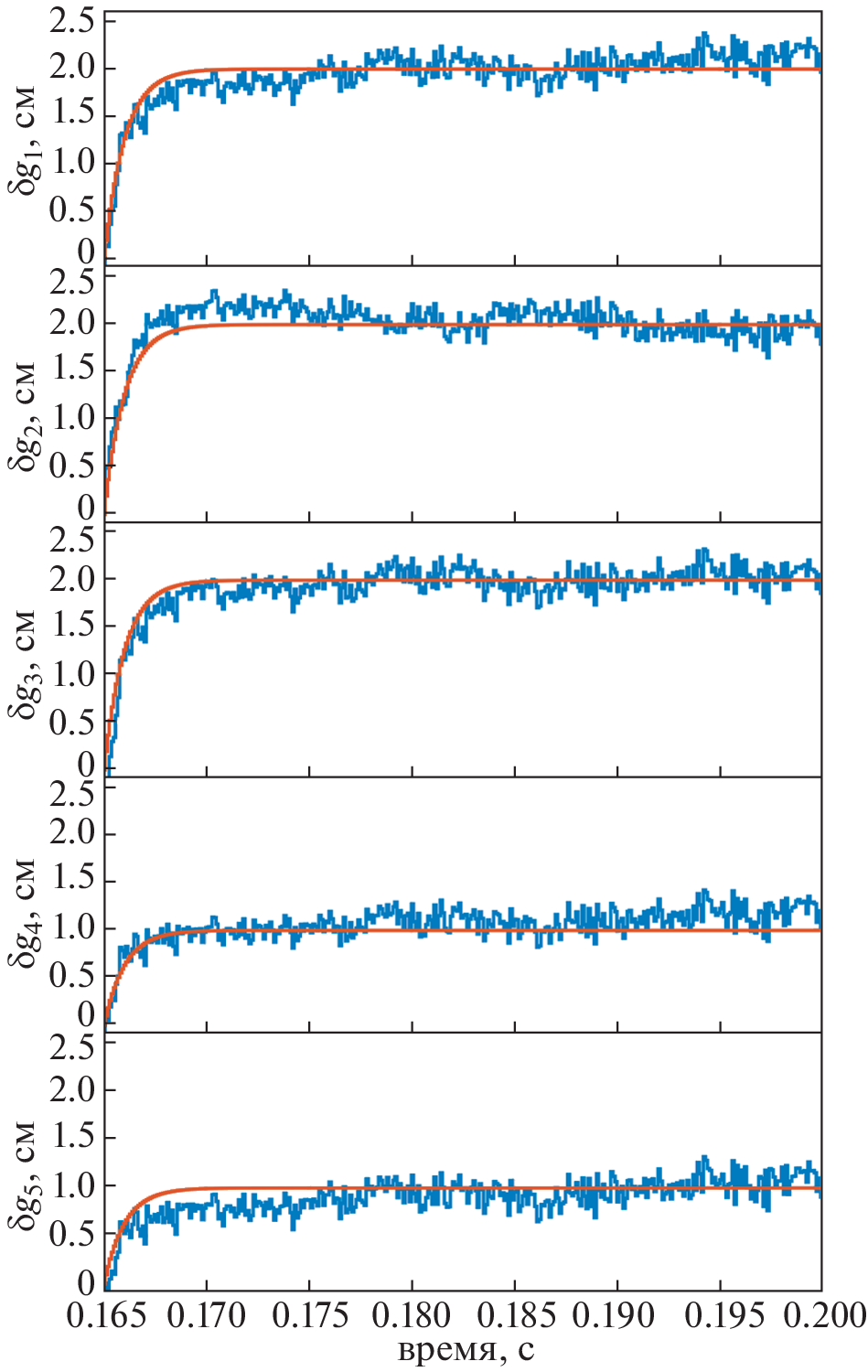

shape in 20 μs. The digital control system with a feedback algorithm was simulated on a real-time test bench,
consisting of two Speedgoat Performance Real-Time Target Machines (RTTM), and demonstrated the average
Task Execution Time (TET) value in 67 μs.

参考

Ferron J., Walker M., Lao L., John H.S., Humphreys D., Leuer J. // Nuclear Fusion. 1998. T. 38. C. 1055. https://doi.org/10.1088/0029-5515/38/7/308
Moret J.-M., Duval B., Le H., Coda S., Felici F., Reimerdes H. // Fusion Engineering and Design. 2015. T. 91. C. 1. https://doi.org/10.1016/j.fusengdes.2014.09.019
Huang Y., Xiao B., Luo Z., Yuan Q. // Fusion Engineering and Design. 2018. T. 128. C. 82. https://doi.org/10.1016/j.fusengdes.2018.01.043
Minaev V.B., Gusev V.K., Sakharov N.V., Varfolome-ev V.I. // Nuclear Fusion. 2017. T. 57. C. 066047. https://doi.org/10.1088/1741-4326/aa69e0
Коренев П.С., Коньков А.Е., Митришкин Ю.В., Балаченков И.М., Киселев Е.О., Минаев В.Б., Сахо-ров Н.В., Петров Ю.В. // Письма ЖТФ. 2023. Т. 49. С. 36. https://doi.org/10.21883/PJTF.2023.07.54920.19468
Mitrishkin Y.V., Korenev P.S., Kartsev N.M., Kuzne-tsov E.A., Prokhorov A.A., Patrov M.I. // Control Engineering Practice. 2019. T. 87. C. 97. https://doi.org/10.1016/j.conengprac.2019.03.018
Mitrishkin Y.V., Prokhorov A.A., Korenev P.S., Pat-rov M.I. // Control Engineering Practice. 2020. T. 100. C. 104446. https://doi.org/10.1016/j.conengpraс.2020.104446
Konkov A.E., Mitrishkin Y.V., Korenev P.S., Patrov M.I. // IFACPapersOnLine. 2020. T. 53. C. 7344. https://doi.org/10.1016/j.ifacol.2020.12.1000
Ariola M., Pironti A. Magnetic Control of Tokamak Plasmas. Springer International Publishing, 2016. https://doi.org/10.1007/978-3-319-29890-0
Wesson J., Campbell D. Tokamaks. Clarendon Press, 2004. (International series of monographs on physics).
Хайрутдинов Р.Р., Лукаш В.Э., Пустовитов В.Д. // Физика плазмы. 2021. Т. 47. С. 1007. https://doi.org/10.31857/s0367292121120039
Пустовитов В.Д. // Физика плазмы. 2019. Т. 45. С. 1088. https://doi.org/10.1134 / s0367292119120072
Swain D., Neilson G. // Nuclear Fusion. 1982. T. 22. C. 1015. https://doi.org/10.1088/0029-5515/22/8/002
Kuznetsov Y., Nascimento I., Galvao R., Yasin I. // Nuclear Fusion. 1998. T. 38. C. 1829. https://doi.org/10.1088/0029-5515/38/12/308
Forsythe G., Malcolm M.M.C. Computer methods for mathematical computations. USA, NJ: Englewood Cliffs, 1977.
Mitrishkin Y.V., Korenev P.S., Konkov A.E., Kruzhkov V.I., Ovsiannikov N.E. // Mathematics. 2021. T. 10. C. 40. https://doi.org/10.3390/math10010040
Boyd S., Hast M., Åström K.J. // Intern. J. Robust Nonlinear Control. 2016. T. 26. T. 1718. https://doi.org/10.1002/rnc.3376.11
Mitrishkin Y., Korenev P., Konkov A., Kartsev N., Smir-nov I. // Fusion Engineering and Design. 2022. T. 174. C. 112993. https://doi.org/10.1016/j.fusengdes.2021.112993
Konkov A.E., Mitrishkin Y.V. // IFAC-PapersOnLine. 2022. T. 55. C. 327. https://doi.org/10.1016/j.ifacol.2022.07.057
Митришкин Ю., Коньков А., Коренев П. // Устойчивость и колебания нелинейных систем управления (конференция Пятницкого): Материалы XVI Международной конференции. 2022. С. 286.
