The Study of Surface Sliding Discharge Interacting with an Oblique Shock Wave
- Authors: Mursenkova I.V.1, Ivanov I.E.1, Liao Y.1, Ziganshin A.F.1
-
Affiliations:
- Faculty of Physics, Moscow State University
- Issue: Vol 49, No 6 (2023)
- Pages: 600-606
- Section: НИЗКОТЕМПЕРАТУРНАЯ ПЛАЗМА
- URL: https://journals.rcsi.science/0367-2921/article/view/139577
- DOI: https://doi.org/10.31857/S0367292123600164
- EDN: https://elibrary.ru/VEYJSC
- ID: 139577
Cite item
Abstract

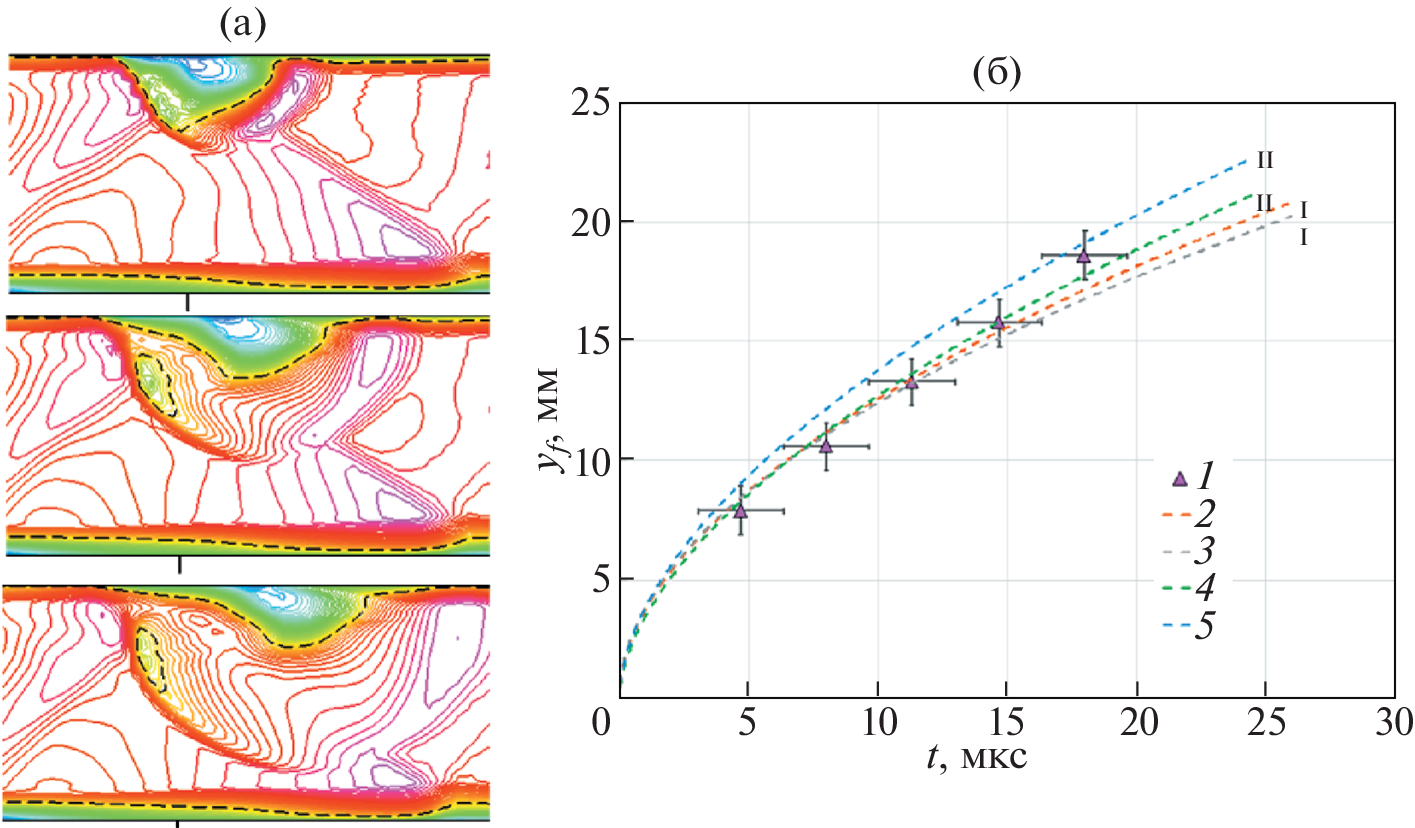

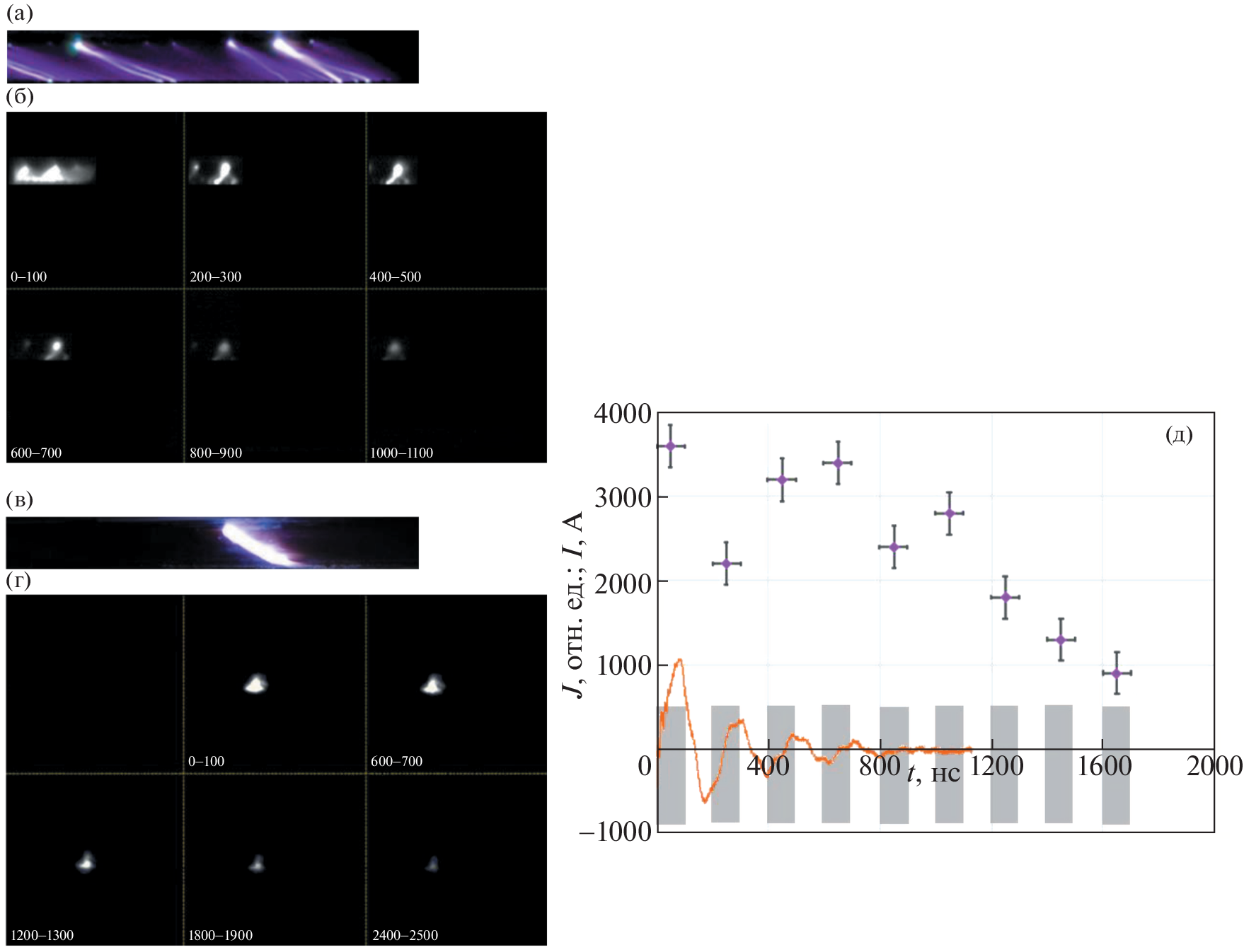

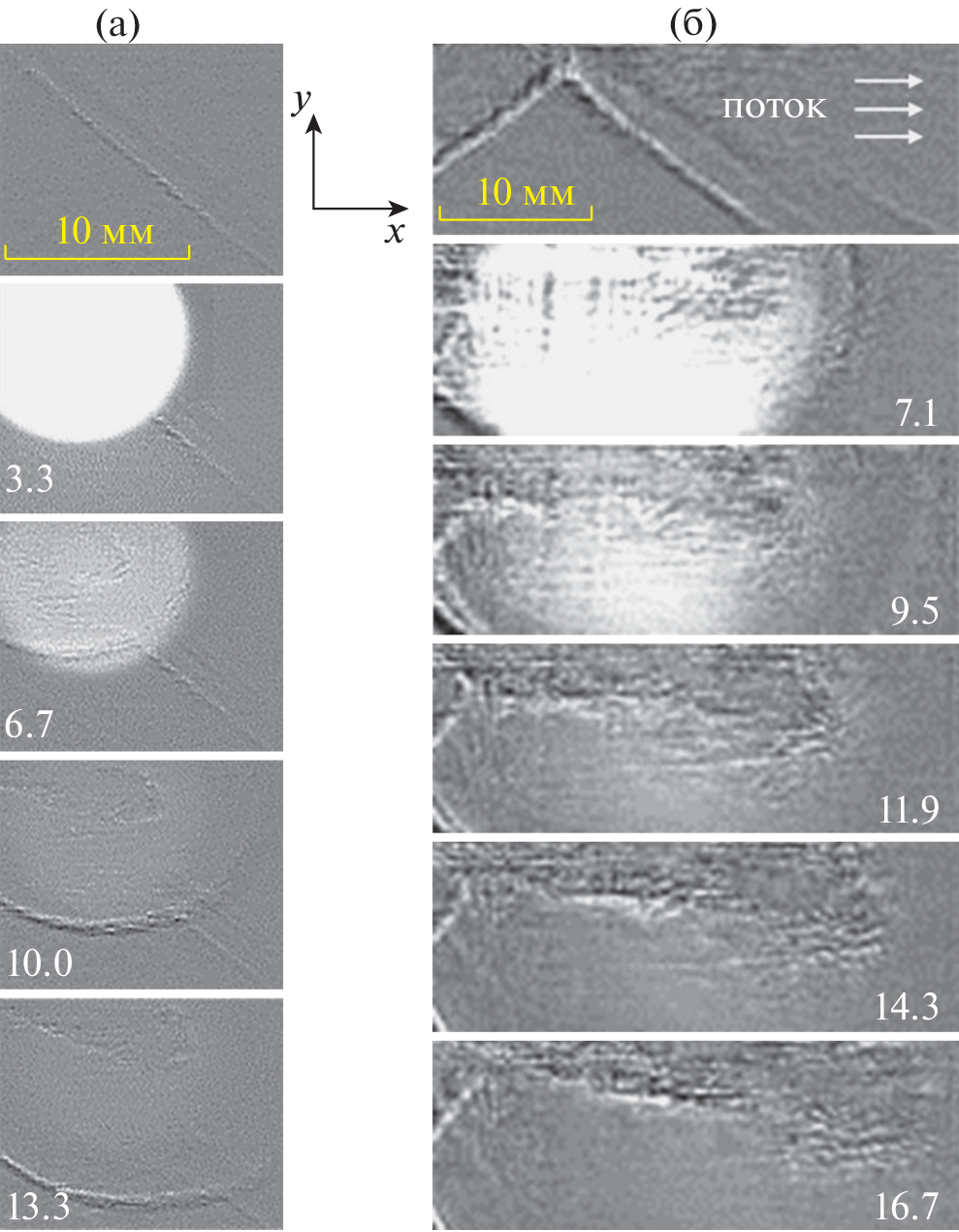

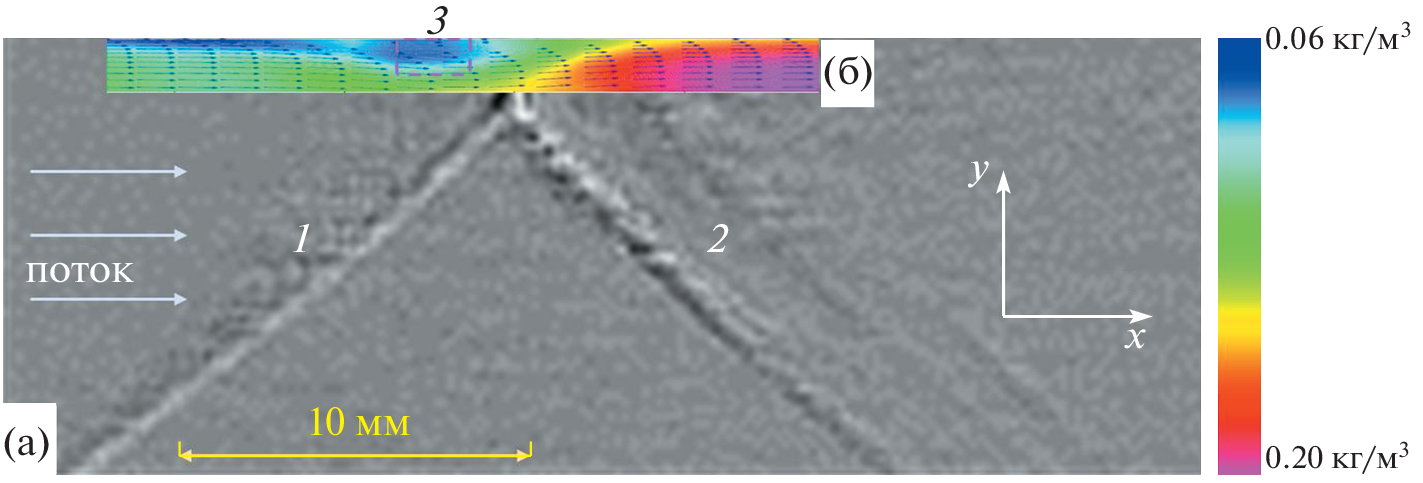

A distributed surface sliding discharge with a duration of 500 ns in supersonic air flows with an oblique shock wave had been experimentally studied. The Mach numbers of the flows were 1.18–1.68, the density was 0.02–0.45 kg/m3. The discharge was initiated in a single pulse mode. With a voltage of 25 kV, the discharge current was about 1 kA. It is shown that the discharge current, as well as the spatio-temporal characteristics of the radiation depend on the parameters of the local rarefaction zone in the boundary layer. In a stationary flow with an oblique shock wave, the discharge is generated as a single channel. Analysis of high-speed shadowgraphy of the flow after discharge showed that a single discharge channel generates a semi-cylindrical shock wave. The purpose of the work was to study the motion of the shock wave generated from the discharge under different conditions of supersonic flow. Comparison of the experimental dynamic of the shock wave with the results of numerical modelling of the flow based on the non-stationary Navier–Stokes equations showed that the value of the thermal energy released in the discharge channel is 0.15–0.36 J.
About the authors
I. V. Mursenkova
Faculty of Physics, Moscow State University
Email: murs_i@physics.msu.ru
119991, Moscow, Russia
I. E. Ivanov
Faculty of Physics, Moscow State University
Email: ivanovmai@gmail.com
119991, Moscow, Russia
Yu. Liao
Faculty of Physics, Moscow State University
Email: 565164346@qq.com
119991, Moscow, Russia
A. F. Ziganshin
Faculty of Physics, Moscow State University
Author for correspondence.
Email: ziganshin.af19@physics.msu.ru
119991, Moscow, Russia
References
- Leonov S.B., Adamovich I.V., Soloviev V.R. // Plasma Sources Sci. Technol. 2016. V. 25. 063001. https://doi.org/10.1088/0963-0252/25/6/063001
- Mursenkova I.V., Znamenskaya I.A., Lutsky A.E. // J. Phys. D.: Appl. Phys. 2018. V. 51. № 10.https://doi.org/10. 105201. 10.1088/1361-6463/aaa838
- Стариковский А.Ю., Александров Н.Л. // Физика плазмы. 2021. Т. 47. № 2. С. 126.
- Webb N., Clifford C., Samimy M. // Exp. Fluids. 2013. V. 54. 1545. https://doi.org/10.1007/s00348-013-1545-z
- Benard N., Moreau E. // Exp. Fluids. 2014. V. 55. 1846. https://doi.org/10.1007/s00348-014-1846-x
- Mursenkova I.V., Ivanov I.E., Liao Yu., Kryukov I.A. // Energies. 2022. V. 15. № 6. 2189. https://doi.org/10.3390/en15062189
- Mursenkova I.V., Kuznetsov A.Yu., Sazonov A.S. // Appl. Phys. Lett. 2019. V. 115. № 11. 114102. https://doi.org/10.1063/1.5116810
- Mursenkova I.V., Ivanov I.E., Ulanov P., Liao Yu., Sazonov A.S. // Journal of Physics: Conf. Ser. 2020. V. 1698. 012001. https://doi.org/10.1088/1742-6596/1698/1/012001
- Moreau E., Bayoda D., Benard N. // J. Appl. Phys. 2021. V. 54. 075207. https://doi.org/10.1088/1361-6463/abc44b
- Atanasov P.A., Vasilev S.G., Kovalyov I.O., Kuz’min G.P., Nesterenko A.A. // J. Phys. D: Appl. Phys. 1988. V. 21. P. 1750. https://doi.org/10.1088/0022-3727/21/12/014
- Борисов В.М., Демин А.И., Ельцов А.В., Нови-ков В.П., Христофоров О.Б. // Квантовая электроника. 1999. Т. 26. № 3. С. 204.
- Знаменская И.А., Латфуллин Д.Ф., Луцкий А.Е., Мурсенкова И.В., Сысоев Н.Н. // ЖТФ. 2007. Т. 77. № 5. С. 10.
- Liao Yu., Mursenkova I.V., Ivanov I.E., Znamen-skaya I.A., Sysoev N.N. // Physics of Fluids. 2020. V. 32. № 10. https://doi.org/10. 106108. 10.1063/5.0025319
- Знаменская И.А., Латфуллин Д.Ф., Луцкий А.Е., Мурсенкова И.В. // Письма в ЖТФ. 2010. Т. 36. № 17. С. 35.
- Глушко Г.С., Иванов И.Э., Крюков И.А. // Матем. моделирование. 2009. Т. 21. № 12. С. 103.
- Архипов Н.О., Знаменская И.А., Мурсенкова И.В., Остапенко И.Ю., Сысоев Н.Н. // Вестник Моск. ун-та. Сер. 3: Физ. астрон. 2014. Т. 1. С. 88.
- Brunet H., Vincent P. // J. Appl. Phys. 1979. V. 50. № 7. P. 4708. https://doi.org/10.1063/1.326527
- Райзер Ю.П. Физика газового разряда. М.: Наука, 1992.
- Попов Н.А. // Физика плазмы. 2011. Т. 37. № 9. С. 863.
