Estimation of Ejecta Thickness from Impact Craters in the South Polar Region of the Moon

A. S. Krasilnikov; Красильников А. С.; S. S. Krasilnikov; Красильников С. С.; M. A. Ivanov; Иванов М. А.; J. W. Head; Хэд Дж. У.

doi:10.31857/S0320930X23020044

Estimation of Ejecta Thickness from Impact Craters in the South Polar Region of the Moon

Authors: Krasilnikov A.S.¹, Krasilnikov S.S.¹, Ivanov M.A.¹, Head J.W.²
Affiliations:
1. Vernadsky Institute of Geochemistry and Analytical Chemistry, Russian Academy of Sciences, Moscow, Russia
2. Department of Earth, Environmental and Planetary Sciences, Brown University, Providence, RI, USA
Issue: Vol 57, No 2 (2023)
Pages: 124-135
Section: Articles
URL: https://journals.rcsi.science/0320-930X/article/view/134988
DOI: https://doi.org/10.31857/S0320930X23020044
EDN: https://elibrary.ru/NVUBEQ
ID: 134988

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

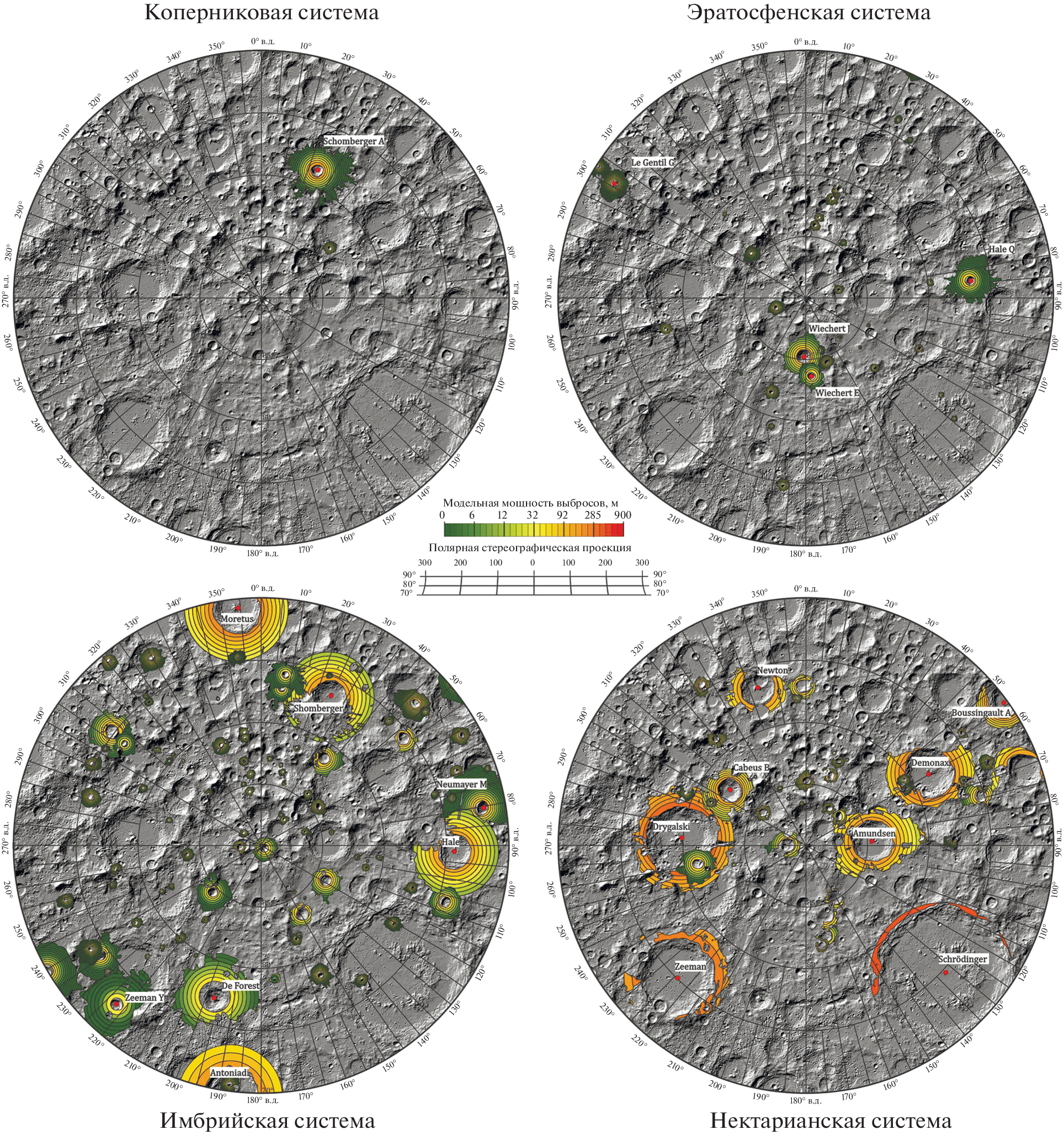

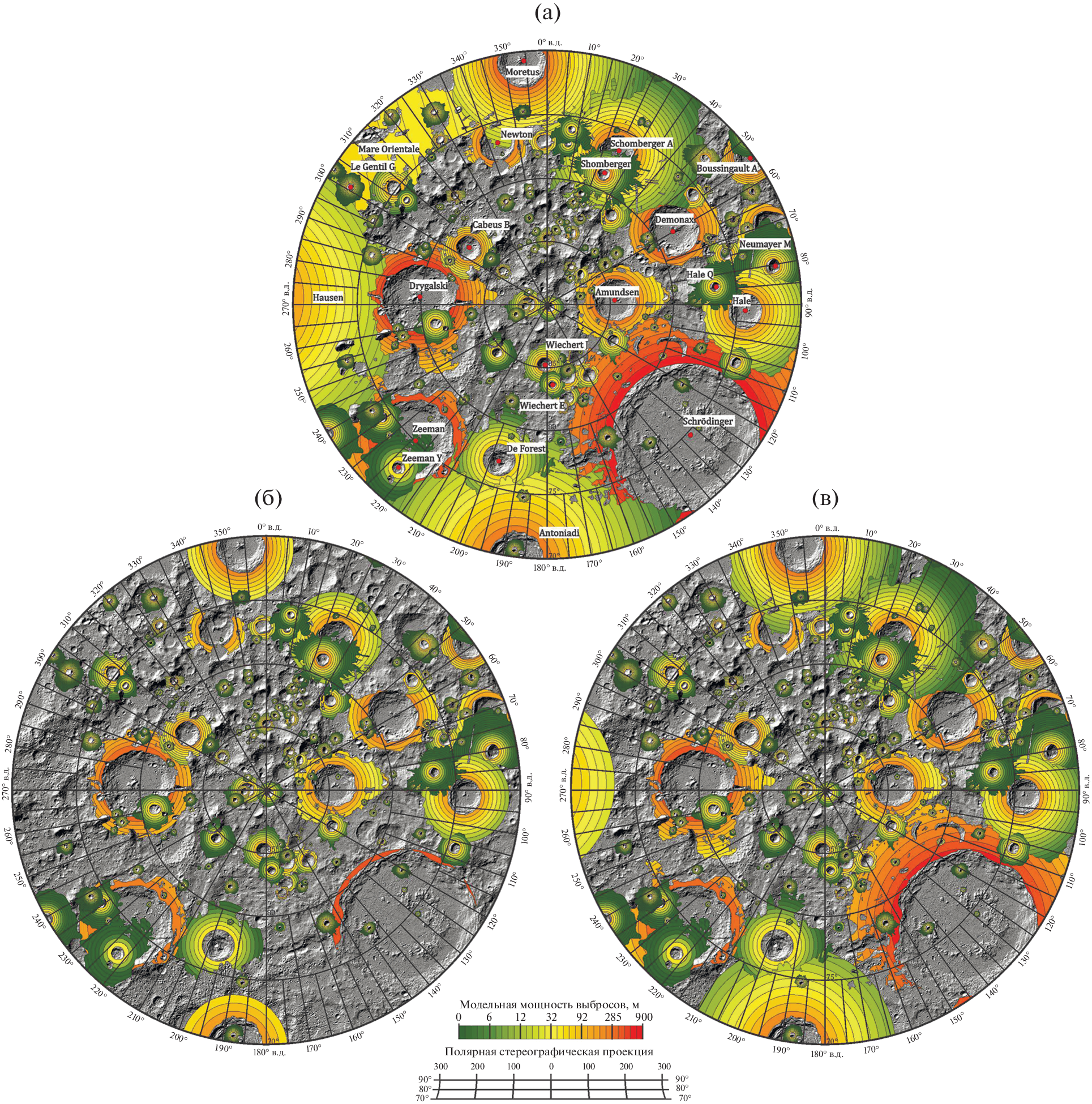

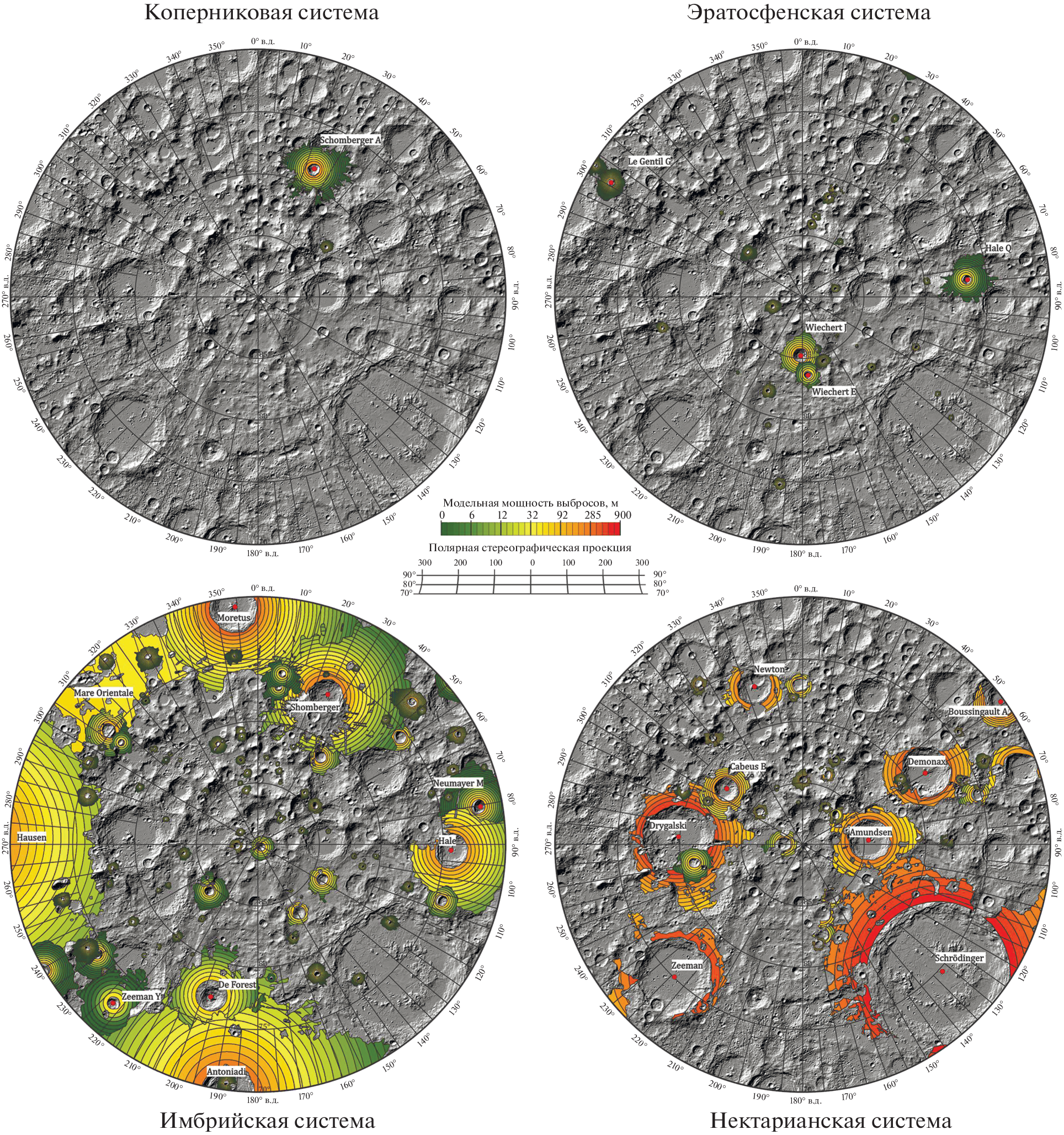

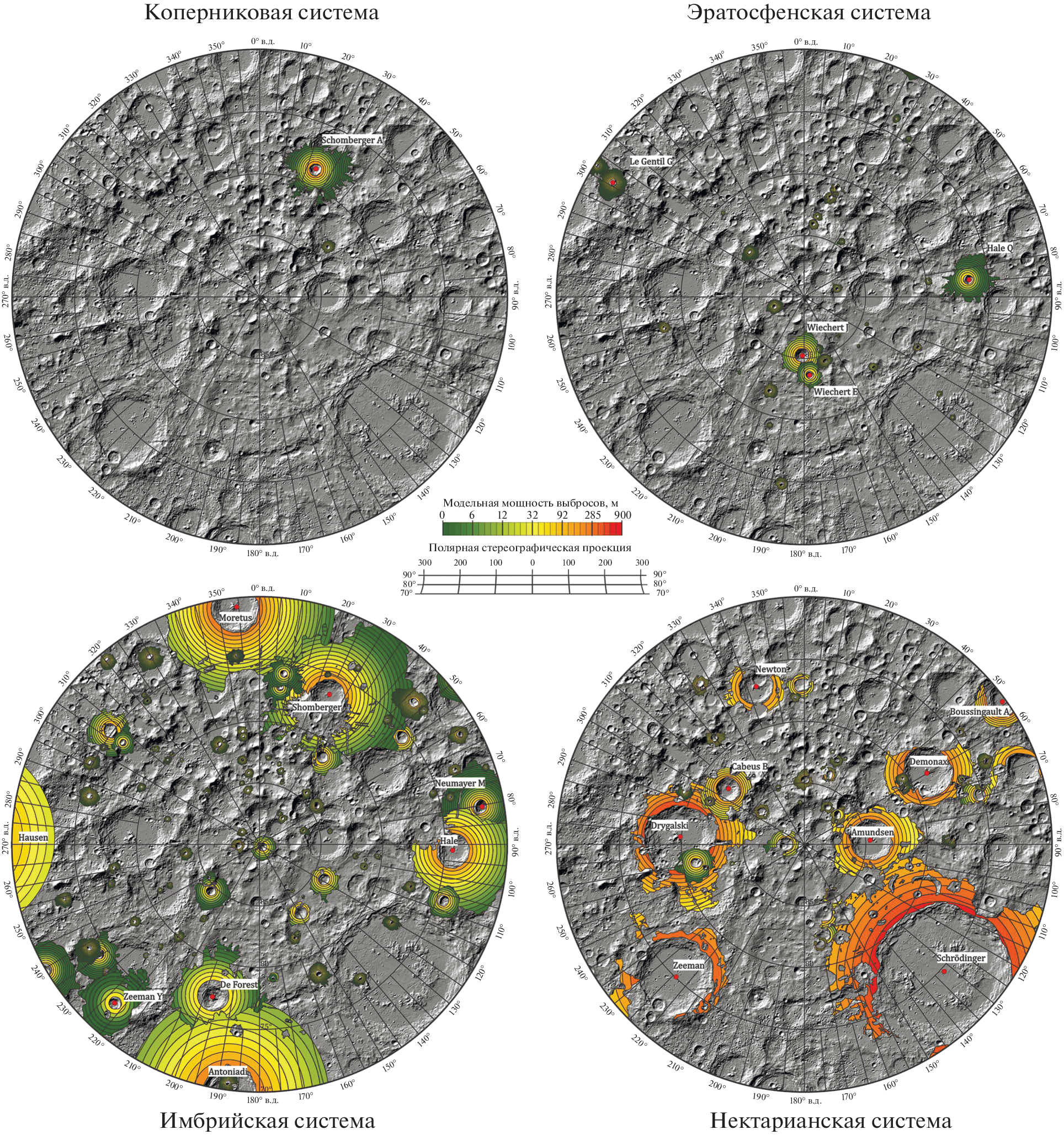

The paper presents the results of model calculations of impact craters ejecta thickness variations in the south polar region of the Moon from the south pole to 70° S for craters of Nectarian, Imbrian, Eratos thenian, and Copernican ages. This work does not consider pre-Nectarian craters since younger deposits often hide the boundaries of their ejecta. Housen, Sharpton and Fassett models were chosen to estimate the power. The first was used for craters larger than 45 km in diameter, the second for smaller craters (from 3 to 45 km), and the third for the Mare Orientale basin. During estimation, the mixing factor of ejecta with the underlying regolith (factor μ) was considered. As a result, maps of ejecta thicknesses were produced for the Moon’s south polar region. They provide an opportunity for quantitative estimation of the various aged impact events’ contribution to the formation of polar regolith and, accordingly, to determine the dominant source (sources) of material in a particular area, not least in the proposed landing sites.

Keywords

Moon, south pole, sediment thickness, secondary craters, ejecta, Luna-25

References

Красильников С.С., Красильников А.С., Иванов М.А. Геологическая детализация основных эллипсов посадки Луна-25 // Астрон. вестн. 2022. Т. 56. № 3. С. 147–157. (Krasilnikov S.S., Krasilnikov A.S., Ivanov M.A. Geological Details of the Main Landing Ellipses of Luna-25 // Sol. Syst. Res. 2022. V. 56. № 3. P. 135–144. https://doi.org/10.1134/S003809462202005810.1134/S0038094622020058)https://doi.org/10.31857/S0320930X22020050
Boynton W.V., Droege G.F., Mitrofanov I.G., McClanahan T.P., Sanin A.B., Litvak M.L., Schaffner M., Chin G., Evans L.G., Garvin J.B., Harshman K., Malakhov A., Milikh G., Sagdeev R., Starr R. High spatial resolution studies of epithermal neutron emission from the lunar poles: Constraints on hydrogen mobility // J. Geophys. Res. 2012. V. 117. E00H33. https://doi.org/10.1029/2011JE003979
Colaprete A., Schultz P., Heldmann J., Wooden D., Shirley M., Ennico K., Hermalyn B., Marshall W., Ricco A., Elphic R., Goldstein D., Summy D., Bart G., Asphaug E., Korycansky D., Landis D., Sollitt L. Detection of water in the LCROSS ejecta plume // Science. 2010. V. 330. P. 463–468. https://doi.org/10.1126/science.1186986
Fassett C.I., Head J.W., Smith D.E., Zuber M.T., Neumann G.A. Thickness of proximal ejecta from the Orientale Basin from Lunar Orbiter Laser Altimeter (LOLA) data: Implications for multi-ring basin formation // Geophys. Res. Lett. 2011. V. 38. Iss. 17. L17201. https://doi.org/10.1029/2011GL048502
Feldman W.C., Maurice S., Binder A.B., Barraclough B.L., Elphic R.C., Lawrence D.J. Fluxes of fast and epithermal neutrons from Lunar Prospector: Evidence for water ice at the lunar poles // Science. 1998. V. 281. P. 1496–1500. https://doi.org/10.1126/science.281.5382.1496
Feldman W.C., Elphic R.C., Barraclough B.L., Maurice S., Genetay I., Binder A.B. Polar hydrogen deposits on the Moon // J. Geophys. Res. 2000. V. 105. P. 4175–4195. https://doi.org/10.1029/1999JE001129
Feldman W.C., Maurice S., Lawrence D.J., Little R.C., Lawson S.L., Gasnault O., Wiens R.C., Barraclough B.L., Elphic R.C., Prettyman T.H., Steinberg J.T., Binder A.B. Evidence for water ice near the lunar poles // J. Geophys. Res. 2001. V. 106. P. 23231–23251. https://doi.org/10.1029/2000JE001444
Garrick-Bethell I., Zuber M.T. Elliptical structure of the lunar South Pole-Aitken basin // Icarus. 2009. V. 204. P. 399–408. https://doi.org/10.1016/j.icarus.2009.05.032
Hiesinger H., Head J.W., Wolf U., Jaumann R., Neukum G. Ages and stratigraphy of lunar mare basalts in Mare Frigoris andother nearside maria based on crater size-frequency distribution measurements // J. Geophys. Res. 2010. V. 115. P. 1–22. https://doi.org/10.1029/2009JE003380
Hiesinger H., van der Bogert C.H., Pasckert J.H., Schmedemann N., Robinson M.S., Jolliff B., Petro N. New crater size-frequency distribution measurements of the South Pole Aitken basin // LPSC 43. 2012. № 2863.
Housen K.R., Schmidt R.E., Holsapple K.A. Crater ejecta scaling laws: fundamental forms based on dimensional analysis // J. Geophys. Res. 1983. V. 88. Iss. B3. P. 2485–2499. https://doi.org/10.1029/JB088iB03p02485
Ivanov M.A., Abdrakhimov A.M., Basilevsky A.T., Demidov N.E., Guseva E.N., Head J.W., Hiesinger H., Kohanov A.A., Krasilnikov S.S. Geological characterization of the three high-priority landing sites for the Luna-Glob mission // Planet. and Space Sci. 2018. V. 162. P. 190–206. https://doi.org/10.1016/j.pss.2017.08.004
Korotev R.L. Some things we can infer about the Moon from the composition of the Apollo 16 regolith // Meteor. and Planet. Sci. 1997. V. 32. Iss. 4. P. 447–478. https://doi.org/10.1111/j.1945-5100.1997.tb01291
Krasilnikov S.S., Ivanov M.A., Head J.W. Geological map of the South pole of Moon // LPSC 52. 2021. № 1428.
Lucey P.G. Mineral maps of the Moon // Geophys. Res. Lett. 2004. V. 31. Iss. 8. L08701. https://doi.org/10.1029/2003GL019406
McGetchin T.R., Settle M., Head J.W. Radial thickness variation in impact crater ejecta: implications for lunar basin deposits // Earth and Planet. Sci. Lett. 1973. V. 20. Iss. 2. P. 226–236. https://doi.org/10.1016/0012-821X(73)90162-3
Melosh H.J. Impact Cratering: A Geologic Process. New York: Oxford Univ. Press, 1989. 253 p.
Melosh H.J., Kendall J., Horgan B., Johnson B.C., Bowling T., Lucey P.G., Taylor G.J. South Pole-Aitken basin ejecta reveal the Moon’s upper mantle // Geology. 2017. V. 45. № 12. P. 1063–1066. https://doi.org/10.1130/G39375.1
Mitrofanov I.G., Sanin A.B., Boynton W.V., Chin G., Garvin J.B., Golovin D., Evans L.G., Harshman K., Kozyrev A.S., Litvak M.L., Malakhov A., Mazarico E., McClanahan T., Milikh G., Mokrousov M., Nandikotkur G., Neumann G.A., Nuzhdin I., Sagdeev R., Shevchenko V., Shvetsov V., Smith D.E., Starr R., Tretyakov V.I., Trombka J., Usikov D., Varenikov A., Vostrukhin A., Zuber M.T. Hydrogen mapping of the Lunar South Pole using the LRO neutron detector experiment LEND // Science. 2010. V. 330. № 6003. P. 483–486. https://doi.org/10.1126/science.1185696
Mitrofanov I.G., Litvak I.M., Sanin A., Malakhov A., Golovin D., Boynton W., Droege G., Chin G., Evans L., Harshman K., Fedosov F., Garvin J., Kozyrev A., McClanahan T., Milikh G., Mokrousov M., Starr R., Sagdeev R., Shevchenko V., Shvetsov V., Tret’yakov V., Trombka J., Varenikov A., Vostrukhin A. Testing polar spots of water-rich permafrost on the Moon: LEND observations onboard LRO // J. Geophys. Res. 2012. V. 117. E00H27. https://doi.org/10.1029/2011JE003956
Neukum G. Different ages of lunar light plains // The Moon. 1977. V. 17. P. 383–393. https://doi.org/10.1007/BF00562647
Oberbeck V.R., Hörz F., Morrison R.H., Quaide W.L., Gault D.E. On the origin of the lunar smooth-plains // The Moon. 1975. V. 12. P. 19–54. https://doi.org/10.1007/BF02626332
Petro N.E., Pieters C.M. Modeling the provenance of the Apollo 16 regolith // J. Geophys. Res. 2006. V. 111. Iss. E9. P. 1–13. https://doi.org/10.1029/2005JE002559
Pike R.J. Ejecta from large craters on the Moon: Comments on the geometric model of McGetchin et al. // Earth and Planet. Sci. Lett. 1974. V. 23. Iss. 3. P. 265–271. https://doi.org/10.1016/0012-821X(74)90114-9
Sanin A.B., Mitrofanov I.G., Litvak M.L., Bakhtin B.N., Bodnarik J.G., Boynton W.V., Chin G., Evans L.G., Harshman K., Fedosov F., Golovin D.V., Kozyrev A.S., Livengood T.A., Malakhov A.V., McClanahan T.P., Mokrousov M.I., Starr R.D., Sagdeev R.Z., Tret’yakov V.I., Vostrukhin A.A. Hydrogen distribution in the lunar polar regions // Icarus. 2017. V. 283. P. 20–30. https://doi.org/10.1016/j.icarus.2016.06.002
Schultz P.H., Gault D.E. Clustered impacts: experiments and implications // J. Geophys. Res. 1985. V. 90. Iss. B5. P. 3701–3732. https://doi.org/10.1029/JB090iB05p03701
Sharpton V.L. Outcrops on lunar crater rims: Implications for rim construction mechanisms, ejecta volumes and excavation depths // J. Geophys. Res. 2014. V. 119. Iss. 1. P. 154–168.
Smith D.E., Zuber M.T., Jackson G.B., Cavanaugh J.F., Neumann G.A., Riris H., Sun X., Zellar R., Coltharp C., Connelly J., Katz R., Kleyner I., Liiva P., Matuszeski A., Mazarico E., McGarry J., Novo-Gradac A., Ott M., Peters C., Ramos-Izquierdo L., Ramsey L., Rowlands D., Schmidt S., Scott V., Shaw G., Smith J., Swinski J., Torrence M., Unger G., Yu A., Zagwodzki T. The Lunar Orbiter Laser Altimeter investigation on the Lunar Reconnaissance Orbiter mission // Space Sci. Rev. 2010. V. 150. P. 209–241. https://doi.org/10.1007/s11214-009-9512-y
Werner S.C. Major aspects of the chronostratigraphy and geologic evolutionary history of Mars // Ph. D. thesis. Berlin: Cuvilier, 2005.
Wilhelms D.E. Geologic mapping of the second planet. Pt 1: Rationale and general methods of Lunar geologic mapping // A Primer in Lunar Geology / Eds Greeley R., Schultz P. Ames Research Center NASA, 1974. P. 199–215.
Wilhelms D.E., Howard K.A., Wilshire H.G. Geologic map of the South side of the Moon // USGS Map I-1162. 1979. https://doi.org/10.3133/i1162
Wilhelms D.E., McCauley J.P., Trask N.J. The geologic history of the Moon // USGS Numbered Series. Professional Paper. 1987. V. 1348. 302 p. https://doi.org/10.3133/pp1348.
Yamamoto S., Nakamura R., Matsunaga T., Ogawa Y., Ishihara Y., Morota T., Hirata N., Ohtake M., Hiroi T., Yokota Y., Haruyama J. Possible mantle origin of olivine around lunar impact basins detected by SELENE // Nature Geosci. 2010. V. 3. P. 533–536. https://doi.org/10.1038/ngeo897
