The Two-Parameter Fracture Criterion Taking into Account Two-Dimensional Deformation Constraints at the Front of a Mixed-Type Crack

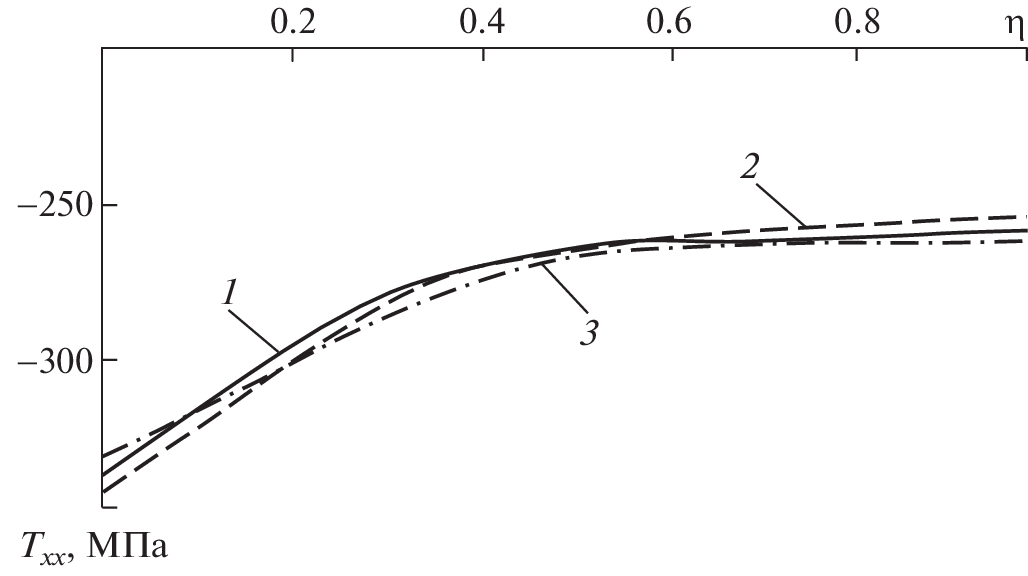

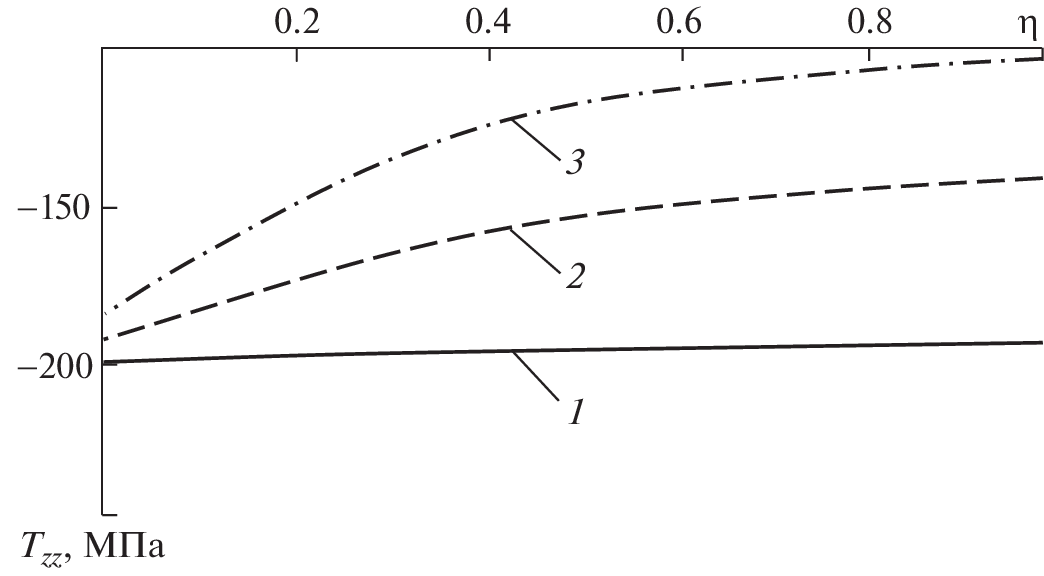

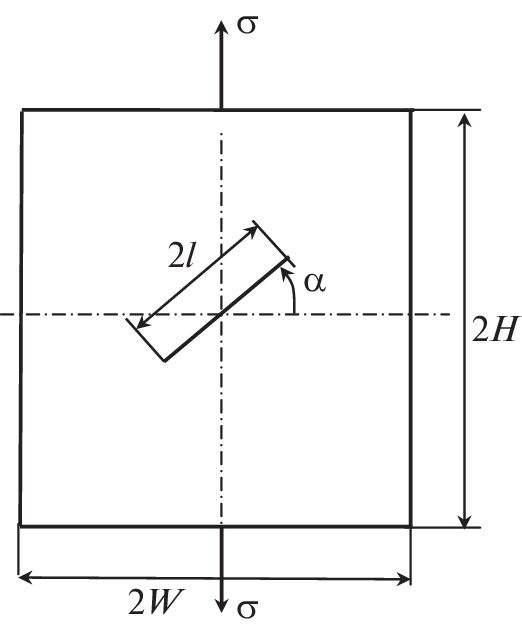

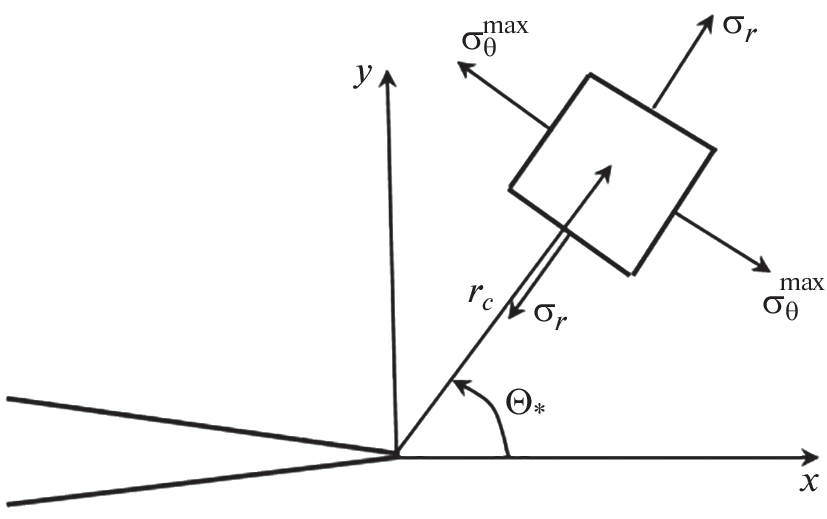

In this article, a new fracture criterion for a mixed-type crack (type I + type II) is proposed. It is based on the assumption that the maximum tangential stresses in the prefracture region are equal to the local strength of the material. In this case, the size of the prefracture area and the local strength are determined taking into account nonsingular Тхx and Тzz stresses included in the expansion of the Williams stress function. The use of Тхx and Тzz stresses in the calculations allows one to describe the two-dimensional local constraint of the deformation along the crack front in three-dimensional bodies. In addition to KI and KII, the expression for the effective stress intensity factor (SIF) includes the ratios of the Тхx and Тzz stresses to the yield strength. This makes it possible to take into account the constraint of deformations in the transverse and longitudinal directions of the crack front, respectively. An example of the implementation of the developed criterion in relation to the determination of the fracture load of a tensile-stressed plate with a through inclined crack is given. Dependences of the Тxx and Тzz stresses on the plate thickness are presented for various crack slopes and plate thicknesses. It is shown that an increase in the plate thickness and a decrease in the crack slope lead to a decrease in the fracture load.
