ELECTROREDUCTION OF NICKEL(II) CHLORIDE, COBALT(II) FLUORIDE AND MOLYBDENUM(VI) OXIDE MIXTURES IN A HEAT ACTIVATED BATTERY

O. V. Volkova; Волкова О. В.; V. V. Zakharov; Захаров В. В.; S. V. Pershina; Першина С. В.; B. D. Antonov; Антонов Б. Д.; A. A. Pankratov; Панкратов А. А.

doi:10.31857/S0235010623050110

ELECTROREDUCTION OF NICKEL(II) CHLORIDE, COBALT(II) FLUORIDE AND MOLYBDENUM(VI) OXIDE MIXTURES IN A HEAT ACTIVATED BATTERY

Authors: Volkova O.V.¹, Zakharov V.V.¹, Pershina S.V.¹, Antonov B.D.¹, Pankratov A.A.¹
Affiliations:
1. Institute of High-Temperature Electrochemistry of the Ural Branch of RAS
Issue: No 5 (2023)
Pages: 540-549
Section: Articles
URL: https://journals.rcsi.science/0235-0106/article/view/141799
DOI: https://doi.org/10.31857/S0235010623050110
EDN: https://elibrary.ru/YUNHEQ
ID: 141799

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

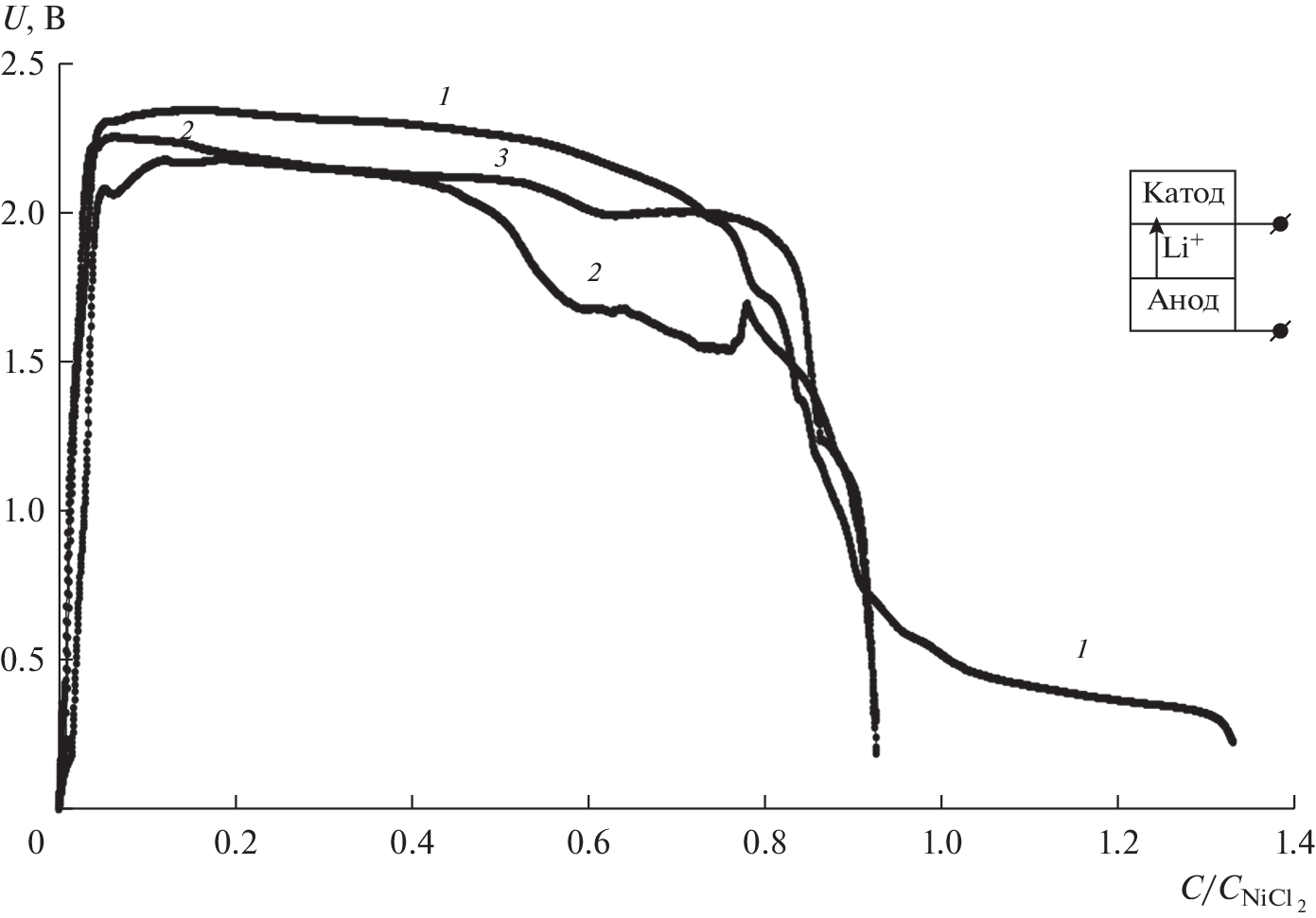

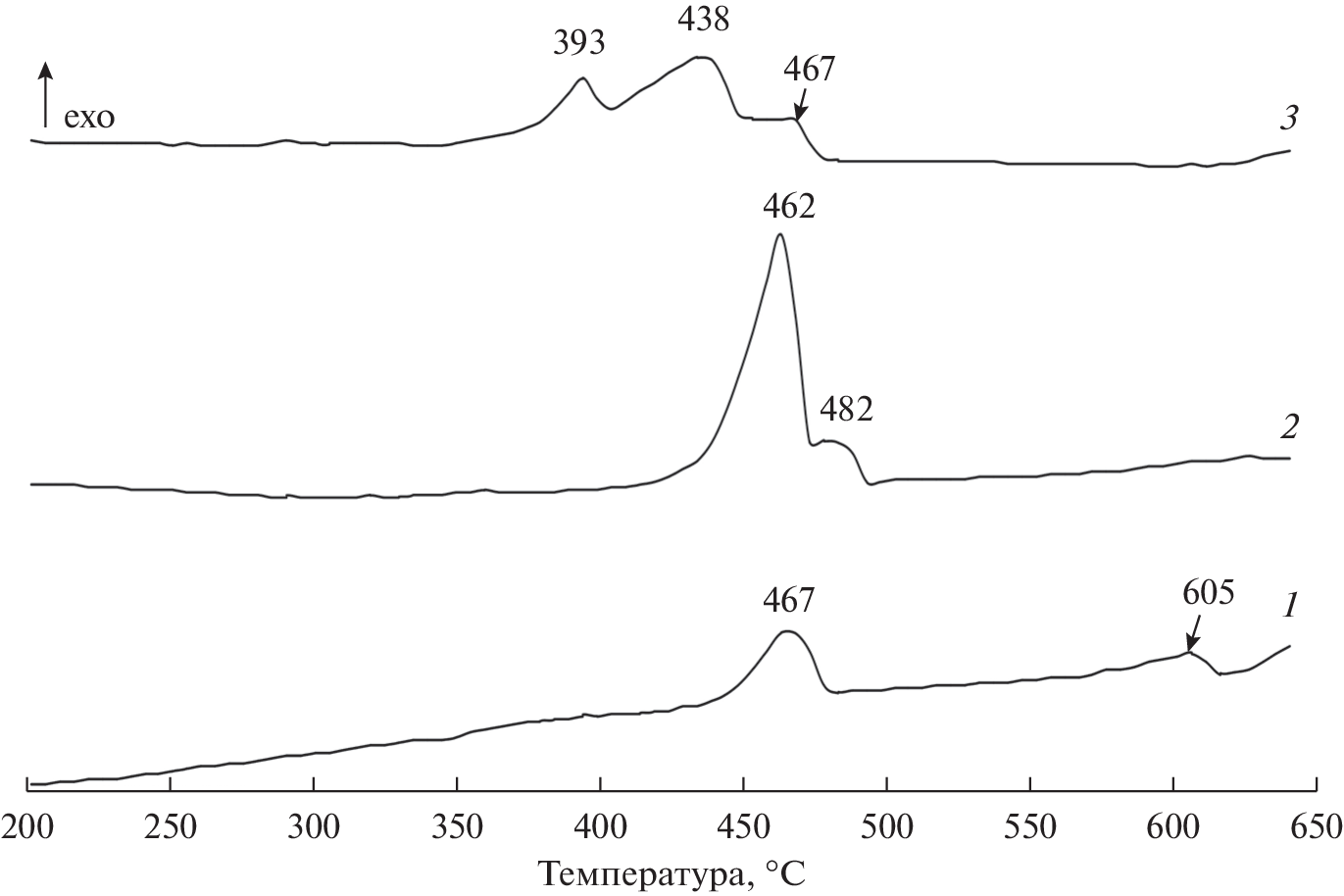

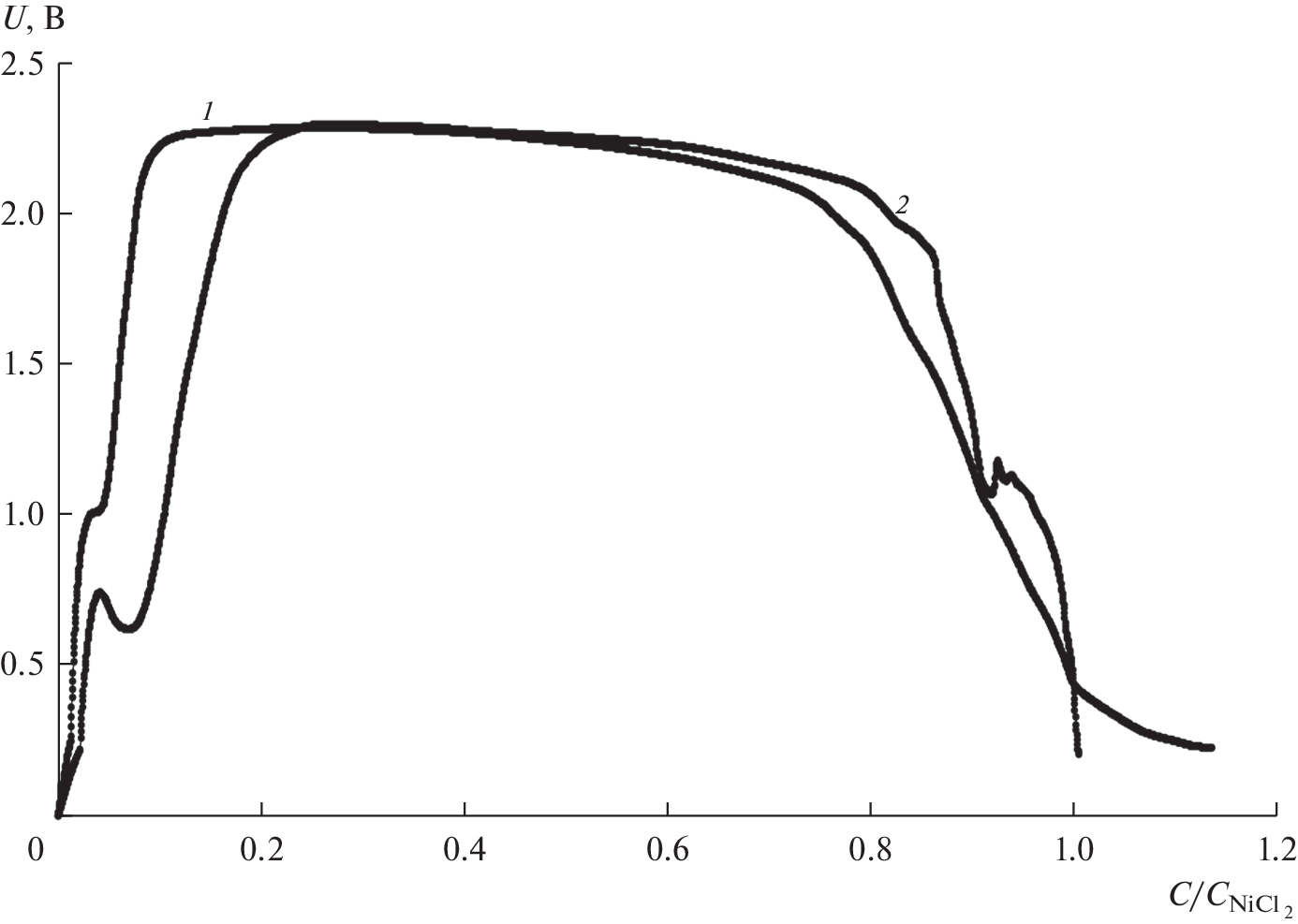

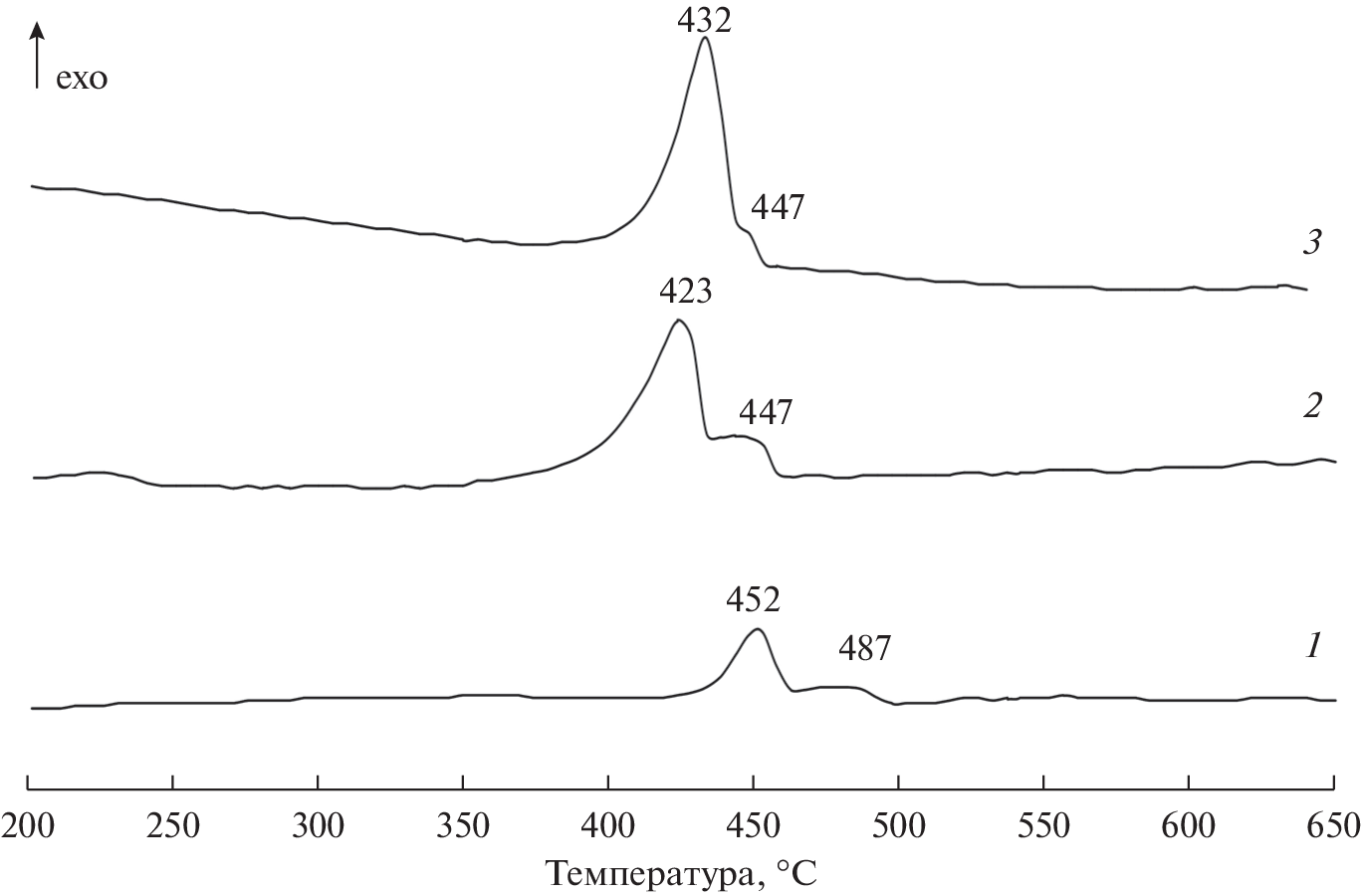

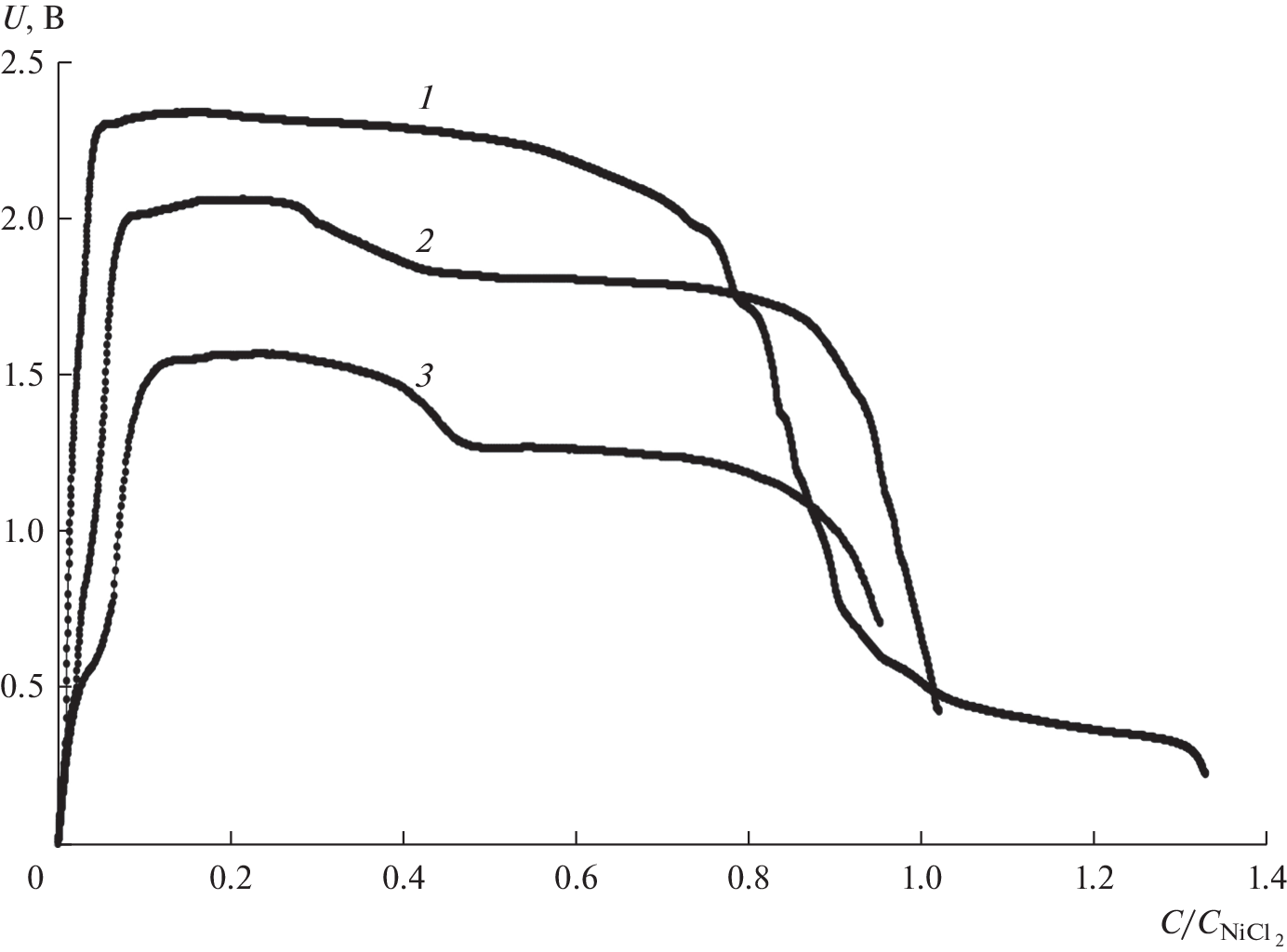

The discharge characteristics of the elements of a thermally activated chemical current source (HAB) containing NiCl₂–CoF₂–MoO₃ mixtures as a positive electrode are investigated. It is established that molybdenum oxide stabilizes the discharge plateau and increases the discharge voltage at temperatures above 530°C. The discharge curve has a stepwise character. The number of steps of the discharge curve is determined by the operating conditions of HAB. The low-voltage stage (less than 0.4 V) corresponds to the reduction of lithium molybdates, which are formed by the interaction of molybdenum oxide with the reduction products of transition metal halides. A study of the cathode reduction products by the methods of XRD, STA and SEM was carried out. It is established that during the discharge of the HAB element, the initial components of the cathode mixture are restored to metals that form a dendritic matrix. The DSC curves of the salt fraction formed during electrochemical reactions have a number of thermal effects corresponding to the temperatures of joint melting of a triple mixture of lithium halides LiF–LiCl–LiBr and eutectic dual systems LiF–LiCl, LiCl–Li₂O, in which transition metal halides and lithium molybdates are dissolved.

Keywords

heat activated battery, cathode, cobalt fluoride, nickel chloride, molybdenum oxide

References

Masset P.J., Guidotti R.A.Thermal activated (“thermal) battery technology Part IIIa: FeS2 cathode material // J. Power Sources. 2008. 177. P. 595–609.
Butler P., Wagner C., Guidotti R., Francis I. Long-life, multi-tap thermal battery development // J. Power Sources. 2004. 136. P. 240–245.
Nelson P.A. Advanced high-temperature batteries // J. Power Sources. 1990. 29. P. 565–577.
Au M. Nanostructured thermal batteries with high power density // J. Power Sources. 2003. 115. P. 360–366.
Guidotti R., Reinhardt F.W., Dai J., Reisner D.E. Performance of thermal cells and batteries made with plasma-sprayed cathodes and anodes // J. Power Sources. 2006. 160. P. 1456–1464.
Masset P.J., Guidotti R.A. Thermal activated (“thermal) battery technology Part IIIb. Sulfur and oxide-based cathode materials // J. Power Sources. 2008. 178. P. 456–466.
Masset P.J. Thermal stability of FeS2 cathode material in “thermal” batteries: effect of dissolved oxides in molten salt electrolytes // Z. Naturforsch. 2008. 63a. P. 596–602.
Volkova O.V., Zakharov V.V., Reznitskikh O.G. Electroreduction of chromium(III) chloride in a thermal battery // Russian Metallurgy. 2017. № 8. P. 655–659.
Volkova O.V., Zakharov V.V. Electroreduction of chromium(III) chloride and molybdenum(VI) oxide mixtures in a thermally activated battery // Russian Metallurgy. 2018. № 2. P. 201–204.
Volkova O.V., Zakharov V.V., Plaksin S.V., Il’ina E.A., Pankratov A.A. Electroreduction of cobalt(II) chloride and cobalt(II) fluoride mixtures in a thermally activated chemical current source // Russian Metallurgy. 2021. № 2. P. 159–164.
Baraboshkin A. N. Elektrokristallizatsiya metallov iz rasplavlennykh soley [Electrocrysstalizatiom from melt salts]. M.: Nauka, 1976. [In Russian].
Volkova O.V., Zakharov V.V., Il’ina E.A., Antonov B.D., Pankratov A.A. Elektrovosstanovleniye smesey khlorida nikelya(II) i ftorida kobalta(II) v termoaktiviruyemom khimicheskom istochnike toka [Electroreduction of mixtures of nickel(II) chloride and Cobalt(II) Fluoride in a thermoactivated chemical current source] // Rasplavy. 2022. № 4. P. 418–429. [In Russian].
Volkova O.V., Zakharov V.V., Il’ina E.A., Pankratov A.A. Electroreduction of nickel(II) chloride and cobalt(II) chloride mixtures in a heat activated battery // Russian Metallurgy. 2021. № 2. P. 118–128.
Volkova O.V., Zakharov V.V., Vovkotrub E.G., Plaksin S.V., Pershina S.V. Elektrovosstanovleniye smesey khlorida nikelya(II) i oksida molibdena(VI) v termoaktiviruyemom khimicheskom istochnike toka [Electroreduction of nickel(II) chloride and molybdenum(VI) oxide mixtures in a heat activated battery] // Rasplavy. 2019. № 5. P. 411–422. [In Russian].
Volkova O.V., Zakharov V.V., Pershina S.V., Antonov B.D., Vakhromeeva А.Е. Elektrovosstanovleniye smesey khlorida nikelya(II) i oksida volframa(VI) v termoaktiviruyemom khimicheskom istochnike toka [Electroreduction of nickel(II) chloride and tungsten(VI) oxide mixtures in a heat activated battery] // Rasplavy. 2021. № 6. P. 647–655. [In Russian].
Barnashov S.A., Eliseev A.I., Shchetkin N.M., Zagaynov V.A., Koroleva I.V., Radetskaya E.V., Bondarenko A.I. Teplovaya batareya [Thermal battery]. RF patent № 2 369 944, 2007. [In Russian].
Zakharov V.V. Sposob izgotovleniya litiy-bornogo kompozita i reaktor [Method of manufacturing lithium-boron composite and reactor]. RF patent № 2 395 603, 2010. [In Russian].
