SYNTHESIS OF LEAD TUNGSTATE IN MELTS OF THE SYSTEM (Li 2 WO 4 –Na 2 WO 4 ) evt –PbSO 4

Z. A. Cherkesov; Черкесов З. А.; Kh. B. Kushkhov; Кушхов Х. Б.; A. A. Kyarov; Кяров А. А.

doi:10.31857/S023501062305002X

SYNTHESIS OF LEAD TUNGSTATE IN MELTS OF THE SYSTEM (Li₂WO₄–Na₂WO₄)_evt–PbSO₄

Authors: Cherkesov Z.A.¹, Kushkhov K.B.¹, Kyarov A.A.¹
Affiliations:
1. Kabardino-Balkarian State University named after Kh.M. Berbekova
Issue: No 5 (2023)
Pages: 513-524
Section: Articles
URL: https://journals.rcsi.science/0235-0106/article/view/141797
DOI: https://doi.org/10.31857/S023501062305002X
EDN: https://elibrary.ru/VSPVWN
ID: 141797

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

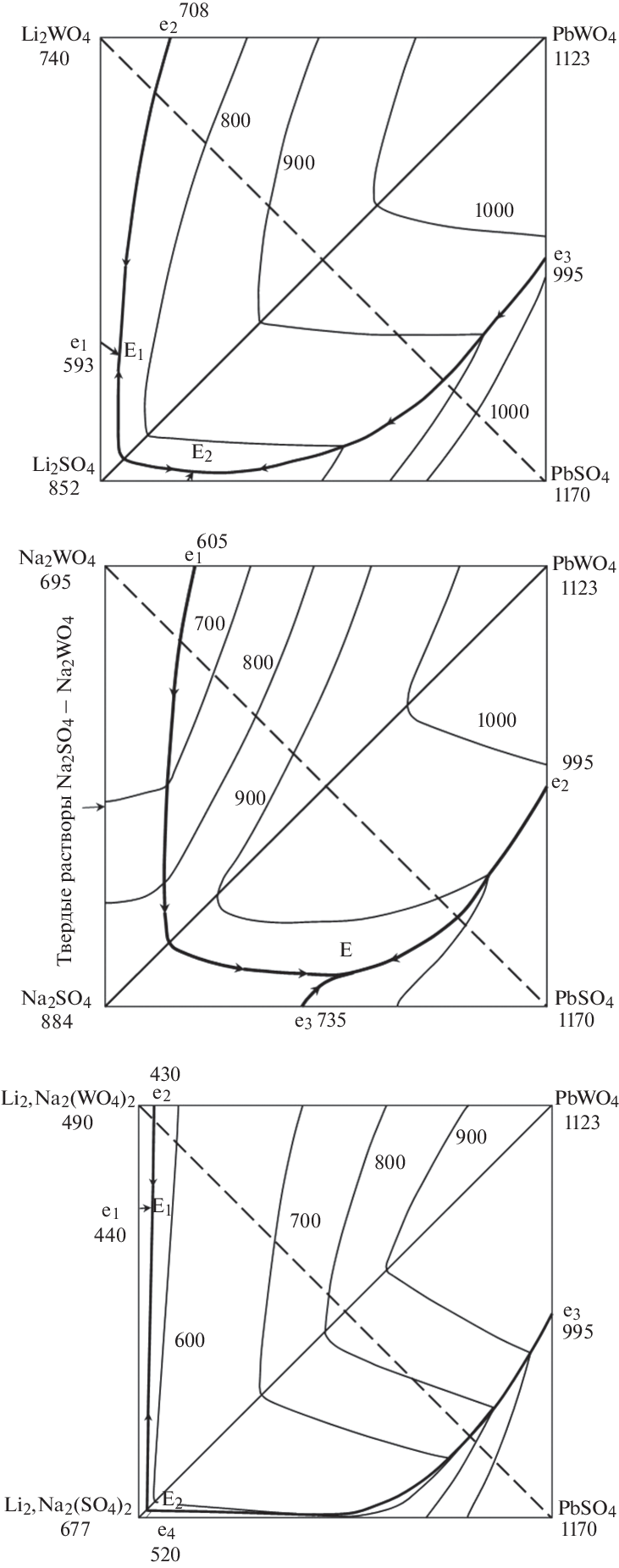

The structure of the crystallization surface of the system (Li, Na), Pb // SO₄, WO₄ has been studied in a wide concentration and temperature range in order to identify compositions with optimal physicochemical parameters that can be used as the basis for the synthesis of highly dispersed lead tungstate with high yield and purity. The system (Li₂WO₄–Na₂WO₄)_evt–PbSO₄, which is a diagonal section of the system (Li, Na), Pb // SO₄, WO₄, was chosen as a working system for solving the task set in the work. For the first time, the concept of a “complex component” is used in the work, which is a mixture of lithium and sodium tungstates, as well as lithium and sodium sulfates at the vertices of the square of compositions. The complex components are eutectic compositions of the corresponding lithium tungstates, sodium and their sulfates. This approach to the study of the “resulting” triple mutual system (Li, Na), Pb // SO₄, WO₄ on the vertices of which complex components are located allowed us to take advantage of the noticeable differences between the studied system and the original triple mutual systems Li, Pb // SO₄, WO₄ and Na, Pb // SO₄, WO₄. It is shown that the studied system (Li, Na), Pb // SO₄, WO₄ has a number of advantages both in terms of melting temperatures of the eutectic mixture on the side of Li₂,Na₂(WO₄)₂–Li₂,Na₂(SO₄)₂, and in terms of the shift of the line of joint crystallization of phases, which leads to a noticeable increase in the crystallization surface lead tungstate. In this regard, before proceeding to the production of lead tungstate, we estimated the thermodynamic probability of the reaction underlying the synthesis of lead tungstate on the basis of the Temkin-Schwarzman method and the Van’t-Hoff isotherm equation of chemical reactions. Calculations have shown that all metabolic processes proceed with high negative Gibbs energies. The obtained samples of lead tungstate were analyzed by the X-ray phase analysis method on the X-ray diffractometer Dron-6, and their dispersion was determined on the Fritsch Analysette 22 Nanotek Plus laser particle analyzer. The presented results of a theoretical analysis of the possibility of implementing a method for synthesizing lead tungstate in melts of the (Li₂WO₄–Na₂WO₄)_evt–PbSO₄ system and experimental material for its implementation can become the basis for the development of technology for obtaining highly dispersed lead tungstate powders.

Keywords

thermodynamics, melt, thermal analysis, eutectic, lead tungstate, synthesis, identification

References

ECAL CMS Technical Design Report “Electromagnetic calorimeter”, 1997.
ALICE Technical Proposal, CERN/LHC 95–71. 1995.
Burachis S.F., Belogolovskij S.Ya., Elizarov S.V. Osobennosti polucheniya kristallov vol’framata svinca dlya proekta CERN ALICE [Peculiarities of production of lead tungstate crystals for the CERN ALICE project] // Poverhnost’. Rentgenovskie sinhrotronnye i nejtronnye issledovaniya. 2002. № 2. P. 5–9. [In Russian].
Kamennikov V.T., Gromov O.G., Kuz’mina A.P., Lokshin E.P., Savel’ev Yu.A., Burachis S.F. Sintez vol’framata svinca, i ego regeneraciya iz othodov proizvodstva monokristallov [Synthesis of lead tungstate and its regeneration from monocrystal production wastes] // Neorgan. materialy. 2006. 42. № 5. P. 603–610. [In Russian].
Shurdumov G.K., Shurdumov B.K., Baragunova L.H. Svinec (II) vol’framovokislyj, himicheski chistyj [Lead(II) tungsten, chemically pure]. TU 6-09-40-393-84. [In Russian].
Mohosoev M.V., Alekseev F.P., Lucyk V.I. Diagrammy sostoyaniya molibdatnyh i vol’framatnyh system [State diagrams of molybdate and tungstate systems]. Novosibirsk: Nauka, 1978. [In Russian].
Grigor’eva L.F. Diagrammy sostoyaniya sistem tugoplavkih oksidov. № 5. Dvojnye sistemy. [Diagrams of the state of systems of refractory oxides. № 5. Double systems]. L.: Nauka, 1988. [In Russian].
Shurdumov G.K., Shurdumov B.K., Hokonova T.N. Fizika i himiya perspektivnyh materialov [Physics and chemistry of advanced materials]. Nal’chik: Kab.-Balk. un-t. 1998. P. 45–53. [In Russian].
Gerasimenko Yu.V., Logacheva V.A., Khavin A.M. Sintez i opticheskie svojstva plenok PbWO4 [Synthesis and optical properties of PbWO4 films] // Kondensirovannye sredy i mezhfaznye granicy. 2011. 13. № 2. P. 150–154. [In Russian].
Schen Y., Zhanq Y., Chen Y., Li Sh., Zhanq Q., Xi A. A novel biological strategy for morpholoqy control of PbWO4 crystals in tomato extract // Colloude Surfaces. B. 2011. 83. № 2. Р. 284–290.
Gerasimenko Yu.V., Logacheva V.A., Zaitsev S.V., Khavin A.M. Sintez i struktura plenok PbWO4 [Synthesis and structure of PbWO4 films] // Neorgan. materialy. 2012. 48. №3. P. 355–360. [In Russian].
Tang H., Wu Q., Yang X., Yang B, Li Ch. // Crist. Res Technol. 2010. https://doi.org/10.1002/crat.201000307
Xu J., Zhang J., Qian J. Fabrication lead tungstate microcristals on a lead surface at room temperature // J. Alloys Compounds. 2010. 503. № 1. P. 248–252.
Wang G., Hao Ch., Zhang Y. Microwave – assisted syntesis and characterization of luminecent lead tungstate microcrystals // Matter Lett. 2008. 62. № 17–18. P. 3163–3166.
Rozancev A.V., Radio S.V., Belousova E.E., Velichko V.P. Vzaimodejstvie nitrata svinca s podkislennym vodnym rastvorom vol’framata natriya [Interaction of lead nitrate with an acidified aqueous solution of sodium tungstate] // Voprosy himii i himicheskoj tekhnologii. 2008. № 6. P. 111–116. [In Russian].
Denisov A.V., Punin Yu.O., Gabrilyan V.T., Grunskij O.S. Fizicheskie i fiziko-himicheskie processy, soprovozhdayushchie sintez shihty, vyrashchivanie i otzhig PbMoO4 v razlichnyh sredah. Morfologicheskoe “skruchivanie” kristallov PbMoO4 i PbWO4 pri vyrashchivanii metodom Chohral’skogo [Physical and physico-chemical processes accompanying charge synthesis, growth and annealing of PbMoO4 in various media. Morphological “twisting” of PbMoO4 and PbWO4 crystals during growth by the Czochralski method] //Kristallografiya. 2006. 51. № 4. P. 745–747. [In Russian].
Shurdumov G.K. Razrabotka racional’nogo sposoba sinteza nanokristallicheskogo vol’framata svinca v rasplavah sistemy [KNO3–NaNO3–Pb(NO3)2]evt–Na2WO4 (K, Na, Pb // NO3, WO4) [Development of a rational method for the synthesis of nanocrystalline lead tungstate in melts of the [KNO3–NaNO3–Pb(NO3)2]eut system – Na2WO4 (K, Na, Pb // NO3, WO4)] // Neorgan. materialy. 2015. 51. № 9. P. 1–6. [In Russian].
Karyakin N.V., Osnovy himicheskoj termodinamiki [Fundamentals of chemical thermodynamics]. M.: Publishing Center “Akademiya”. 2003. [In Russian].
Belyaev I.N. Obmennoe razlozhenie vo vzaimnoj sisteme iz sul’fatov i vol’framatov natriya i svinca [Exchange decomposition in a mutual system of sulfates and tungstates of sodium and lead] // Zhurn. obshchej himii. 1952. 22. P. 1746–1749. [In Russian].
Belyaev I.N. Obmennoe razlozhenie vo vzaimnoj sisteme iz sul’fatov i vol’framatov litiya i svinca [Exchange decomposition in a mutual system of sulfates and tungstates of lithium and lead] // Zhurn. obshchej himii. 1955. 25. P. 230–234. [In Russian].
Buzdov K.A., Shurdumov G.K., Kuzamyshev V.M., Shustov G.B. Termicheskij (termograficheskij) analiz [Thermal (thermographic) analysis]. Nal’chik: Kab.-Balk. un-t, 2013. [In Russian].
