Email this article MgO STABILITY IN EUTECTIC Li2CO3–Na2CO3 AND Li2CO3–K2CO3
- Authors: Tolkacheva A.S.1, Konopel’ko M.А.1
-
Affiliations:
- Institute of High-Temperature Electrochemistry, UB RAS
- Issue: No 1 (2023)
- Pages: 59-67
- Section: Articles
- URL: https://journals.rcsi.science/0235-0106/article/view/138533
- DOI: https://doi.org/10.31857/S0235010623010097
- EDN: https://elibrary.ru/HEDRVF
- ID: 138533
Cite item
Open Access
Access granted
Subscription Access
Abstract

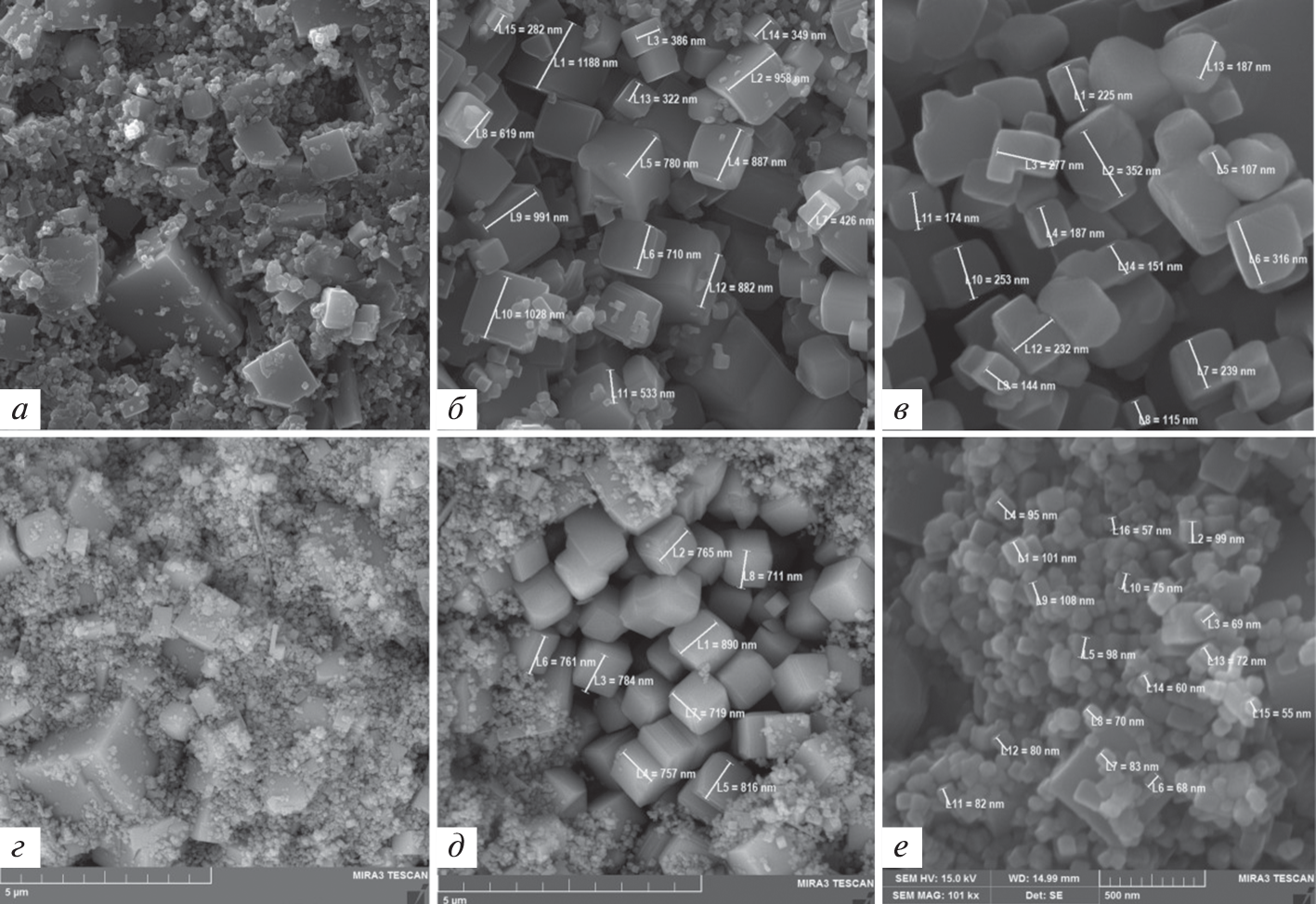

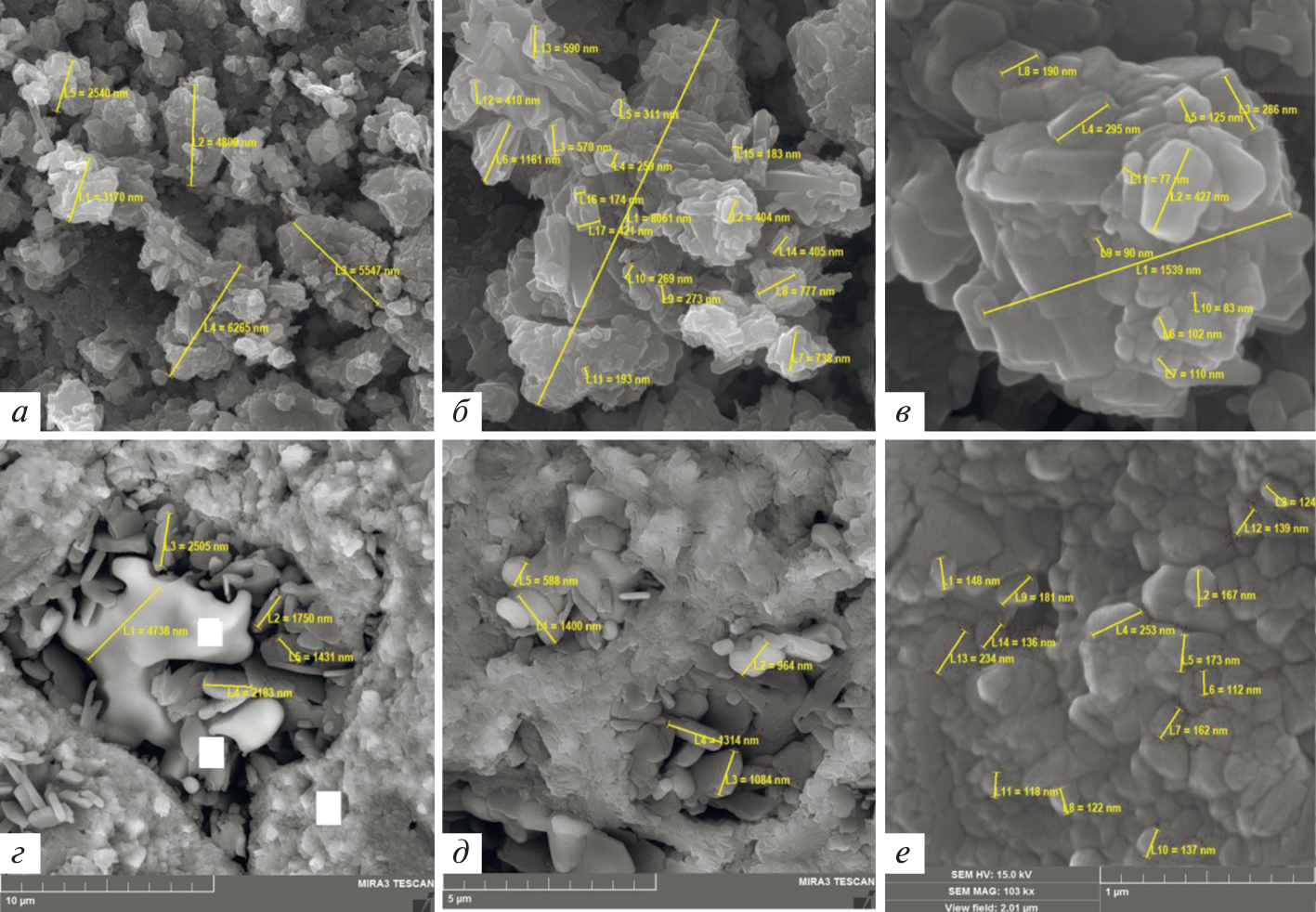

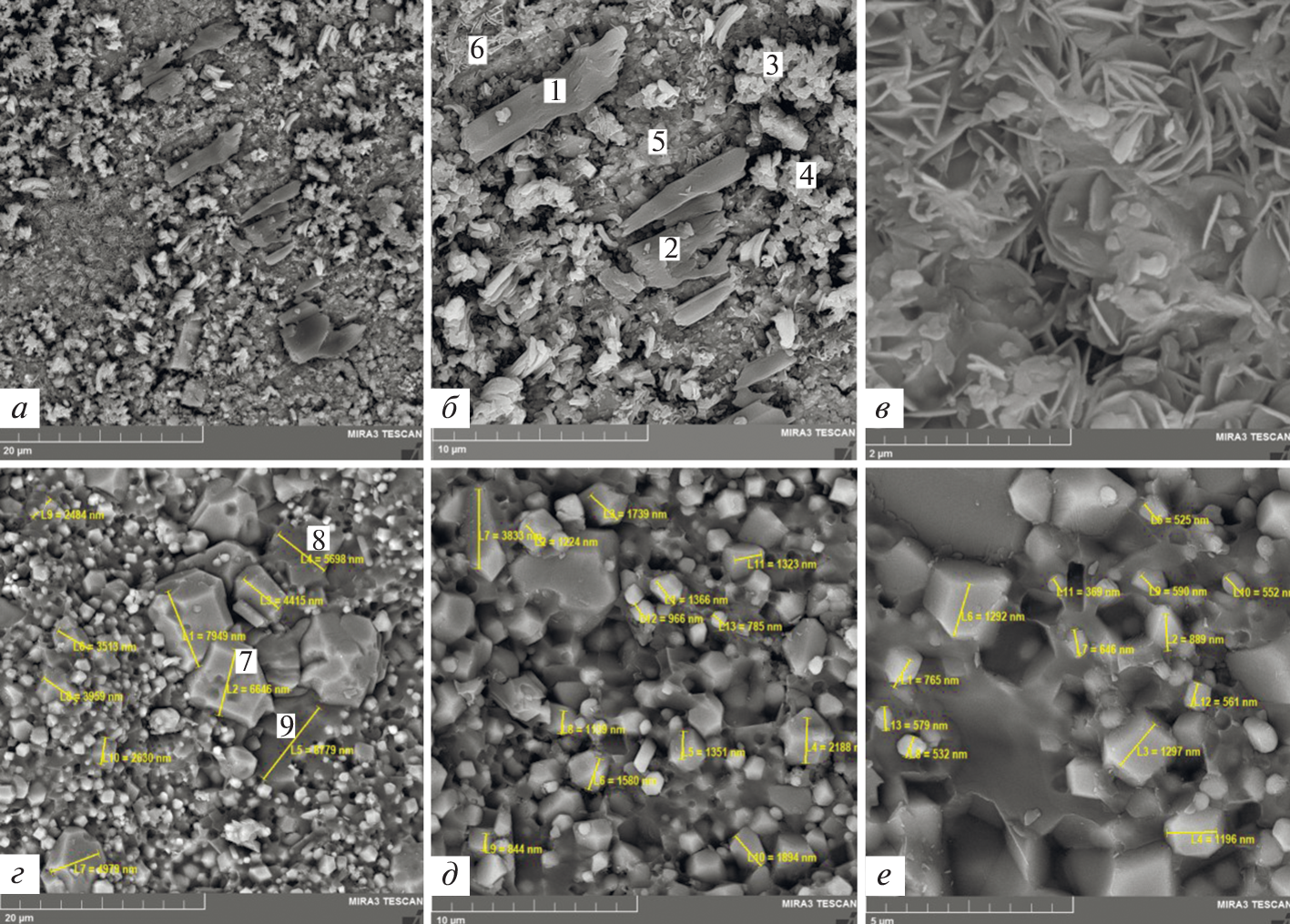

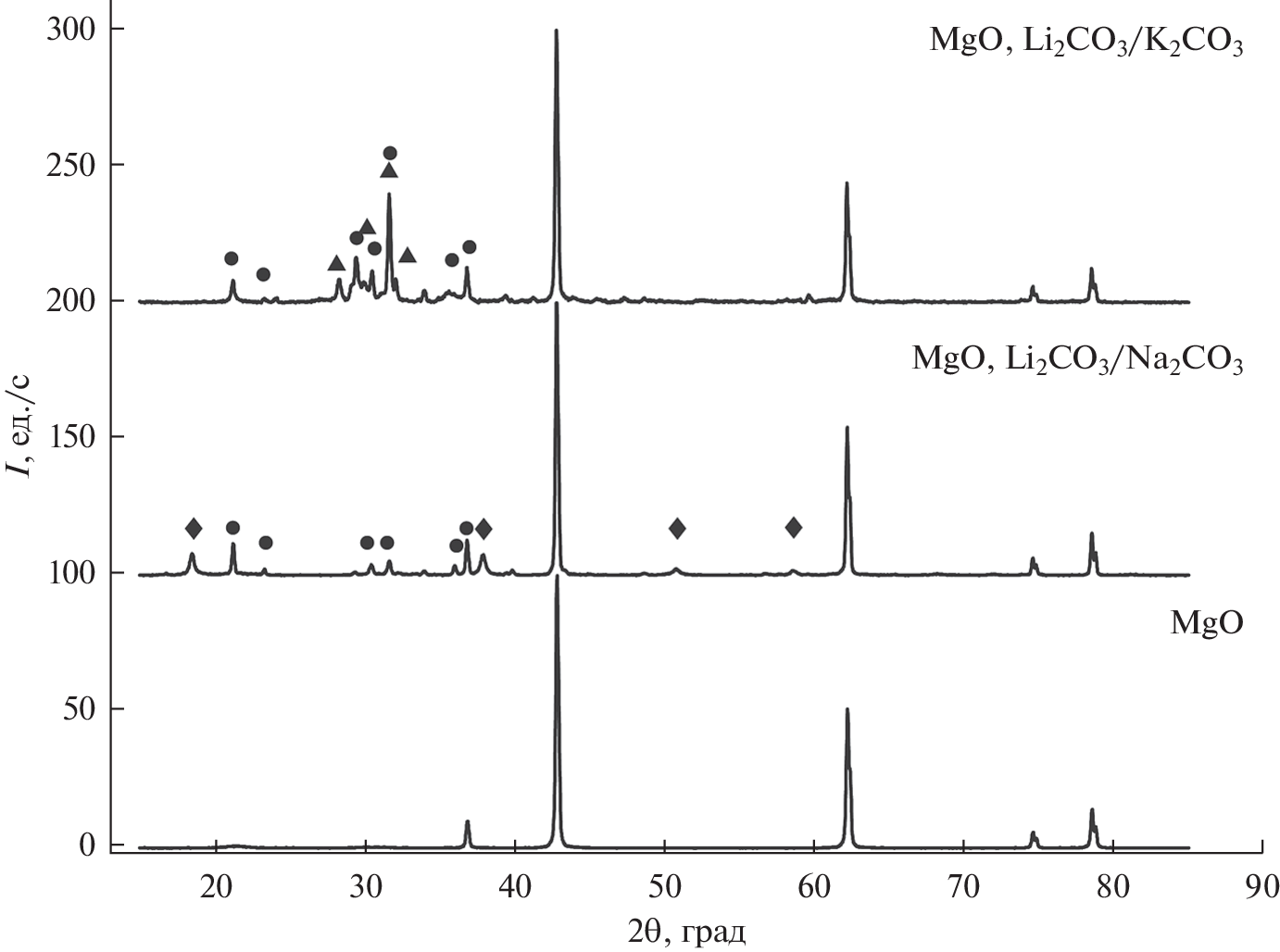

Research and technology studies on Molten Carbonate Fuel Cells (MCFC) are being directed at improving their performance in mode of greenhouse gas conversion for chemical energy storage. The changes in gas composition feeding MCFC demand new insulating materials to be found. In the current work, the equilibrium solubility of magnesia ceramics in air in contact with Li2CO3–Na2CO3 and Li2CO3–K2CO3 eutectic mixtures was measured at 600°С. The study shows that magnesia is completely stable in the tested melts for at least more than 270 h. Its solubility was found to increase in Li–K carbonate eutectic. Conclusions about the material stability are based on results of inductively coupled plasma atomic absorption spectroscopy of melts and scanning electron microscopy combined with X-ray diffraction employed to ceramics testing. Magnesia is recommended as an insulating material in electrolysis cells containing Li2CO3–Na2CO3 and Li2CO3–K2CO3 carbonate eutectics for the conversion of the greenhouse gas in chemical energy storage devices operating in air.
Keywords
About the authors
A. S. Tolkacheva
Institute of High-Temperature Electrochemistry, UB RAS
Author for correspondence.
Email: a.s.tolkacheva@urfu.ru
Russia, Yekaterinburg
M. А. Konopel’ko
Institute of High-Temperature Electrochemistry, UB RAS
Email: a.s.tolkacheva@urfu.ru
Russia, Yekaterinburg
References
- Hamad T.A., Agll A.A., Hamad Y.M., Bapat S., Thomas M., Martin K. B., Sheffield J. W. // Case Stud. Therm. Eng. 2013. 1. P. 45–50. https://doi.org/10.1016/j.csite.2013.09.001
- Lan R., Tao S. // Sci. Adv. 2016. 2. e1600772. https://doi.org/10.1126/sciadv.1600772
- Discepoli G. Cinti G., Desideri U., Penchini D., Proietti S. // Int. J. Greenh. Gas Control. 2012. 9. P. 372–384. https://doi.org/10.1016/j.ijggc.2012.05.002
- Carapellucci R., Cipollone R., Battista D.D. // Energy Procedia. 2017. 126. P. 477–484. https://doi.org/10.1016/j.egypro.2017.08.228
- Antolini Е. // Ceram. Int. 2013. 39. P. 3463–3478. https://doi.org/10.1016/j.ceramint.2012.10.236
- Terada S., Higaki K., Nagashima I., Ito Y. // J. Power Sources. 1999. 83. P. 227–230. https://doi.org/10.1016/S0378-7753(99)00282-7
- Celman J. R., Maru H. C. Advances in molten salt chemistry, vol. 4, Mamantov G., Braustein J. Ed., N.Y., Plenum. 1981. P. 159.
- Kaplan V., Bendikov T., Feldman Y., Gartsman K., Wachtel E., Lubomirsky I. // J. Power Sources. 2016. 301. P. 271–276. https://doi.org/10.1016/j.jpowsour.2015.09.125
- Mizuhata M., Harada Y., Cha G., Bienvenu Béléké A., Deki S. // J. Electrochem. Soc. 2004. 151. № 5. E179–E185. https://doi.org/10.1149/1.1688798
- Gao W., Zhou T., Gao Y., Louis B., O’Hare D., Wang Q. // J. Energy Chem. 2017. 26. P. 830–838. https://doi.org/10.1016/j.jechem.2017.06.005
- Zhang K., Li X.S., Li W.Z., Rohatgi A., Duan Y., Singh P., Li L., King D.L. // Adv. Mater. Interfaces. 2014. 1. P. 1400030. https://doi.org/10.1002/admi.201400030
- Velden P.F. // Trans. Faraday Soc. 1967. 63. P. 175–184. https://doi.org/10.1039/TF9676300175
- Zakir’yanova I.D. // J. Applied Spectroscopy. 2018. 85. № 4. P. 611–615. https://doi.org/10.1007/S10812-018-0694-5
- Fedorov P.P., Tkachenko Ye.A., Kuznetsov S.V., Voronov V.V., Lavrishchev S.V. Polucheniye nanochastits MgO [Preparation of MgO nanoparticles] // Neorganicheskiye materialy. 2007. 43. № 5. P. 574–576. [In Russian].
Supplementary files
