USING AB INITIO DATA OF MOLECULAR DYNAMICS TO ANALYZE STRUCTURAL UNITS AND THEIR STABILITY IN BORON-OXYGEN NETWORK OF MELT B 2 O 3 –Na 2 O

A. A. Yuryev; Юрьев А. А.; M. M. Tsymbalist; Цымбалист М. М.; M. A. Samoylova; Самойлова М. А.; A. A. Khokhryakov; Хохряков А. А.

doi:10.31857/S0235010623010115

USING AB INITIO DATA OF MOLECULAR DYNAMICS TO ANALYZE STRUCTURAL UNITS AND THEIR STABILITY IN BORON-OXYGEN NETWORK OF MELT B₂O₃–Na₂O

Authors: Yuryev A.A.¹, Tsymbalist M.M.¹, Samoylova M.A.¹, Khokhryakov A.A.¹
Affiliations:
1. Institute of metallurgy, Ural Branch of RAS
Issue: No 1 (2023)
Pages: 22-38
Section: Articles
URL: https://journals.rcsi.science/0235-0106/article/view/138530
DOI: https://doi.org/10.31857/S0235010623010115
EDN: https://elibrary.ru/HCLEND
ID: 138530

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

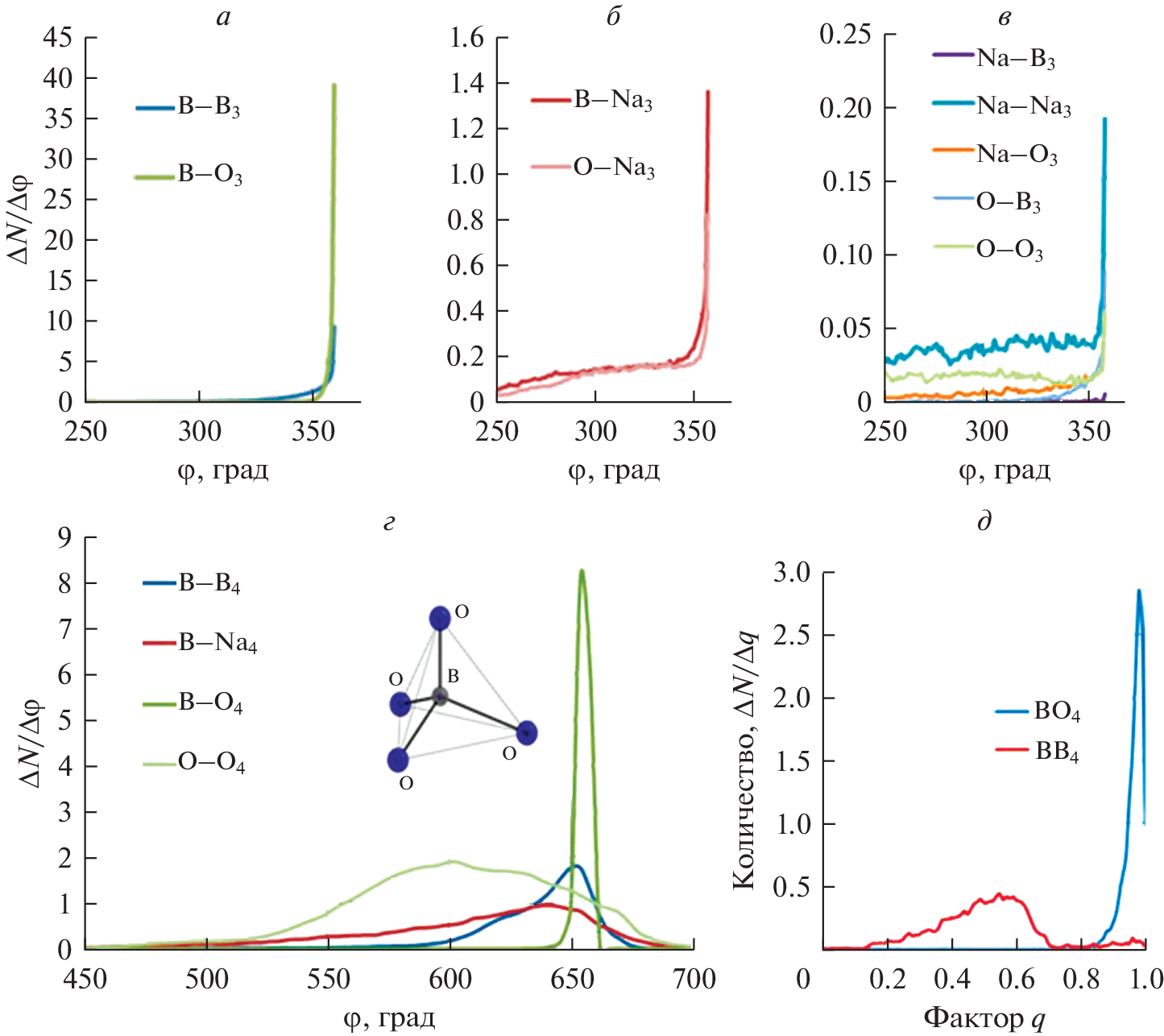

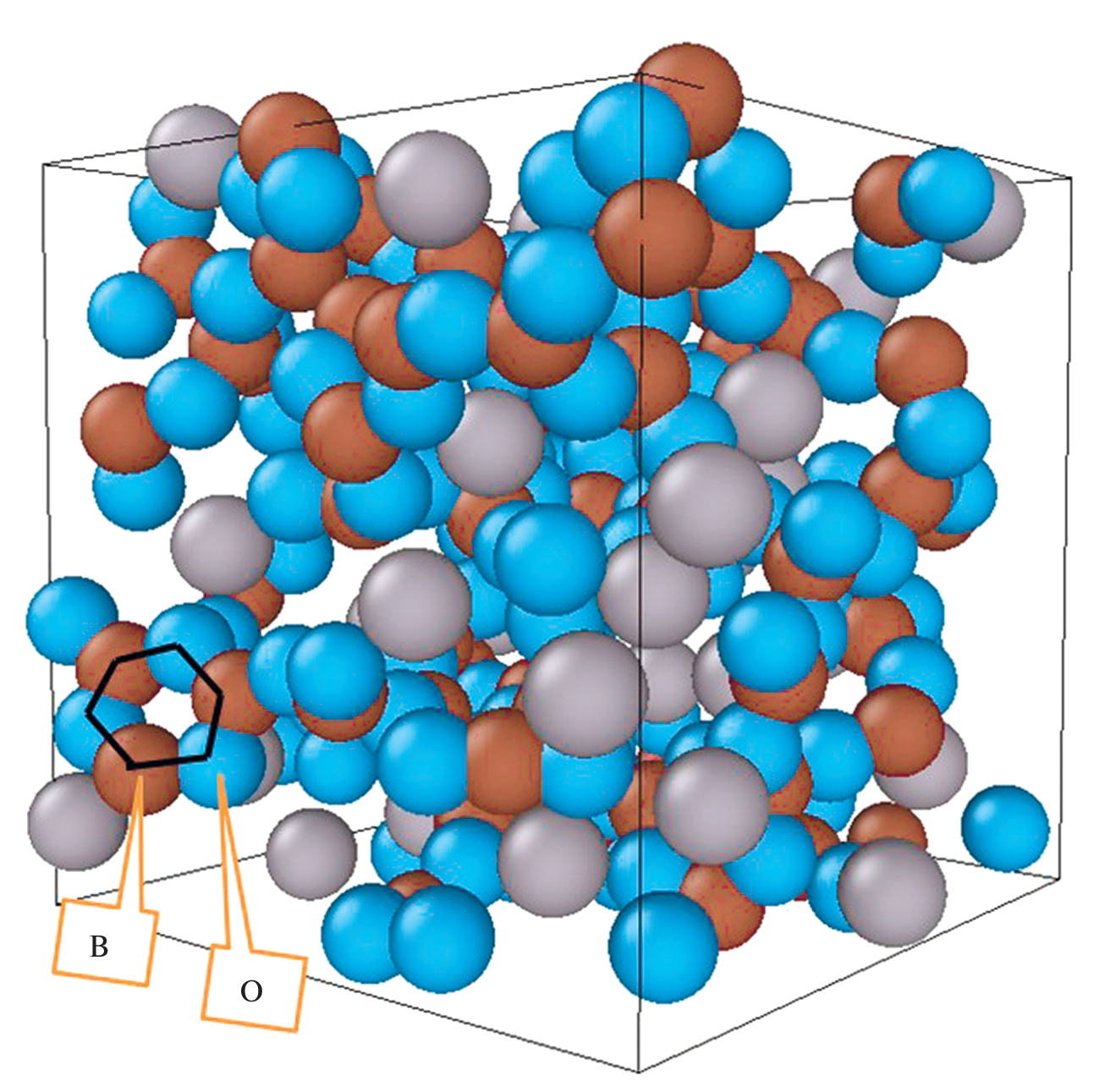

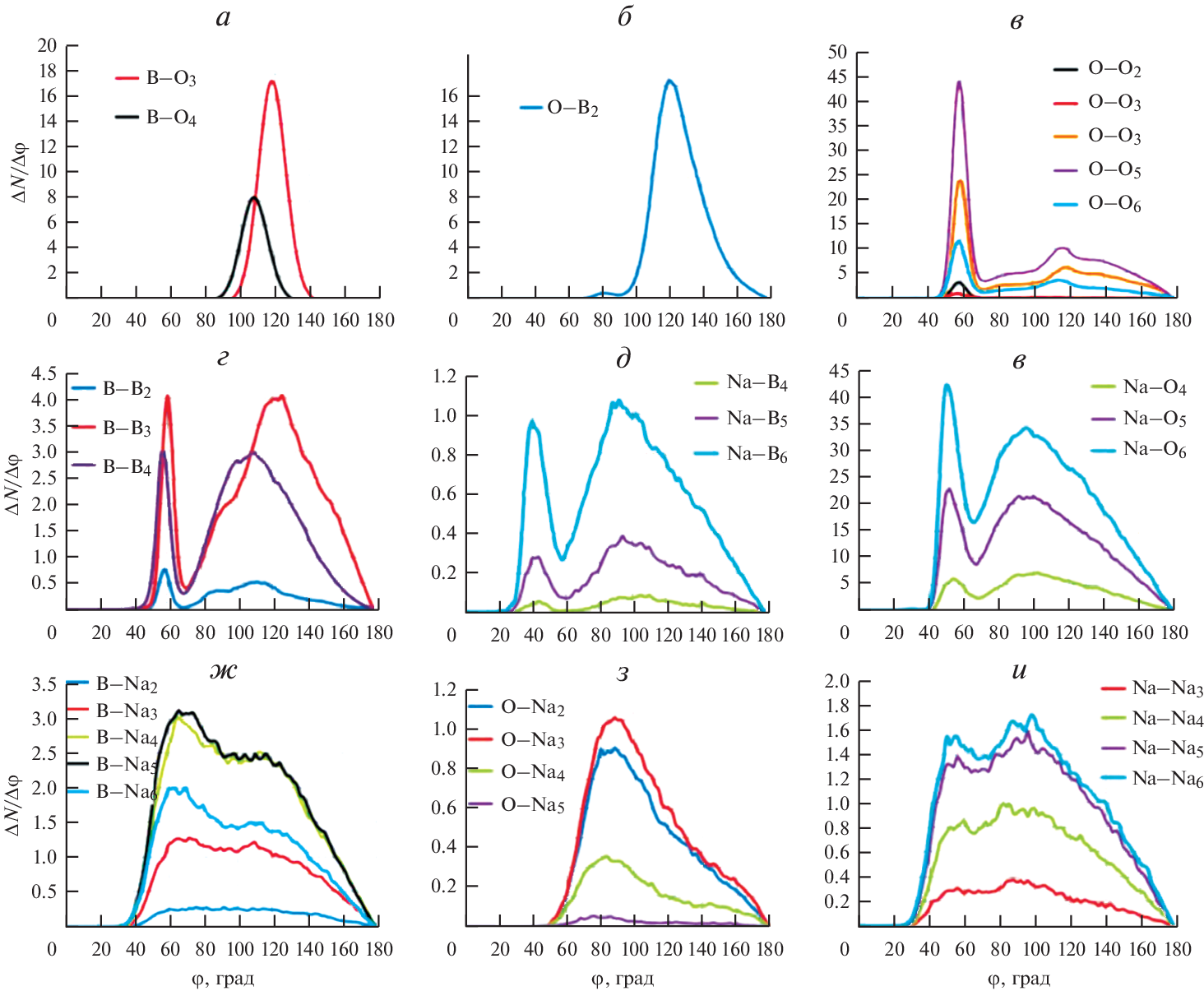

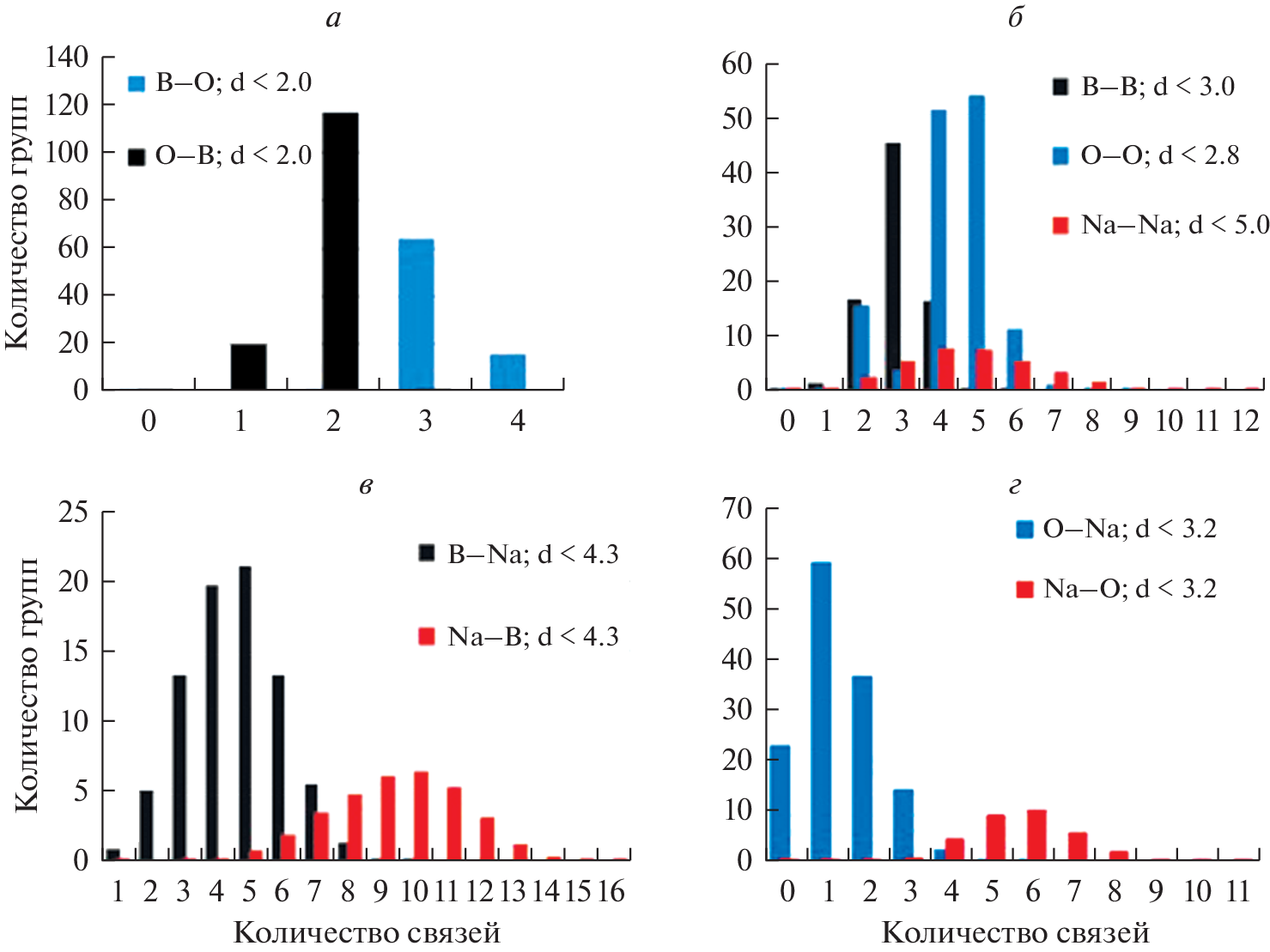

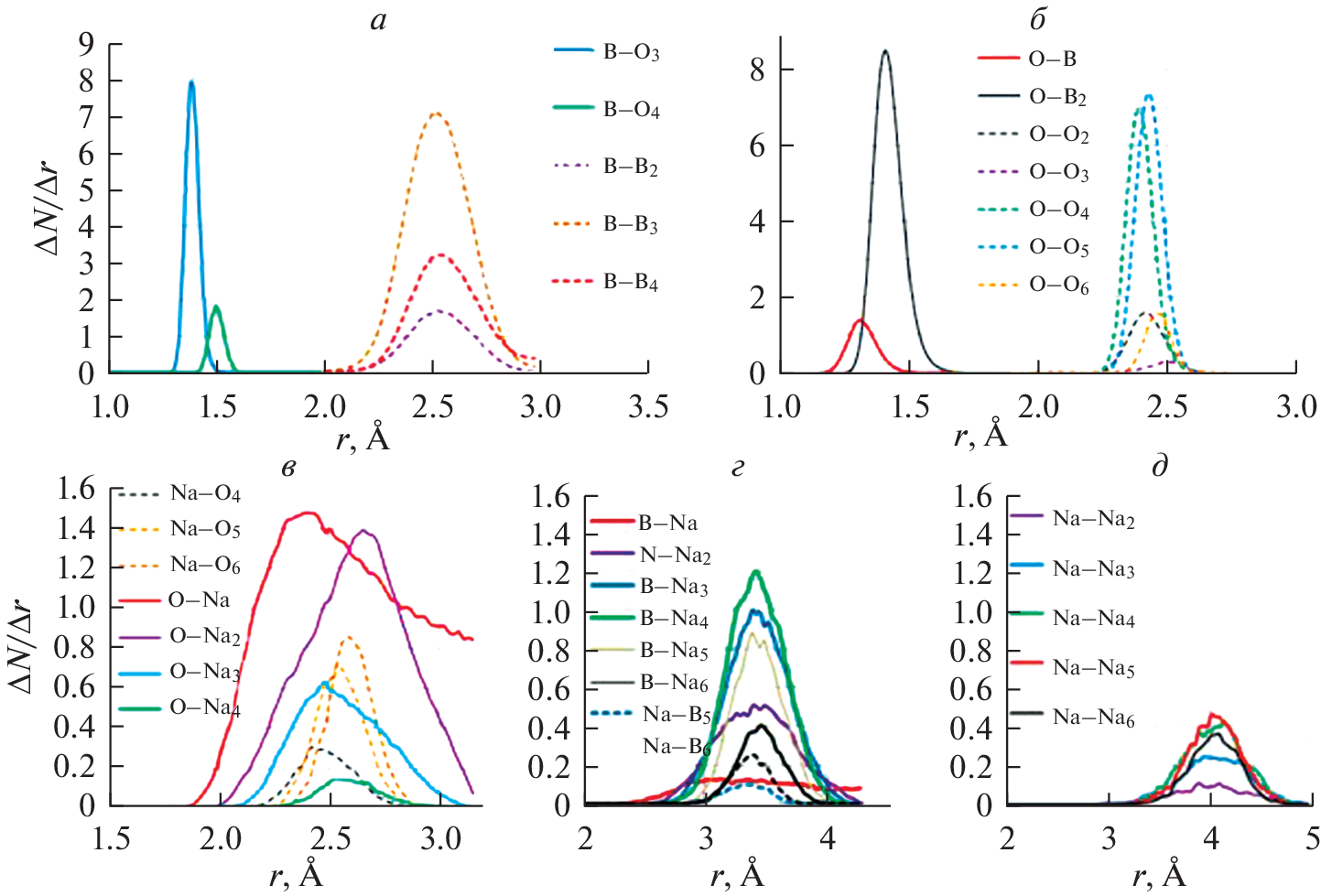

The aim of this work was to develop a computational-theoretical method for a detailed study of the geometry and statistical characteristics of local structural groups of complex liquids such as alkaline borate systems, tending to form a bulk boron-oxygen network. The technique was worked out a melt 30Na₂O–70B₂O₃ as an example at T = 1273 K. Ab initio molecular dynamics was used, implemented in the VASP program code for a supercell consisting of 250 atoms. The ion coordinates obtained at each step were used to obtain statistically significant information about the detailed structure of the melt. Using the original program developed for this purpose, we determined the partial radial distribution functions of the of atoms and analyzed all the closest coordinations found in the model around each type of ions, also the types and number of stable groups, bond lengths and angles in them. In addition, the tetrahedrality criterion for units BO₄ and ВB₄ were defined. Almost regular triangles (~80% of boron atoms) and tetrahedra (~19% of boron atoms) with a boron ion in the center and oxygen ions at the vertices proved to be the basic structural units. These simple structures form a boron-oxygen network connected by common (bridging) oxygen atoms. This network includes almost all boron atoms. Superstructural units, namely combinations of three or more basic structures have been found. For example, two triangles and one tetrahedron are forming rings of six alternating boron and oxygen atoms. Besides, the existence of rings that are formed from four basic structural units were discovered, but they in contrast to six-atom rings, are not planar formations. The proposed technique allows to obtain almost any details on the structural features of systems of this type, in particular, to answer the important question about the number of bridging and non-bridging oxygen atoms. It turned out that there are approximately 86% of bridging oxygens in studied system. The approach used considers correctly covalent and ionic bonds in liquid systems based on network-forming oxides and modifier-oxides. That will make possible to study the change in local structural characteristics and its dependence on concentration and temperature explaining the behavior of various physico-chemical properties.

Keywords

alkali-borate melt, ab initio molecular dynamics, short-range order structure, three- and four-coordinated boron atoms, superstructural units, bridging and non-bridging oxygen atoms

References

Krogh-Moe J. // Phys. Chem. Glasses 1969. 6. 2. P. 46–54. https://doi.org/10.1016/0022-3093(69)90025-8
Yano T., Kunimine N., Shibata S., Yamane M. // J. Non-Crystalline Solids. 2003. 321. P. 147–156. 10.1016/S0022-3093(03)00159-5' target='_blank'>https://doi: 10.1016/S0022-3093(03)00159-5
Osipov A.A., Osipova L.M. // GlassPhys. Chem. 2009. 35. P. 121–131. https://doi.org/10.1134/S1087659609020011
Handa K., Kita Y., Kohara S. // J. Physics and Chemistry of Solids. 1999. 60. P. 1465–1471. https://doi.org/10.1016/S0022-3697(99)00143-2
Fábián M., Sváb E., Proffen T., Veress E. // J. Non-Crystalline Solids 2010. 356. P. 441–446. https://doi.org/10.1016/j.jnoncrysol.2009.12.013
Guillaume F., Charpentier T., Seitsonen A. P., Takada A., Lazzeri M., Cormier L., Calas G., Mauri F. // Phys. Rev. Lett. 2008. 101. 065504. https://doi.org/10.1103/PhysRevLett.101.065504
Bubnova R.S., Filatov S. K. Vysokotemperaturnaya kristallohimiya boratov i borosilikatov. [High-temperature Crystal Chemistry of Borates and borosilicates]. Saint-Petersburg: Nauka, 2008. [In Russian].
Kaiura G.H., Toguri J.M. The viscosity and structure of sodium borate melts // Physics and chemistry of glasses // Phys and Chem Glasses. 1976. 17. № 3. P. 62–69.
Shartsis L., Capps W., Spinner S. Viscosity and electrical resistivity of molten alkali borates // J. Am. Cer. Soc. 1953. 36. № 2. P. 35–43.
Claes P., Coq J.L., Glibert J. // Electrochimica Acta. 1988. 33. P. 347–352. https://doi.org/10.1016/0013-4686(88)85027-8
Melchakov S.Y., Khokhryakov A.A., Samoilova M.A., Ryabov V.V., Yagodin D.A. // Glass. Phys. Chem. 2022. 48. № 3. P. 174–179. https://doi.org/10.1134/S1087659622030063
Khokhryakov A.A., Melchakov S.Y., Samoilova M.A., Ryabov V.V. // Inorganic materials. 2022. 58. № 5. P. 538–543. https://doi.org/10.1134/S0020168522050053
Cristos-Platon E., Varsamis // Phys. Rev B. 2002. 65. P. 104203–104217. https://doi.org/10.1103/PhysRevB.65.104203
Ohkubo T., Takahiro O., Tsuchida E., Gobet M., Sarou-Kanian V., Bessada C., Yasuhiko I. // J. Phys. Chem. B. 2013. 117. P. 5668−5674. https://doi.org/10.1021/jp312486m
Yuryev A.A., Samoylova M.A. // J. Structural Chemistry. 2020. 61. 5. P. 681–687. https://doi.org/10.1134/S0022476620050029
Xu Q., Kawamura K., Yokokawa T. // J. Non-Cryst. Solids. 1988. 104. P. 261–272. https://doi.org/10.1016/0022-3093(88)90397-3
Kita Y., Misawa M. Umesaki N., Kirihara T., Fukunaga T., Iida T. ISIJ International. 1993. 33. № 1. P. 188–194. https://doi.org/10.2355/isijinternational.33.188 18. Umesaki N., Kita Y., Kirihara T., Iida T., Fukunaga T., Misawa M. // J. Non-Crystalline Solids. 1994. 177. P. 200–207. https://doi.org/10.1016/0022-3093(94)90531-2 19. Pooja S., Pente A.A., Mandar D.S., Chowdhri I.A., Sharma K., Goswami M., Kalsanka T.S., Sadhana M. // J. Phys. Chem. B. 2019. 123. P. 6290–6302. https://doi.org/10.1021/acs.jpcb.9b03026 20. Kresse G., Furthmuller J. // Phys. Rev. B. American Physical Society. 1996. 54. P. 11169–11186. https://doi.org/10.1103/PhysRevB.54.11169 21. Tsymbalist M.M., Yuryev A.A. Svidetel’stvo o gosudarstvennoj registracii programmy dlya EVM № 2 020 618 833 programma dlya EVM “StatXYZ”. [Certificate of state registration of the computer program No. 2 020 618 833 computer program “StatXYZ”]. [In Russian]. 22. Errington J.R., Debenedetti P.G. // Nature. 2001. 409. P. 318–321. https://doi.org/10.1038/35053024 23. Kumar P., Buldyrev S.V., Stanley H.E. PNAS. 2009. 106. № 52. P. 22130–22134. www.pnas.org/cgi/doi/10.1073/pnas.0911094106 24. Alderman O.L.G. // J. Phys. Chem. C. 2015. https://doi.org/10.1021/acs.jpcc.5b10277 25. Majérus O., Cormier L., Calas G., Beuneu B. // Phys. Rev. B. 2003. 67. P. 024210–024217. https://doi.org/10.1103/PhysRevB.67.024210 26. Kamitsos E.I., Chyssikos G.D. Solid State Ionics 1998. 105. P. 75–85. https://doi.org/10.1016/S0167-2738(97)00451-7
