Thermal Stability of Passivated Compacts from Pyrophoric Iron Nanopowders
- Authors: Alymov M.I.1, Seplyarskii B.S.1, Kochetkov R.A.1
-
Affiliations:
- Merzhanov Institute of Structural Macrokinetics and Materials Science, Russian Academy of Sciences
- Issue: Vol 42, No 8 (2023)
- Pages: 87-94
- Section: ХИМИЧЕСКАЯ ФИЗИКА НАНОМАТЕРИАЛОВ
- URL: https://journals.rcsi.science/0207-401X/article/view/139963
- DOI: https://doi.org/10.31857/S0207401X23080022
- EDN: https://elibrary.ru/HXXUMP
- ID: 139963
Cite item
Abstract

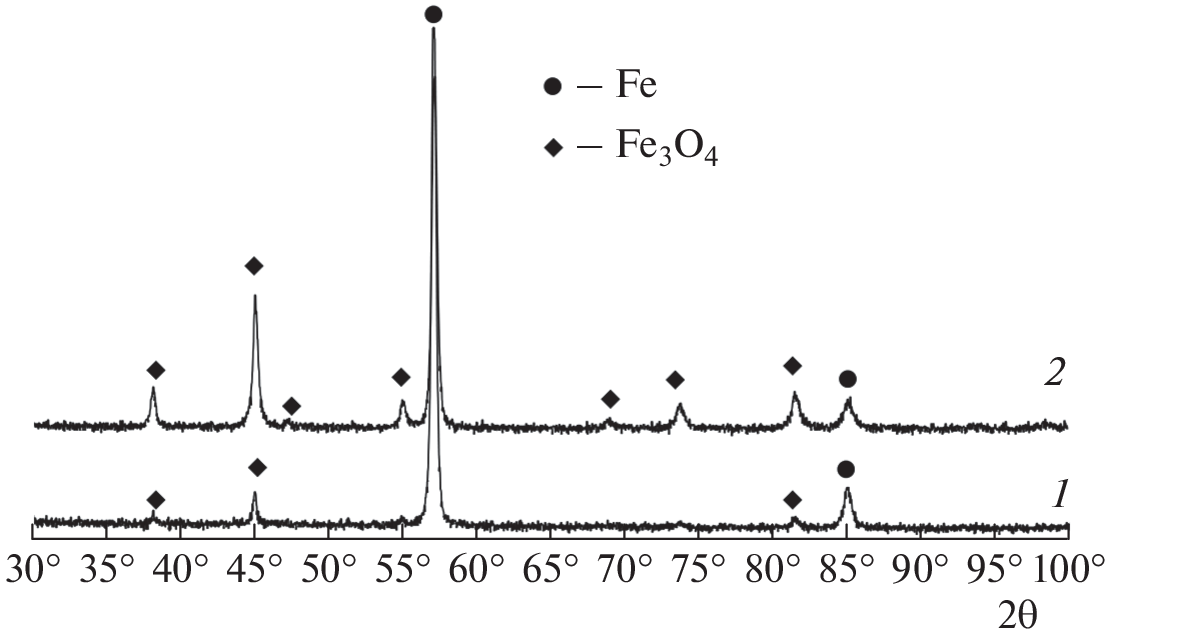

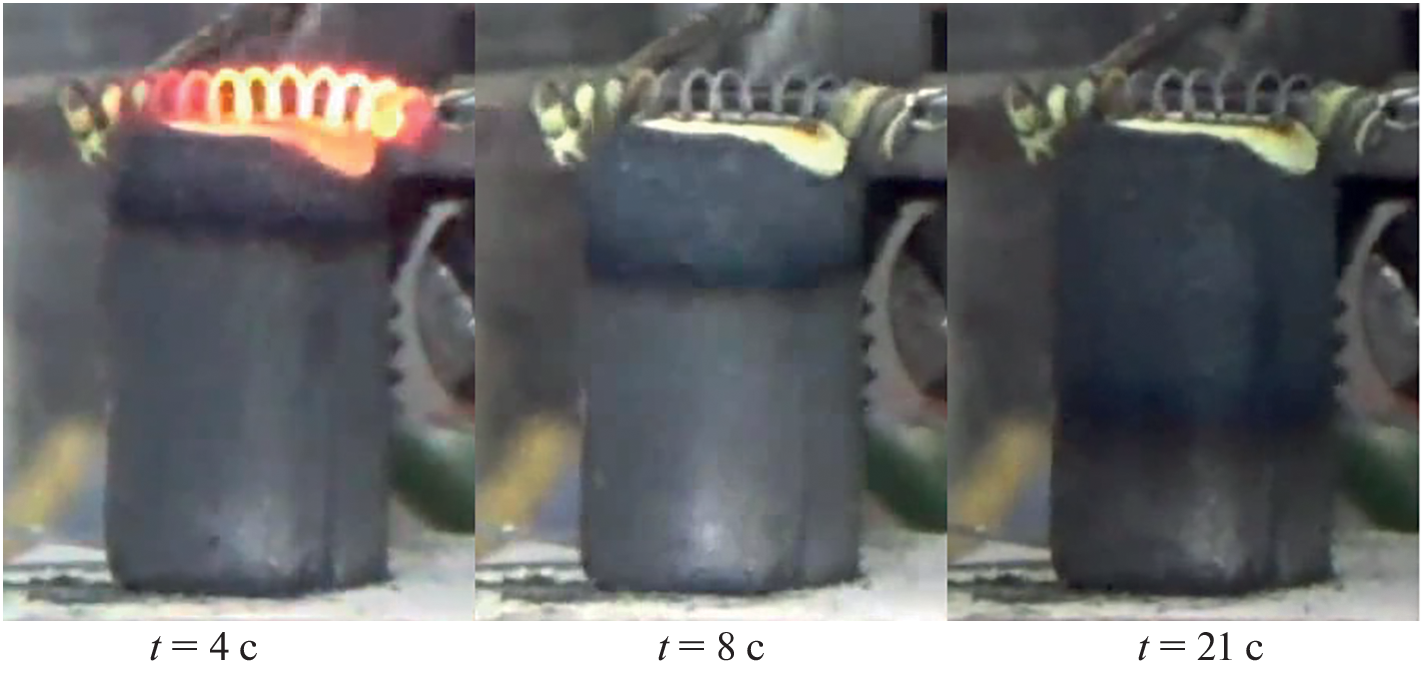

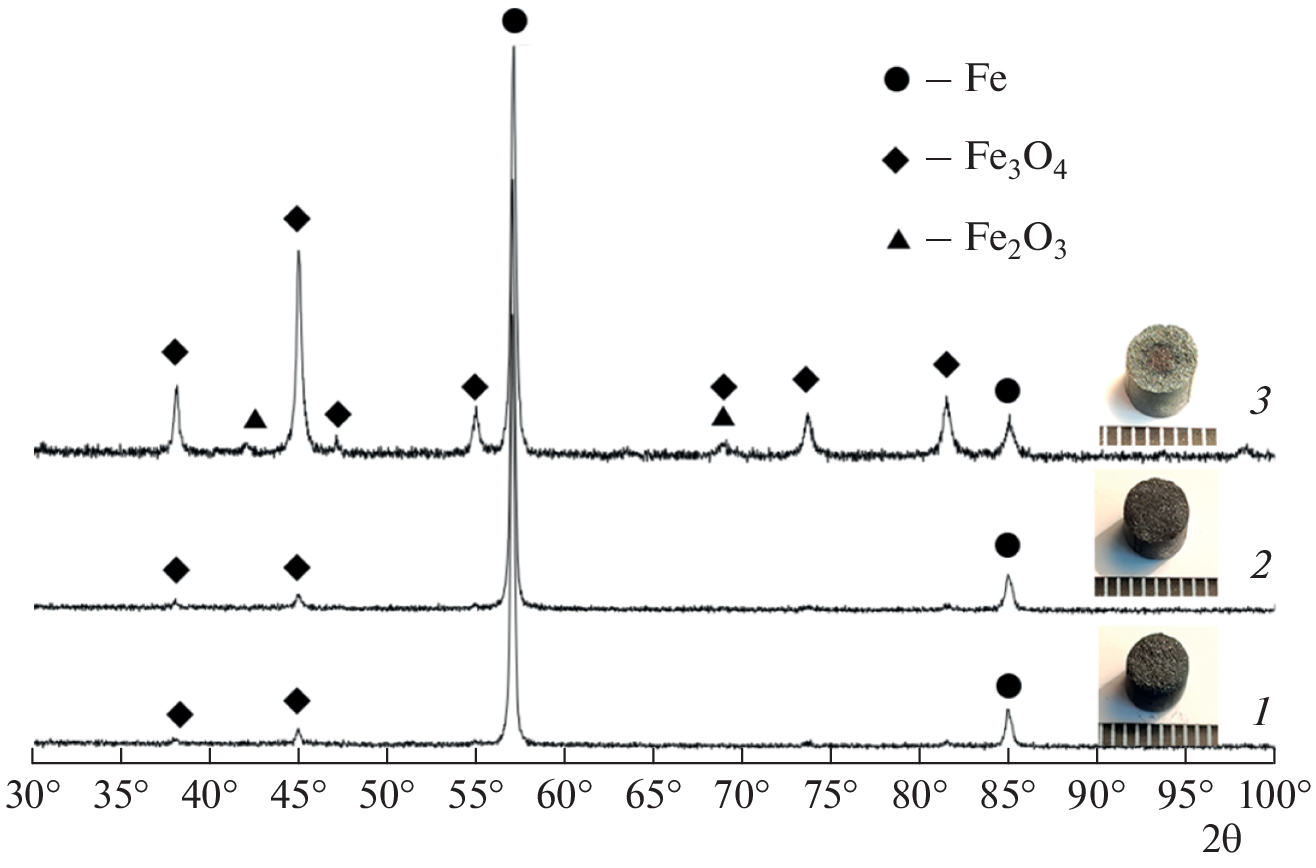

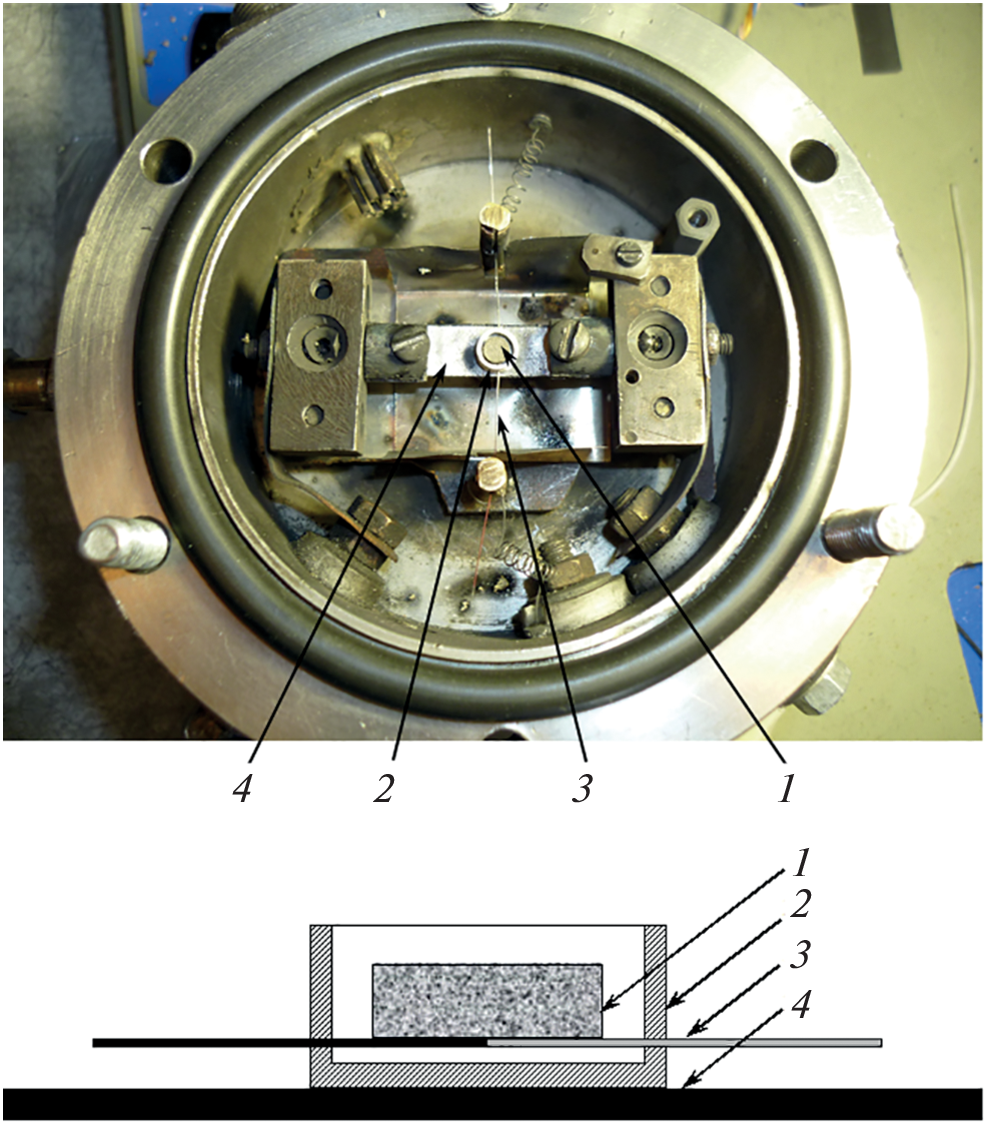

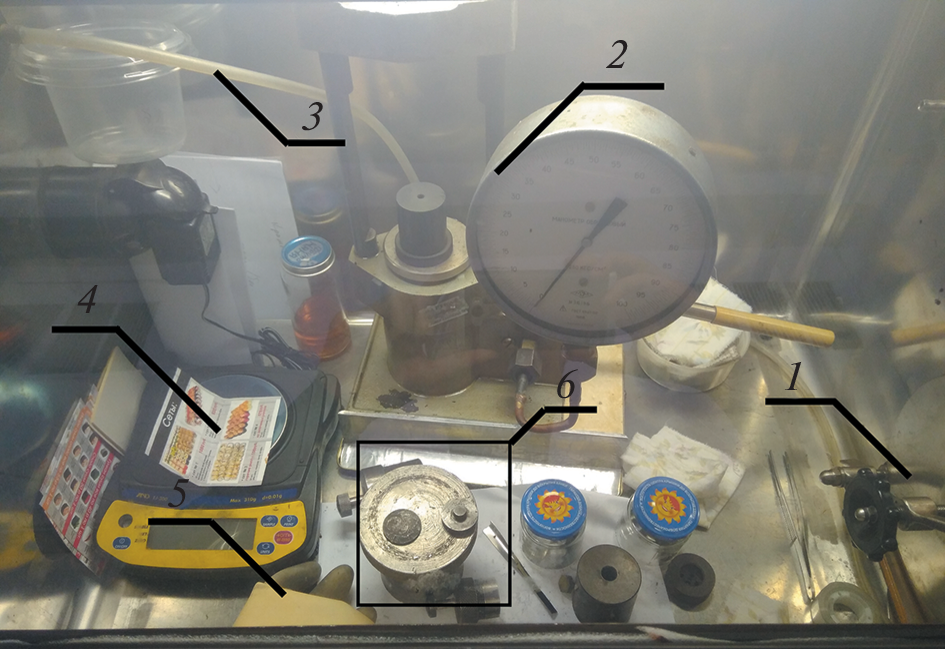

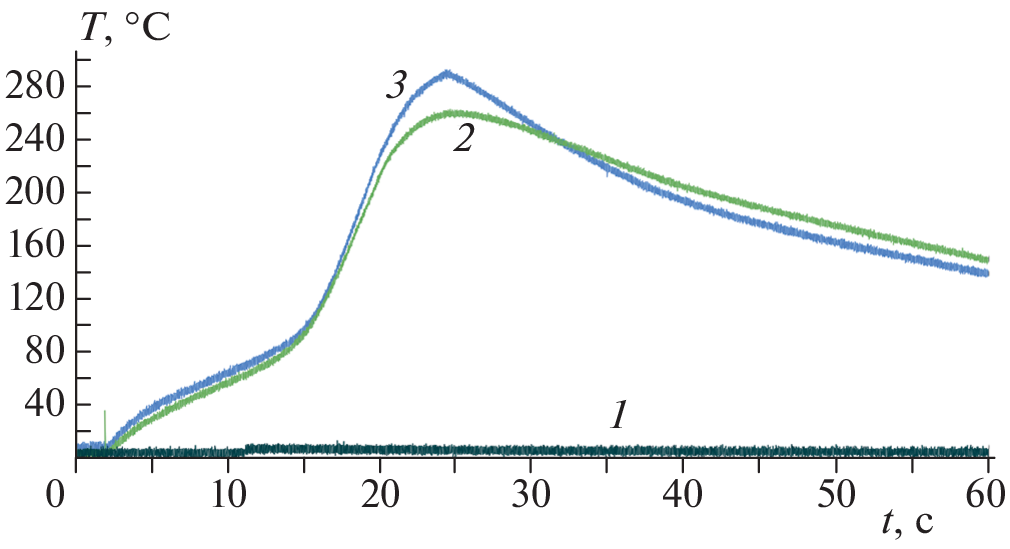

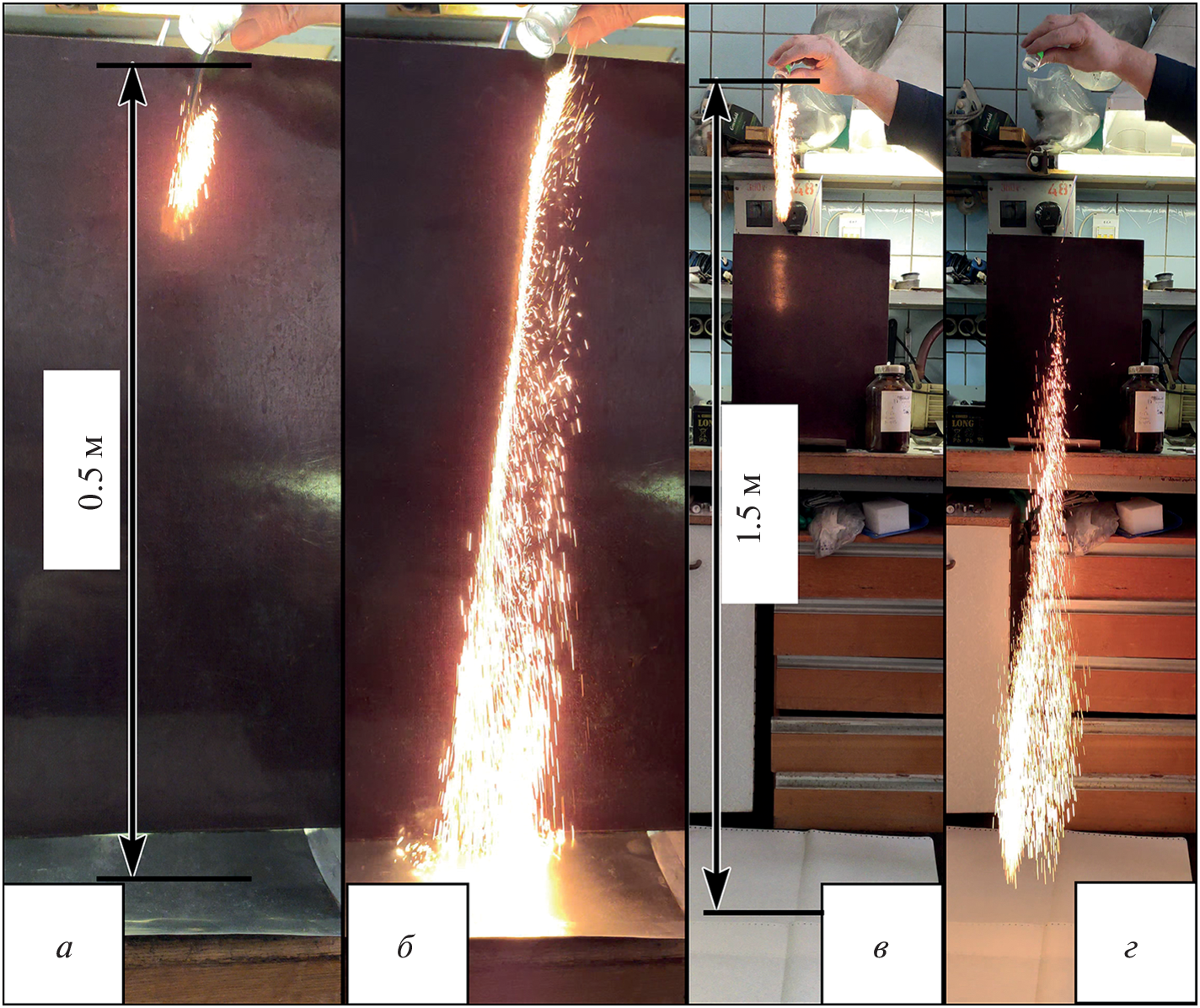

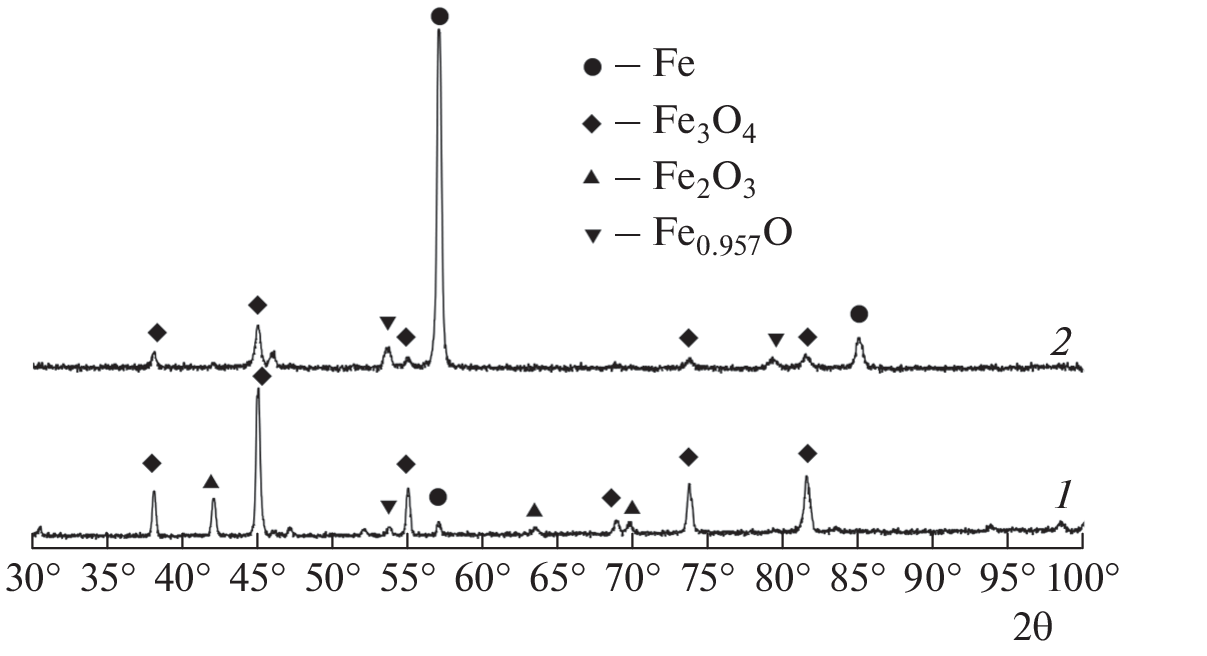

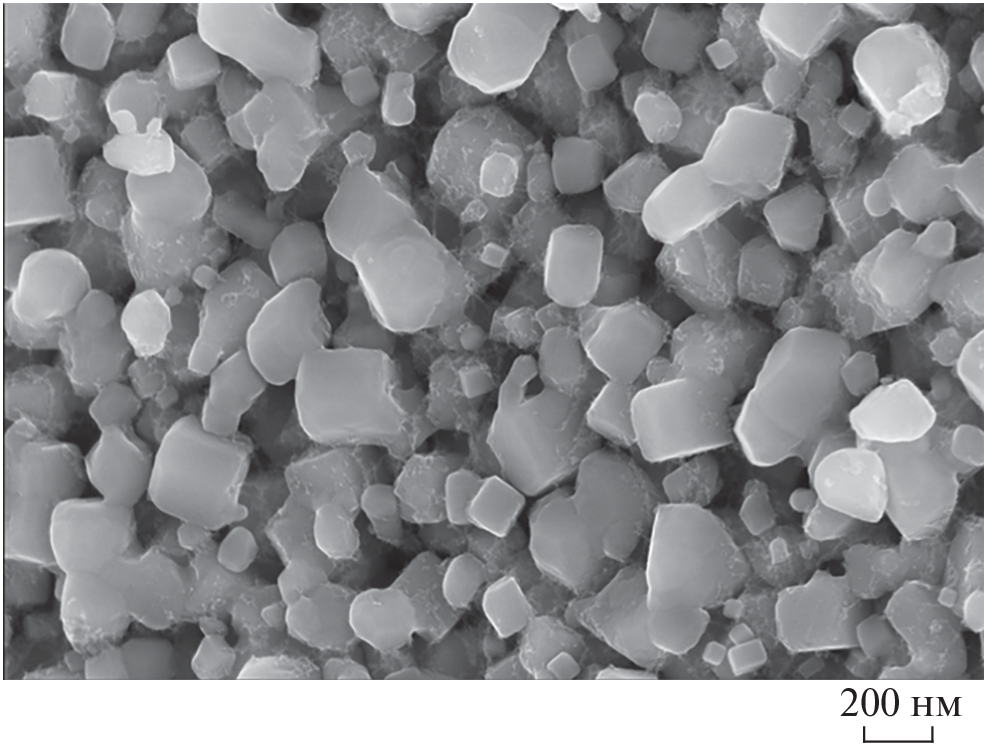

Compact samples with diameters of 3 and 5 mm are prepared from pyrophoric iron nanopowder in a glove box in an argon atmosphere, which are placed in bottles with a ground-in lid. The iron nanopowder is obtained by the chemical-metallurgical method. The average size of the nanoparticles is 85 nm. It is established that during the exposure of the bottles with the samples to air, the samples were passivated with the preservation of their high chemical activity, since a combustion wave was launched over the sample at a rate of about 0.25 mm / s when the oxidation reaction was initiated by a high-temperature source. Exposure of passivated samples with a diameter of 5 mm for 60 min at a temperature of 110°С did not lead to a change in the phase composition of the sample. Exposure at a temperature of 180°С for 30 min led to a change in the color of the sample and its oxidation. The experiments with passivated samples with a diameter of 3 mm show that, under conditions of programmed heating, ignition of the samples occurs at a temperature of about 100°С. The conducted studies allow us to consider the obtained compact samples from an iron nanopowder thermally stable at temperatures below 100°C, when special temperature conditions are not required for their safe storage and transportation.
About the authors
M. I. Alymov
Merzhanov Institute of Structural Macrokinetics and Materials Science, Russian Academy of Sciences
Email: alymov@ism.ac.ru
Chernogolovka, Russia
B. S. Seplyarskii
Merzhanov Institute of Structural Macrokinetics and Materials Science, Russian Academy of Sciences
Email: alymov@ism.ac.ru
Chernogolovka, Russia
R. A. Kochetkov
Merzhanov Institute of Structural Macrokinetics and Materials Science, Russian Academy of Sciences
Author for correspondence.
Email: alymov@ism.ac.ru
Chernogolovka, Russia
References
- Bouillard J., Vignes A., Dufaud O., Perrin L., Thomas D. // J. Hazard. Mater. 2010. V. 181. № 1–3. P. 873; https://doi.org/10.1016/j.jhazmat.2010.05.094
- Pivkina A., Ulyanova P., Frolov Y., Zavyalov S., Schoonman J. // Propellants, Explosives, Pyrotechnics. 2004. V. 29. № 1. P. 39; https://doi.org/10.1002/prep.200400025
- Bhushan B. Springer Handbook of Nanotechnology. 4th ed. Berlin: Springer-Verlag Heidelberg, 2017; https://doi.org/10.1007/978-3-662-54357-3
- Crane R.A., Scott T. // J. Hazard. Mater. 2012. V. 211. P. 112; https://doi.org/10.1016/j.jhazmat.2011.11.073
- Huber D.L. // Small. 2005. V. 1. P. 482; https://doi.org/10.1002/smll.200500006
- Hosokawa M., Nogi K., Naito M., Yokoyama T. Nanoparticle technology handbook. Elsevier, 2007.
- Rubtsov N.M., Seplyarskii B.S., Alymov M.I. Ignition and wave processes in combustion of solids. Springer Intern. Publ., 2017.
- Flannery M., Desai T.G., Matsoukas T., Lotfizadeh S., Oehlschlaeger M.A. // J. Nanomater. 2008. V. 2015. P. 185; https://doi.org/10.1155/2015/682153
- Meziani M.J., Bunker C.E., Lu F. et al. // ACS Appl. Mater. Interfaces. 2009. V. 1. № 3. P. 703; https://doi.org/10.1021/am800209m
- Nagarajan R., Hatton T.A. Nanoparticles: Synthesis, Stabilization, Passivation, and Functionalization. ACS Sympos. Ser.; Washington, DC: Amer. Chem. Soc., 2008.
- Громов А.А., Строкова Ю.И., Дитц А.А. // Хим. физика. 2010. Т. 29. № 2. С. 77.
- Young-Soon Kwon, Gromov A.A., Strokova J.I. // Appl. Surf. Sci. 2007. V. 253. P. 5558; https://doi.org/10.1016/j.apsusc.2006.12.124
- Gromov A.A., Förter-Barth U., Teipel U. // Powder Technol. 2006. V. 164. P. 111; https://doi.org/10.1016/j.powtec.2006.03.003
- Alymov M.I., Rubtsov N.M., Seplyarskii B.S., Zelensky V.A., Ankudinov A.B. // Mendeleev Commun. 2016. V. 26. P. 452; https://doi.org/10.1016/j.mencom.2016.09.030
- Алымов М.И., Рубцов Н.М., Сеплярский Б.С., Зеленский В.А., Анкудинов А.Б. // Неорган. материалы. 2017. № 9. С. 929.
- Alymov M.I., Rubtsov N.M., Seplyarskii B.S., Zelensky V.A., Ankudinov A.B. // Mendeleev Commun. 2017. V. 27. P. 482;https://doi.org/10.1016/j.mencom.2017.09.017
- Alymov M.I., Rubtsov N.M., Seplyarskii B.S. et al. // Mendeleev Commun. 2017. V. 27. P. 631;https://doi.org/10.1016/j.mencom.2017.11.032
- Dong S., Cheng H., Yang H., Hou P., Zou G. // J. Phys.: Condens. Matter. 2002. V. 14. P. 11023; https://doi.org/10.1088/0953-8984/14/44/421
- Hunt E.M., Pantoya M.L. // J. Appl. Phys. 2005. V. 98. 034 909; https://doi.org/10.1063/1.1990265
- Saceleanu F., Idir M., Chaumeix N., Wen J.Z. // Front. Chem. 2018. V. 6; https://doi.org/10.3389/fchem.2018.00465
- Моногаров Г.А., Мееров Д.Б., Фролов Ю.В., Пивкина А.Н. // Хим. физика. 2019. Т. 38. № 8. С. 40; https://doi.org/10.1134/S0207401X19080119
- Gromov A.A., Teipel U. Metal Nanopowders: Production, Characterization, and Energetic Applications. N.Y.: John Wiley & Sons, 2014; https://doi.org/10.1002/9783527680696
- Васильев А.А., Дзидзигури Э.Л., Ефимов М.Н. и др. // Хим. физика. 2021. Т. 40. № 6. С. 18; https://doi.org/10.31857/S0207401X21060157
- Алымов М.И., Сеплярский Б.С., Вадченко С.Г. и др. // Письма о материалах. 2021. Т. 11. № 1. С. 39; https://doi.org/10.22226/2410-3535-2021-1-39-44
- Алымов М.И., Сеплярский Б.С., Вадченко С.Г. и др. // Хим. физика. 2021. Т. 40. № 4. С. 85; https://doi.org/10.31857/S0207401X21040026
- Алымов М.И., Сеплярский Б.С., Вадченко С.Г. и др. // Физика горения и взрыва. 2021. Т. 57. № 1. С. 79; https://doi.org/10.15372/FGV20210307
