Heterogeneities of Short-Period S-Waves Attenuation Field in the Kuril-Kamchatka Region and their Relation to Large and Great Earthquakes

Cover Page

Cite item

Full Text

Open Access Open Access
Restricted Access Access granted
Restricted Access Subscription Access

Abstract

We study characteristics of short-period shear wave attenuation field in the lithosphere to pick out areas of possible preparation for large and great shallow earthquakes. We have processed more than 360 seismograms of events with source depths of 0–33 km recorded by station PET from two areas limited by coordinates of 45.0˚–50.5˚ N and 54.0˚–56.5˚ N, respectively (for brevity, we will call the areas as the southern and the northern ones). Besides, for the purposes of comparison we have analyzed seismograms by station KGB that recorded earthquakes from the area located between 52˚ и 54˚ N. We used the method based on analysis of Sn and Pn maximum amplitude ratio. We find that attenuation in the lithosphere of the northern area is generally much higher than in the southern one. At the same time attenuation in both areas is weaker than in the region of north-eastern Japan. Relatively lower attenuation corresponds to rupture zones of the great earthquakes of 1952 (Mw = 9.0) and 1963 (Mw = 8.6) occurred in the southern area more than 50 years ago. Higher attenuation is observed in the rupture zones of the recent events dated 1997 (Mw = 7.8), 2006 (Mw = 8.3) and 2018 (Mw = 7.3). The obtained data are in agreement with earlier conclusions stating that typical large subduction type earthquakes occur in the areas characterized by higher fluid content in the uppermost mantle; and large and great earthquakes are followed by deep fluids ascent during a few decades, which leads to attenuation decrease in the uppermost mantle. We also pick out the high attenuation zones where no large and great earthquakes (Mw ≥7.8) have occurred for quite a long time. We suggest that active processes of preparation for large earthquakes can be observed in these zones (first of all in the area of the Avacha Bay and to the east of it).

Full Text

Restricted Access

About the authors

Yu. F. Kopnichev

Shmidt Institute of Physics of the Earth RAS

Author for correspondence.
Email: yufk777@mail.ru
Russian Federation, Bolshaya Gruzinskaya str., 10, bld. 1, Moscow, 123242

I. N. Sokolova

FRC Geophysical Survey RAS

Email: SokolovaIN@gsras.ru
Russian Federation, Obninsk, Kaluga region, 249035

References

  1. Апродов В.А. Вулканы. М.: Мысль, 1982. 367 с.
  2. Аптикаева О.И., Арефьев С.С., Кветинский С.И., Копничев Ю.Ф., Мишаткин В.И. Неоднородности литосферы в очаговой зоне Рачинского землетрясения 1991 г. // Докл. РАН. 1995. Т. 344. № 4. С. 533–538.
  3. Ваньян Л.Л., Хайндман Р.Д. О природе электропроводности консолидированной коры // Физика Земли. 1996. № 4. С. 5‒11.
  4. Земная кора и верхняя мантия Тянь-Шаня в связи с геодинамикой и сейсмичностью / Ред. А.Б. Бакиров. Бишкек: Илим, 2006. 115 с.
  5. Каазик П.Б., Копничев Ю.Ф., Нерсесов И.Л., Рахматуллин М.Х. Анализ тонкой структуры короткопериодных сейсмических полей по группе станций // Физика Земли. 1990. № 4. С. 38–49.
  6. Каазик П.Б., Копничев Ю.Ф. Численное моделирование группы Sn и коды в неоднородной по скорости и поглощению среде // Вулканология и сейсмология. 1990. № 6. С. 74–87.
  7. Каракин А.В., Лобковский Л.И. Гидродинамика и структура двухфазной астеносферы // Докл. АН СССР. 1983. Т. 268. № 2. С. 324–329.
  8. Копничев Ю.Ф. Короткопериодные сейсмические волновые поля. М.: Наука, 1985. 176 с.
  9. Копничев Ю.Ф., Аракелян А.Р. О природе короткопериодных сейсмических полей на расстояниях до 3000 км // Вулканология и сейсмология. 1988. № 4. С. 77–92.
  10. Копничев Ю.Ф. Пространственно-временные вариации поля поглощения S-волн в очаговых зонах сильных землетрясений Тянь-Шаня// Физика Земли. 2003. № 5. C. 73–86.
  11. Копничев Ю.Ф., Гордиенко Д.Д., Соколова И.Н.// Пространственно-временные вариации поля поглощения поперечных волн в верхней мантии сейсмически активных и слабосейсмичных районов // Вулканология и сейсмология. 2009. № 1. С. 49–64.
  12. Копничев Ю.Ф., Соколова И.Н. О корреляции характеристик сейсмичности и поля поглощения S-волн в районах кольцевых структур, формирующихся перед сильными землетрясениями // Вулканология и сейсмология. 2010. № 6. С. 34–51.
  13. Копничев Ю.Ф., Соколова И.Н. Неоднородности поля поглощения короткопериодных S-волн в районе очага землетрясения Мауле (Чили, 27.02.2010, Mw = 8.8) и их связь с сейсмичностью и вулканизмом // Геофизические исследования. 2011. Т. 12. № 3. С. 22–32.
  14. Копничев Ю.Ф., Соколова И.Н. Кольцевые структуры сейсмичности, формирующиеся перед сильными и сильнейшими землетрясениями на западе и востоке Тихого океана // Геофизические процессы и биосфера. 2018. Т. 17. № 1. С. 109–124. https://doi.org/10.21455/GPB2018.1-5
  15. Копничев Ю.Ф., Соколова И.Н. Характеристики поля поглощения короткопериодных S-волн в очаговой зоне сильнейшего землетрясения Тохоку 11.03.2011 г. (MW = 9.0) // Геофизические процессы и биосфера. 2019. Т. 18. № 2. С. 16–27. https://doi.org/10.21455/GPB2019.2-2
  16. Копничев Ю.Ф., Соколова И.Н. Характеристики поля поглощения короткопериодных S-волн в литосфере Туркмении и северо-восточного Ирана и их связь с сейсмичностью // Сейсмические приборы. 2020. Т. 56. № 1. С. 39–46.
  17. Копничев Ю.Ф., Соколова И.Н. Неоднородности поля поглощения короткопериодных S-волн в литосфере юго-западной Японии // Геофизические процессы и биосфера. 2021. Т. 20. № 4. С. 56–66.
  18. Копничев Ю.Ф., Соколова И.Н. Кольцевые структуры сейсмичности в районе Юго-Западной Аляски: оправдавшийся прогноз места и магнитуды Чигникского землетрясения 29.07.2021 г. (Mw = 8.2) // Геофизические процессы и биосфера. 2022. Т. 21. № 1. С. 80–91.
  19. Федотов С.А., Соломатин А.В., Чернышев С.Д. Долгосрочный сейсмический прогноз для Курило-Камчатской дуги на 2006‒2011 гг. и успешный прогноз Средне-Курильского землетрясения // Вулканология и сейсмология. 2007. № 3. С. 3–25.
  20. Al-Damegh K., Sandvol E., Al-Lazki A., Barazangi M. Regional seismic wave propagation (Lg and Sn) and Pn attenuation in the Arabian Plate and surrounding regions // Geophys. J. Int. 2004. V. 157. № 2. P. 775‒795.
  21. Bürgmann R., Kogan M., Steblov M., Hilley G., Levin V., Apel E. Interseismic coupling and asperity distribution along the Kamchatka subduction zone // J. Geophys. Res. 2005. V. 110. B07405.
  22. Gold T., Soter S. Fluid ascent through the solid lithosphere and its relation to earthquakes // Pure Appl. Geophys. 1984/1985. V. 122. P. 492–530.
  23. Husen S., Kissling E. Postseismic fluid flow after the large subduction earthquake of Antofagasta, Chile // Geology. 2001. V. 29. № 9. P. 847–850.
  24. Luydendyk B. Oceanic crust // Encyclopedia Britannica. 2022.
  25. MacInnes B., Weiss R., Bourgeois J., Pinegina T. Slip distribution of the 1952 Kamchatka great earthquake based on near-field tsunami deposits and historical record // Bull. Seismol. Soc. Amer. 2010. V. 100. № 4. P. 1695–1709.
  26. Molnar P., Oliver J. Lateral variations of attenuation in the upper mantle and discontinuities in the lithosphere // J. Geophys. Res. 1969. V. 74. P. 2648–2682.
  27. Müller R., Sdrolias M., Gaina C., Roest W. Age, spreading rates and spreading symmetry of the world’s ocean crustМ// Geochem. Geophys. Geosyst. 2008. V. 9. Iss. 4. Art. Q04006. https://doi.org/10.1029/2007GC001743
  28. Ogawa R., Heki K. Slow postseismic recovery of geoid depression formed by the 2004 Sumatra-Andaman earthquake by mantle water diffusion // Geophys. Res. Lett. 2007. V. 34. Iss. 6. Art. L06313. https://doi.org/ 10.1029/2007GL029340
  29. Wada I., Wang K., He J., Hyndman R. Weakening of the subducting interface and its effects on surface heat flow, slab dehydration and mantle wedge serpentinization // J. Geophys. Res. 2008. V. 113. B04402. DOL: 10.1029/ 2007JN005190
  30. Yamasaki T., Seno T. Double seismic zone and dehydration embrittlement of the subducting slab // J. Geophys. Res. 2003. V. 108. № B4. DOI: 10/1029/2002JB001918

Supplementary files

Supplementary Files
Action
1. JATS XML
Download

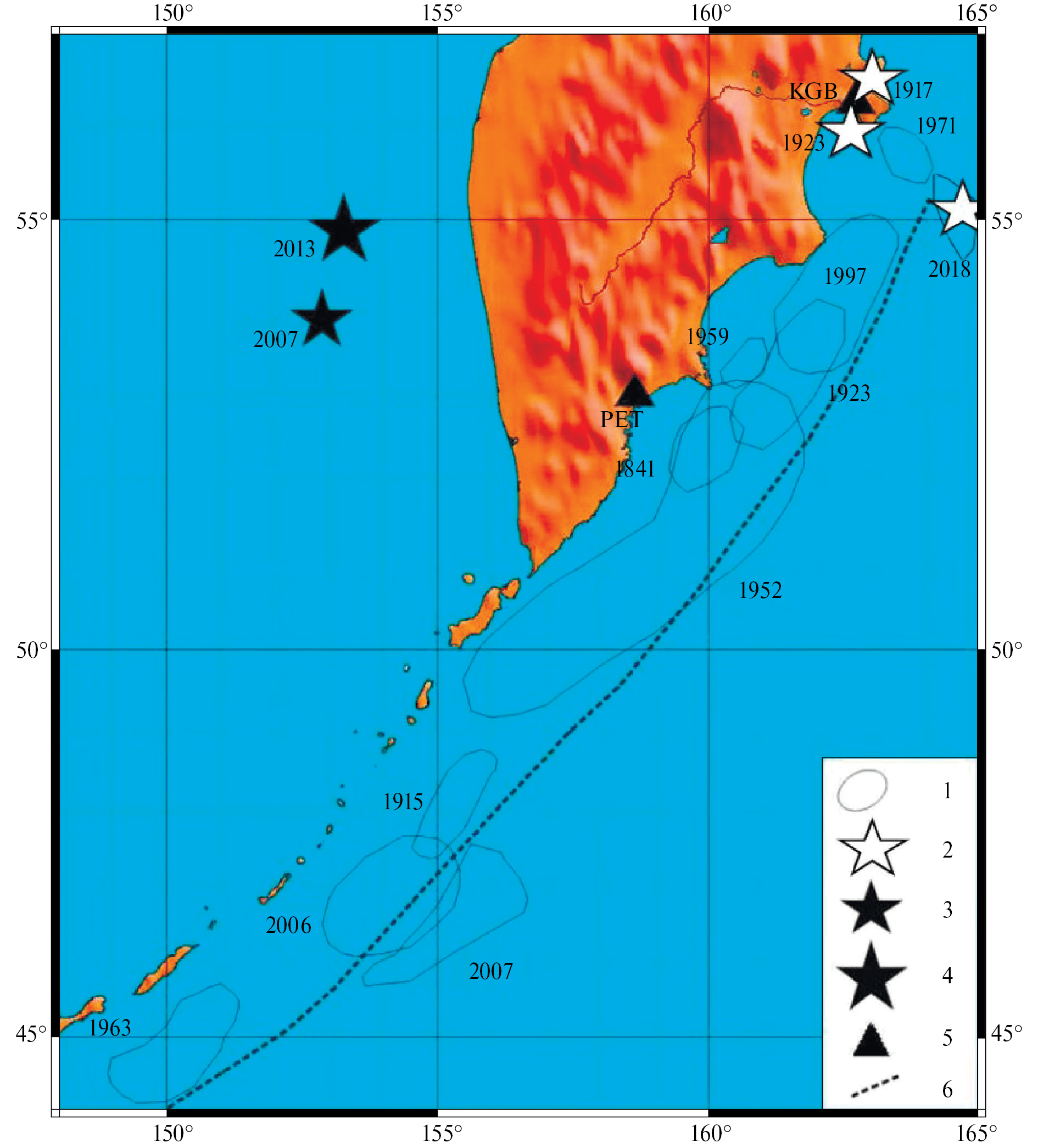

2. Fig. 1. Map of the study area. 1 – focal zones of the strongest shallow earthquakes (Mw ≥7.8); 2 – epicenters of strong earthquakes (Mw = 7.2‒7.7); 3, 4 ‒ epicenters of the strongest deep (h >70 km) earthquakes (years of all events are indicated); 5 – seismic stations; 6 – deep-sea trench.

Download (1MB)
Indexing metadata
3. Fig. 2. Examples of earthquake seismograms obtained by the PET station. a – upper trace – event from the source zone of the 1997 earthquake (Mw = 7.8). 13.11.1995, 55.03˚ N, 161.94˚ Е, h = 33 km, Δ = 311 km, lower trace – event from the source zone of the 1952 earthquake (Mw = 9.0). 22.04.2013, 50.06˚ N, 157.51˚ Е, h = 18 km, Δ = 339 km; b – upper trace – event from the focal zone of the 1997 earthquake 03.02.2004, 55.35˚ N, 162.96˚ E, h = 4 km, Δ = 382 km, lower trace – event from the focal zone of the 1952 earthquake 11.12.1993, 49.73˚ N, 157.25˚ E, h = 31 km, Δ = 379 km; c – upper trace – aftershock of the 2006 earthquake (Mw = 8.3). 11/15/2006, 46.72˚ N, 153.30˚ Е, h = 10 km, Δ = 800 km, the lower trace is an event from the focal zone of the 1963 earthquake (Mw = 8.6). 09/11/2001, 45.45˚ N, 150.68˚ Е, h = 33 km, Δ = 1022 km. The arrival times of Pn and Sn waves are indicated everywhere.

Download (598KB)
Indexing metadata

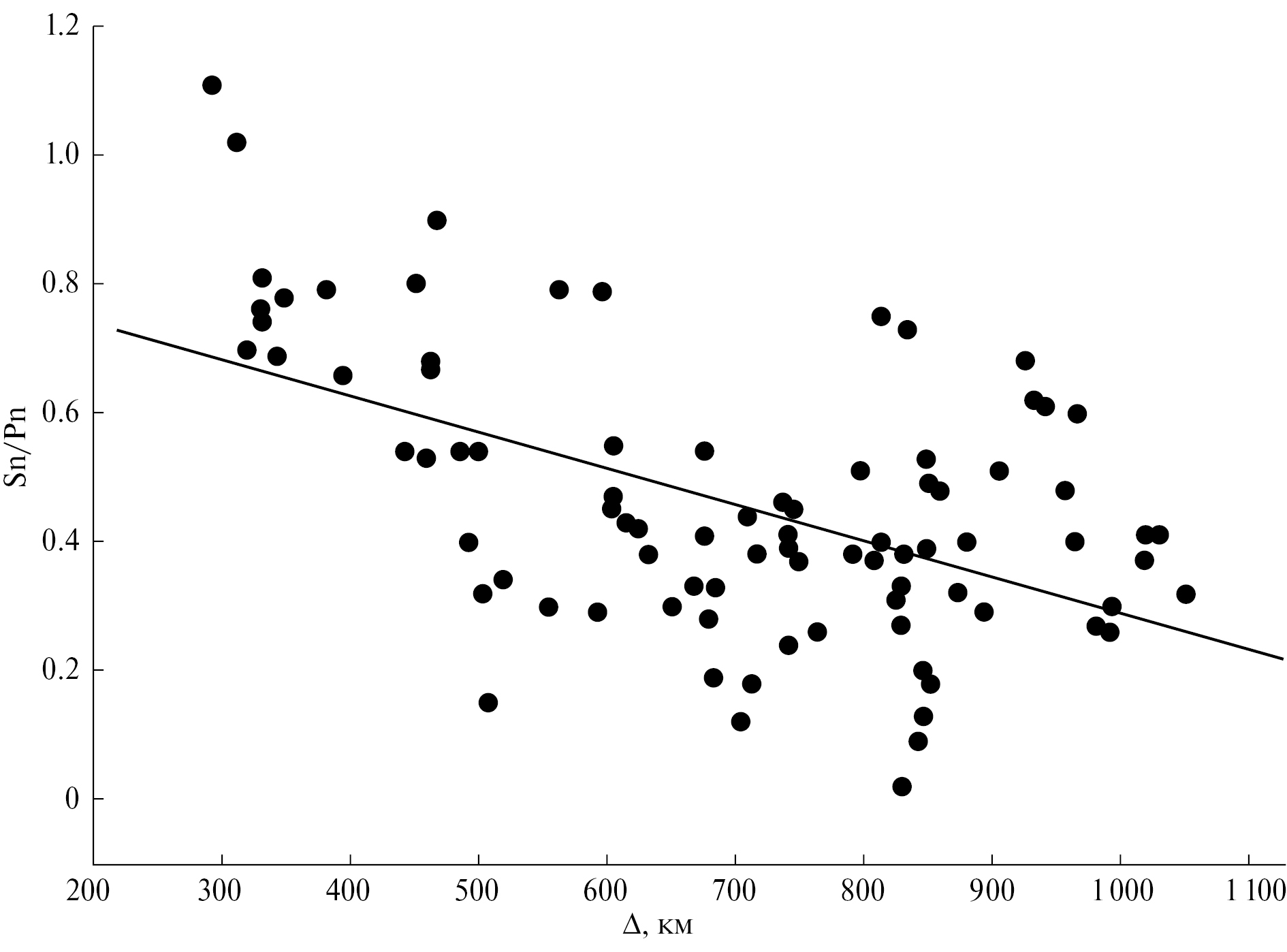

4. Fig. 3. Correlation dependence of the Sn/Pn parameter on the distance for the southern region. Straight line is the regression line.

Download (304KB)
Indexing metadata

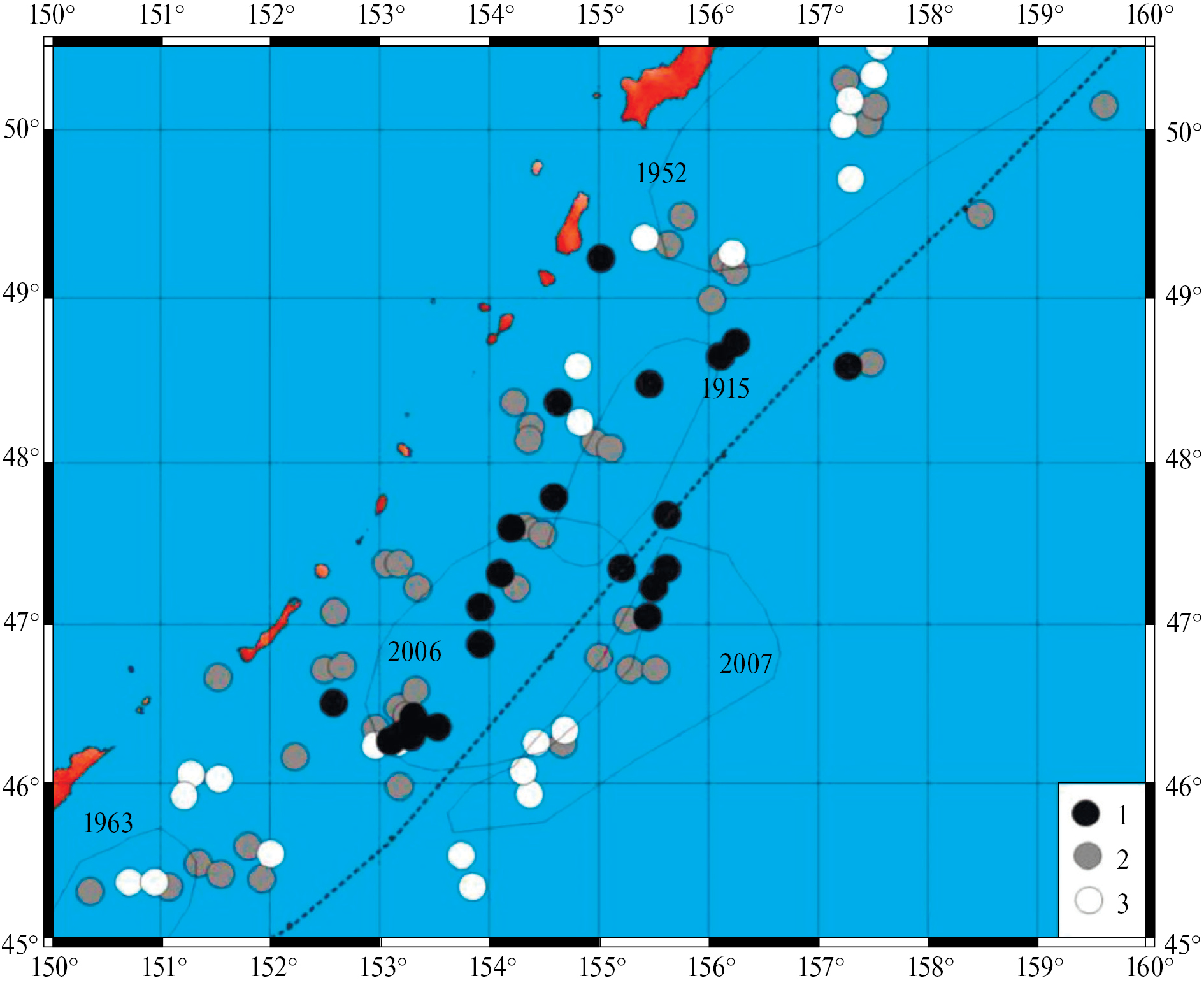

5. Fig. 4. Absorption field map for the southern region. 1–3 – absorption: 1 – high, 2 – intermediate, 3 – low. For other legend, see Fig. 1.

Download (760KB)
Indexing metadata

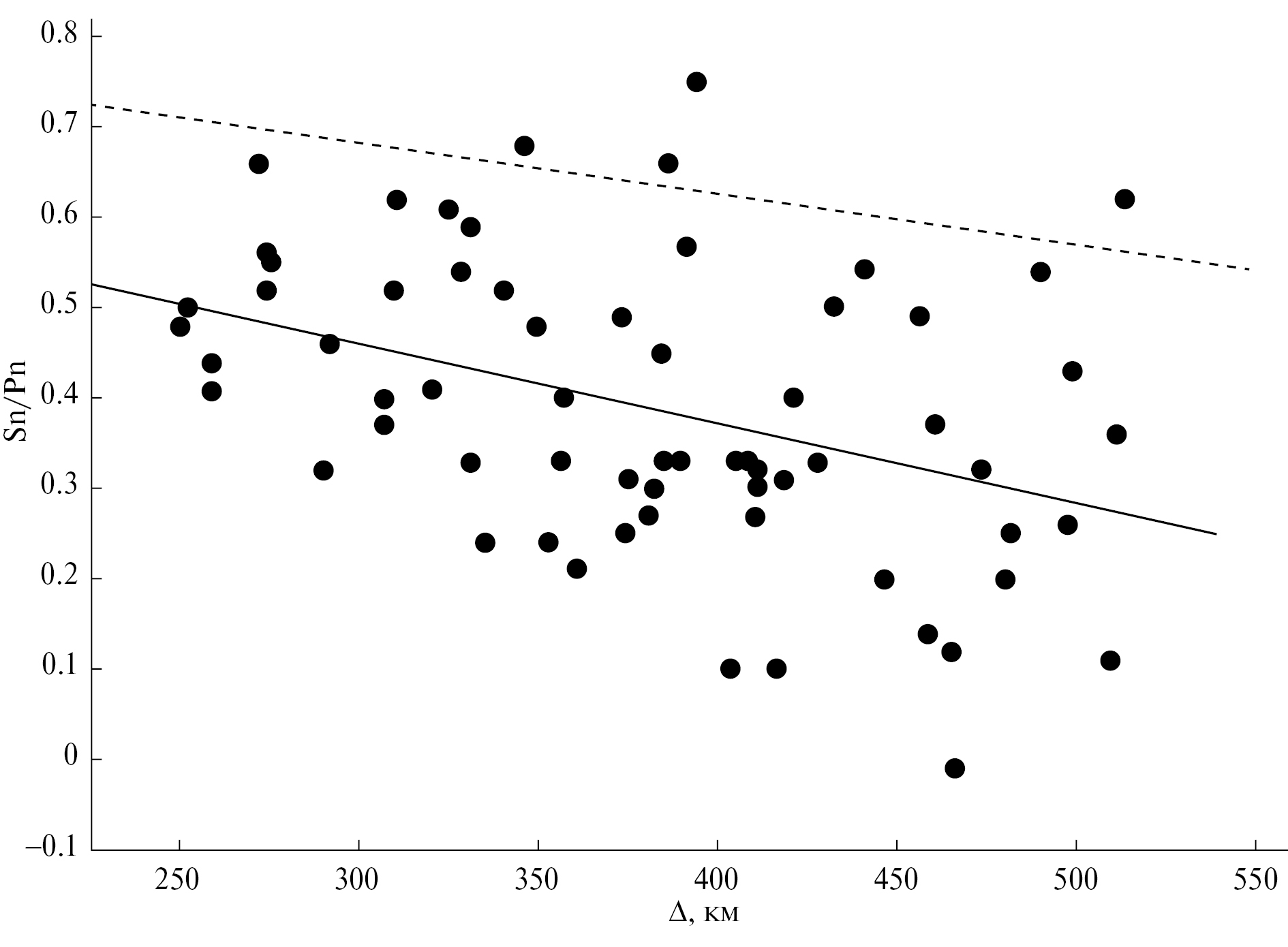

6. Fig. 5. Correlation dependence of the Sn/Pn parameter on the distance for the northern region. Regression lines are shown for the northern (solid line) and southern (dashed line) regions.

Download (306KB)
Indexing metadata

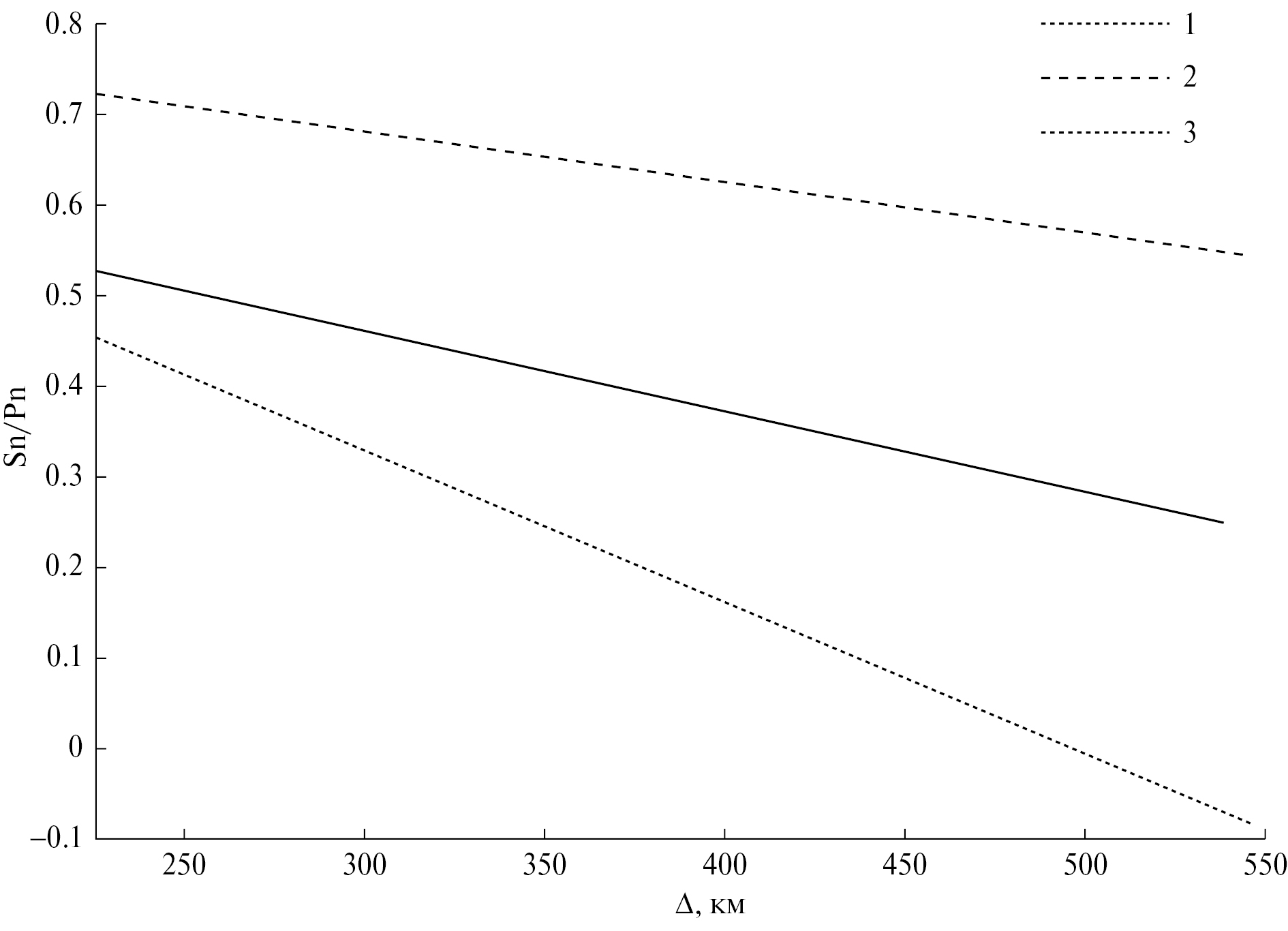

7. Fig. 6. Correlation dependences of the Sn/Pn parameter on distance. 1 – northern region, 2 – southern region, 3 – northeastern Japan.

Download (276KB)
Indexing metadata

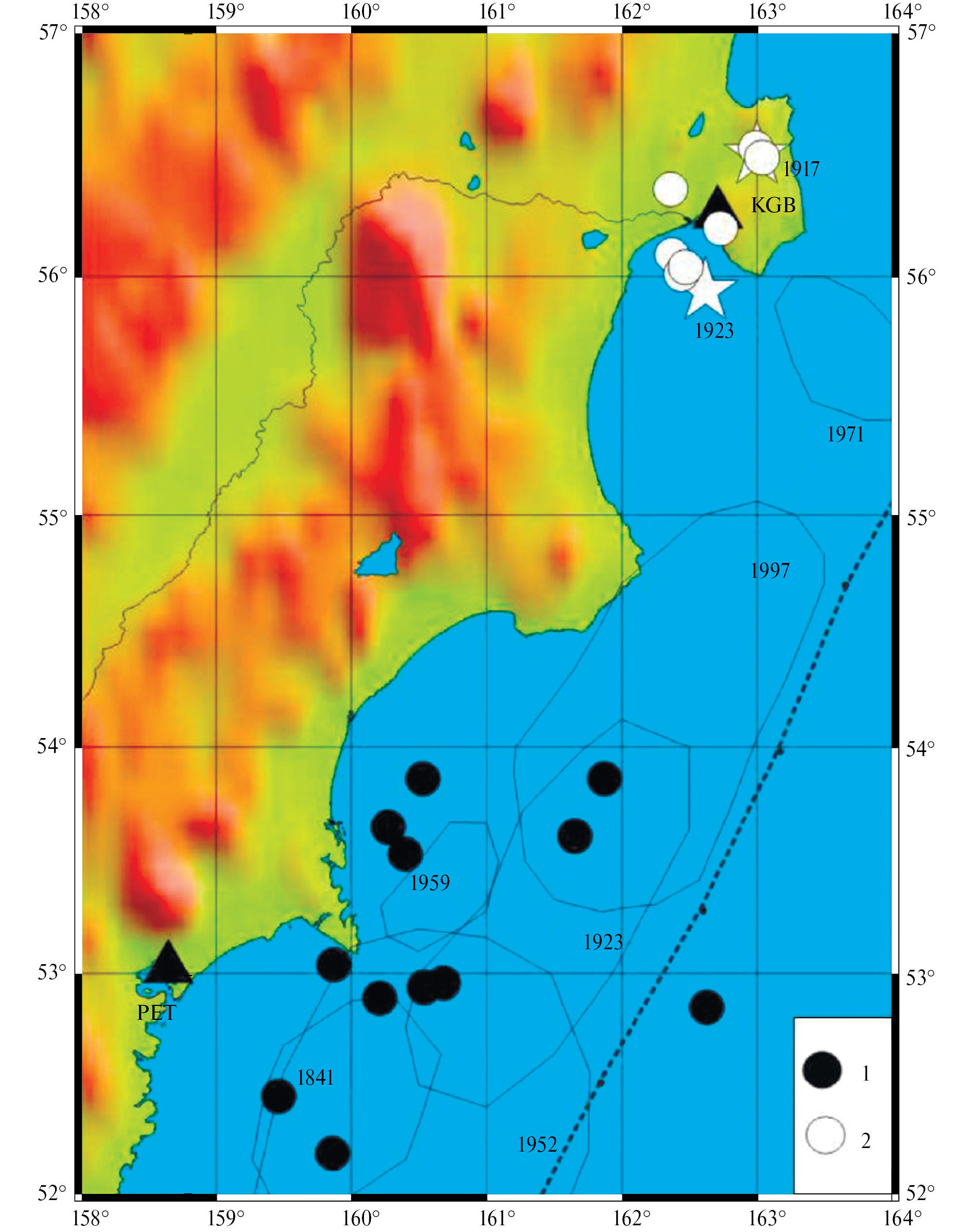

8. Fig. 7. Earthquake epicenters recorded by the KGB station (1), epicenters of events near the KGB station recorded by the PET station (2). For other legend, see Fig. 1.

Download (1MB)
Indexing metadata

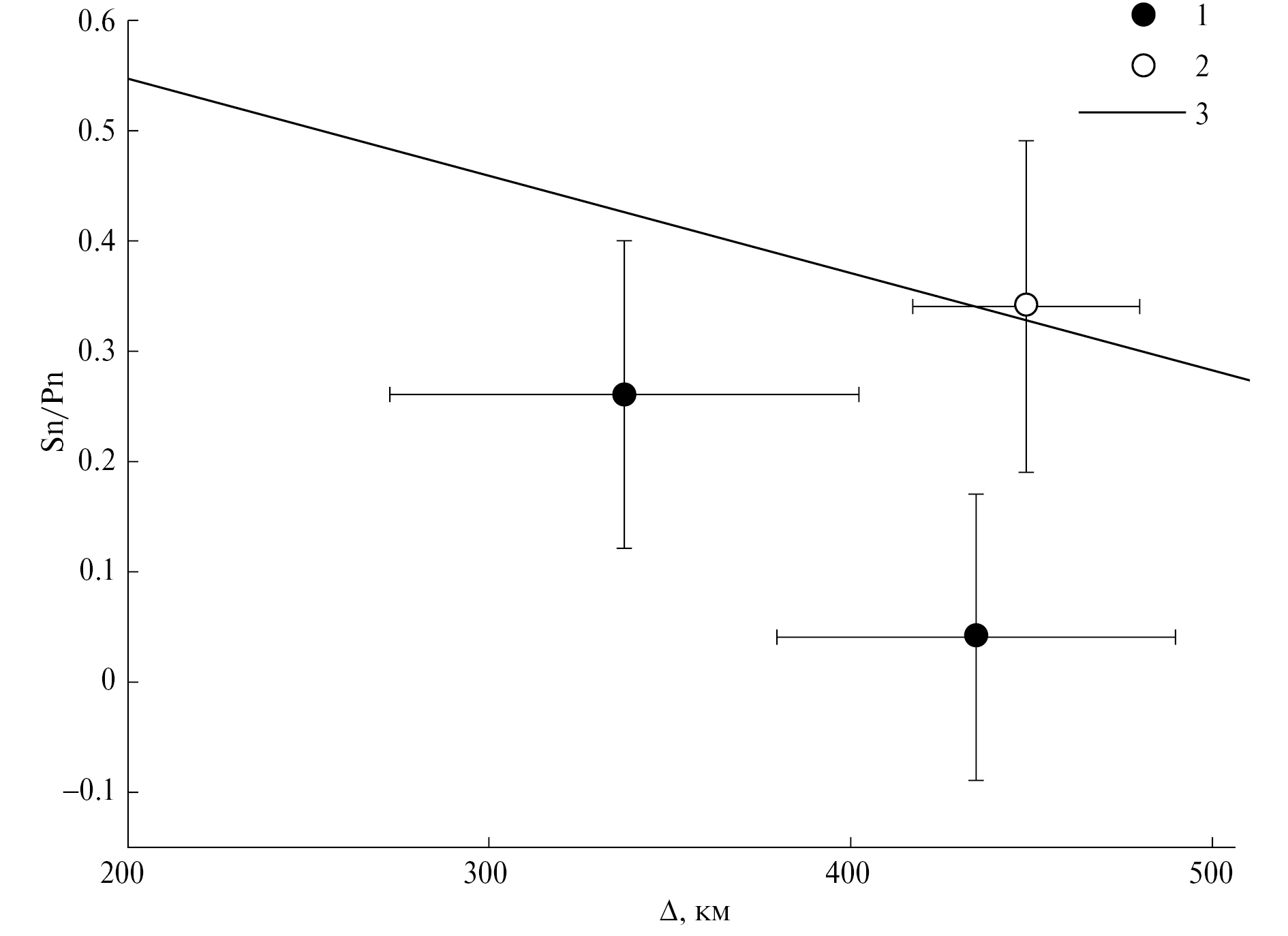

9. Fig. 8. Sn/Pn parameter dependences on distance for the northern region. 1 – Sn/Pn parameter dependence on distance according to the KGB station data (upper symbol – epicenters between 53˚ and 54˚ N, lower – between 52˚ and 53˚ N); 2 – Sn/Pn parameter value according to the PET station data for epicenters close to the KGB station; 3 – regression line according to the PET station data for the northern region. Average values, standard deviations and data averaging intervals are shown.

Download (243KB)
Indexing metadata

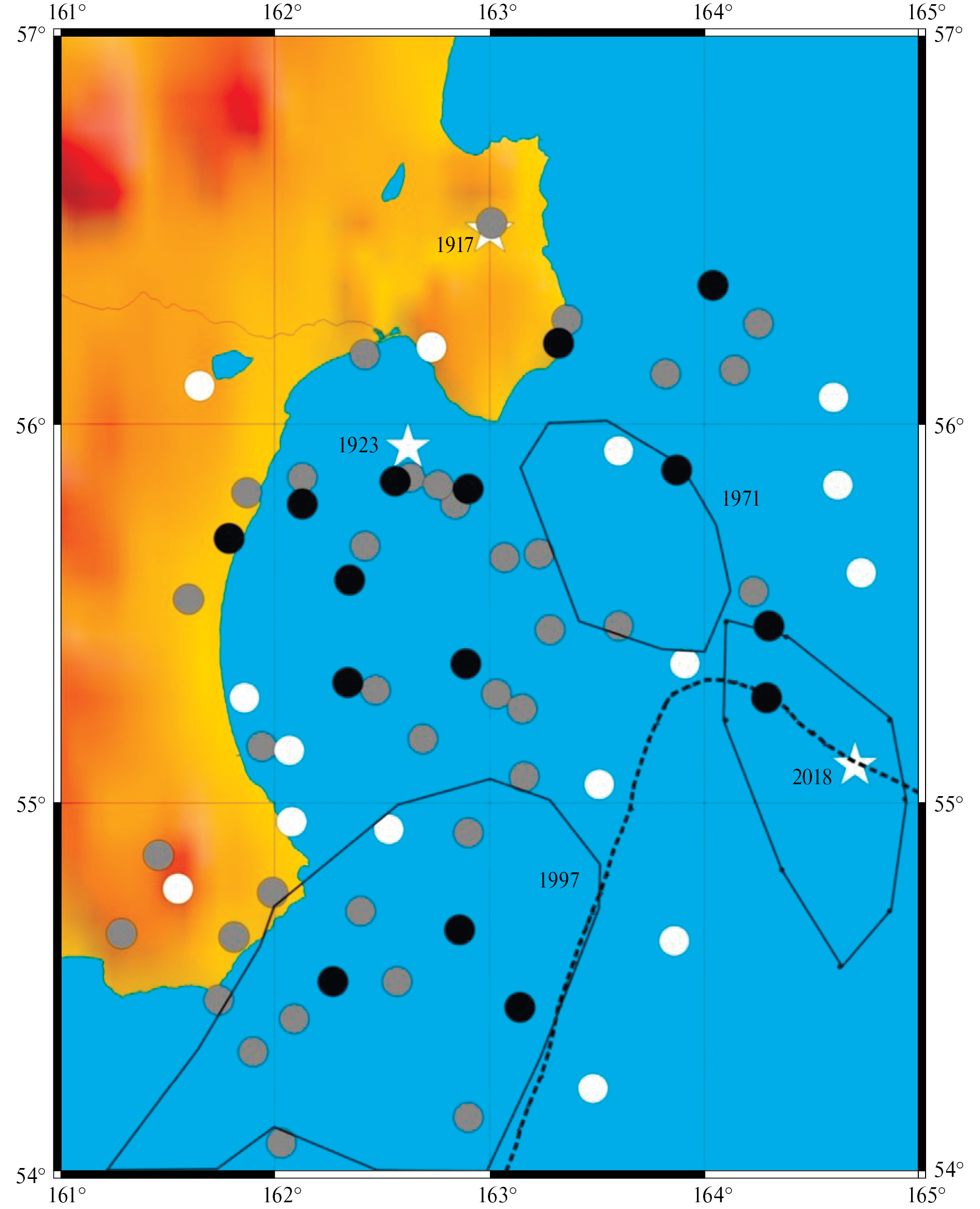

10. Fig. 9. Absorption field map for the northern region. For legend, see Fig. 1 and 4.

Download (1010KB)
Indexing metadata
