Enviar artigo por via de e-mail Cluster Self-Organization of Intermetallic Systems: Cluster Precursors K4, K5, and K9 for the Self-Assembly of Zr72P36-oS108, Zr18Ni22-tI40, and Zr4Ni4-oS8 Crystal Structures
- Autores: Shevchenko V.Y.1, Ilyushin G.D.2
-
Afiliações:
- Grebenshchikov Institute of Silicate Chemistry, Russian Academy of Sciences
- Federal Research Center “Crystallography and Photonics”
- Edição: Volume 49, Nº 3 (2023)
- Páginas: 235-246
- Seção: Articles
- URL: https://journals.rcsi.science/0132-6651/article/view/139335
- DOI: https://doi.org/10.31857/S0132665123600024
- EDN: https://elibrary.ru/SPXLRW
- ID: 139335
Citar
Acesso aberto
Acesso está concedido
Somente assinantes
Resumo

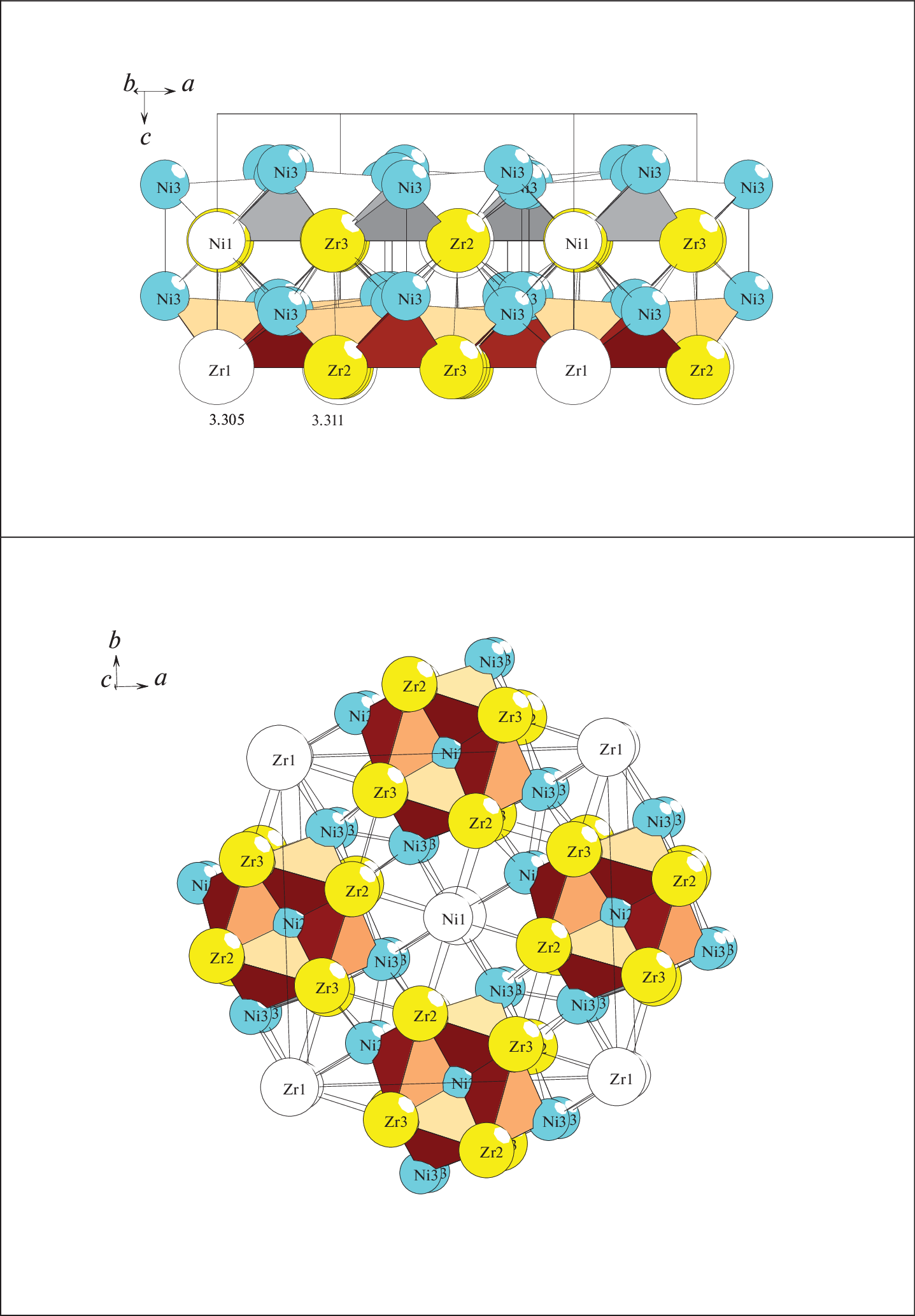

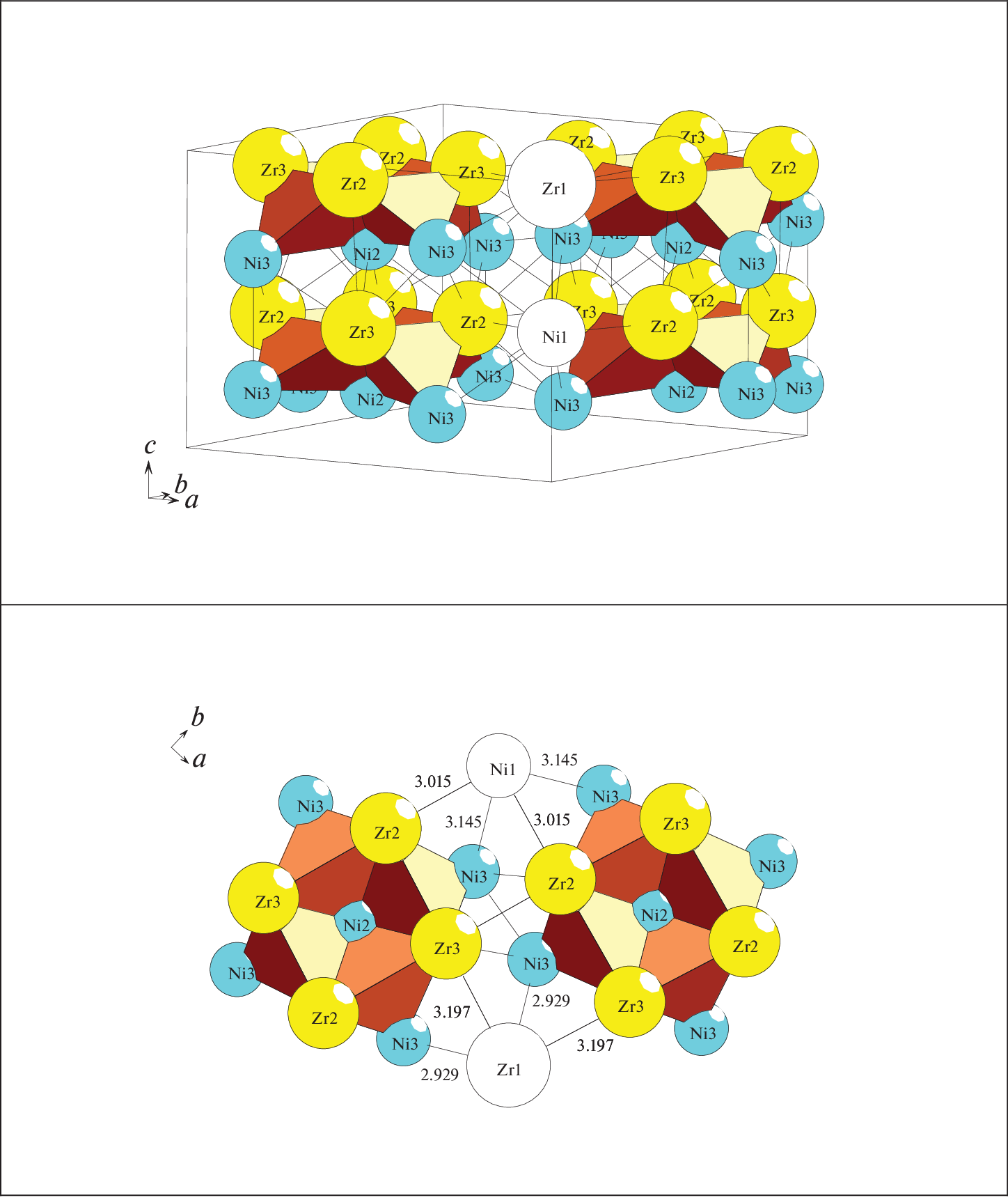

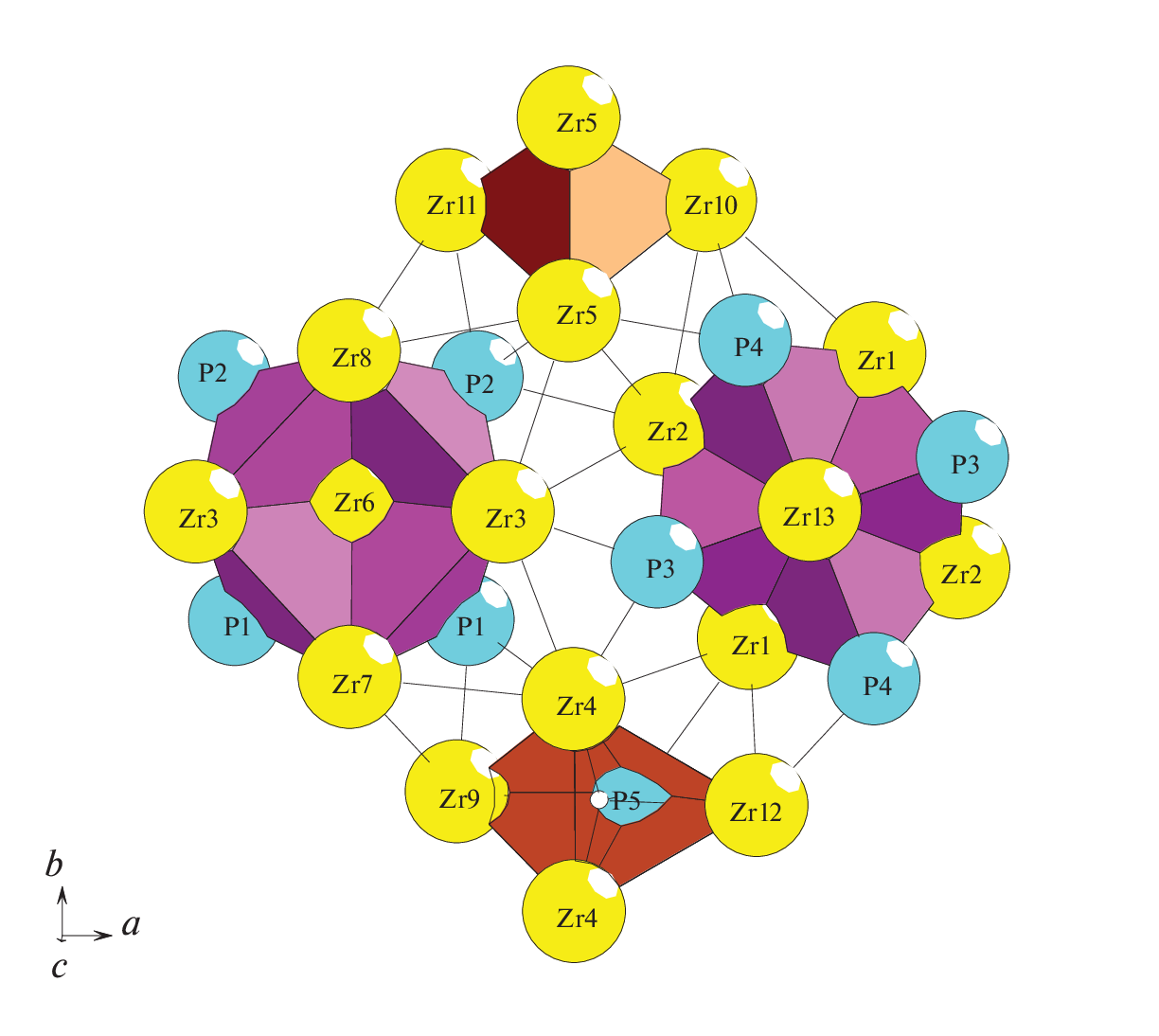

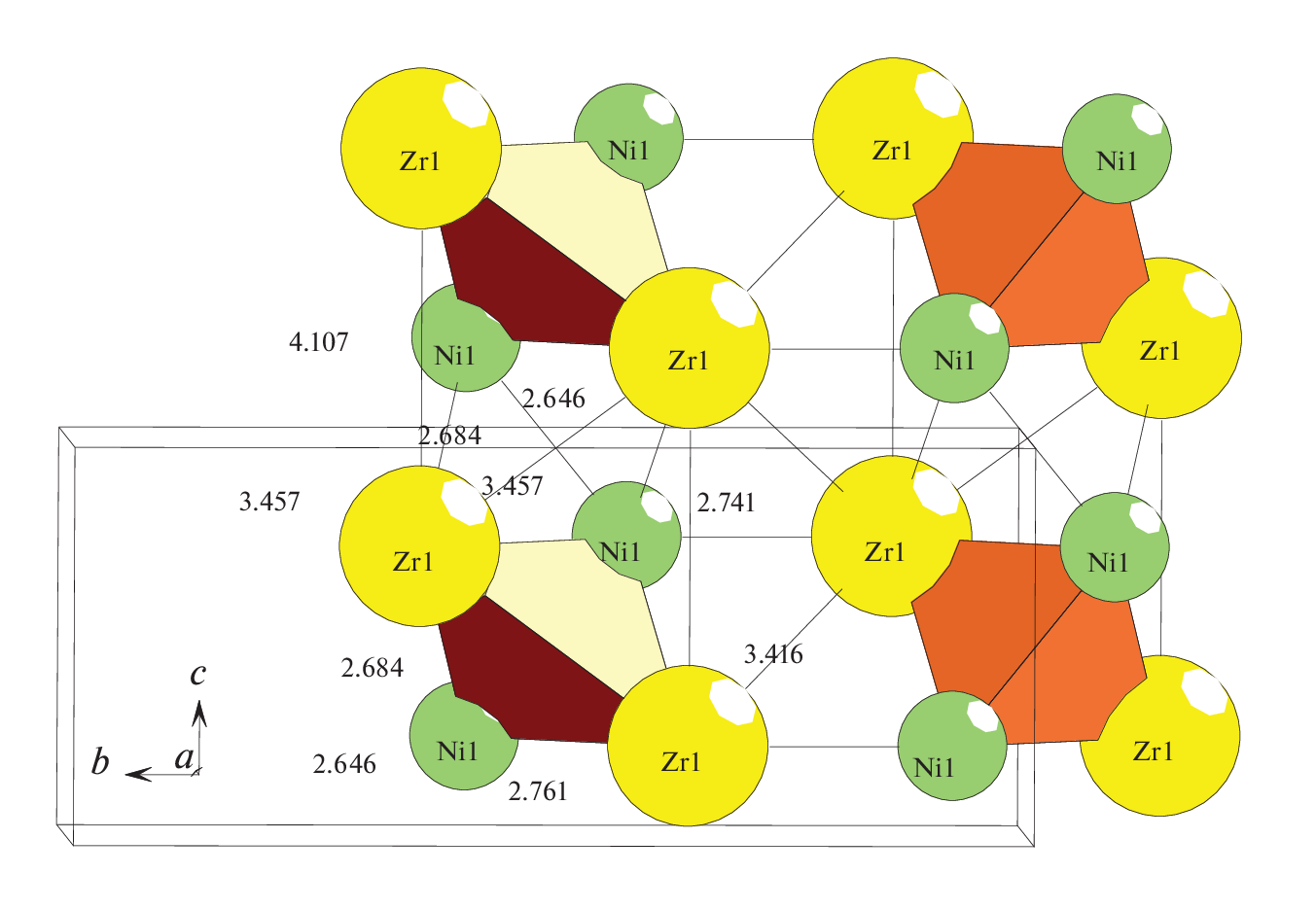

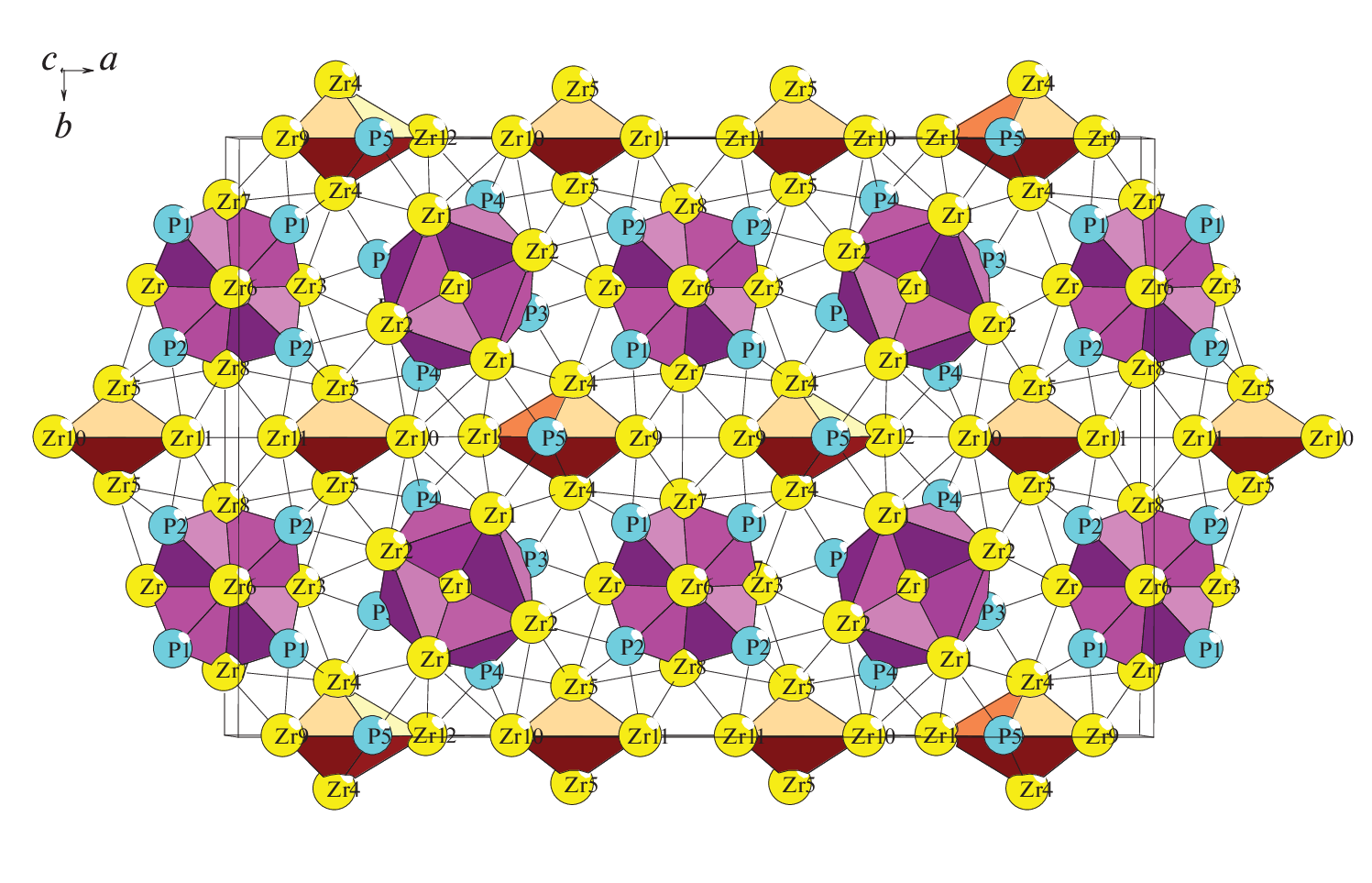

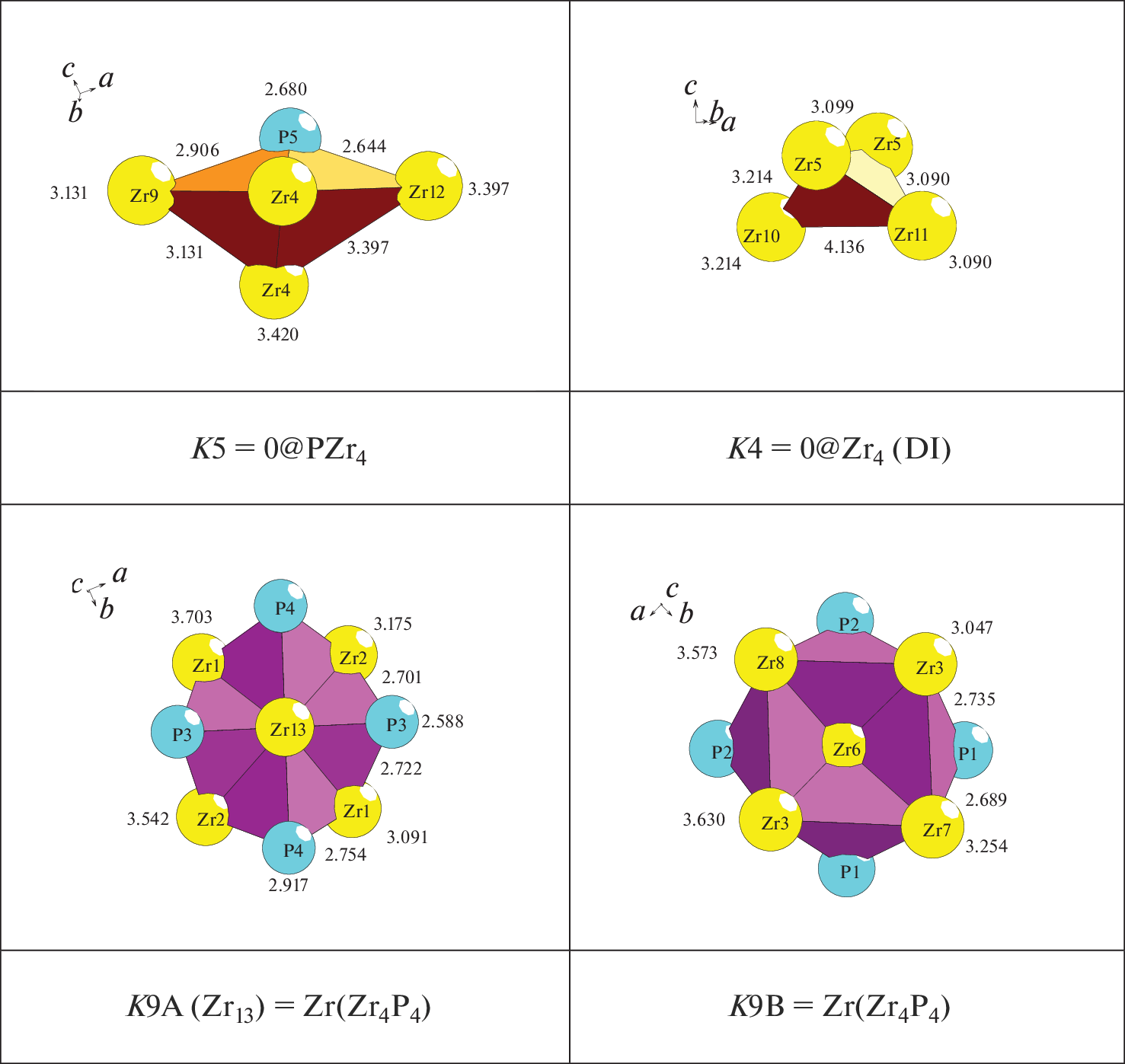

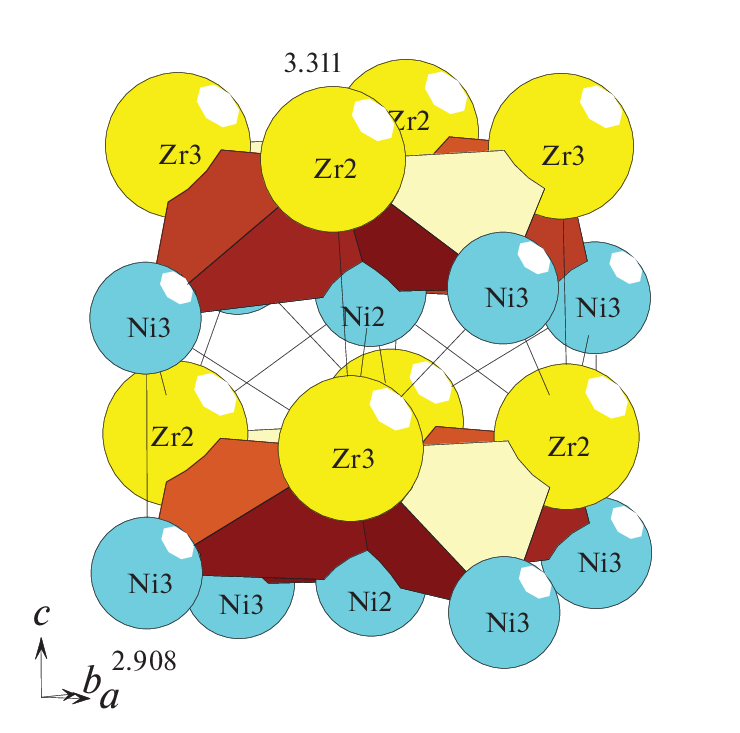

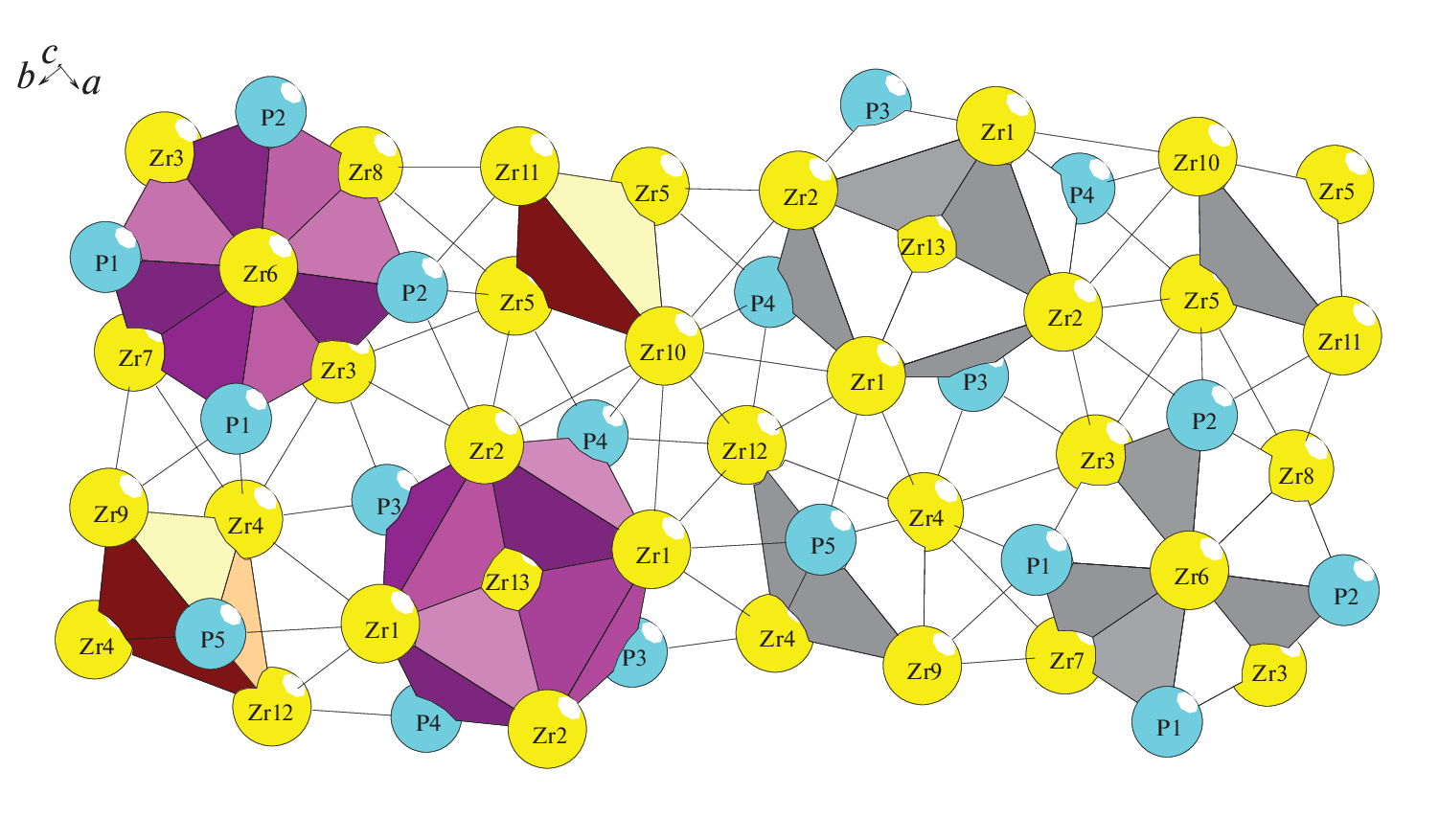

Using computer methods (ToposPro software package), a combinatorial topological analysis and modeling of the self-assembly of Zr72P36-oS108 (a = 29.509 Å, b = 19.063 Å, c = 3.607 Å, V = 2029.49 Å3, Cmmm), Zr18Ni22-tI40 (a = b = 9.880 Å, c = 6.610 Å, V = 645.23 Å3, I4/m, and Zr4Ni4-oS8 (a = 3.271 Å, b = 9.931 Å, c = 4.107 Å, V = 133.43 Å3, Cmcm) crystal structures are carried out. For the crystal structure of Zr72P36-oS108, 40 variants of the cluster representation of the 3D atomic net with the number of structural units 5, 6, and 7 are established. Structural units in the form of a pyramid K5 = 0@PZr4, tetrahedron K4 = 0@Zr4, and supratetrahedron K9 = Zr(Zr4P4) of four connected tetrahedra. For the crystal structure of Zr18Ni22-tI40 also defined supratetrahedra K9 = Ni(Zr4Ni4) are defined. For the crystal structure of Zr4Ni4-oS8, the tetrahedral cluster precursor K4 = Zr2Ni2 is defined. The symmetry and topological code of the processes of self-assembly of 3D structures from cluster precursors is reconstructed in the following form: primary chain → layer → framework.
Sobre autores
V. Shevchenko
Grebenshchikov Institute of Silicate Chemistry, Russian Academy of Sciences
Email: shevchenko@isc.nw.ru
199034, St. Petersburg, Russia
G. Ilyushin
Federal Research Center “Crystallography and Photonics”
Autor responsável pela correspondência
Email: gdilyushin@gmail.com
119333, Moscow, Russia
Bibliografia
- Villars P., Cenzual K. Pearson’s Crystal Data-Crystal Structure Database for Inorganic Compounds (PCDIC) ASM International: Materials Park, OH.
- Inorganic crystal structure database (ICSD). Fachinformationszentrum Karlsruhe (FIZ), Germany and US National Institute of Standard and Technology (NIST).
- Tergenius L.E., Nolaeng B.I., Lundstroem T. The crystal structure of Zr14P9 //Acta Chemica Scandinavica. Series A. 1981. V. 35. P. 693–699.
- Ahlzen P.J., Rundqvist S. Crystal structure refinement of Zr7P4 // Z. Kristallogr. 1989. V. 189. P. 149–153.
- Irani K.S., Gingerich K.A. Structural transformation of zirconium phosphide // J. Physics and Chemistry of Solids. 1963. V. 24. P. 1153–1158.
- Huber M., Deiseroth H.J. Crystal structure of zirconium diphosphide, ZrP2 // Z. Kristallogr. 1994. V. 209 P. 370–370.
- Ahlzen P.J., Rundqvist S. The crystal structure of Zr2P // Zeitschrift fuer Kristallographie. 1989. V. 189. P. 117–124.
- Ahlzen P.J., Andersson Y., Rundqvist S., Tellgren R. A neutron diffraction study of Zr3PD3 – x // J Less-Common Metals. 1990. V. 161. P. 269–278.
- Babizhetskyy V., Myakush O., Simon A., Kotur B. X-ray investigation of the Y–Zr–Ni system at 870 K // Intermetallics. 2013. V. 38. P. 44–48.
- Ning Jinliang, Zhang Xinyu, Qin Jiaqian, Liu Yong,Ma Mingzhen, Liu Riping. Phase competition mediated by composition and pressure in Zr2Cu1 – xNix system // J. Alloys Compd. 2015. V. 618. P. 73–77.
- Da J.M., Brochado Oliveira C., Harris I.R. Valency compensation in the Laves system, Ce (Co1 – xNix)2 // J. Mater. Sci. 1983. V. 18. P. 3649–3660.
- Ilyushin G.D. Symmetry and Topology Code of the Cluster Self-Assembly of Intermetallic Compounds of the Friauf Families Mg2Cu4 and Mg2Zn4 // Crystallography Reports. 2018. V. 63. P. 543–552.
- Bououdina M., Lambert-Andron B., Ouladdiaf B., Pairis S., Fruchart D.J. Structural investigation by neutron diffraction of equi-atomic Zr–Ti(V)–Ni(Co) compounds and their related hydrides // Alloys Compd. 2003. V. 356. P. 54–58.
- Glimois J.L., Becle C., Develey G., Moreau J.M. Crystal structure of the intermetallic compound Ni11Zr9 // J. Less-Common Metals. 1979. V. 64. P. 87–90.
- Panda S.C., Bhan S. Alloying behaviour of zirconium with other transition metals // Zeitschrift fuer Metallkunde. 1973. V. 64. P. 793–799.
- Kirkpatrick M.E., Larsen W.L. Phase relationships in the nickel-zirconium and nickel-hafnium alloy systems // Transactions of the American Society for Metals. 1961. V. 54. P. 580–590.
- Ilyushin G.D. New Cluster Precursors – K5 Pyramids and K4 Tetrahedra – for Self-Assembly of Crystal Structures of Mn4(ThMn4)(Mn4)-tI26, Mn4(CeCo4)(Co4)-tI26, and MoNi4-tI10 Families // Crystallography Reports. 2022. V. 67. Issue 7. P. 1088–1094.
- Shevchenko V.Y., Medrish I.V., Ilyushin G.D., Blatov V.A. From clusters to crystals: Scale chemistry of intermetallics // Structural Chemistry. 2019. V. 30. P. 2015–2027.
- Ilyushin G.D. Intermetallic Compounds NakMn (M = K, Cs, Ba, Ag, Pt, Au, Zn, Bi, Sb): Geometrical and Topological Analysis, Cluster Precursors, and Self-Assembly of Crystal Structures // Crystallography Reports. 2020. V. 65. № 4. P. 539–545.
- Ilyushin G.D. Intermetallic Compounds KnMm (M = Ag, Au, As, Sb, Bi, Ge, Sn, Pb): Geometrical and Topological Analysis, Cluster Precursors, and Self-Assembly of Crystal Structures // Crystallography Reports. 2020. V. 65. № 7. P. 1095–1105.
- Ilyushin G.D. Intermetallic Compounds CsnMk (M = Na, K, Rb, Pt, Au, Hg, Te): Geometrical and Topological Analysis, Cluster Precursors, and Self-Assembly of Crystal Structures // Crystallography Reports. 2022. V. 67. Issue 7. P. 1075–1087.
- Blatov V.A., Shevchenko A.P., Proserpio D.M. Applied Topological Analysis of Crystal Structures with the Program Package ToposPro // Cryst. Growth Des. 2014. V. 14. № 7. P. 3576–3585.
