Study of MoO3 and TixMoyOz thin films obtained by atomic layer deposition

Cover Page

Cite item

Full Text

Open Access Open Access
Restricted Access Access granted
Restricted Access Subscription Access

Abstract

This work demonstrates ex situ characterization of molybdenum oxide (MoO3) and titanium–molybdenum oxide (TixMoyOz) thin films obtained at 150°C by atomic layer deposition using titanium tetrachloride (TiCl4), molybdenum oxotetrachloride (MoOCl4) and water. Atomic layer deposition of TixMoyOz was carried out using supercycles consisting of TiCl4/H2O and MoOCl4/H2O subcycles. Two types of TixMoyOz films were obtained in this work, where the ratio of subcycles was 1 : 1 (1Ti1MoO) and 1 : 7 (1Ti7MoO). The film growth rate was determined by spectroscopic ellipsometry and X-Ray reflectometry. The density and root-mean-square roughness of the films were also determined by X-Ray reflectometry. The composition of the films was determined by X-Ray photoelectron spectroscopy and found that the degree of oxidation of molybdenum in the MoO3 and 1Ti7MoO films was +6, and in the 1Ti1MoO film, molybdenum was found in the oxidation state of +5 and +6. X-Ray diffraction analysis showed that the films had an amorphous structure.

Full Text

Restricted Access

About the authors

A. M. Maksumova

Dagestan State University

Email: ilmutdina@gmail.com
Russian Federation, Makhachkala, 367000

I. S. Bodalyov

St. Petersburg State Institute of Technology

Email: ilmutdina@gmail.com
Russian Federation, Saint Petersburg, 190013

I. M. Abdulagatov

Dagestan State University

Author for correspondence.
Email: ilmutdina@gmail.com
Russian Federation, Makhachkala, 367000

M. Kh. Rabadanov

Dagestan State University

Email: ilmutdina@gmail.com
Russian Federation, Makhachkala, 367000

A. I. Abdulagatov

Dagestan State University

Email: ilmutdina@gmail.com
Russian Federation, Makhachkala, 367000

References

  1. Goodenough J.B. Chemistry and Uses of Molybdenum. Colorado: Climax Molybdenum Corp., 1982.
  2. Deb S.K. Physical Properties of a Transition Metal Oxide: Optical and Photoelectric Properties of Single Crystal and Thin Film Molybdenum Trioxide. London: Proc. R. SOC., 1968.
  3. Jiang Y., Yan X., Cheng Y. et al. // RSC Advances. 2019. V. 9. № 23. P. 13207. https://doi.org/10.1039/C8RA10232E
  4. Chen Y., Lu Ch., Xu L. et al. // Cryst. Eng. Comm. 2010. V. 12. P. 3740. https://doi.org/10.1039/C000744G
  5. Huang L., Hu L., Zhang R. et al. // Appl. Surf. Sci. 2013. V. 283. P. 25. 10.1016/j.apsusc.2013.05.106
  6. Lin Sh.-Yu., Wang Ch.-M., Kao K.-Sh. et al. // J. Sol-Gel Sci. Technol. 2010. V. 53. № 1. P. 51. http://dx.doi.org/10.1007/s10971-009-2055-6
  7. Mai L., Hu B., Chen W. et al. // Adv. Mater. 2007. V. 19. № 21. P. 3712. https://doi.org/10.1002/adma.200700883
  8. Rahmani M.B., Keshmiri S.H., Yu J. et al. // Sensor. Actuat. B-Chem. 2010. V. 145. № 1. P. 13. https://doi.org/10.1016/J.SNB.2009.11.007
  9. Huang J-G., Guo Xu-T., Wang B. et al. // J. Spectrosc. 2015. V. 2015. P. 681850. https://doi.org/10.1155/2015/68185010.
  10. Liu H., Ting L., Zhu Ch., Zhu Zh. // Sol. Energy Mater. Sol. Cells. 2016. V. 153. P. 1. https://doi.org/10.1016/j.solmat.2016.04.013
  11. Sreedhar M., Brijitta J., Reddy I.N. et al. // Surf. Interface Anal. 2017. V. 50. № 2. P. 171. https://doi.org/10.1002/sia.6355
  12. Zhang J., Huang T., Zhang L., Yu A. // J. Phys. Chem. C. 2014. V. 118. № 44. P. 25300. https://doi.org/10.1021/jp506401q
  13. Galatsis K., Li Y.X., Wlodarski W. et al. // Sensor. Actuat. B-Chem. 2002. V. 3. №1–3. P. 276. https://doi.org/10.1016/S0925-4005(01)01072-3
  14. Максумова А.М., Абдулагатов И.М., Палчаев Д.К. и др. // Журн. физ. химии. 2022. Т. 96. Вып. 10. С. 1490. https://doi.org/10.31857/S0044453722100181
  15. Кольцов С.И., Алесковский В.Б. // Тез. докл. Науч.-техн. конф. ЛТИ им. Ленсовета. Ленинград. 1965. С. 67.
  16. Малыгин А.А. // Сб. тез. докл. III Междунар. семинара “Атомно-слоевое осаждение: Россия, 2021”. СПб., 2021. С. 13.
  17. George S.M. // Chem. Rev. 2010. V. 110. № 1. P. 111. https://doi.org/10.1021/cr900056b
  18. Соснов Е.А., Малков А.А., Малыгин А.А. // Журн. прикл. химии. 2021. T. 94. № 8. С. 967. https://doi.org/10.31857/S0044461821080028
  19. Кольцов С.И., Громов В.К., Алесковский В.Б. Исследование методом иммерсионной эллипсометрии системы монокристаллический кремний — сверхтонкий слой оксида титана, синтезированный методом молекулярного наслаивания. Эллипсометрия — метод исследования поверхности. Новосибирск: Наука, 1983.
  20. Громов В.К., Кольцов С.И. Аномальное поведение эллипсометрических параметров системы подложка — титанкислородный слой, наблюдаемое в процессе синтеза слоя методом молекулярного наслаивания на поверхности диэлектриков, полупроводников, металлов. Эллипсометрия — метод исследования поверхности. Новосибирск: Наука, 1983.
  21. Кольцов С.И., Яковлев А.С., Бухалов Л.Л. // Поверхность. 1992. T. 5. C. 75.
  22. Sintonen S., Ali S., Ylivaara O.M.E. et al. // J. Vac. Sci. Technol., A. 2014. V. 32. № 1. P. 01A111. https://doi.org/10.1116/1.4833556
  23. Ishi D., Ishikawa K., Numazawa M. et al. // Appl. Phys. Express. 2020. V. 13. P. 087001. https://doi.org/10.35848/1882-0786/aba7a5
  24. Jensen J.M., Oelkers A.B., Toivola R. et al. // Chem. Mater. 2002. V. 14. № 5. P. 2276. https://doi.org/10.1021/cm011587z
  25. Kokkonen E., Kaipio M., Nieminen H.-E. et al. // Rev. Sci. Instrum. 2022. V. 93. P. 01390. https://doi.org/10.1063/5.0076993
  26. Motamedi P., Cadien K. // Appl. Surf. Sci. 2014. V. 315. P. 104. http://dx.doi.org/10.1016/j.apsusc.2014.07.105
  27. Haynes W.M. CRC Handbook of Chemistry and Physics. Boca Raton: CRC, 2014.
  28. Pershina V., Fricke B. // Russ. J. Phys. Chem. 1995. V. 99. № 1. P. 144.
  29. Puurunen R.L., Vandervorst W. // J. Appl. Phys. 2004. V. 96. № 12. P. 7686. http://dx.doi.org/10.1063/ 1.1810193
  30. Kvalvik J.N., Borgersen J., Hansen P.-A. et al. // J. Vac. Sci. Technol. A. 2020. V. 38. P. 042406. https://doi.org/ 10.1116/6.0000219#suppl
  31. Mouat A.R., Mane A.U., Elam J.W. et al. // Chem. Mater. 2016. V. 28. № 6. P. 1907. https://doi.org/10.1021/acs.chemmater.6b00248
  32. Diskus M., Nilsen O., Fjellva H. // J. Mater. Chem. 2011. V. 21. P. 705. https://doi.org/10.1039/C0JM01099E
  33. Mattinen M., King P.J., Khriachtcheva L. et al. // Mater. Today Chem. 2018. V. 9. P. 17. https://doi.org/10.1016/j.mtchem.2018.04.005
  34. Jurca T., Peters A.W., Mouat A.R. et al. // Dalton Trans. 2017. V. 46. P. 1172. https://doi.org/10.1039/C6DT03952A
  35. Vos M.F.J., Macco B., Thissen N.F.W. et al. // J. Vac. Sci. Technol. A. 2016. V. 34. P. 01A103. https://doi.org/10.1116/1.4930161
  36. Абдулагатов А.И., Максумова А.М., Палчаев Д.К. и др. // Журн. прикл. химии. 2021. Т. 94. № 7. С. 835. https://doi.org/10.1134/S1070427221070053
  37. Abdulagatov A.I., Maksumova A.M., Palchaev D.K. et al. // Russ. J. Appl. Chem. 2021. V. 94. № 7. P. 890. https://doi.org/10.1134/S1070427221070053
  38. Bertuch A., Sundaram G., Saly M. et al. // Vac. Sci. Technol. A. 2014. V. 32. № 1. P. 01A119. https://doi.org/10.1116/1.4843595
  39. Plyuto Yu.V., Babich I.V., Plyuto I.V. et al. // Appl. Surf. Sci. 1997. V. 119. № 1–2. P. 11.
  40. Światowska-Mrowiecka J., de Diesbach S., Maurice V. et al. // J. Phys. Chem. C. 2008. V. 112. P. 11050. https://doi.org/10.1021/jp800147f
  41. Drake T.L., Stair P.C. // J. Vac. Sci. Technol. A. 2016. V. 34. P. 051403. https://doi.org/10.1116/1.4959532
  42. Iatsunskyi I., Kempiński M., Jancelewicz M. et al. // Vacuum. 2015. V. 113. P. 52. https://doi.org/10.1016/j.vacuum.2014.12.015
  43. Potlog T., Dumitriu P., Dobromir M. et al. // MSEB. 2014. V. 4. № 6. P. 163. 10.17265/2161-6221/2014.06.004
  44. Larsson F., Keller J., Primetzhofer D. et al. // J. Vac. Sci. Technol. A. 2019. V. 37. № 3. P. 030906. https://doi.org/10.1116/1.5092877
  45. Mackus A.J.M., Schneider J.R., MacIsaac C. et al. // Chem. Mater. 2019. V. 31. № 4. P. 1142. https://doi.org/10.1021/acs.chemmater.8b02878
  46. Coll M., Napari M. // Appl. Mater. 2019. V. 7. № 11. P. 110901. https://doi.org/10.1063/1.5113656
  47. Абдулагатов А.И., Максумова А.М., Палчаев Д.К. и др. // Журн. общ. химии. 2022. Т. 92. № 8. С. 1310. https://doi.org/10.31857/S0044460X22080182
  48. Abdulagatov A.I., Maksumova A.M., Palchaev D.K. et al. // Russ. J. Gen. Chem. 2022. V. 92. № 8. P. 1498. https://doi.org/10.31857/S0044460X22080182
  49. Du Mont J.W., Marquardt A.E., Cano A.M., George S.M. // ACS Appl. Mater. Interfaces. 2017. V. 9. № 11. P. 10296. https://doi.org/10.1021/acsami.7b01259
  50. Myers T.J., Cano A.M., Lancaster D.K. et al. // J. Vac. Sci. Technol. A. 2021. V. 39. № 2. P. 021001. https://doi.org/10.1116/6.0000680
  51. Baltrusaitis J., Mendoza-Sanchez B., Fernandez V. et al. // Appl. Surf. Sci. 2015. V. 326. P. 151. https://doi.org/10.1016/j.apsusc.2014.11.077
  52. Choi J.G., Thompson L.T. // Appl. Surf. Sci. 1996. V. 93. № 2. P. 143. https://doi.org/10.1063/1.370690
  53. Patterson T.A., Carver J.C., Leyden D.E., Hercules D.M. // J. Phys. Chem. 1976. V. 80. P. 1700. https://doi.org/10.1021/j100556a011
  54. Lee S.Y., Jeon Ch., Kim S.H. et al. // Jpn. J. Appl. Phys. 2012. V. 51. P. 031102. https://doi.org/10.1143/JJAP.51.031102
  55. Haeberle J., Henkel K., Gargouri H. et al. // Beilstein J. Nanotechnol. 2013. V. 4. P. 732. https://doi.org/10.3762/bjnano.4.83
  56. Park J., Back T., Mitchel W.C. et al. // Sci. Rep. 2015. V. 5. № 1. P. 14374. https://doi.org/10.1038/srep14374
  57. Максумова А.М., Бодалев И.С., Сулейманов С.И. и др. // Неорган. материалы. 2023. T. 59. № 4. C. 384. https://doi.org/10.31857/S0002337X2304005X
  58. Малыгин А.А. // Журн. общ. химии. 2002. T. 72. № 4. C. 617.

Supplementary files

Supplementary Files
Action
1. JATS XML
Download

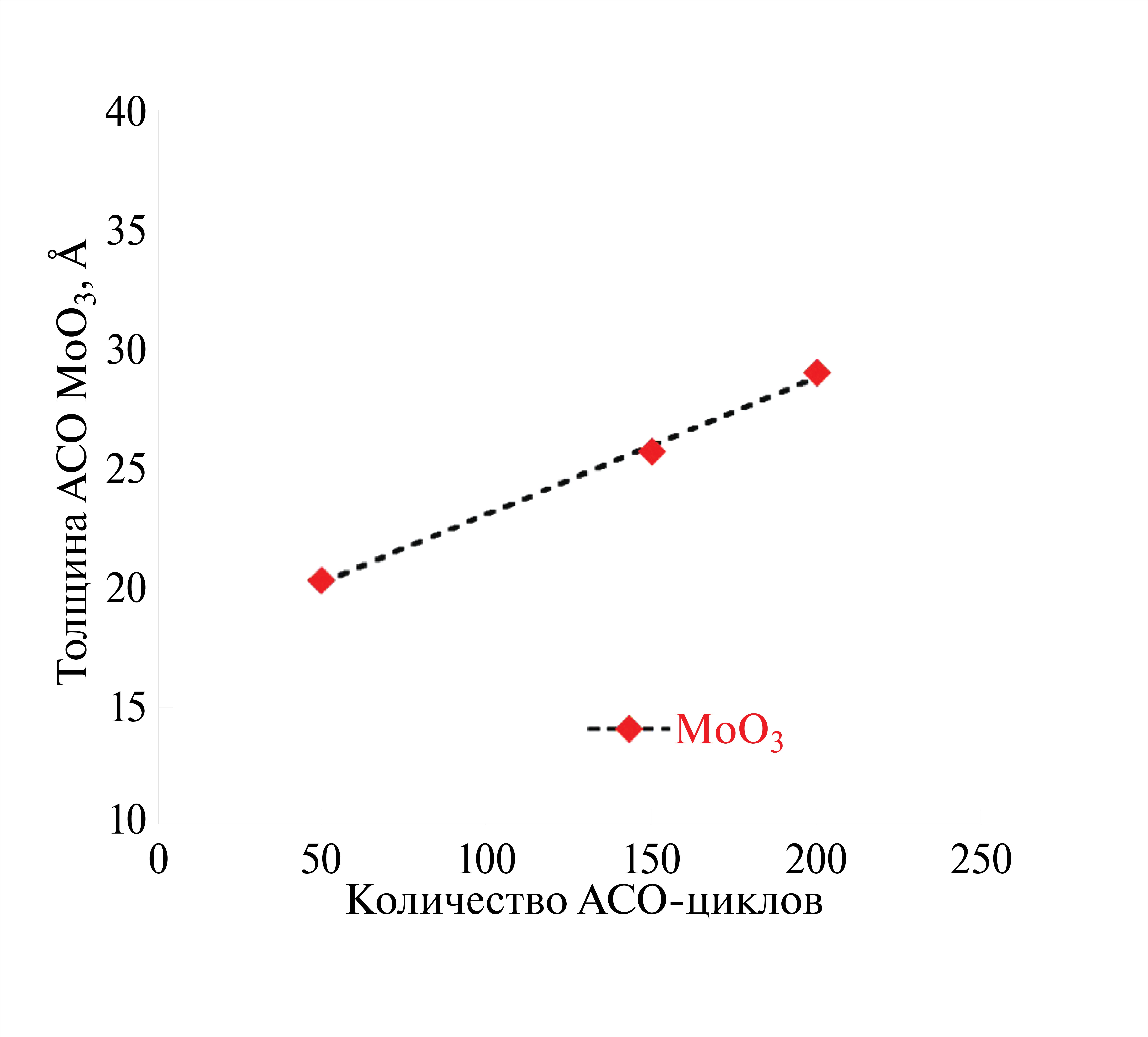

2. Fig. 1. SE data on the dependence of the thickness of MoO3 films on the number of ALD cycles on seed Al2O3.

Download (568KB)
Indexing metadata

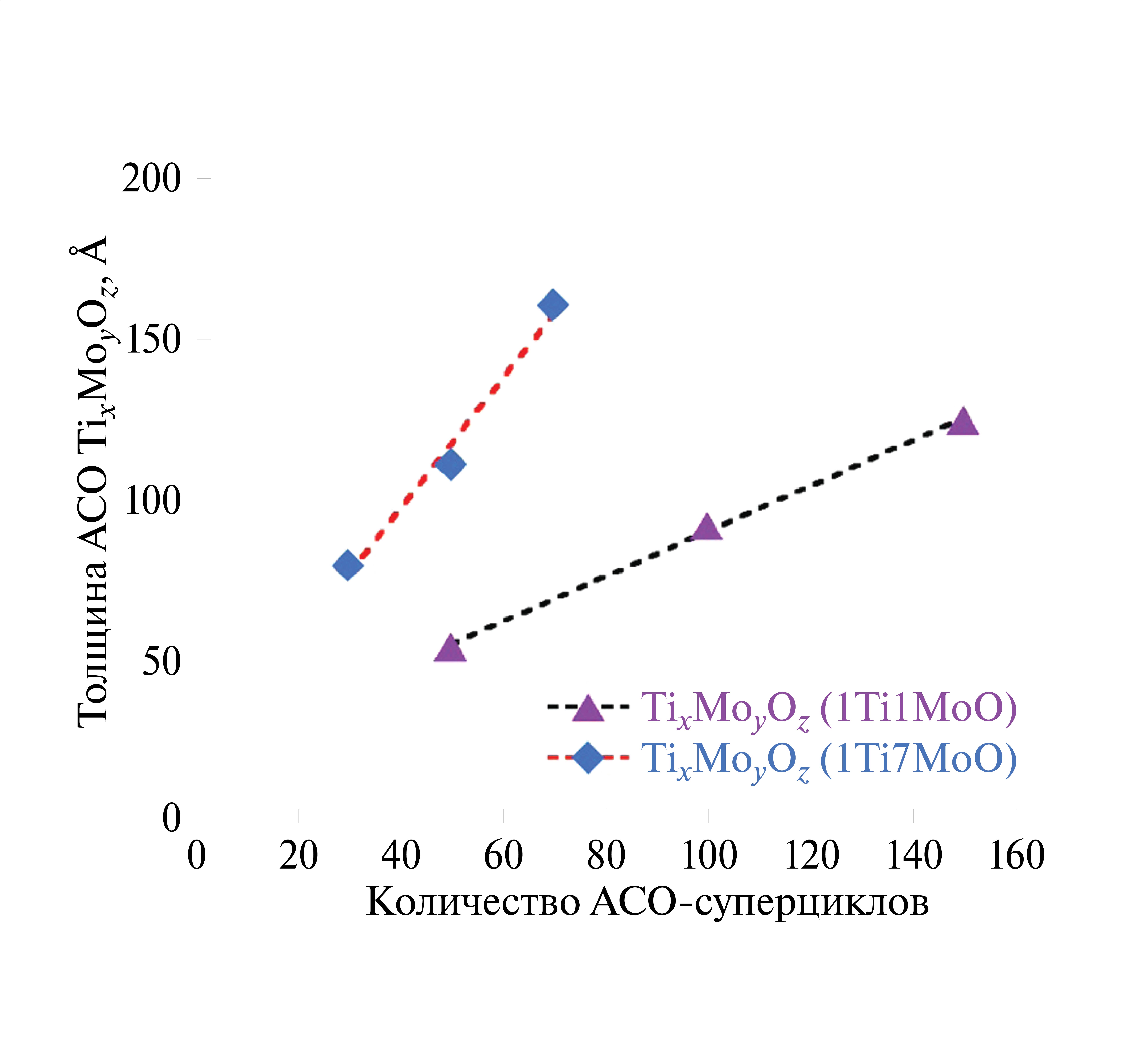

3. Fig. 2. SE data on the dependence of the thickness of TixMoyОz films on the number of ALD supercycles on seed Al2O3.

Download (735KB)
Indexing metadata

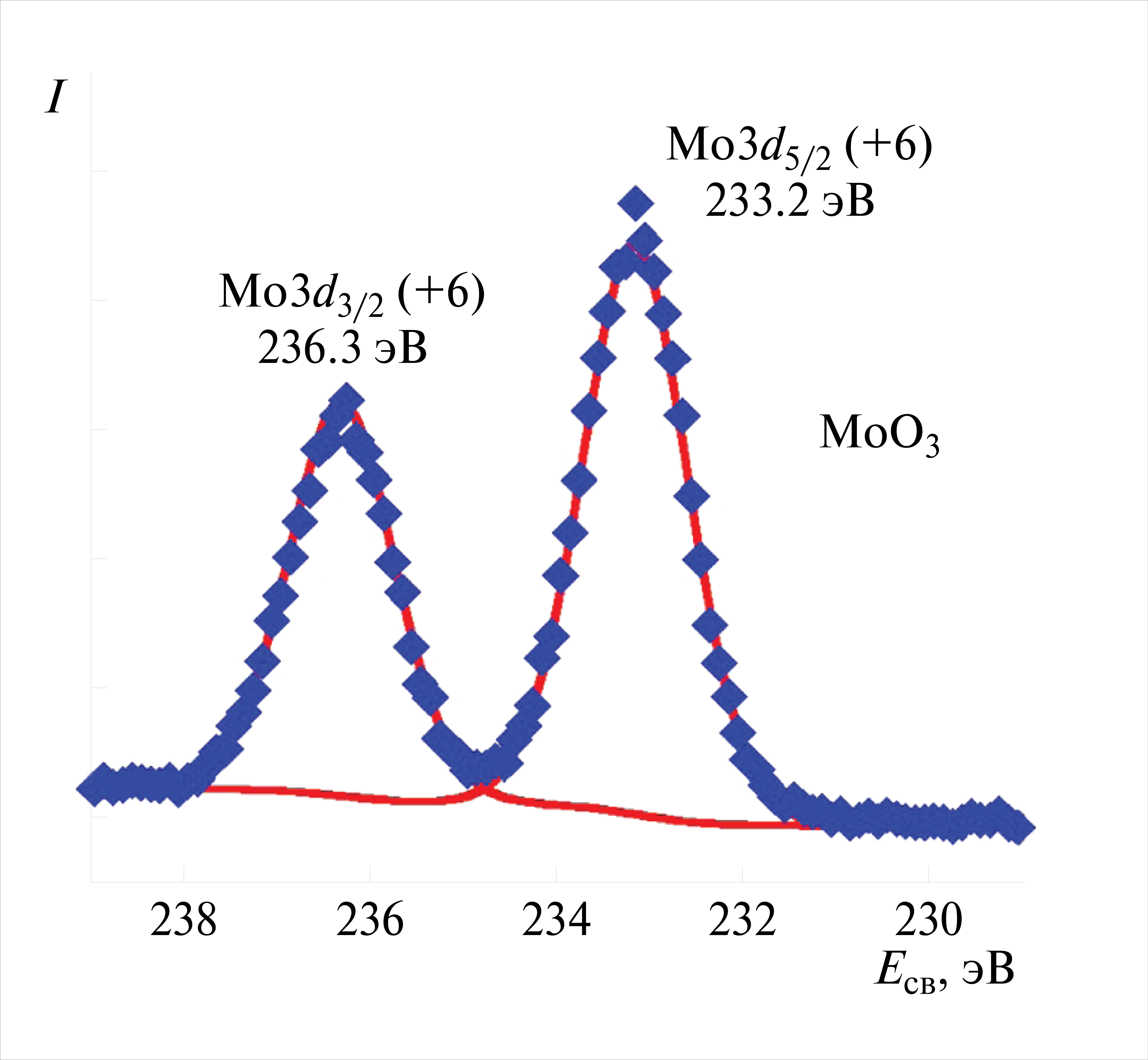

4. Fig. 3. High-resolution XPS spectrum of the Mo3d line with models for the MoO3 film obtained at 150 °C using MoOCl4 and H2O.

Download (859KB)
Indexing metadata
5. Fig. 4. High-resolution XPS spectrum of the Mo 3d line with models for films: a - 1Ti1MoO and b - 1Ti7MoO, obtained at 150°C.

Download (1MB)
Indexing metadata

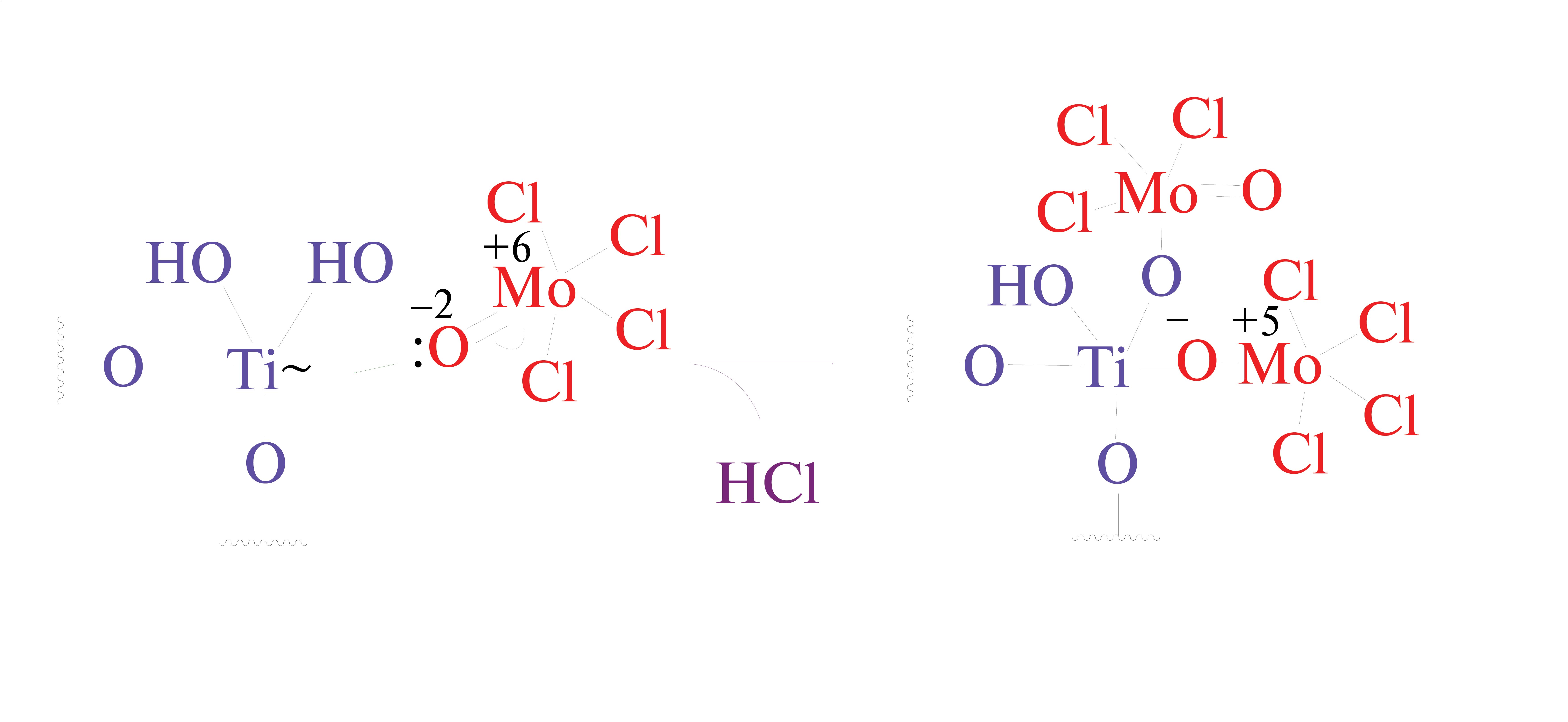

6. Fig. 5. Proposed scheme for bond formation by the donor-acceptor mechanism in TixMoyOz films with molybdenum reduction.
