Protective Coatings Based on Titanium Diboride and Carbon Fillers

N. V. Ogoreltseva; Огорельцева Н. В.; E. N. Fedorova; Федорова Е. Н.; G. E Nagibin; Нагибин Г. Е.; I. I. Puzanov; Пузанов И. И.; A. S. Dem'yanov; Демьянов А. С.

doi:10.31857/S0044185623700377

Protective Coatings Based on Titanium Diboride and Carbon Fillers

Authors: Ogoreltseva N.V.¹^,2, Fedorova E.N.²^,3, Nagibin G.E², Puzanov I.I.¹, Dem'yanov A.S.²
Affiliations:
1. RUSAL Engineering and Technology Center
2. Siberian Federal University
3. Krasnoyarsk Branch, Federal Research Center for Information and Computing Technologies
Issue: Vol 59, No 4 (2023)
Pages: 433-443
Section: НОВЫЕ ВЕЩЕСТВА, МАТЕРИАЛЫ И ПОКРЫТИЯ
URL: https://journals.rcsi.science/0044-1856/article/view/139731
DOI: https://doi.org/10.31857/S0044185623700377
EDN: https://elibrary.ru/SFNHIS
ID: 139731

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

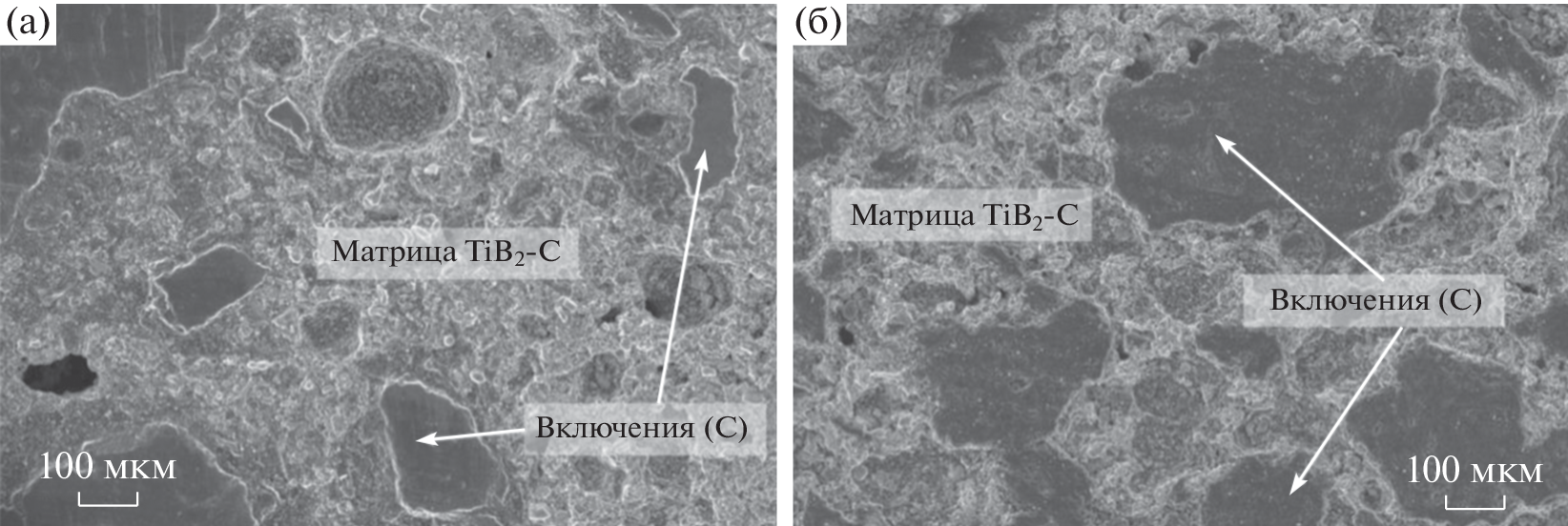

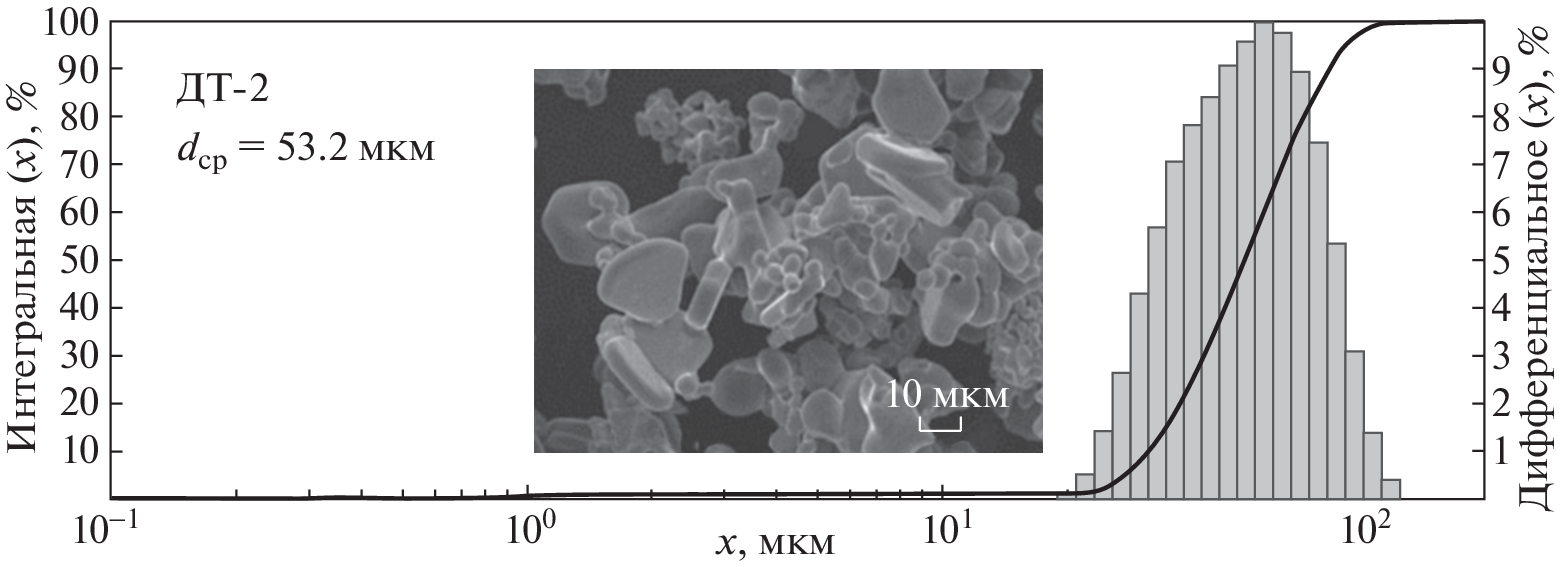

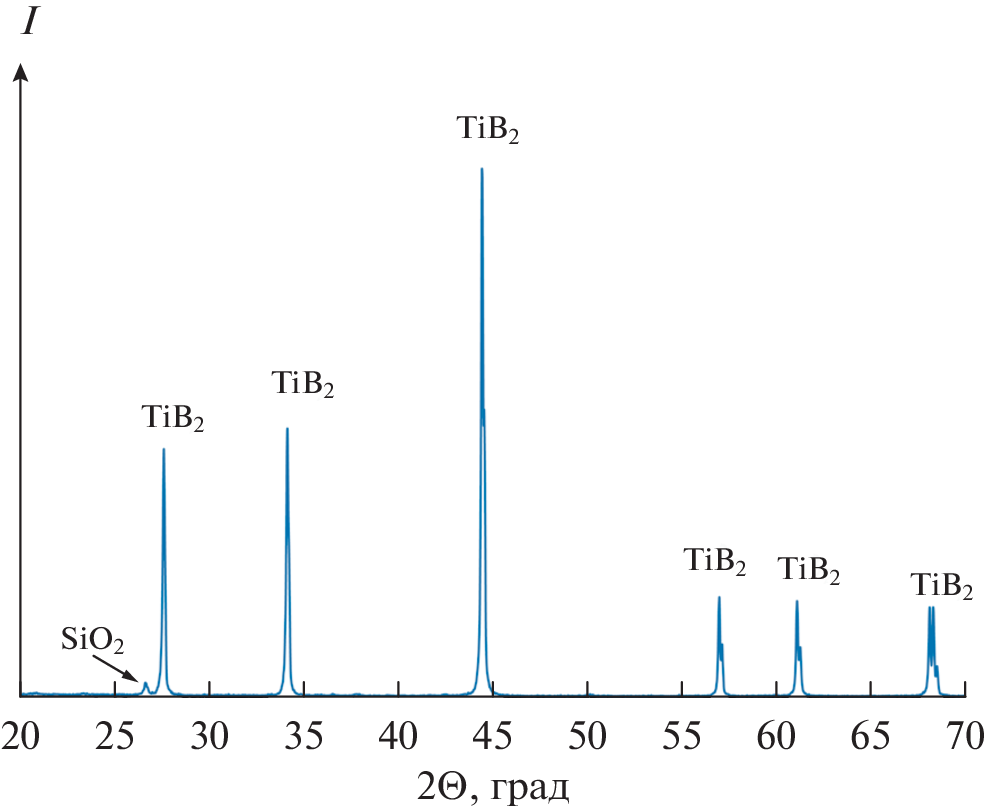

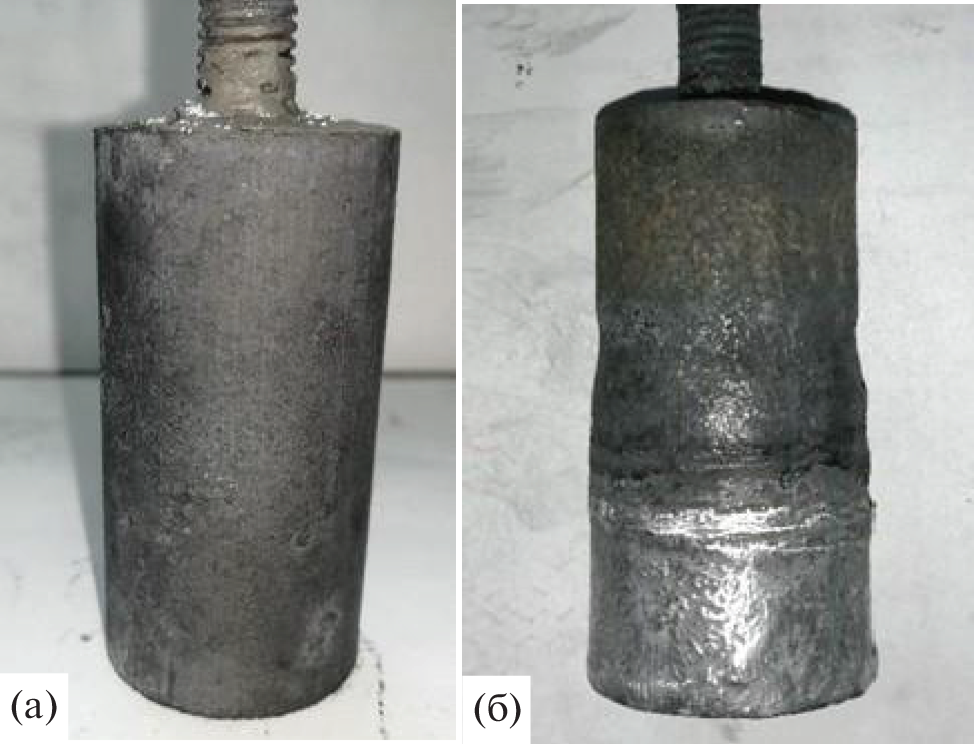

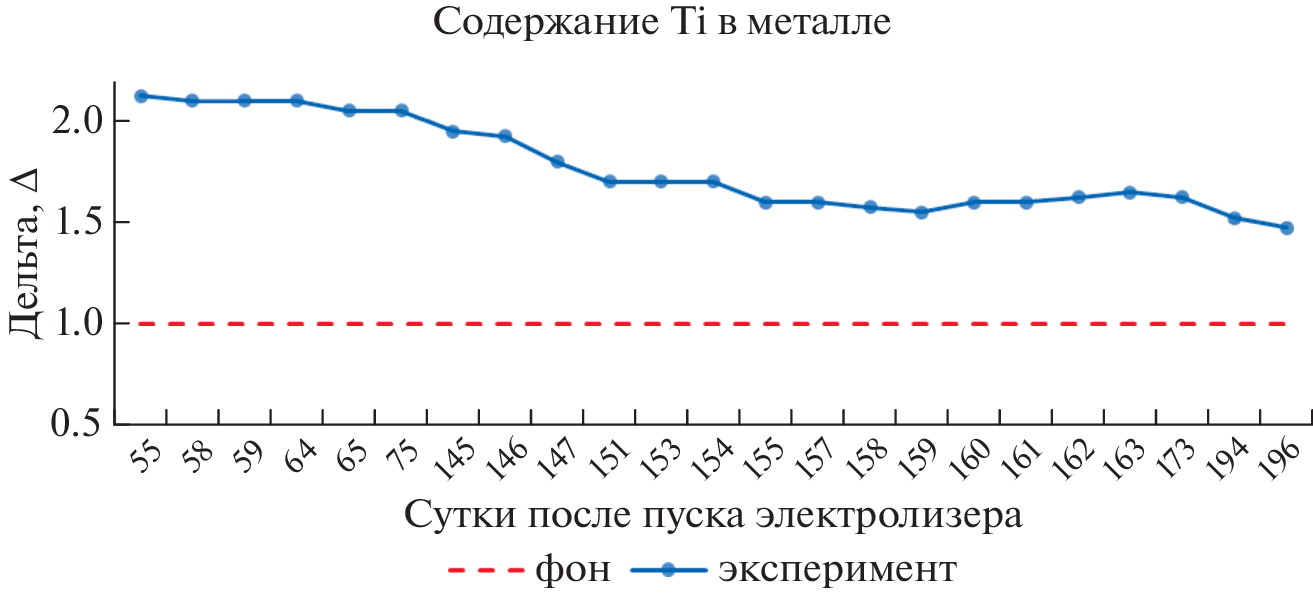

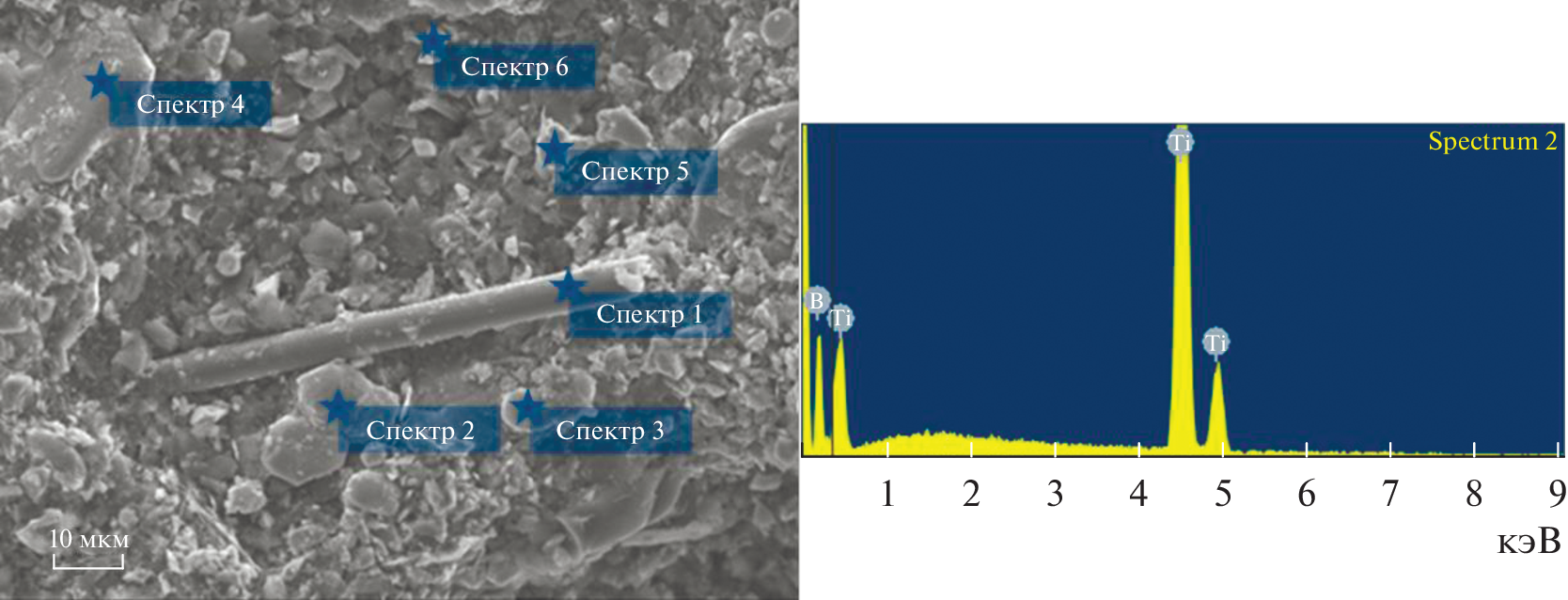

Research has been carried out on the development of compositions of protective coatings based on TiB2 and various carbon fillers, as well as the method of their application to cathode blocks of aluminum electrolyzers. The physical and chemical properties (surface morphology of particles, granulometric and phase composition) of initial powders of titanium diboride and the physicomechanical properties and microstructure of laboratory samples of protective coatings are determined. It is shown that compositions based on TiB2 and MKhNU carbon filler (low-shrinkage cold-filled mass) are most promising. High-temperature tests of laboratory samples of coatings of optimal composition with the addition of 50% MKhNU were carried out, which showed that the coating is wetted by aluminum melt and reduces the wear of cathode blocks. A 20-mm-thick coating was locally applied to the experimental electrolyzer bottom in the form of 900-mm-wide strips along the electrolyzer sides, taking into account the wear profile, and is currently undergoing industrial tests. Results of monitoring the titanium content in the metal for 196 days after the electrolyzer startup show the effectiveness of using the developed coating to protect cathode blocks from wear and increase the service life.

Keywords

aluminum electrolyzer, cathode blocks, protective coating, titanium diboride TiB2, carbon fillers

References

SØrlie M., Øye H.A. Cathodes in Aluminum Electrolysis, Aluminum Verlag, 3rd edition, 2010. P. 662.
Фещенко Р.Ю., Ерохина О.О. // Инновация в науке: Сборник статей по материалам LXVI международной научно-практической конференции № 12(61). Часть II. Новосибирск: СиБАК. 2016. С. 66–73.
Dreyfus J.-M., Lacroix S. // Light Metals. 1999. P. 199–207.
Reny P., Wilkening S. // Light Metals. 2000. P. 399–404.
Li J., Fang J., Li Q., Lai Y. // J. Cent. S. Univ. Technol. 2004. V. 11. P. 400–404.
Ibrahiem M.O., Foosnæs T., Øye H.A. // Light Metals. – TMS (The Minerals, Metals & Materials Society). 2006. P. 691–696.
Xue J., Chen X., Gao Y., Zhu J. // Light Metals. – TMS (The Minerals, Metals & Materials Society). 2010. P. 383–386.
Wang Z., Li H., Zhang C., Xue J., Liu X., Li X., He D. // Ceramics International. 2021. V. 47. Issue 9. P. 12096–12103.
Ogoreltceva N., Fedorova E., Puzanov I., Zavadyak A., Nagibin G., Kirillova I. // Procedia Structural Integrity. 2020. V. 28. P. 1340–1346.
Nagibin G.E., Fedorova E.N., Dobrosmyslov S.S., Kirillova I.A., Zavadyak A.V., Puzanov I.I. Method for the protection of cathode blocks of aluminum electrolytic cells with calcined anodes: protective composition and coating. Patent RU 2724236C9, publ. 22.06.2020, Bull. № 25.
Mann V., Zavadyak A., Puzanov I., Platonov V., Pingin V. // Light Metals. 2018. P. 715–719.
