Isolation of Ti(IV) Concentrate from Spent Lithium-Ion Batteries

A. V. Kozhevnikova; Кожевникова А. В.; E. S. Uvarova; Уварова Е. С.; N. A. Milevskii; Милевский Н. А.; Yu. A. Zakhodyaeva; Заходяева Ю. А.; A. A. Voshkin; Вошкин А. А.

doi:10.31857/S0040357123050111

Isolation of Ti(IV) Concentrate from Spent Lithium-Ion Batteries

Authors: Kozhevnikova A.V.¹, Uvarova E.S.¹^,2, Milevskii N.A.¹, Zakhodyaeva Y.A.¹, Voshkin A.A.¹
Affiliations:
1. Kurnakov Institute of General and Inorganic Chemistry RAS
2. Mendeleev University of Chemical Technology of Russia
Issue: Vol 57, No 5 (2023)
Pages: 553-562
Section: Articles
Published: 01.09.2023
URL: https://journals.rcsi.science/0040-3571/article/view/138544
DOI: https://doi.org/10.31857/S0040357123050111
EDN: https://elibrary.ru/MFGYFD
ID: 138544

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

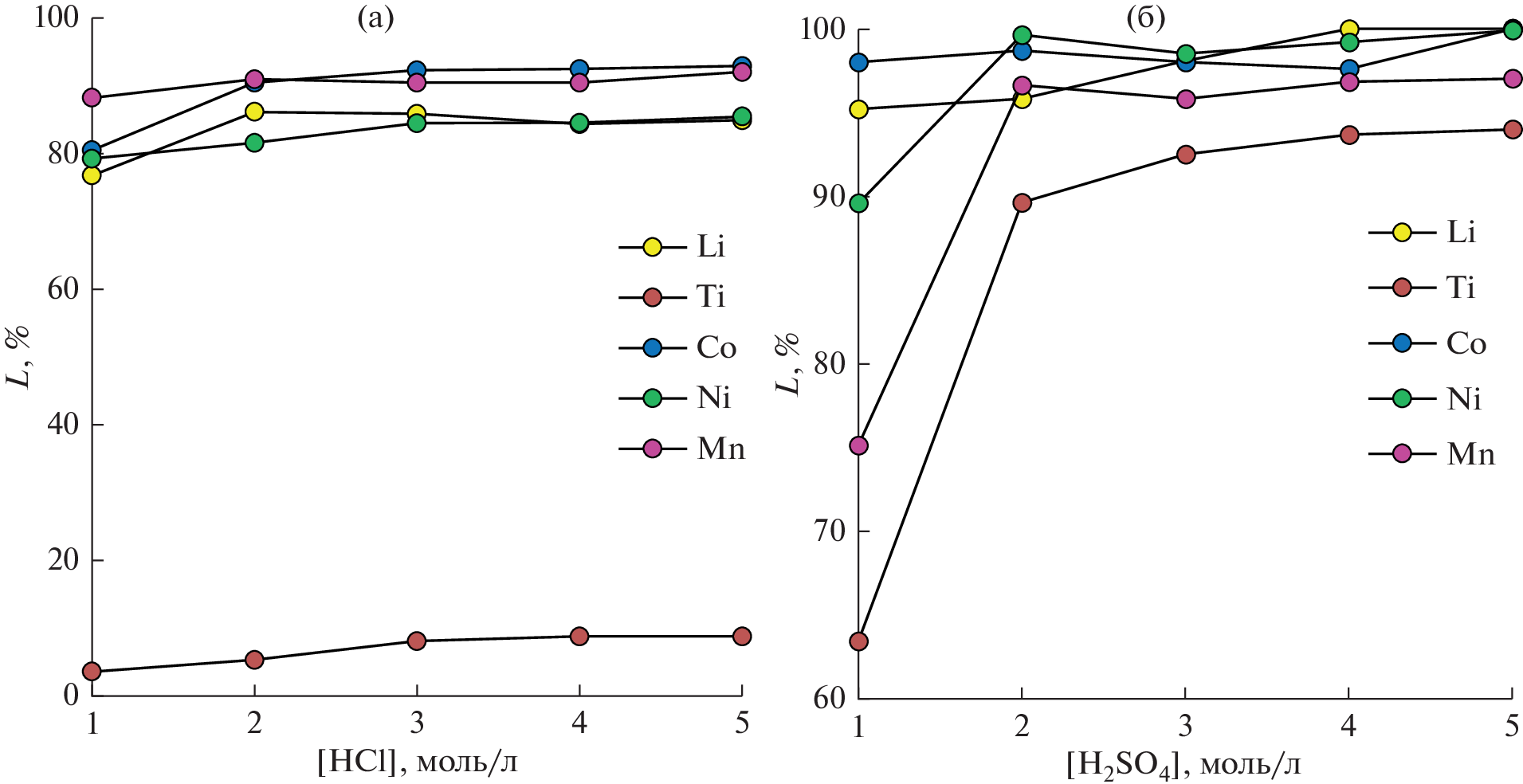

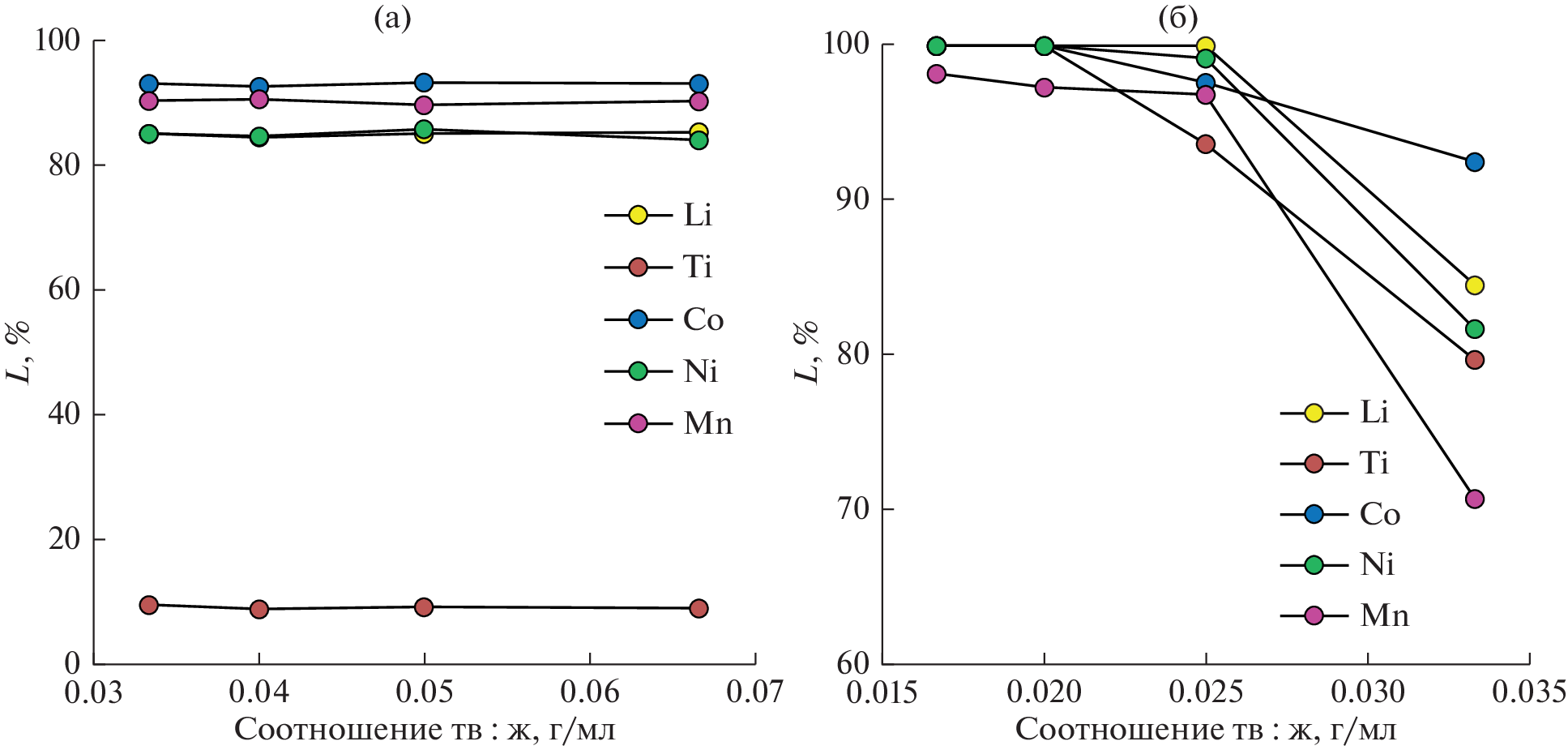

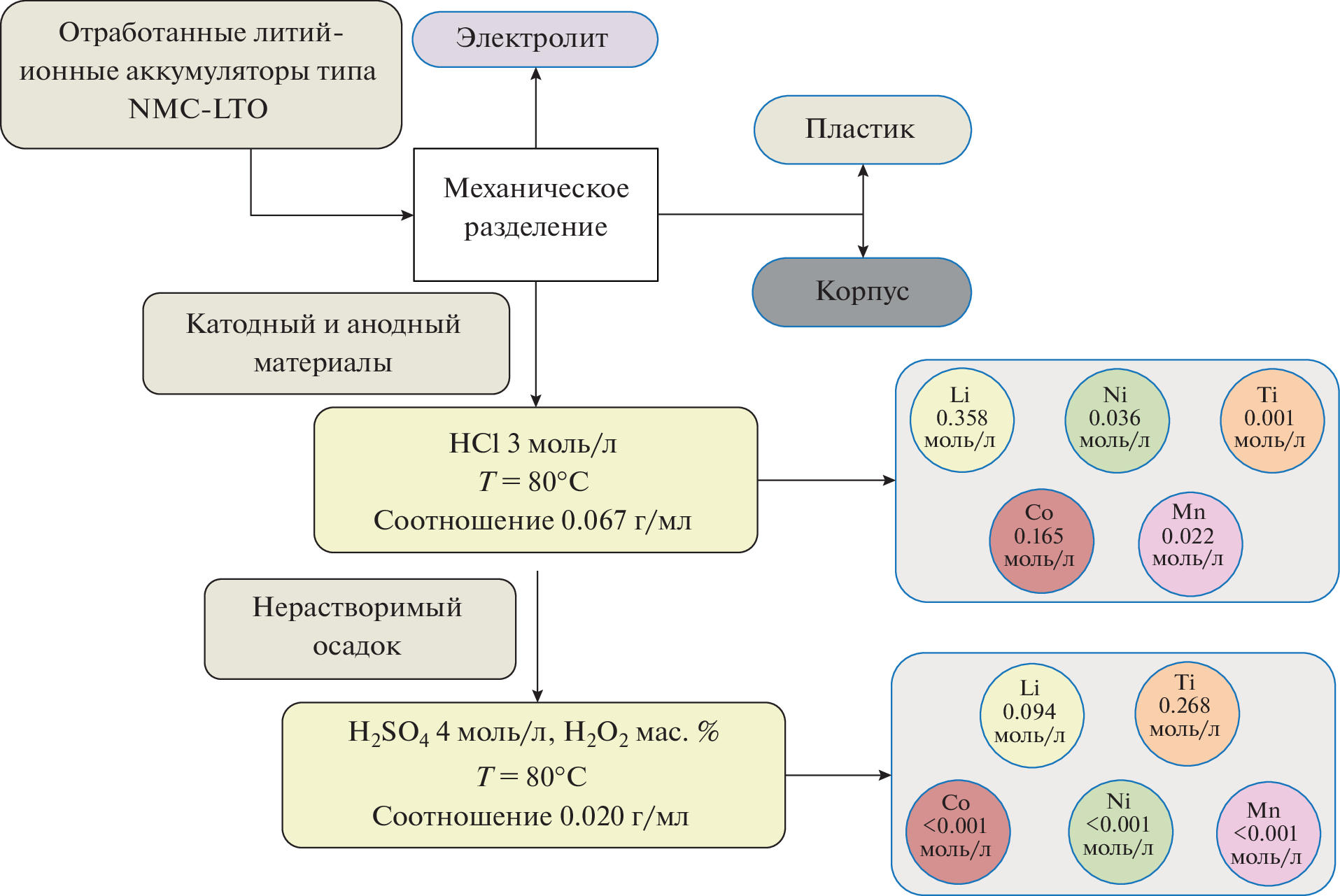

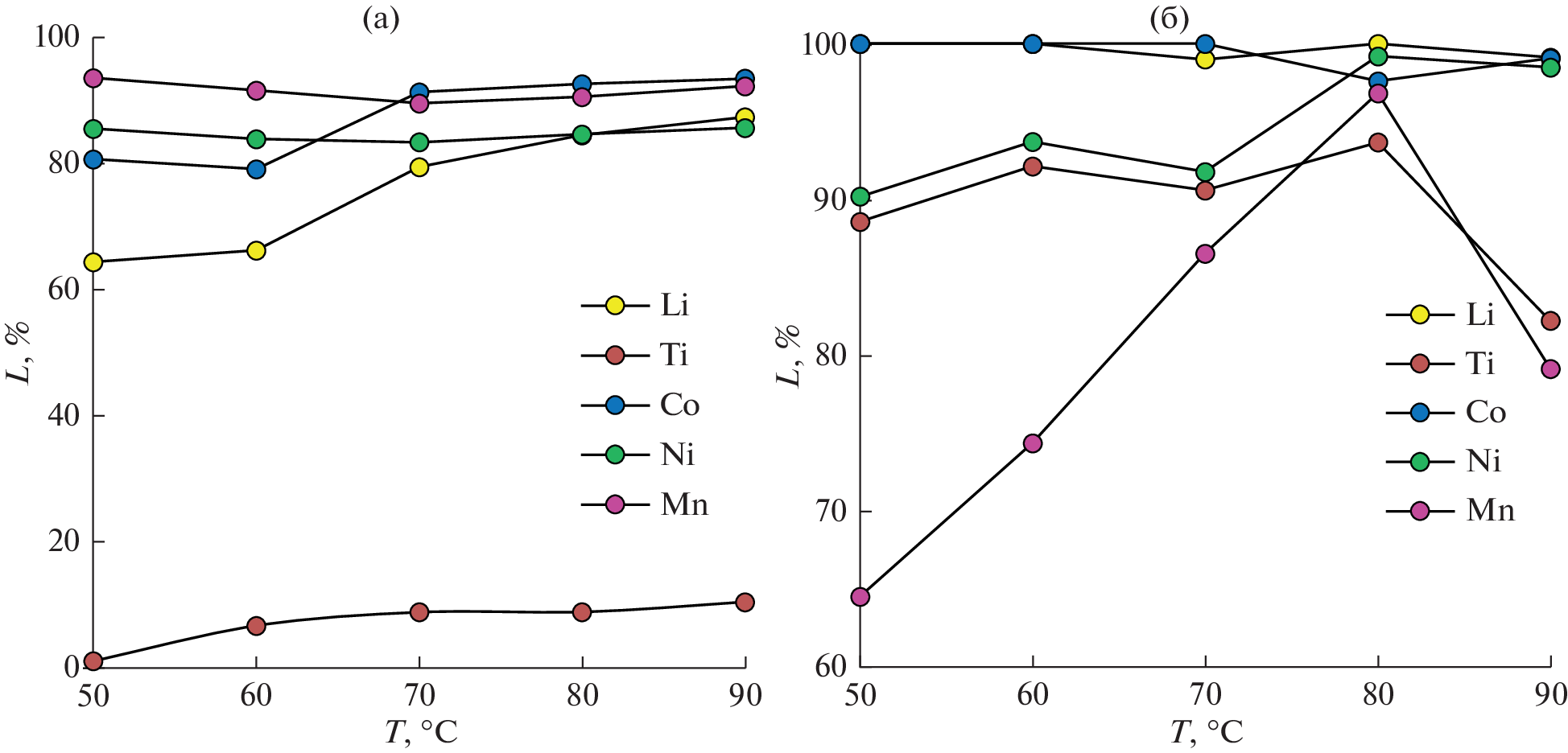

Lithium–titanate anodes are increasingly being used in the manufacturing of lithium-ion batteries due to their advantages in charge/discharge speed and safety of use relative to graphite anodes. The addition of titanium to the battery composition, along with the high content of cobalt and lithium, results in a further growth of their cost, and the reprocessing of such batteries becomes an extremely topical problem. In the framework of the present article, a comparative analysis of the hydrometallurgical reprocessing of batteries containing a lithium-titanate anode and a nickel–manganese–cobalt cathode by leaching with mineral acids (sulfuric and hydrochloric acids) is performed. In the work, the dependences of the leaching degree of the metals from real samples of the anode and cathode in their mixture on the mineral acid concentration, auxiliary additives, and solid : liquid ratio are demonstrated and the temperature and kinetic dependences for this process are obtained. Based on the results of qualitative and quantitative analysis of the leaching solutions, conditions for processing of the leaching process are proposed for further extractive separation. It is demonstrated that two-step successive leaching with hydrochloric and then sulfuric acid with the release of titanium concentrate is optimal. An important aspect of the work is the study of the joint leaching of the cathode and anode, since in the known processes of mechanical processing the stage of their separation is absent.
