A Fractal Analysis of the Effect of Titanium Dioxides on the Biological Properties of Bioinorganic Composite Materials

V. P.  Meshalkin; Мешалкин В. П.; O. B. Butusov; Бутусов О. Б.; A. G. Kolmakov; Колмаков А. Г.; M. A. Sevost’yanov; Севостьянов М. А.; T. B. Chistyakova; Чистякова Т. Б.

doi:10.31857/S0040357123030120

A Fractal Analysis of the Effect of Titanium Dioxides on the Biological Properties of Bioinorganic Composite Materials

Authors: Meshalkin V.P.¹^,2, Butusov O.B.¹^,2, Kolmakov A.G.³, Sevost’yanov M.A.³, Chistyakova T.B.⁴
Affiliations:
1. Mendeleev Russian University of Chemical Technology
2. Frumkin Institute of Physical Chemistry and Electrochemistry, Russian Academy of Sciences
3. Baikov Institute of Metallurgy and Materials Science, Russian Academy of Sciences
4. St. Petersburg State Institute of Technology (Technical University)
Issue: Vol 57, No 3 (2023)
Pages: 284-291
Section: Articles
Published: 01.05.2023
URL: https://journals.rcsi.science/0040-3571/article/view/138464
DOI: https://doi.org/10.31857/S0040357123030120
EDN: https://elibrary.ru/RPHOUW
ID: 138464

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

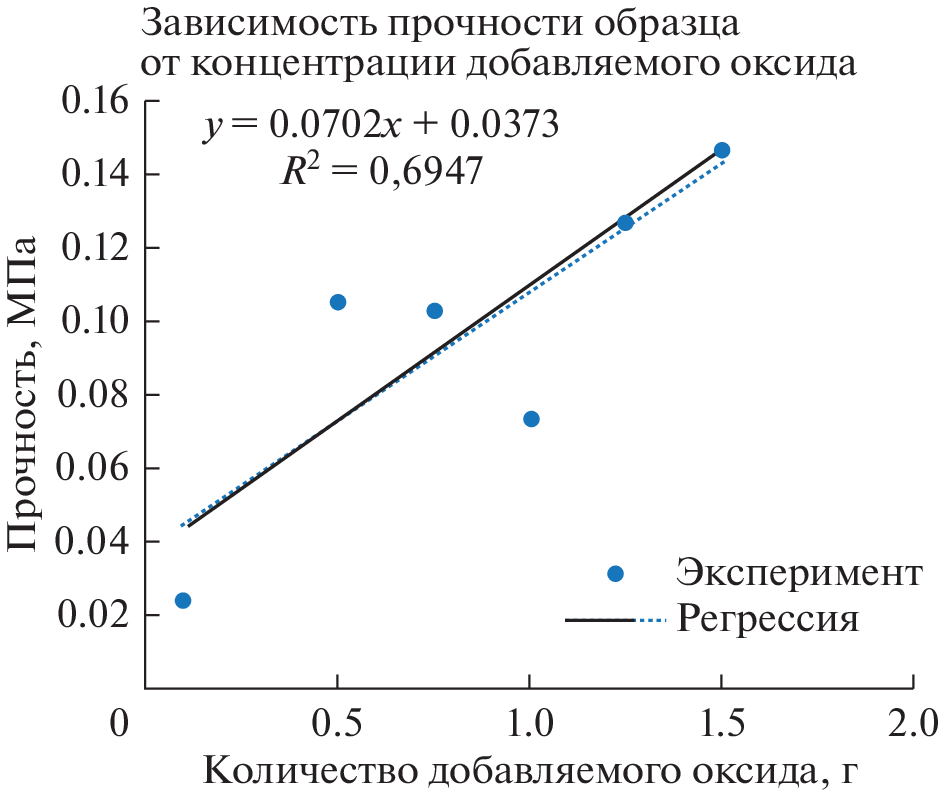

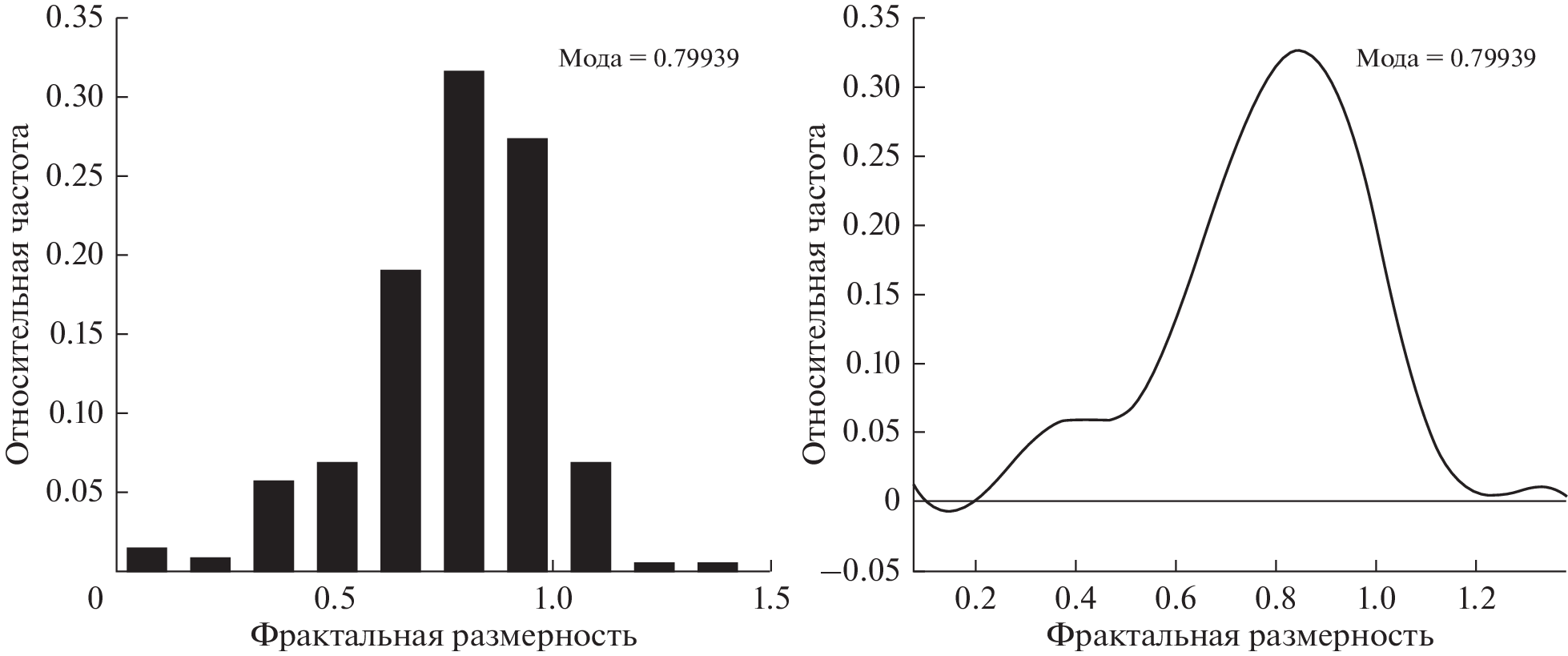

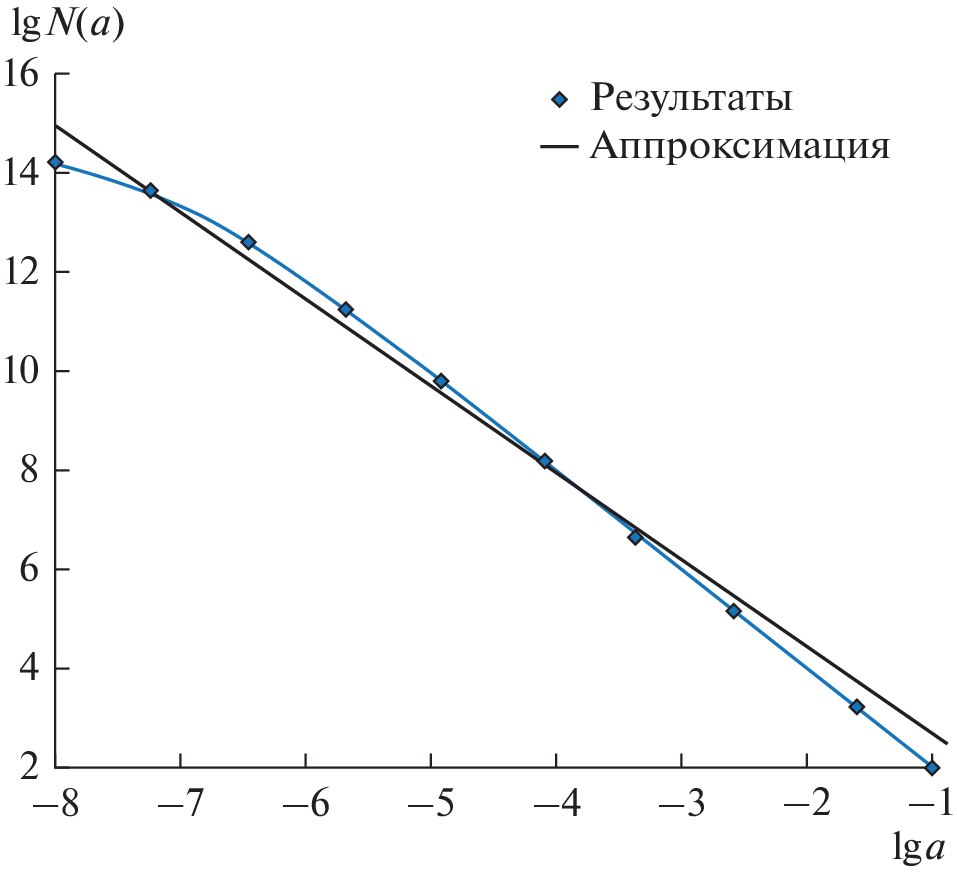

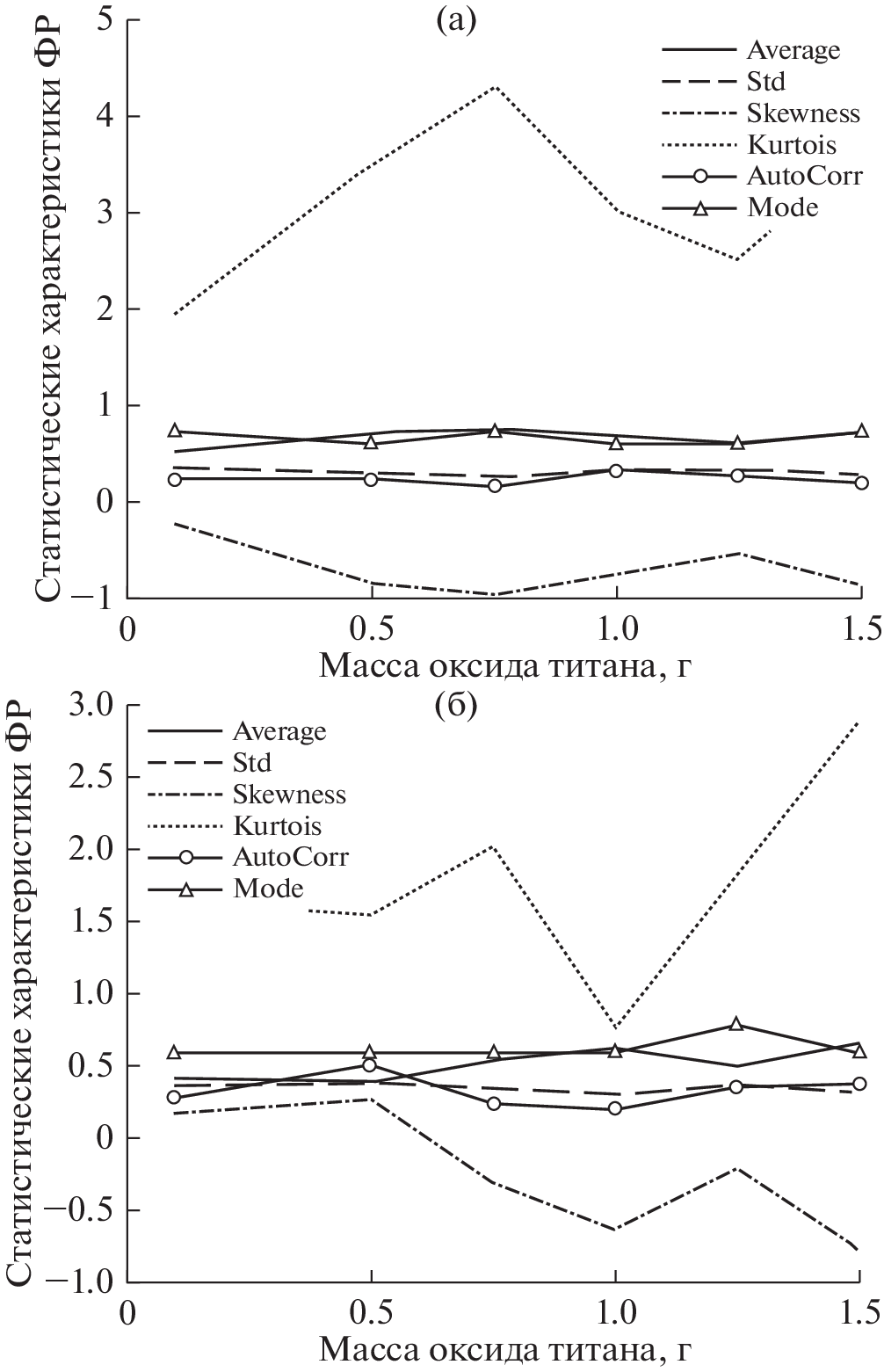

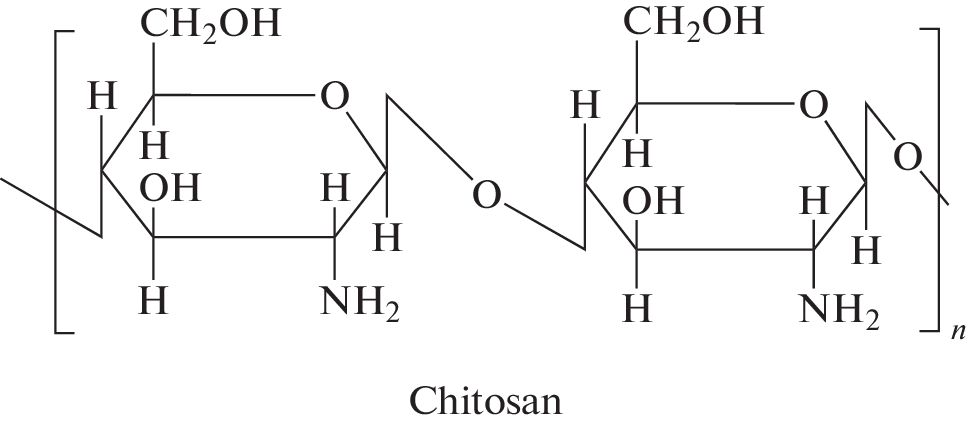

The study is devoted to the problem of creating environmentally friendly materials by using a new generation of composites based on biodegradable biocompatible polymer matrices with the possibility of long-term controlled targeted release of nutrients and bioprotective substances. A technique and an algorithm for using fractal analysis to assess the biological properties of the chitosan–titanium-dioxide composite, which is a bioinorganic composite material used in agriculture to produce highly effective complex fertilizers, is developed. The developed algorithm differs from analogues in the use of skeletons for calculating the fractal dimension of microphotographs. The fractal and mechanical properties of organic/inorganic films of the bioinorganic chitosan–titanium-dioxide composite material are studied. The obtained results are essential for assessing the characteristics of the bioinorganic composite material, such as the biodegradability, biocompatibility, and environmental safety, which are important for environmental protection. The existence of a relationship between the coefficients of asymmetry and kurtosis of the fractal dimension of the chitosan film microphotographs and the percentage of titanium dioxide in them is established. The results of studying the mechanical properties of the films of the chitosan–titanium-dioxide composite allow one to conclude that titanium dioxide impurities have an effect on the strength of the films.

Keywords

bioinorganic chitosan–titanium-dioxide composite material, optical microscopy, fractal dimension, mechanical strength, plant protection from harmful bacteria

References

Valeriy P. Meshalkin, Vincenzo G. Dovì, Vladimir I. Bobkov et al. State of the art and research development prospects of energy and resource-efficient environmentally safe chemical process systems engineering // Mendeleev Communications. 2021. V. 31. P. 593–604.
Meshalkin V.P., Butusov O.B., Reverberi Andrea, Kolmakov A.G., Sevostyanov M.A., Garabadzhiu A.V., Alexandrova A.G. Multifractal Analysis of the Mechanical Properties of the Texture of Biopolymer-Inorganic Composites of Chitosan-Silicon Dioxide. Energies 2022. V. 15. Iss. 19. 7147–7163. https://doi.org/10.3390/en15197147
Павлов А.Н., Анищенко В.С. Мультифрактальный анализ сложных сигналов // Успехи физических наук. 2007. Т. 177. № 8. С. 859–876.
Саркисов П.Д., Бутусов О.Б., Мешалкин В.П., Севастьянов В.Г., Галаев А.Б. Компьютерный метод анализа текстуры нанокомпозитов на основе расчета изолиний фрактальных размерностей // Теоретические основы химической технологии. 2010. Т. 44. № 6. С. 620–625.
Kozlov G.V., Yanovskii Yu.G. Fractal Mechanics of Polymers: Chemistry and Physics of Complex Polymeric Materials. Toronto, New Jersy: Apple Academic Press, 2015. 372 p.
Колоколова А.Ю., Тарасюк В.Т., Курбанова М.Н., Ильин А.А. Изучение антимикробных свойств модифицированных полимерных материалов // Вестник ВГУ 2019. Серия: Химия. Биология. Фармация. № 1. С. 12–19.
Озерин А.Н., Павлова-Веревкина О.Б., Зеленский А.Н., Аконова Т.А., Озерина Л.А., Сурин Н.М., Кечекьян А.С. Нанокомпозиты на основе модифицированного хитозана и окида титана // Высокомолекулярные соединения. 2006. Серия А. Т. 48. № 6. С 983–989.
Тюкова И.С., Суворова А.И., Окунева А.И., Шишкин Е.И. Получение и структура органо-неорганических гибридных пленок хитозан-оксид кремния // Высокомолекулярные соединения. 2010. Сер. Б. Т. 52. № 9. С. 1702–1709.
Янагисава К., Овенстон Дж. Кристаллизация анатаза из аморфного диоксида титана гидротермальным методом: влияние исходного материала и температуры // J. Phys. Chem. В. 1999. Т. 103. С. 7781–7787.
Кроновер Р.М. Фракталы и хаос в динамических системах. Основы теории. М.: Пост маркет, 2000. 352 с.
Stojić T., Reljin I., Reljin B. Adaptation of multifractal analysis to segmentation of microcalcifications in digital mammograms // Physica A: Statistical Mechanics and its Applications. 2006. V. 367. P. 494–508.
Mukundan R., Hemsley A. Tissue Image Classification Using Multi-Fractal Spectra // International J Multimedia Data Engineering and Management (IJMDEM). 2010. V. 1. P. 62–75.
Reljin I.S., Reljin B.D. Fractal geometry and multifractals in analyzing and processing medical data and images // Archive of Oncology. 2002. V. 10. P. 283–293.
Кантюков Р.А. Мультифрактальный анализ изображений турбулентных газовых потоков в газопроводах // Прикладная информатика. 2016. Т. 11. № 4(64). С. 42–56.
