Heat-Pump Efficiency in Acetone-Methanol Extractive Distillation Depending on Feed Composition

A. S. Burachuk; Бурачук А. С.; E. A. Anokhina; Анохина Е. А.; A. V. Timoshenko; Тимошенко А. В.

doi:10.31857/S0040357123010025

Heat-Pump Efficiency in Acetone-Methanol Extractive Distillation Depending on Feed Composition

Authors: Burachuk A.S.¹, Anokhina E.A.¹, Timoshenko A.V.¹
Affiliations:
1. MIREA—Russian Technological University
Issue: Vol 57, No 1 (2023)
Pages: 22-37
Section: Articles
URL: https://journals.rcsi.science/0040-3571/article/view/138395
DOI: https://doi.org/10.31857/S0040357123010025
EDN: https://elibrary.ru/BLXLQF
ID: 138395

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

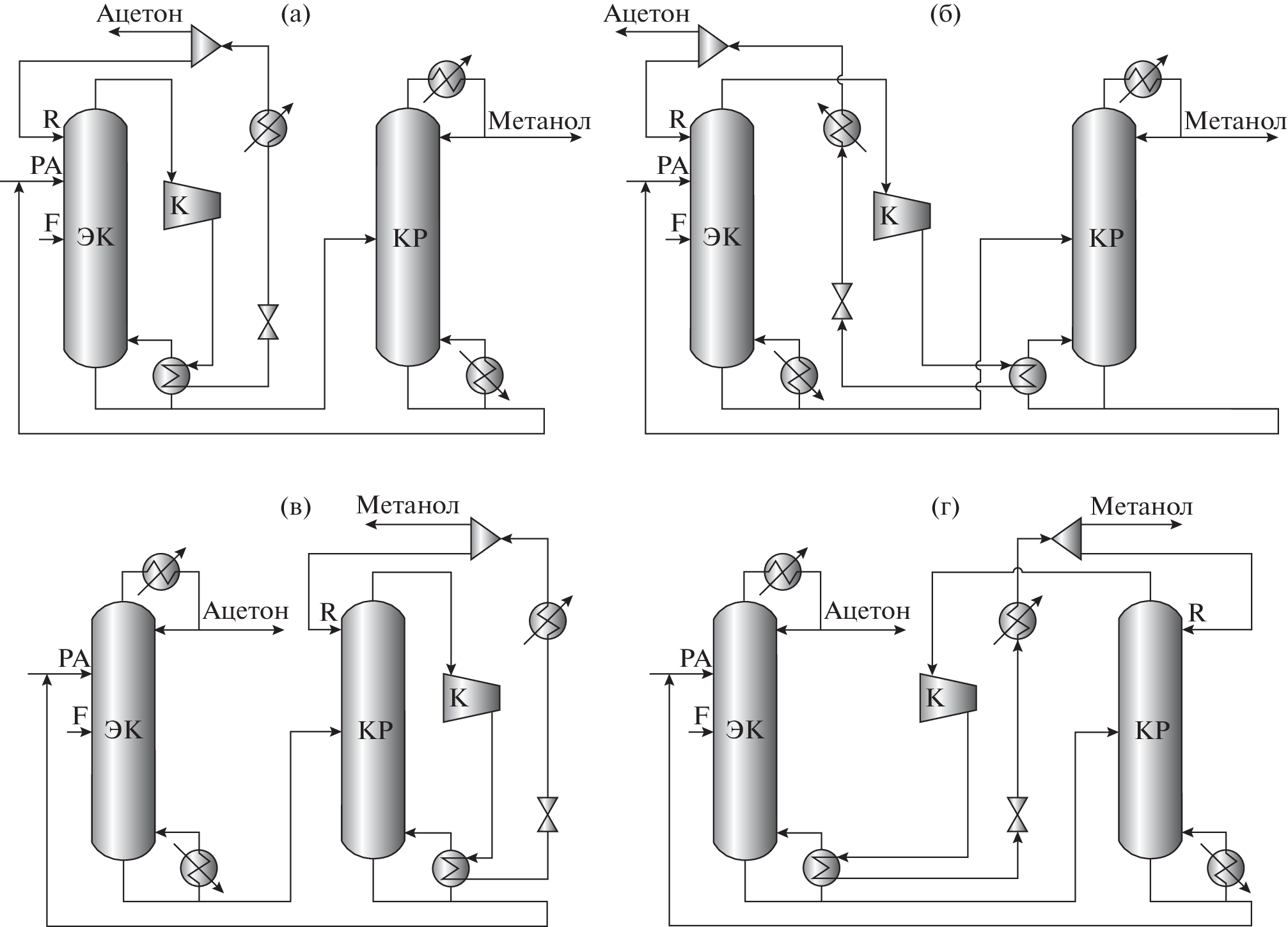

The application of heat pumps in extractive distillation is studied on the example of the acetone–methanol mixture. The dependence of the efficiency on the feed mixture composition is investigated. It is found that the most effective in the whole range of feed compositions is the scheme with a heat pump in which the compressed overhead vapor of the regeneration column heats its own reboiler. A criterion for estimating the energy savings is suggested, based on which a number of efficiency conditions of heat-pump application both in extractive distillation and in distillation in general are formulated. Proceeding from the obtained results, a preliminary discrimination algorithm for versions of the distillation schemes with heat pumps is offered.

Keywords

heat pump, extractive distillation, energy saving

References

Gil I.D. et al. Extractive distillation of acetone/methanol mixture using water as entrainer // Industrial and Engineering Chemistry Research. 2009. V. 48. № 10. P. 4858.
Фролкова А.К. Разделение азеотропных смесей. Физико-химические основы и технологические приемы. М.: Гуманитар. изд. центр ВЛАДОС, 2010.
Анохина Е.А., Сидорова Ю.И., Тимошенко А.В. Экстрактивная ректификация смеси ацетон–метанол с водой в комплексе с частично связанными тепловыми и материальными потоками // Вестник МИТХТ. 2011. Т. 6. № 5. С. 118–124.
Kiss A.A., Infante Ferreira C.A. Heat pumps in chemical process industry. CRC Press. 2016. 442 p.
Jana A.K. Advances in heat pump assisted distillation column: A review // Energy Conversion and Management. Elsevier. 2014. V. 77. P. 287–297.
Infante Ferreira C.A., Spoelstra S., Hamoen E. How successful are heat pumps in Dutch process industry applications? // RCC Koude & Luchtbehandeling. 2009. № 102. P. 14–20.
You X., Rodriguez-Donis I., Gerbaud V. Reducing process cost and CO2 emissions for extractive distillation by double-effect heat integration and mechanical heat pump // Applied Energy. Elsevier. 2016. V. 166. P. 128–140.
Klauzner P.S. et al. Energy saving in the extractive distillation of isobutyl alcohol–isobutyl acetate with n-butyl propionate // Fine Chemical Technologies. 2020. V. 15. № 4. P. 14–29.
Yaws C.L. Vapor Pressure – Organic Compounds // The 2 Handbook of Vapor Pressure. Elsevier, 2015. 314 p.
Kurihara K., Nakamichi M., Kojima K. Isobaric vapor-liquid equilibria for methanol + ethanol + water and the three constituent binary systems // J. Chemical & Engineering Data. 1993. V. 38. № 3. P. 446–449.
Verhoeye L., de Schepper H. The vapour-liquid equilibria of the binary, ternary and quaternary systems formed by acetone, methanol, propan-2-ol, and water // J. Applied Chemistry and Biotechnology. 2007. V. 23. № 8. P. 607–619.
Iliuta M.C., Thyrion F.C. Vapour-liquid equilibrium for the acetone-methanol-inorganic salt system // Fluid Phase Equilibria. 1995. V. 103. № 2. P. 257–284.
Luyben W.L. Capital cost of compressors for conceptual design // Chemical Engineering and Processing – Process Intensification. Elsevier. 2018. V. 126. P. 206–209.
Iwakabe K. et al. Energy saving in multicomponent separation using an internally heat-integrated distillation column (HIDiC) // Applied Thermal Engineering. 2006. V. 26. № 13. P. 1362–1368.
Anokhina E.A., Berdibekova S.A., Timoshenko A.V. Energy saving schemes for separation of benzene-cyclohexane-toluene mixture with different initial compositions by extractive distillation // Chemical Engineering Transactions. 2018. V. 69. P. 871–876.
Клаузнер П.С. и др. Закономерности применения тепловых насосов в экстрактивной ректификации // Теорет. основы хим. технологии. 2022. Т. 56. № 3. С. 313–325.
Klauzner P.S. et al. Use of partially thermally coupled distillation systems and heat pumps for reducing the energy consumption in the extractive distillation of an isobutanol–isobutyl acetate mixture using dimethylformamide // Theoretical Foundations of Chemical Engineering. 2020. V. 54. № 3. C. 397–406.
Chickos J.S., Acree W.E. Jr. Enthalpies of vaporization of organic and organometallic compounds // J. Physical and Chemical Reference Data. 2003. V. 32. № 2. P. 519–878.
