Email this article On Optimal Rigid Body Rotation with Internal Forces Application
- Authors: Rozenblat G.M.1, Reshmin S.A.2
-
Affiliations:
- Moscow State Automobile and Road Technical University (MADI)
- Ishlinsky Institute for Problems in Mechanics RAS
- Issue: Vol 87, No 6 (2023)
- Pages: 954-969
- Section: Articles
- URL: https://journals.rcsi.science/0032-8235/article/view/232543
- DOI: https://doi.org/10.31857/S0032823523060085
- EDN: https://elibrary.ru/GHQIGD
- ID: 232543
Cite item
Open Access
Access granted
Subscription Access
Abstract

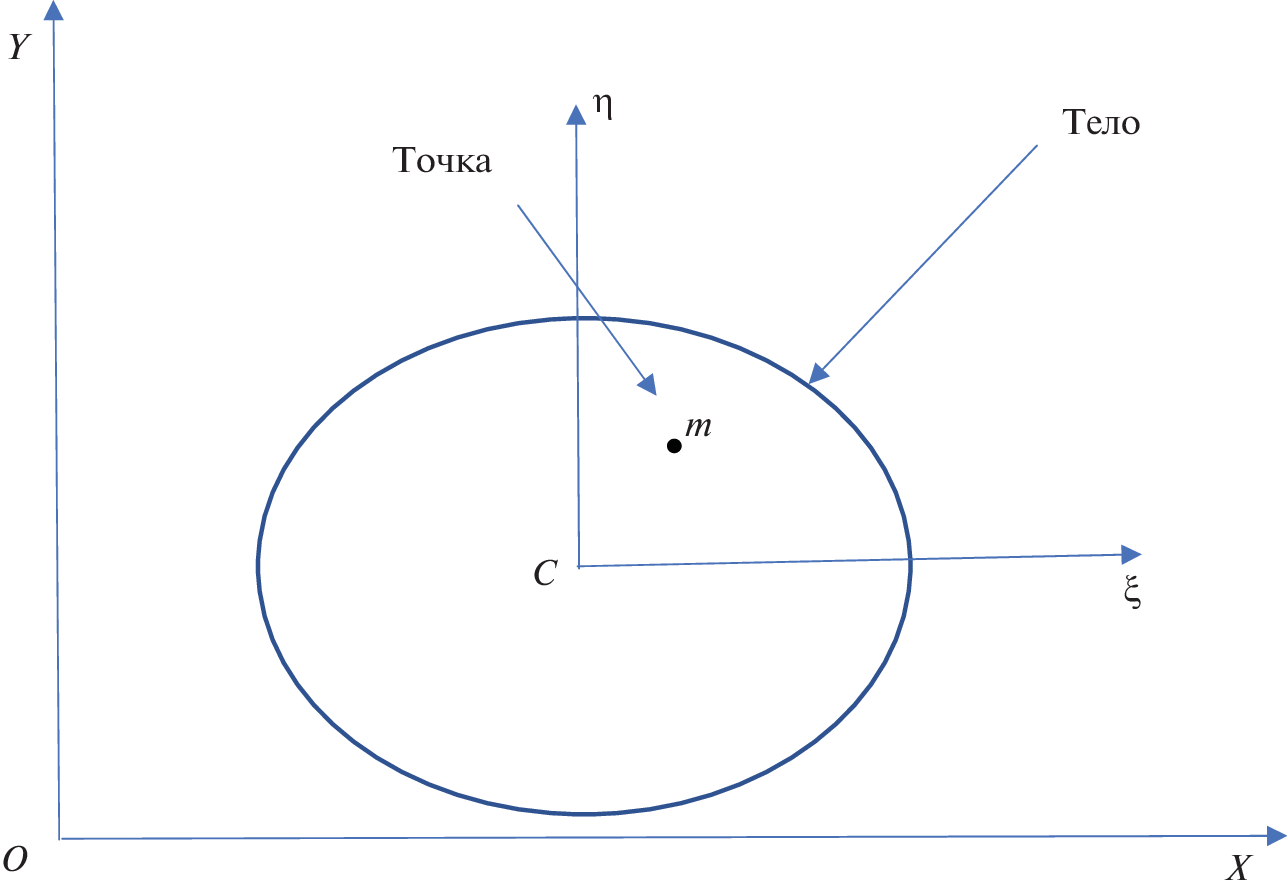

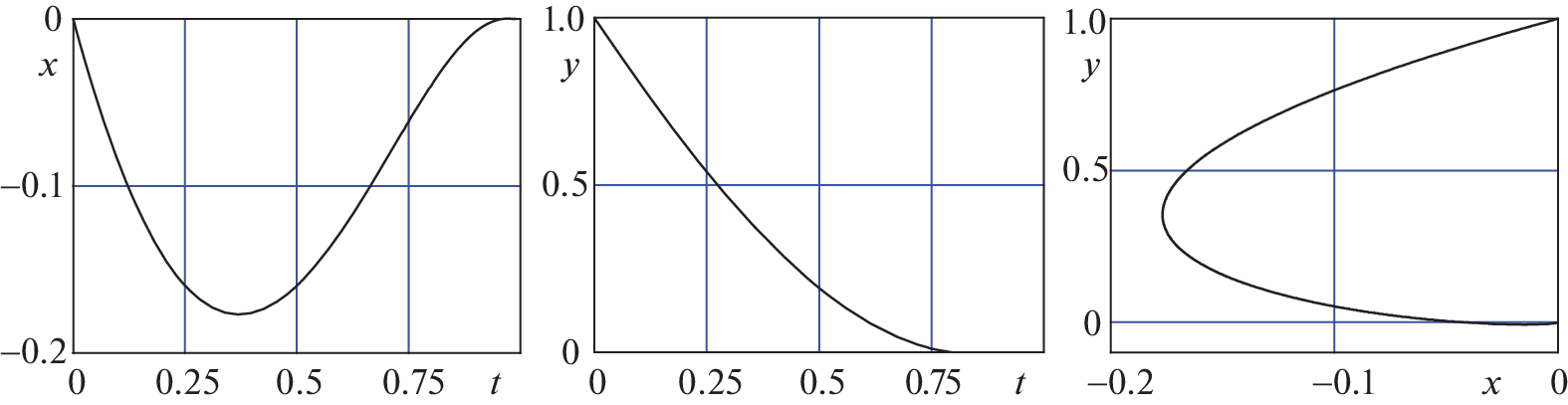

The article describes the result obtained for the problem of a rigid body’s maximum rotation in a given time interval by moving a movable internal mass. The mass movement is achieved by applying limited force. Previously, similar problems were considered in which the displacements of internal mass were assumed to be kinematic with restrictions on the point’s speed. The obtained result is described by analytical, easily verifiable formulas. The optimal trajectory of the moving mass is a spiral that coils around the center of mass of a rigid body with a frequency increasing to infinity. The obtained numerical results relate to the design of other optimal trajectories that cannot be analyzed analytically.
About the authors
G. M. Rozenblat
Moscow State Automobile and Road Technical University (MADI)
Author for correspondence.
Email: gr51@mail.ru
Russia, Moscow
S. A. Reshmin
Ishlinsky Institute for Problems in Mechanics RAS
Author for correspondence.
Email: reshmin@ipmnet.ru
Russia, Moscow
References
- Appell P. Traité de mécanique rationnelle, Vol. 2: Dynamique des systèmes. Mécanique analytique (Gauthier-Villars, Paris, 1953). (in French)
- Tatarinov Ya.V. Lectures on Classical Dynamics. Moscow: MSU Pub., 1984. (in Russian)
- Chernousko F.L. Optimal control of two-dimensional motions of a body by a movable mass // Prepr. IX Vienna Int. Conf. on Math. Model. (MATHMOD). Vienna, February 21–23, 2018. Pap. WeD4.2. Vienna, 2018, pp. 253–256.
- Chernousko F.L. Optimal control of the motion of a two-mass system // Dokl. Math., 2018, vol. 97, no. 3, pp. 295–300.
- Chernousko F.L. Change of orientation of a rigid body by means of an auxiliary mass // Dokl. Phys., 2020, vol. 65, no. 2, pp. 72–74.
- Shmatkov A.M. Time-optimal rotation of a body by displacement of a mass point // Dokl. Phys., 2018, vol. 63, no. 8, pp. 337–341.
- Rozenblat G.M. On optimal rotation of a rigid body by applying internal forces // Dokl. Math., 2022, vol. 106, no. 1, pp. 291–297.
- Reshmin S.A., Rozenblat G.M. Computer-analytical investigation of optimal turning of a solid body by means of internal forces // Int. Sci. Conf. Fundamental and Applied Problems of Mechanics (FAPM-2022). Moscow, 6–9 December, 2022. The materials of the conference. Part 1. Moscow: BMSTU Pub., 2023, pp. 182–188. (in Russian)
- Pontryagin L.S., Boltyanskii V.G., Gamkrelidze R.V., Mishchenko E.F. The Mathematical Theory of Optimal Processes. N.Y.: Gordon&Breach, 1986. xxiv+360 p.
- Klimov D.M., Zhuravlev V.Ph. Group-Theoretic Methods in Mechanics and Applied Mathematics. London; N.Y.: Taylor & Francis, 2002. 230 p.
- Reshmin S.A. Application of the Newton method to solving boundary value problems of the maximum principle on the example of the problem of optimal unwinding of a two-mass system // Modern Europ. Res., 2021, no. 2 (vol. 1), pp. 114–122. (in Russian)
- Kozlov V.V. Rational integrals of quasi-homogeneous dynamical systems // JAMM, 2015, vol. 79, no. 3, pp. 209–216.
- Shamolin M.V. New cases of integrable odd-order systems with dissipation // Dokl. Math., 2020, vol. 101, no. 2, pp. 158–164.
