Active Thermostatting of the Reference Optical Fiber Section Method in a Distributed Fiber-Optical Temperature Sensor

A. O. Chernutsky; Чернуцкий А. О.; R. I. Khan; Хан Р. И.; T. V. Gritsenko; Гриценко Т. В.; K. I. Koshelev; Кошелев К. И.; A. A. Zhirnov; Жирнов А. А.; A. B.  Pnev; Пнев А. Б.

doi:10.31857/S0032816223050075

Active Thermostatting of the Reference Optical Fiber Section Method in a Distributed Fiber-Optical Temperature Sensor

Authors: Chernutsky A.O.¹, Khan R.I.¹, Gritsenko T.V.¹, Koshelev K.I.¹, Zhirnov A.A.¹, Pnev A.B.¹
Affiliations:
1. Bauman Moscow State Technical University
Issue: No 5 (2023)
Pages: 121-128
Section: ОБЩАЯ ЭКСПЕРИМЕНТАЛЬНАЯ ТЕХНИКА
URL: https://journals.rcsi.science/0032-8162/article/view/138505
DOI: https://doi.org/10.31857/S0032816223050075
EDN: https://elibrary.ru/ZJEHRS
ID: 138505

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

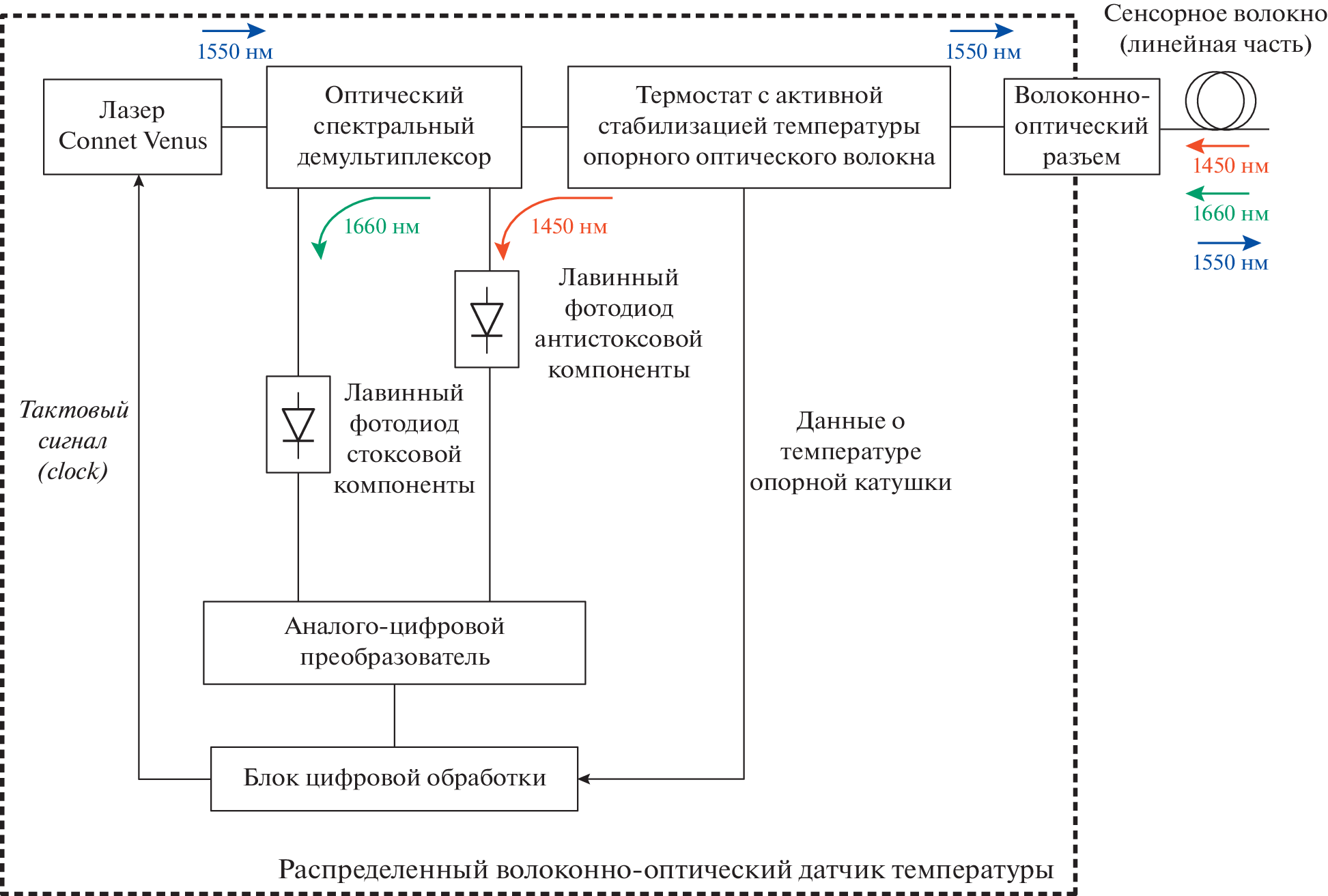

The influence of temperature fluctuations of the reference section of an optical fiber as part of the instrumental part on the absolute measurement error of a distributed fiber-optical temperature sensor was performed. The design of the reference section with active temperature control with high stability as part of the instrumental part of the sensor is proposed and experimentally investigated. The efficiency of using active temperature control to improve the repeatability of measurements and reduce the measurement error has been experimentally demonstrated.

References

Dakin J.P., Kahn D.A. // Optical and Quantum Electronics. 1977. V. 9. P. 540.
Rozzell T.C., Johnson C.C., Durney C.H., Lords J.L., Olsen R.G. // Journal of Microwave Power. 1974. V. 9. № 3. P. 241. https://doi.org/10.1080/00222739.1974.11688922
Morey W.W., Meltz G., Glenn W.H. // Fiber Optic and Laser Sensors VII. International Society for Optics and Photonics. 1990. V. 1169. P. 987. https://doi.org/10.1117/12.963022
Brooks J., Wentworth R., Youngquist R., Tur M., Kim B., Shaw H. // Journal of Lightwave Technology. 1985. V. 3. № 5. P. 1062. https://doi.org/10.1109/JLT.1985.1074308
Hartog A.H., Leach A.P., Gold M.P. // Electronics Letters. 1985. V. 21. № 23. P. 1061. https://doi.org/10.1049/el:19850752
Hartog A. // Journal of Lightwave Technology. 1983. V. 1. № 3. P. 498. https://doi.org/10.1109/JLT.1983.1072146
Dakin J.P., Pratt D.J., Bibby G.W., Ross J.N. Electronics Letters. 1985. V. 21. № 13. P. 569. https://doi.org/10.1049/el:19850402
Culverhouse D., Farahi F., Pannell C.N. // Electronics Letters. 1989. V. 25. № 14. P. 913. https://doi.org/10.1049/el:19890612
Zhirnov A.A., Stepanov K.V., Sazonkin S.G., Choban T.V., Koshelev K.I., Chernutsky A.O., Pnev A.B., Novikov A.O., Yagodnikov D.A. // Sensors. 2021. V. 21 (23). P. 7836. https://doi.org/10.3390/s21237836
Chernutsky A.O., Dvoretskiy D.A., Orekhov I.O., Sazonkin S.G., Ososkov Y.Z., Denisov L.K., Stepanov K.V., Zhirnov A.A., Pnev A.B., Karasik V.E. // 2020 International Conference Laser Optics (ICLO). Russia, St. Petersburg. IEEE, 2020. P. 1. https://doi.org/10.1109/ICLO48556.2020.9285857
Ososkov Y.Z., Chernutsky A.O., Dvoretskiy D.A., Sazonkin S.G., Kudelin I.S., Orekhov I.O., Pnev A.B., Karasik V.E. // Opt. Spectrosc. 2019. V. 127. P. 664. http://sci-hub.tw/10.1134/S0030400X19100199
Stepanov K.V., Zhirnov A.A., Chernutsky A.O., Koshelev K.I., Pnev A.B., Lopunov A.I., Butov O.V. // Sensors. 2020. V. 20. P. 6431. https://doi.org/10.3390/s20226431
Nordin N.D., Abdullah F., Zan M.S.D., Abu-Bakar A.A., Krivosheev A.I., Barkov F.L., Konstantinov Y.A. // Sensors. 2022. V. 22 (7). P. 2677. https://doi.org/10.3390/s22072677
Hartog A.H. An Introduction to Distributed Optical Fibre Sensors. CRC press, 2017. https://doi.org/10.1201/9781315119014
Hausner M.B., Suárez F., Glander K.E., Van de Giesen N., Selker J.S., Tyler S.W. // Sensors. 2011. V. 11. № 11. P. 10859. https://doi.org/10.3390/s111110859
