Email this article Atomistic simulation of paratellurite α-TeO2 crystal: II. Anisotropy and microscopic aspects of ion transport
- Authors: Ivanov-Schitz А.K.1
-
Affiliations:
- Shubnikov Institute of Crystallography of Kurchatov Complex of Crystallography and Photonics of NRC “Kurchatov Institute”
- Issue: Vol 70, No 1 (2025)
- Pages: 62-67
- Section: ФИЗИЧЕСКИЕ СВОЙСТВА КРИСТАЛЛОВ
- URL: https://journals.rcsi.science/0023-4761/article/view/286249
- DOI: https://doi.org/10.31857/S0023476125010089
- EDN: https://elibrary.ru/ISZEGU
- ID: 286249
Cite item
Open Access
Access granted
Abstract
The molecular dynamics method was used to study the peculiarities of ion transport in α-TeO2 paratellurite crystals. It has been shown that in α-TeO2, ion transport caused by oxygen transfer is anisotropic. The highest values of diffusion coefficients are observed along the c-axis and amount to DO~ 1×10–7 cm2/s at temperatures near the melting point. It has been shown that oxygen ions jump over distances of 1.5–2.5 Å via a vacancy or interstitial mechanism.
Full Text
About the authors
А. K. Ivanov-Schitz
Shubnikov Institute of Crystallography of Kurchatov Complex of Crystallography and Photonics of NRC “Kurchatov Institute”
Author for correspondence.
Email: alexey.k.ivanov@gmail.com
Russian Federation, Moscow
References
- Кондратюк И.П., Мурадян Л.А., Писаревский Ю.В. и др. // Кристаллография. 1987. Т. 32. С. 609.
- Thomas P.A. // J. Phys. C. 1988. V. 21. P. 4611. http://stacks.iop.org/0022–3719/21/i=25/a=009
- Дудка А.П., Головина Т.Г., Константинова А.Ф. // Кристаллография. 2019. Т. 64. С. 930. https://doi.org/10.1134/S0023476119060043
- Arlt G., Schweppe H. // Solid State Commun. 1968. V. 6. P. 783. https://doi.org/10.1016/0038–1098(68)90119–1
- Wang P., Zhang Z. // Appl. Opt. 2017. V. 56. P. 1647. https://doi.org/10.1364/AO.56.001647
- Li Y., Fan W., Sun H. et al. // J. Appl. Phys. 2010. V. 107. P. 093506. https://doi.org/10.1063/1.3406135
- Liu Z., Yamazaki T., Shen Y. et al. // Appl. Phys. Lett. 2007. V. 90. P. 173119. https://doi.org/10.1063/1.2732818
- Ковальчук М.В., Благов А.Е., Куликов А.Г. и др. // Кристаллография. 2014. Т. 59. С. 950.
- Куликов А.Г. Образование приповерхностных структур в кристаллах парателлурита и тетрабората лития при миграции носителей заряда во внешнем электрическом поле. Дис. … канд. физ.-мат. наук. Москва, 2019.
- Иванов-Шиц А.К. //Кристаллография. 2024. Т. 69. № 6. С. 1009. https://doi.org/10.31857/S0023476124060116
- Wegener J., Kanert O., Küchler R. et al. // Z. Naturforsch. А. 1994. V. 49. P. 1151. https://doi.org/10.1515/zna-1994-1208
- Wegener J., Kanert O., Küchler R. et al. // Radiat. Eff. Defects Solids. 1995. V. 114. P. 277.
- BatteryMaterials. https://pathfinder.batterymaterials.info/
- Jain H., Nowick A.S. // Phys. Status Solidi. А. 1981. V. 67. P. 701. https://doi.org/10.1002/pssa.2210670242
- Hartmann E., Kovács L. // Phys. Status Solidi. А. 1982. V. 74. P. 59. https://doi.org/10.1002/pssa.2210740105
Supplementary files
Supplementary Files
Action
1.
JATS XML
2.

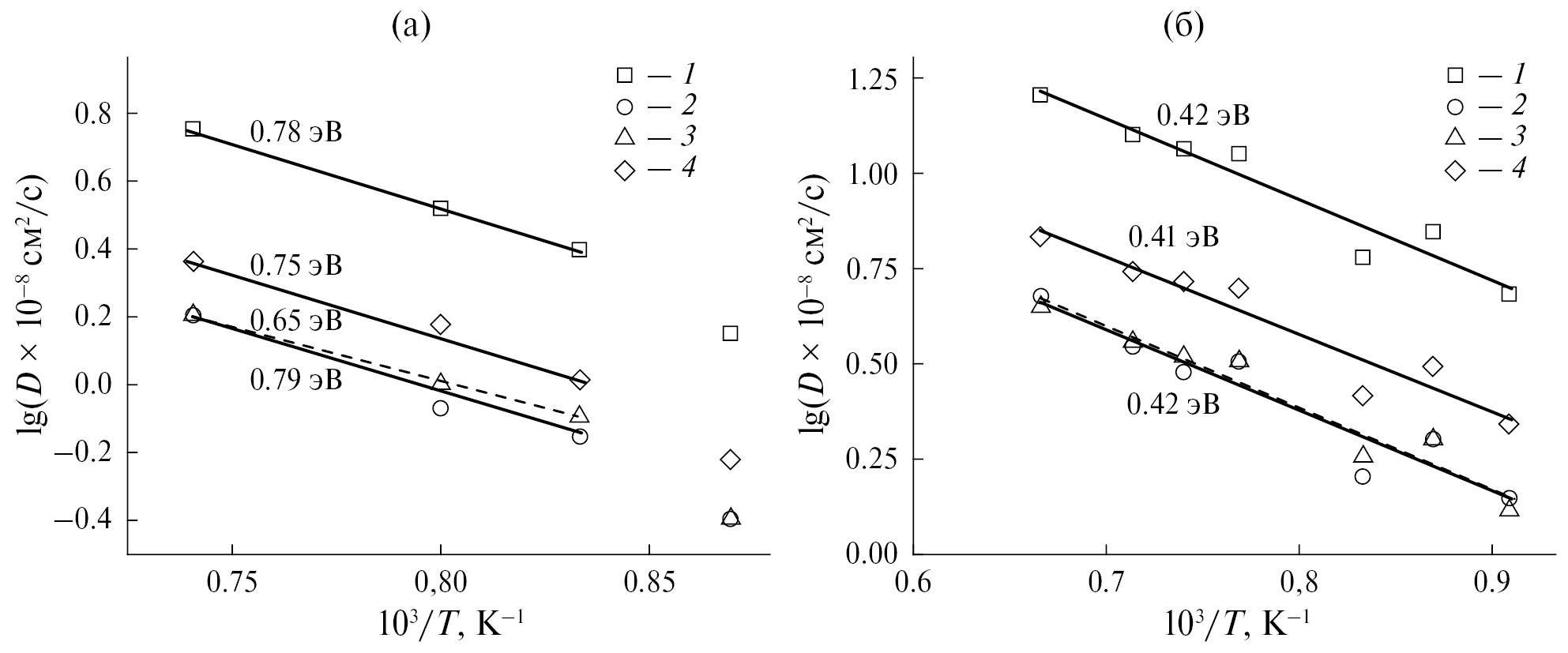

Fig. 1. Temperature dependences of the oxygen diffusion coefficients DO in crystals containing 15 oxygen vacancies (a) and 10 interstitial oxygen ions (b): total diffusion coefficient (1), DO along the axes a (2), b (3) and c (4), respectively. The numbers near the straight lines are the diffusion activation energies.
Download (166KB)
3.

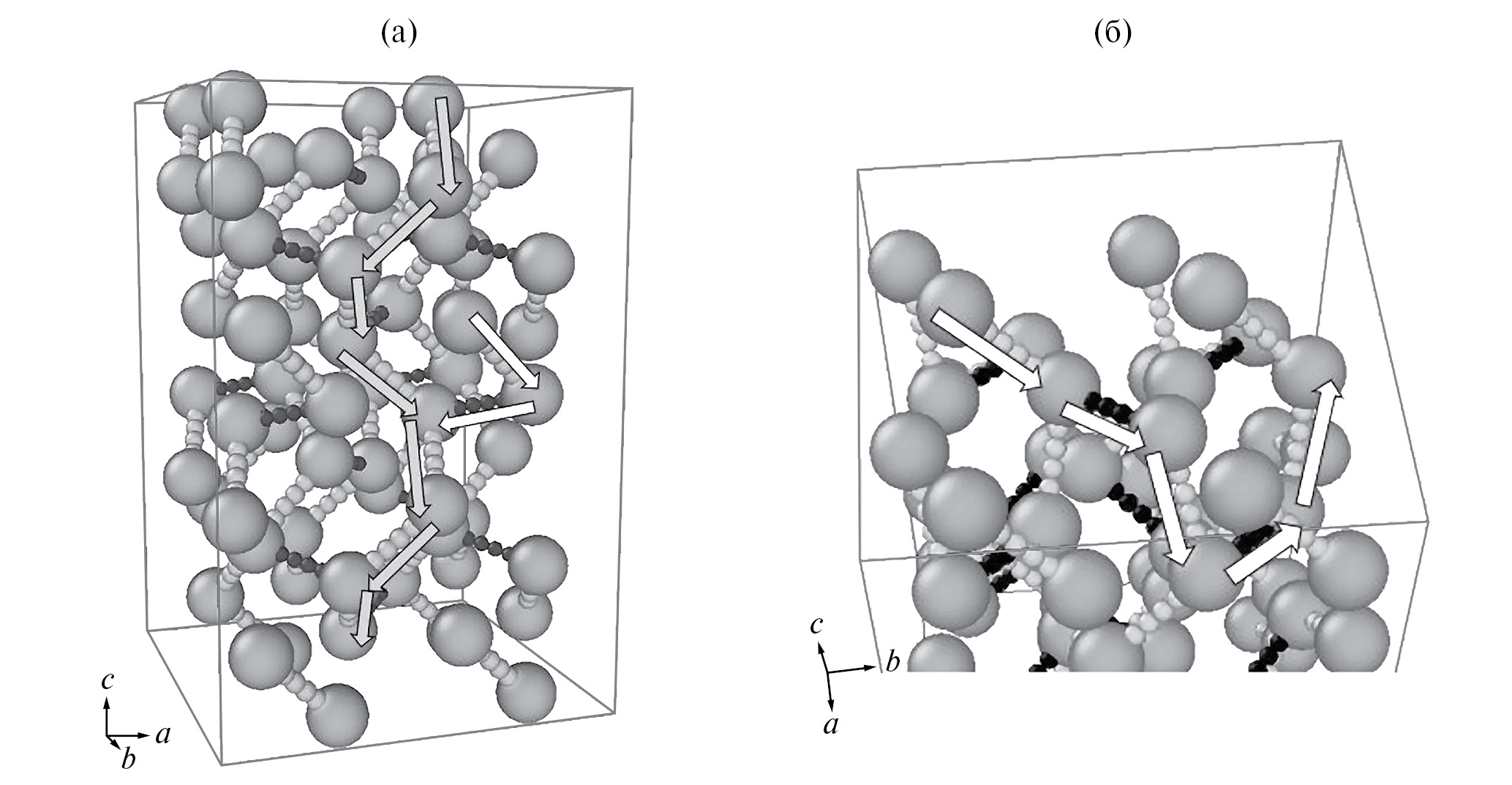

Fig. 2. Possible transport routes of oxygen anions. Large spheres are oxygen in crystallographic positions, small grey and black spheres are possible intermediate positions of oxygen for “channels” of two types. Arrows show possible trajectories of oxygen movement in the direction of the c axis (a) and in the directions of the axes a, b (b).
Download (256KB)
4.

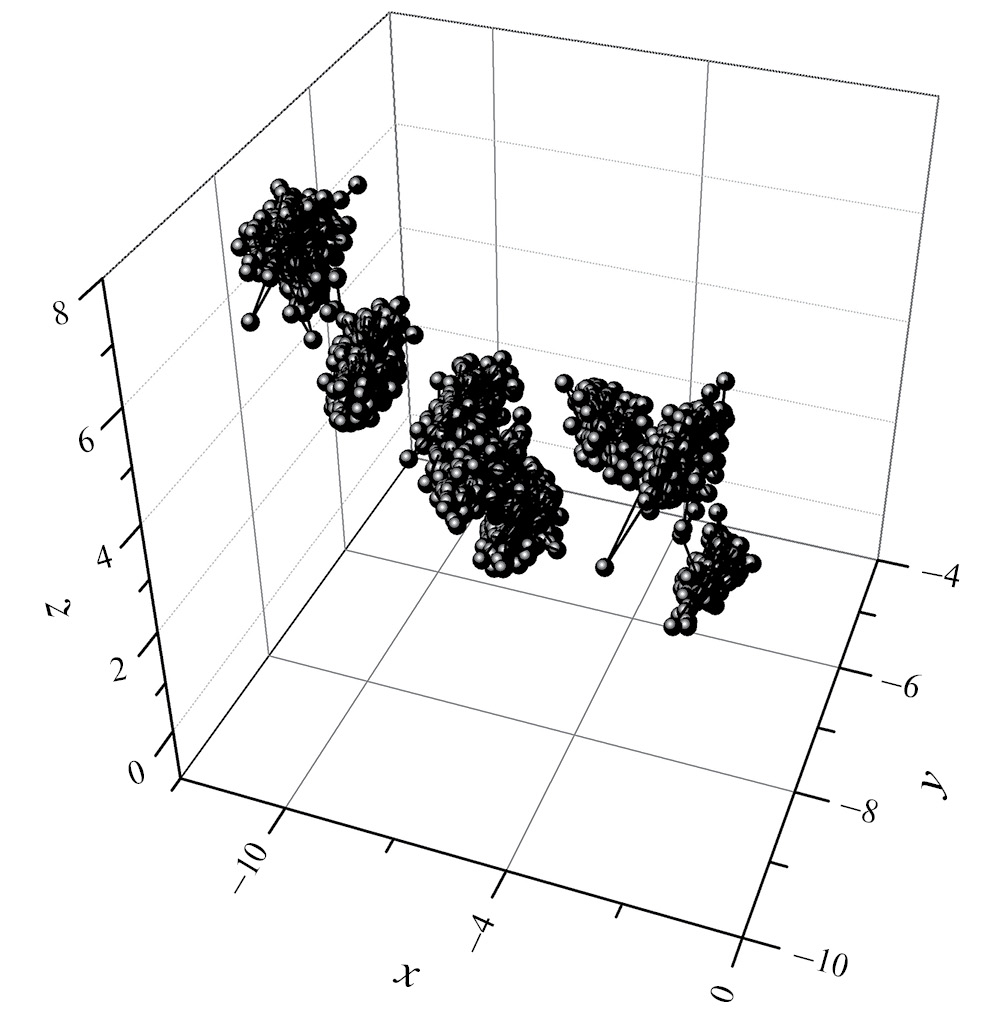

Fig. 3. Calculated trajectories of oxygen anions in a TeO2 crystal with 15 oxygen vacancies.
Download (485KB)
5.
Fig. 4. Calculated trajectories of oxygen anions in a TeO2 crystal with 10 interstitial oxygen atoms.
Download (445KB)
6.
Fig. 5. Three adjacent uncorrelated jumps of oxygen anions.
Download (146KB)
