Preparation of Si3N4 Ceramics with 3 wt % Y2O3–Al2O3 (2 : 1, 1 : 1, 3 : 5) Additions by Spark Plasma Sintering

P. V. Andreev; Андреев П. В.; P. D. Drozhilkin; Дрожилкин П. Д.; L. S. Alekseeva; Алексеева Л. С.; K. E. Smetanina; Сметанина К. Е.; E. E. Rostokina; Ростокина Е. Е.; S. S. Balabanov; Балабанов С. С.; M. S. Boldin; Болдин М. С.; A. A. Murashov; Мурашов А. А.; G. V. Shcherbak; Щербак Г. В.

doi:10.31857/S0002337X2308002X

Preparation of Si3N4 Ceramics with 3 wt % Y2O3–Al2O3 (2 : 1, 1 : 1, 3 : 5) Additions by Spark Plasma Sintering

Authors: Andreev P.V.¹^,2, Drozhilkin P.D.², Alekseeva L.S.², Smetanina K.E.², Rostokina E.E.¹, Balabanov S.S.¹, Boldin M.S.³, Murashov A.A.², Shcherbak G.V.³
Affiliations:
1. Devyatykh Institute of Chemistry of High-Purity Substances, Russian Academy of Sciences
2. Lobachevsky State University
3. Lobachevsky State University of Nizhny Novgorod
Issue: Vol 59, No 8 (2023)
Pages: 934-941
Section: Articles
URL: https://journals.rcsi.science/0002-337X/article/view/231976
DOI: https://doi.org/10.31857/S0002337X2308002X
EDN: https://elibrary.ru/BFNMEE
ID: 231976

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

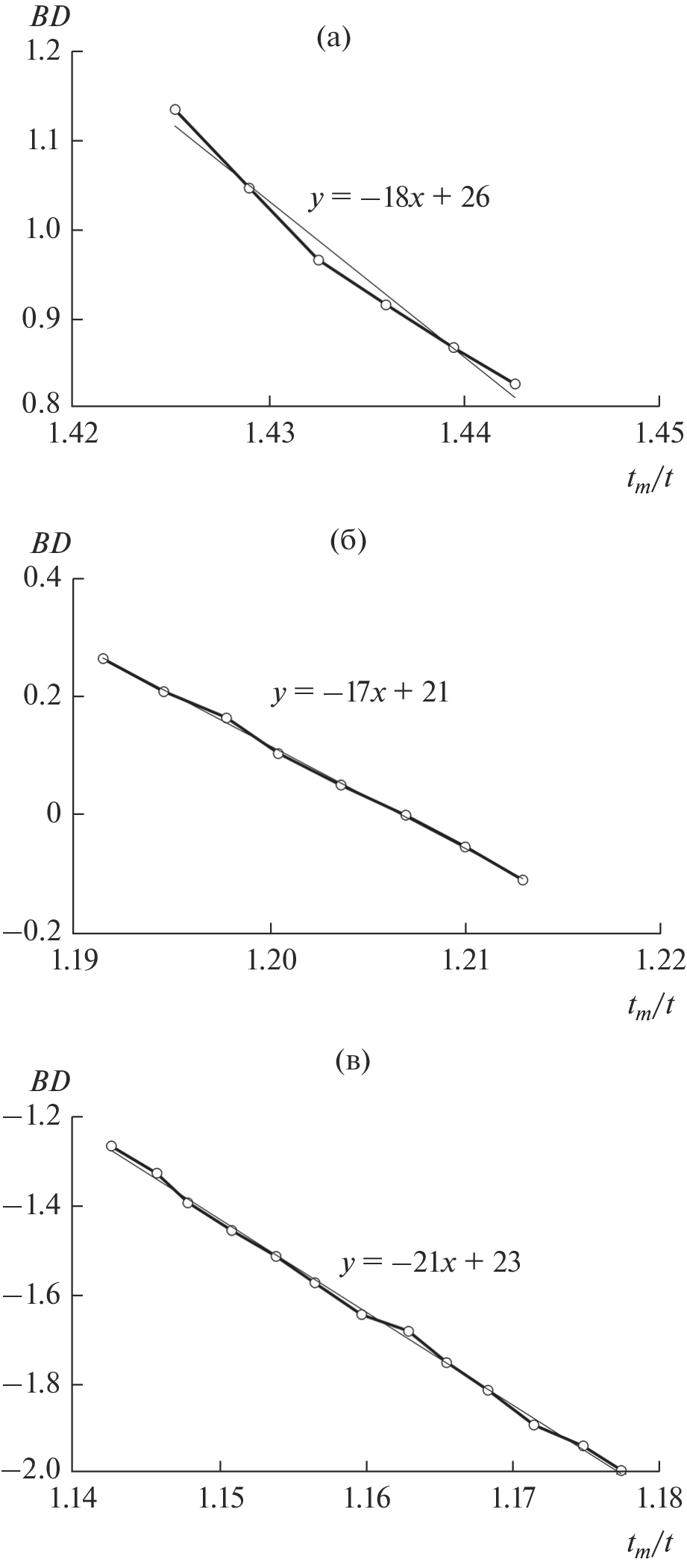

α-Si3N4-based powder composites containing 3 wt % Y2O3–Al2O3 sintering aids with 2 : 1, 1 : 1, and 3 : 5 stoichiometries have been prepared by the Pechini process and spray drying. We have studied four ceramic samples produced by spark plasma sintering of the powder composites. The sintering process was run under a load of 70 MPa at a heating rate of 50°C/min as long as shrinkage of the powder composites continued. We have analyzed the shrinkage behavior of the powder composites during the sintering process; evaluated the activation energy for sintering; and measured the density, microhardness, and fracture toughness (cracking resistance) of the ceramic samples. The highest hardness, HV = 16.5 GPa, in combination with a fracture toughness KIc = 3.8 MPa m1/2, was offered by the material with an Y2O3 : Al2O3 molar ratio of 3 : 5 sintered at 1860°C. The corresponding densification factor was 99.0%. The starting mixture for this material was synthesized using spray drying.

Keywords

silicon nitride, ceramics, spark plasma sintering, powder composite, hardness, fracture, toughness

References

Tatarkova M., Tatarko P., Sajgalik P. Si3N4 Ceramics, Structure and Properties // Encyclopedia of Materials: Technical Ceramics and Glasses. 2021. V. 2. P. 109–118. https://doi.org/10.1016/B978-0-12-818542-1.00021-7
Klemm H. Silicon Nitride for High-Temperature Applications // J. Am. Ceram. Soc. 2010. V. 93. № 6. P. 1501–1522.https://doi.org/10.1111/j.1551-2916.2010.03839.x
Zamula M.V., Kolesnichenko V.G., Stepanenko A.V., Tyschenko N.I., Shyrokov O.V., Borodianska H.Yu., Ragulya A.V. Phase Transformations and Consolidation of Si3N4 Ceramics Activated with Yttrium and Silicon Oxides in Spark Plasma Sintering // Powder Metall. Met. Ceram. 2022. V. 60. P. 672–684. https://doi.org/10.1007/s11106-022-00288-8
Yu J.-J., Sun S.-K., Wei W.-X., Guo W.-M., Plucknett K., Lin H.-T. Continuous and Symmetric Graded Si3N4 Ceramics Designed by Spark Plasma Sintering at 15 MPa // Ceram. Int. 2019. V. 45. № 13. P. 16703–16706. https://doi.org/10.1016/J.CERAMINT.2019.05.148
Ye C., Yue X., Zong H., Liao G., Ru H. In-situ Synthesis of YAG@Si3N4 Powders with Enhanced Mechanical Properties // J. Alloys Compd. 2018. V. 731. P. 813–821. https://doi.org/10.1016/j.jallcom.2017.10.064
Ceja-Cardenas L., Lemus-Ruiz J., Jaramillo-Vigueras D., de la Torre S.D. Spark Plasma Sintering of α-Si3N4 Ceramics with Al2O3 and Y2O3 as Additives and Its Morphology Transformation // J. Alloys Compd. 2010. V. 501. № 2. P. 345–351. https://doi.org/10.1016/j.jallcom.2010.04.102
Андреев П.В., Алексеева Л.С., Ростокина Е.Е., Дрожилкин П.Д., Балабанов С.С., Мурашов А.А., Каразанов К.О. Синтез порошковых композитов на основе Si3N4 для электроимпульсного плазменного спекания керамики // Неорган. материалы. 2022. Т. 58. № 10. С. 1134–1140. https://doi.org/10.31857/S0002337X22100013
Ким К.А., Лысенков А.С., Федоров С.В., Петракова Н.В., Фролова М.Г., Перевислов С.Н., Каргин Ю.Ф. Изучение влияния спекающей добавки CaO–Al2O3 (48 : 52 мас. %) на фазовый состав и свойства керамики на основе Si3N4 // Неорган. материалы. 2022. Т. 58. № 8. С. 908–916. https://doi.org/10.1134/s0020168522080040
Perevislov S.N. Investigation of the Phase Composition and Analysis of the Properties of Sintered and Hot-Pressed Materials Based on Silicon Nitride // Refract. Ind. Ceram. 2022. V. 63. P. 66–73. https://doi.org/10.1007/S11148-022-00682-0
Андреев П.В., Дрожилкин П.Д., Ростокина Е.Е., Балабанов С.С., Алексеева Л.С., Болдин М.С., Мурашов А.А., Щербак Г.В., Гребенев В.В., Каразанов К.О. Изготовление керамических композитов на основе порошка нитрида кремния с осажденной спекающей добавкой // Перспективные материалы. 2022. № 8. С. 76–88. https://doi.org/10.30791/1028-978X-2022-8-76-88
Andreev P.V., Drozhilkin P.D., Alekseeva L.S., Smetanina K.E., Rostokina E.E., Balabanov S.S., Boldin M.S., Murashov A.A., Shcherbak G.V. Spark Plasma Sintering of Si3N4 Ceramics with Y2O3 – Al2O3 (3–10 wt. %) as Sintering Additive // Coatings. 2023. № 13. P. 240. https://doi.org/10.3390/coatings13020240
Чувильдеев В.Н., Болдин М.С., Дятлова Я.Г., Румянцев В.И., Орданьян С.С. Сравнительное исследование горячего прессования и высокоскоростного электроимпульсного плазменного спекания порошков Al2O3/ZrO2/Ti(C,N) // Журн. неорган. химии. 2015. Т. 60. № 8. С. 1088–1094. https://doi.org/10.7868/S0044457X1508005X
Falk L.K.L. Microstructural Development during Liquid Phase Sintering of Silicon Carbide Ceramics // J. Eur. Ceram. Soc. 1997. V. 17. P. 983–994. https://doi.org/10.1016/S0955-2219(96)00198-7
