Adhesion Strength of the Interface between Solid Phases in the GaxGe40–xS60–Quartz Glass System

S. V. Mishinov; Мишинов С. В.; E. A. Tyurina; Тюрина Е. А.; A. P. Velmuzhov; Вельмужов А. П.; M. V.  Sukhanov; Суханов М. В.; A. D. Plekhovich; Плехович А. Д.; B. S. Stepanov; Степанов Б. С.; V. S. Shiryaev; Ширяев В. С.

doi:10.31857/S0002337X23020124

Adhesion Strength of the Interface between Solid Phases in the GaxGe40–xS60–Quartz Glass System

Authors: Mishinov S.V.¹, Tyurina E.A.¹, Velmuzhov A.P.¹, Sukhanov M.V.¹, Plekhovich A.D.¹, Stepanov B.S.¹, Shiryaev V.S.¹
Affiliations:
1. Devyatykh Institute of Chemistry of High-Purity Substances, Russian Academy of Sciences, 603950, Nizhny Novgorod, Russia
Issue: Vol 59, No 2 (2023)
Pages: 191-196
Section: Articles
URL: https://journals.rcsi.science/0002-337X/article/view/140132
DOI: https://doi.org/10.31857/S0002337X23020124
EDN: https://elibrary.ru/YEGUOX
ID: 140132

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

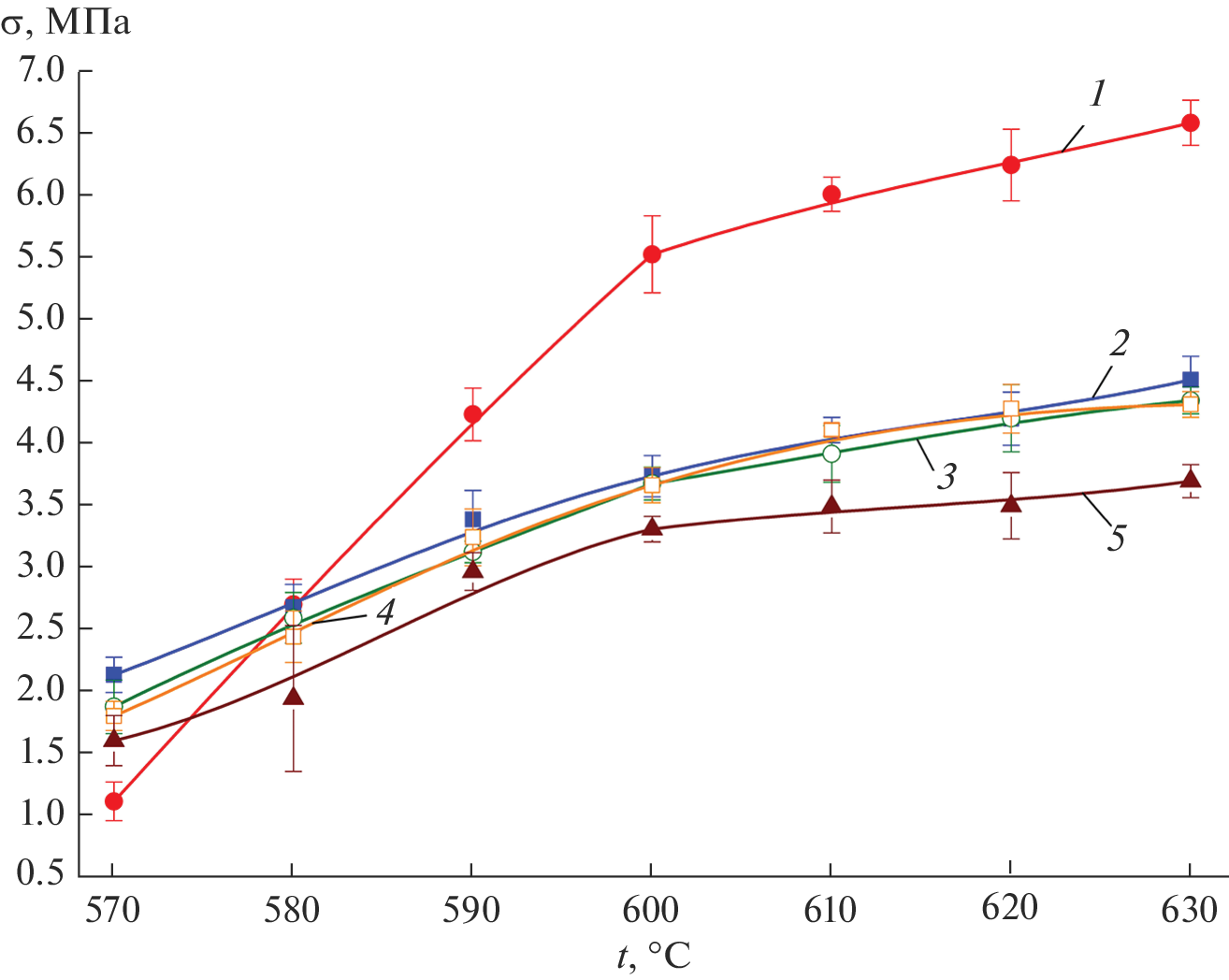

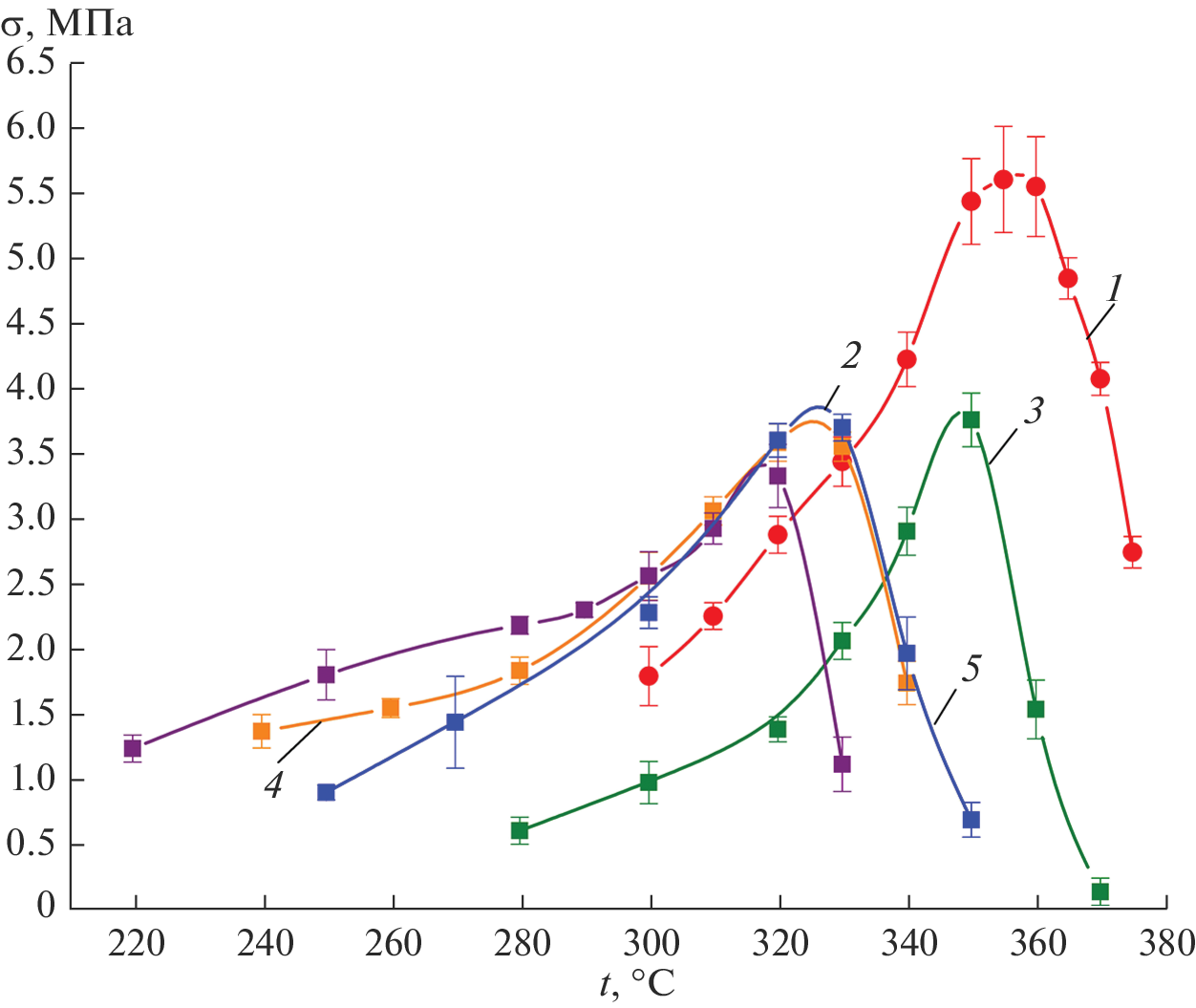

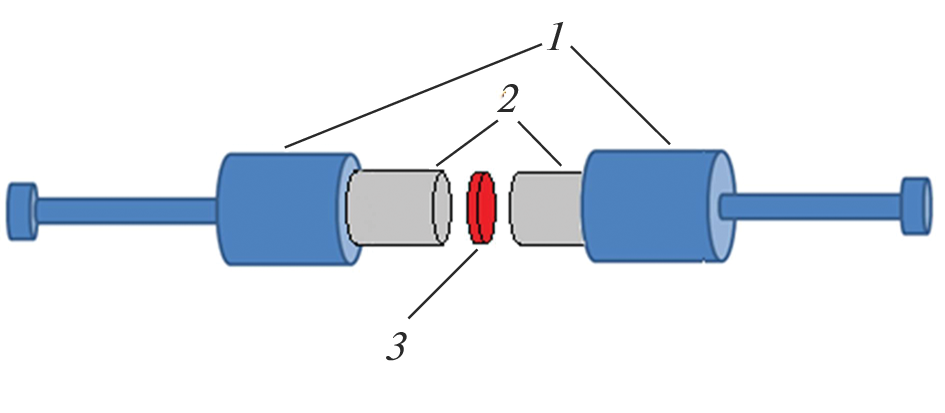

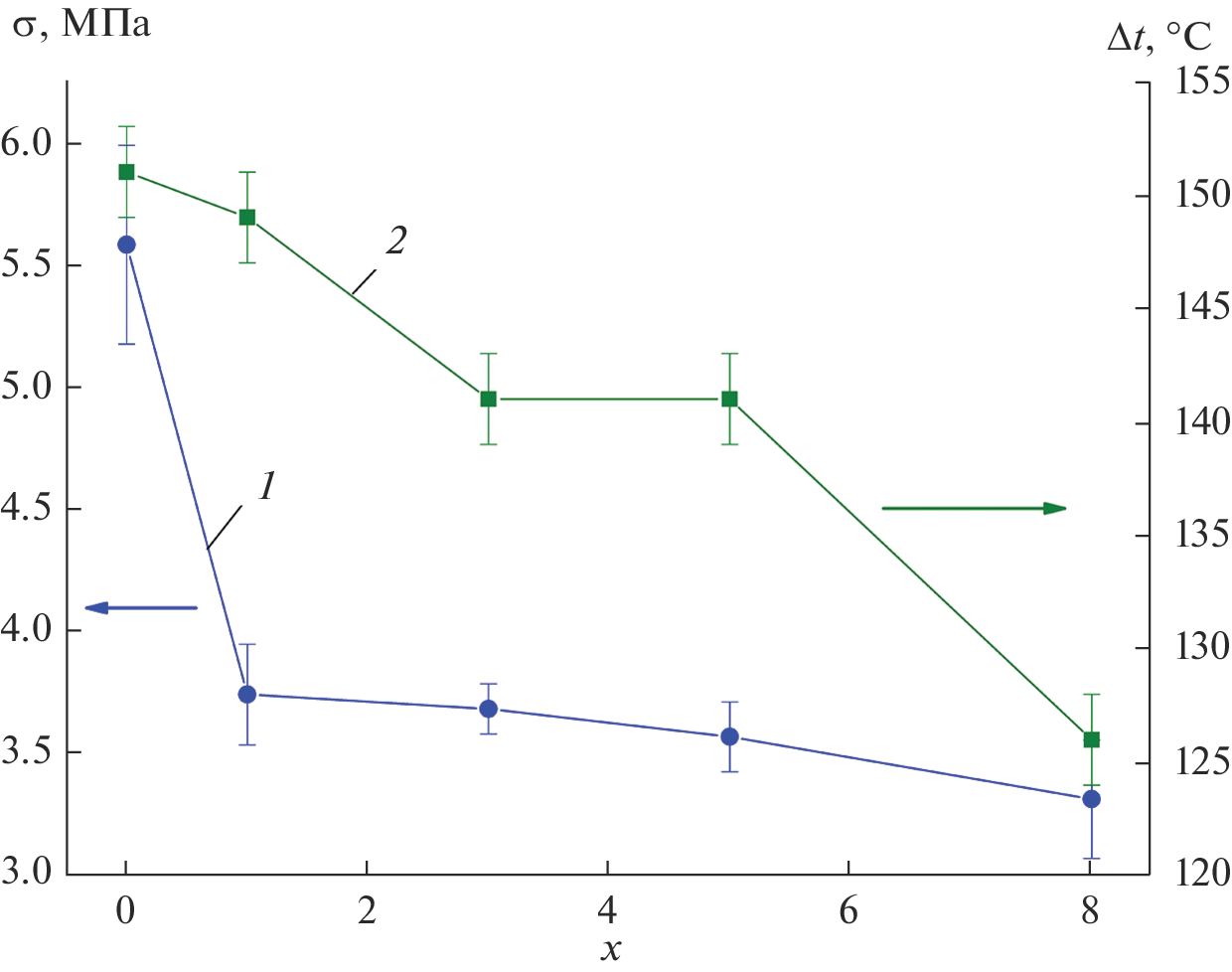

Using normal pull-off testing, we have studied adhesion contact strength in the GaxGe40–xS60–quartz glass system as a function of contact formation temperature, pull-off test temperature, and chalcogenide glass composition. The addition of 1 at % gallium to glass composition considerably reduces the adhesion strength. Further increasing the percentage of gallium, to 8 at %, causes only a slight drop in adhesion. The observed general relationships can be accounted for by partial glass crystallization on heating for adhesion contact formation and subsequent cooling to the pull-off test temperature. We have formulated recommendations concerning detachment of GaxGe40–xS60 glasses from the quartz reactor wall.

Keywords

chalcogenide glass, quartz glass, adhesion strength

References

Виноградова Г.З. Стеклообразование и фазовые равновесия в халькогенидных системах. М.: Наука, 1984. 174 с.
Feltz A., Krautwald A. Über Glasbildung und Eigenschaften von Chalkogenidsystemen; Zur Glasbildung im System GeS2–GeS–GaS1±k // Z. Chem. 1979. V. № 2. P. 78–79.
Velmuzhov A.P., Sukhanov M.V., Tyurina E.A., Plekhovich A.D., Fadeeva D.A., Ketkova L.A., Churbanov M.F., Shiryaev V.S. Physicochemical, Optical Properties and Stability Against Crystallization of GaxGey–xS100–y (x = 0–8; y = 40–42) glasses // J. Non-Cryst. Solids. 2021. V. 554. P. 120615. https://doi.org/10.1016/j.jnoncrysol.2020.120615
Heo J., Chung W.J. Rare-Earth-Doped Chalcogenide Glass for Lasers and Amplifiers // Adam J.-L., Zhang X., Chalcogenide Glasses. Preparation, Properties and Applications. Sawston: Woodhead, 2014. P. 381–410. https://doi.org/10.1533/9780857093561.2.347
Simons D.R. Germanium Gallium Sulfide Glasses for Pr-Doped Fiber Amplifiers at 1.3 µm. Eindhoven: Tech. Univ. Eindhoven, 1995. 152 p. https://doi.org/10.6100/IR447635
Abe K., Takebe H., Morinaga K. Preparation and Properties of Ge–Ga–S Glasses for Laser Hosts // J. Non-Cryst. Solids. 1997. V. 212. P. 143–150. https://doi.org/10.1016/S0022-3093(96)00655-2
Ivanova Z.G., Aneva Z., Ganesan R., Tonchev D., Gopal E.S.R., Rao K.S.R.K., Allen T.W., DeCorby R.G., Kasap S.O. Low-Temperature Er3+ Emission in Ge–S–Ga Glasses Excited by Host Absorption // J. Non-Cryst. Solids. 2007. V. 353. P. 1418–1421. https://doi.org/10.1016/j.jnoncrysol.2006.10.066
Wei K., Machewirth D.P., Wenzel J., Snitzer E., Sigel G.H., Jr. Pr3+-Doped Ge–Ga–S Glasses for 1.3 μm Optical Fiber Amplifiers // J. Non-Cryst. Solids. 1995. V. 182. P. 257–261. https://doi.org/10.1016/0022-3093(94)00513-3
Lin C., Rüssel C., Dai S. Chalcogenide Glass-Ceramics: Functional Design and Crystallization Mechanism // Progr. Mater. Sci. 2018. V. 93. P. 1–44. https://doi.org/10.1016/j.pmatsci.2017.11.001
Calvez L. Transparent Chalcogenide Glass-ceramics // Adam J.-L., Zhang X. Chalcogenide Glasses: Preparation, Properties and Applications // Sawston: Woodhead, 2014. P. 310–346. https://doi.org/10.1533/9780857093561.1.310
Snopatin G.E., Shiryaev V.S., Plotnichenko V.G., Dianov E.M., Churbanov M.F. High-Purity Chalcogenide Glasses for Fiber Optics // Inorg. Mater. 2009. V. 45. № 13. P. 1439–1460. https://doi.org/10.1134/S0020168509130019
Мишинов С.В., Чурбанов М.Ф., Горохов А.Н., Казаков Д.А., Ширяев В.С., Сучков А.И., Игумнов Л.А., Снопатин Г.Е. Адгезионный механизм деградации поверхности кварцевого стекла в процессах синтеза и формования стеклообразных халькогенидов мышьяка // Неорган. материалы. 2016. Т. 52. № 7. С. 773–777. https://doi.org/10.7868/S0002337X16070101
Mishinov S.V., Churbanov M.F., Shiryaev V.S., Ketkova L.A. Contamination of Glassy Arsenic Sulfide by SiO2 Particles during Melt Solidification in Silica Glassware // J. Non-Cryst. Solids. 2018. V. 480. P. 3–7. https://doi.org/10.1016/j.jnoncrysol.2017.04.006
Ketkova L.A., Churbanov M.F. Heterophase Inclusions as a Source of Non-Selective Optical Losses in Highpurity Chalcogenide and Tellurite Glasses for Fiber Optics // J. Non-Cryst. Solids. 2018. V. 480. P. 18–22. https://doi.org/10.1016/j.jnoncrysol.2017.09.018
Sukhanov M.V., Velmuzhov A.P., Otopkova P.A., Ketkova L.A., Evdokimov I.I., Kurganova A.E., Plotnichenko V.G., Shiryaev V.S. Rare Earth Elements as a Source of Impurities in Doped Chalcogenide Glasses // J. Non-Cryst. Solids. 2022. V. 593. P. 121793. https://doi.org/10.1016/j.jnoncrysol.2022.121793
Brilland L., Smektala F., Renversez G., Chartier T., Troles J., Nguyen T.N., Traynor N., Monteville A. Fabrication of Complex Structures of Holey Fibers in Chalcogenide Glass // Opt. Express. 2006. V. 14. № 3. P. 1280–1285. https://doi.org/10.1364/OE.14.001280
Shiryaev V.S. Chalcogenide Glass Hollow-Core Microstructured Optical Fibers // Front. Mater. 2015. V. 2. P. 24. https://doi.org/10.3389/fmats.2015.00024
Velmuzhov A.P., Sukhanov M.V., Churbanov M.F., Zernova N.S., Ketkova L.A., Sozin A.Yu., Shiryaev V.S., Skripachev I.V., Evdokimov I.I. Sulfur as the Source of Hydrogen Impurity and Heterogeneous Inclusions in the Ge-Ga-S Glasses // J. Non-Cryst. Solids. 2020. V. 545. P. 120237. https://doi.org/10.1016/j.jnoncrysol.2020.120237
Velmuzhov A.P., Evdokimov I.I., Sukhanov M.V., Fadeeva D.A., Zernova N.S., Kurganova A.E. Distribution of Elements in Ge–Se Bulk Glasses and Optical Fibers Detected by Inductively Coupled Plasma Atomic Emission Spectrometry // J. Phys. Chem. Solids. 2020. V. 142. P. 109461. https://doi.org/10.1016/j.jpcs.2020.109461
Shiryaev V.S., Mishinov S.V., Churbanov M.F. Investigation of Adhesion of Chalcogenide Glasses to Silica Glass / J. Non-Cryst. Solids. 2015. V. 408. P. 71–75. https://doi.org/10.1016/j.jnoncrysol.2014.10.010
Mishinov S.V., Shiryaev V.S., Velmuzhov A.P., Sukhanov M.V., Zernova N.S., Plekhovich A.D., Evdokimov I.I., Churbanov M.F. Adhesion of GexSe100–x Glasses to Silica Glass // J. Non-Cryst. Solids. 2020. V. 531 P. 119857. https://doi.org/10.1016/j.jnoncrysol.2019.119857
Hruby A. Evaluation of Glass-forming Tendency by Means of DTA // Czech. J. Phys. B. 1972. V. 22. № 11. P. 1187–1193.
Schmelzer J.W., Tropin T.V. Glass Transition, Crystallization of Glass-Forming Melts, and Entropy // Entropy. 2018. V. 20. № 2. P. 103–134. https://doi.org/10.3390/e20020103
Fedorov V.D., Sakharov V.V., Provorova A.M., Baskov P.B., Churbanov M.F., Shiryaev V.S., Poulain Ma, Poulain Mi, Boutarfaia A. Kinetics of Isothermal Crystallization of Fluoride Glasses // J. Non-Cryst. Solids. 2001. V. 284. P. 79–84. https://doi.org/10.1016/S0022-3093(01)00383-0
Velmuzhov A.P., Tyurina E.A., Sukhanov M.V., Stepanov B.S., Ketkova L.A., Evdokimov I.I., Kurganova A.E., Shiryaev V.S. Preparation of High-Purity Chalcogenide Glasses Containing Gallium(III) Sulfide // J. Non-Cryst. Solids. 2022. V. 593. P. 121786. https://doi.org/10.1016/j.jnoncrysol.2022.121786
