Properties of Terbium Oxide Nanoparticles Synthesized via Laser Ablation in a Reducing Medium

R. N. Maksimov; Максимов Р. Н.; V. V. Platonov; Платонов В. В.; V. V. Osipov; Осипов В. В.; G. R. Karagedov; Карагедов Г. Р.; A. S. Yurovskikh; Юровских А. С.; A. V. Spirina; Спирина А. В.; V. A. Shitov; Шитов В. А.

doi:10.31857/S0002337X23020112

Properties of Terbium Oxide Nanoparticles Synthesized via Laser Ablation in a Reducing Medium

Authors: Maksimov R.N.¹^,2, Platonov V.V.¹, Osipov V.V.¹, Karagedov G.R.³, Yurovskikh A.S.², Spirina A.V.¹, Shitov V.A.¹
Affiliations:
1. Institute of Electrophysics, Ural Branch, Russian Academy of Sciences, 620016, Yekaterinburg, Russia
2. Ural Federal University named after the first President of Russia B.N. Yeltsin, 620002, Yekaterinburg, Russia
3. Institute of Solid State Chemistry and Mechanochemistry, Siberian Branch, Russian Academy of Sciences, 630090, Novosibirsk, Russia
Issue: Vol 59, No 2 (2023)
Pages: 176-184
Section: Articles
URL: https://journals.rcsi.science/0002-337X/article/view/140128
DOI: https://doi.org/10.31857/S0002337X23020112
EDN: https://elibrary.ru/YDRFJY
ID: 140128

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

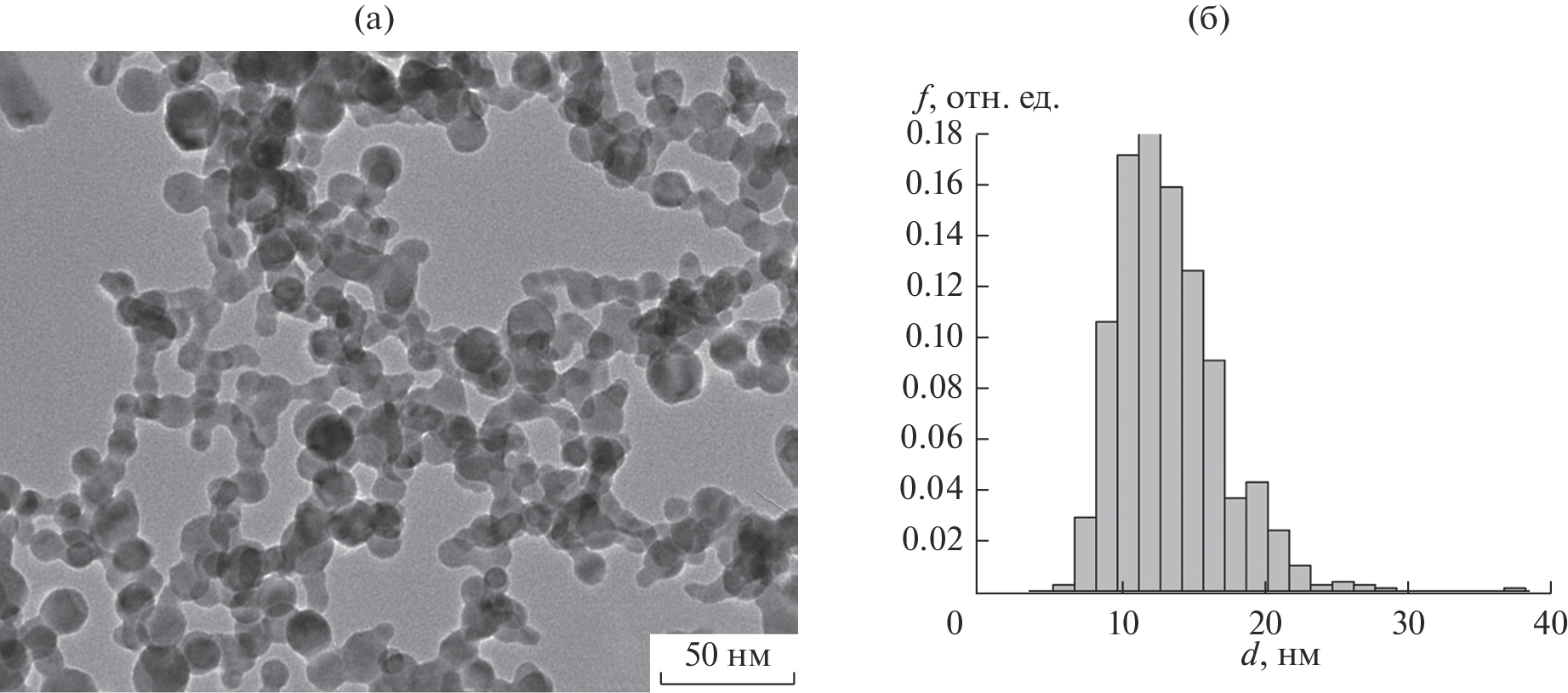

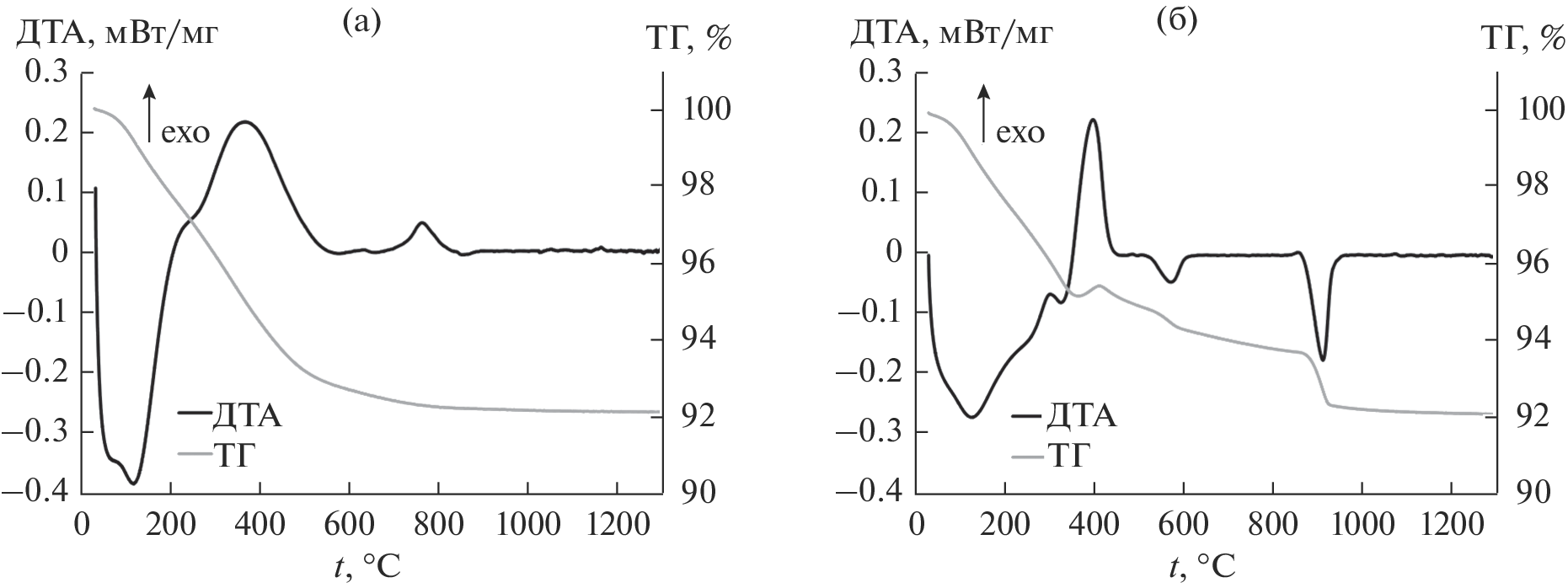

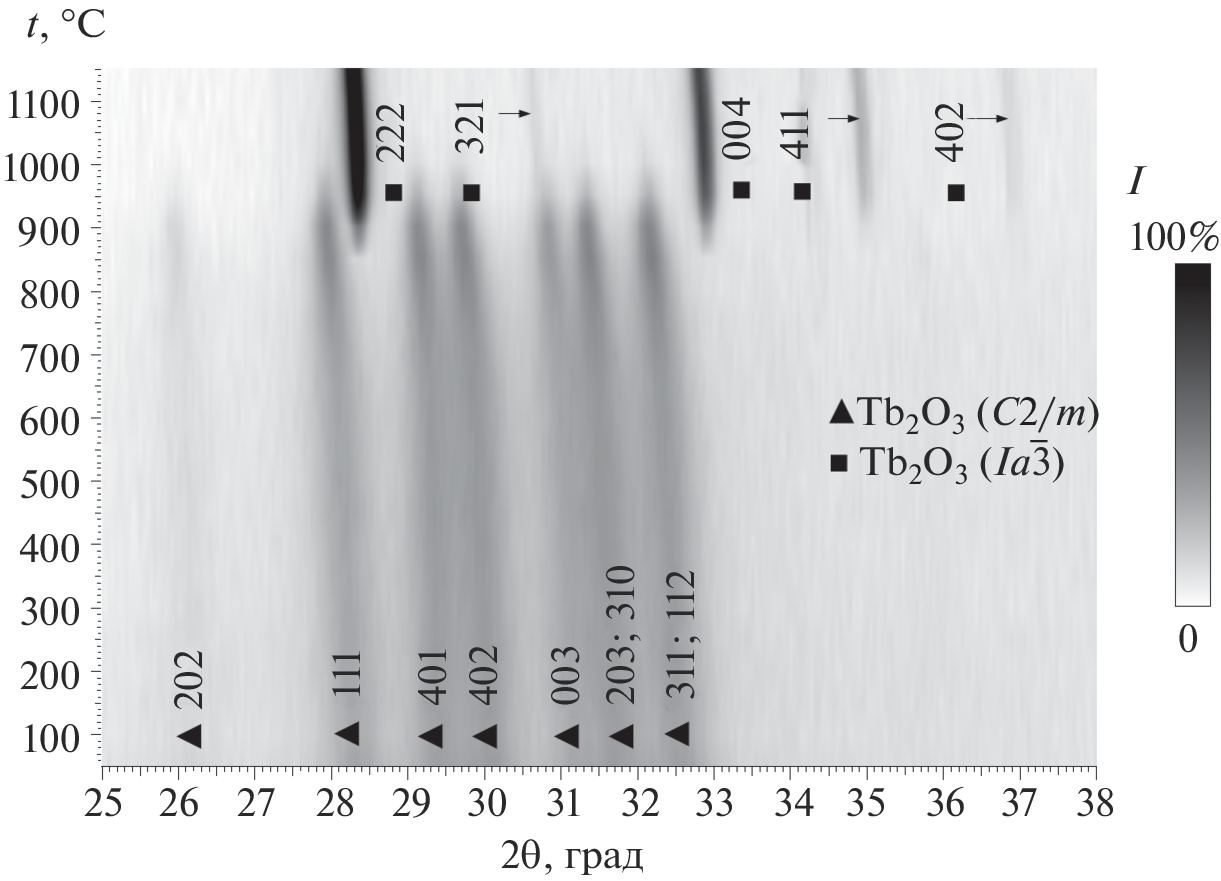

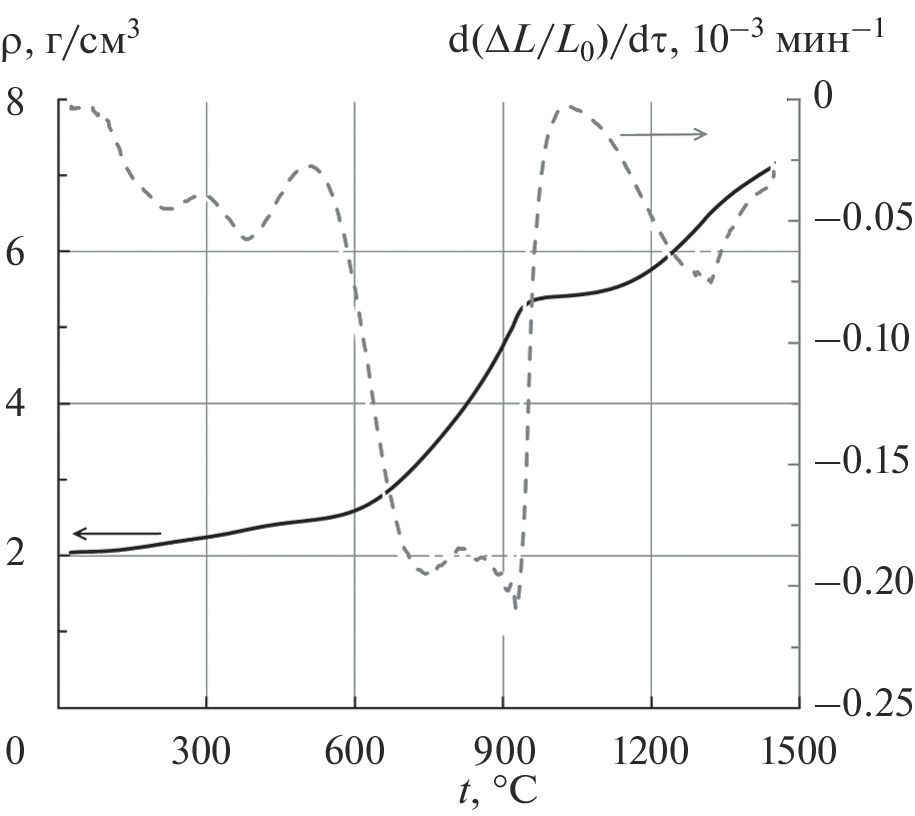

This paper reports on the synthesis of terbium sesquioxide (Tb2O3) nanoparticles via laser ablation of a solid target in a flowing 95% Ar + 5% H2 binary welding mixture with the use of an ytterbium-doped fiber laser with an average output power of 300 W. We have studied morphological and structural features of the synthesized powder, its thermal behavior, magnetic properties, and densification dynamics during heating to 1450°C in vacuum. The synthesized particles were nearly spherical in shape, with an average size of 13 nm, and had a monoclinic crystal structure, which irreversibly transformed into a cubic structure of

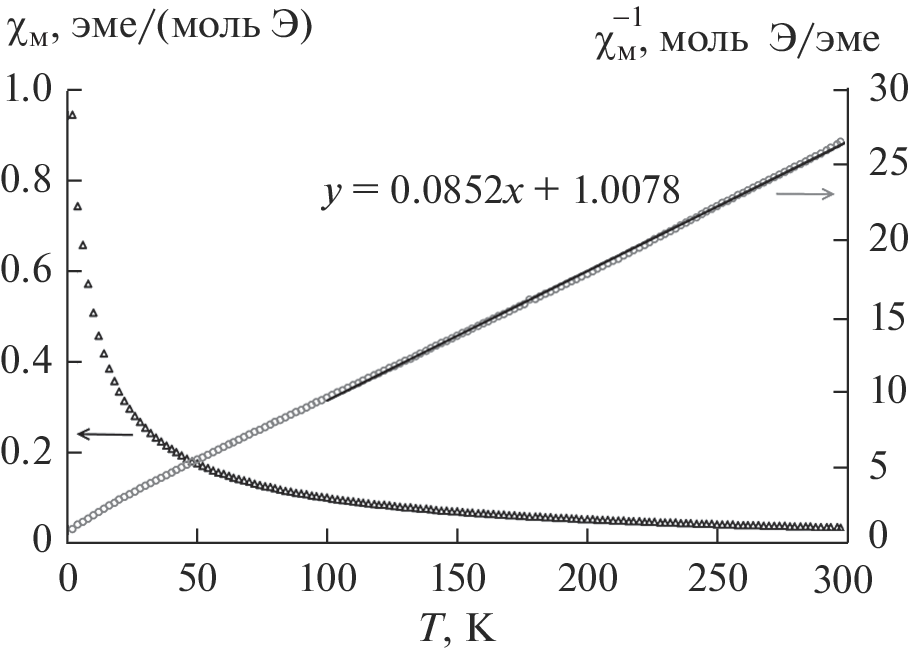

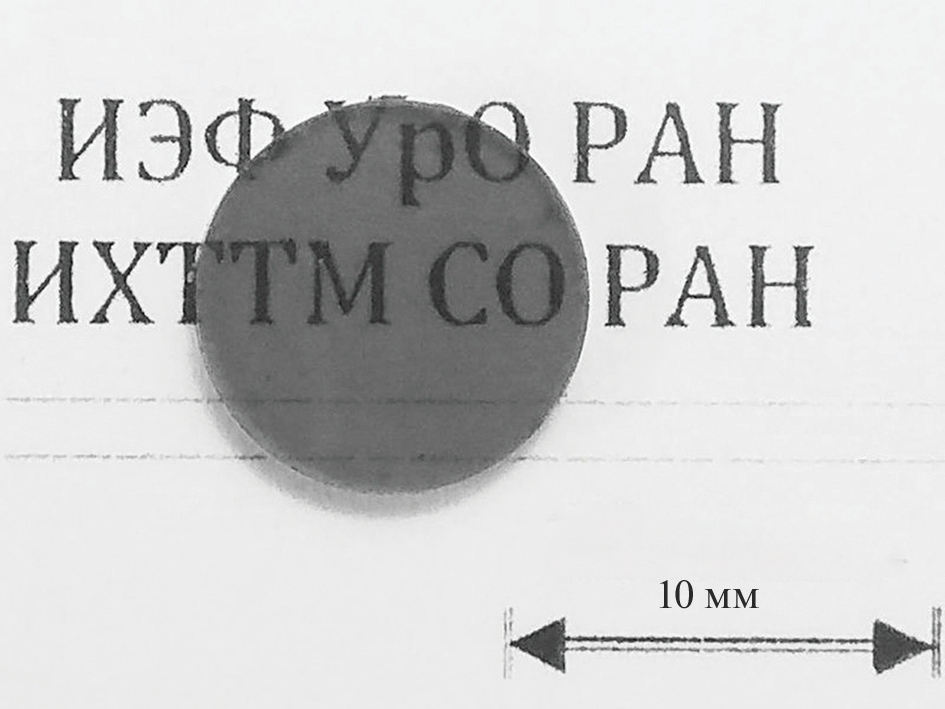

symmetry as a result of firing in argon or vacuum at temperatures near 750 and 1050°C, respectively. Using temperature-dependent specific magnetization measurements, we determined their paramagnetic Curie temperature (θp = –11.8 K), Curie constant (C = 11.74 K emu/(mol Oe)), and effective magnetic moment (μeff = 9.69μB/Tb). These data suggest that antiferromagnetic exchange interaction between the terbium ions prevails and that the content of Tb4+ ions in the nanopowder is negligible. We have demonstrated the feasibility of producing transparent Tb2O3 ceramics by consolidating presintered nanoparticles via hot isostatic pressing for 2 h at a temperature of 1450°C and pressure of 200 MPa.

Keywords

laser synthesis, hot isostatic pressing, polymorphic transformation, magnetic moment, transparent ceramic

References

Dai J., Li J. Promising Magneto-Optical Ceramics for High Power Faraday Isolators // Scr. Mater. 2018. V. 155. P. 78–84. https://doi.org/10.1016/j.scriptamat.2018.06.031
Vojna D., Slezak O., Lucianetti A., Mocek T. Verdet Constant of Magneto-Active Materials Developed for High-Power Faraday Devices // Appl. Sci. 2019. V. 9. № 15. P. 3160. https://doi.org/10.3390/app9153160
Carothers K.J., Norwood R.A., Pyun J. High Verdet Constant Materials for Magneto-Optical Faraday Rotation: A Review // Chem. Mater. 2022. V. 34. № 6. P. 2531–2544. https://doi.org/10.1021/acs.chemmater.2c00158
Veber P., Velazquez M., Gadret G., Rytz D., Peltzc M., Decourta R. Flux Growth at 1230°C of Cubic Tb2O3 Single Crystals and Characterization of Their Optical and Magnetic Properties // CrystEngComm. 2015. V. 17. № 3. P. 492–497. https://doi.org/10.1039/C4CE02006E
Ikesue A., Aung Y.L., Makikawa S., Yahagi A. Polycrystalline (TbxY1–x)2O3 Faraday Rotator // Opt. Lett. 2017. V. 42. № 21. P. 4399–4401. https://doi.org/10.1364/OL.42.004399
Ikesue A., Aung Y.L., Makikawa S., Yahagi A. Total Performance of Magneto-Optical Ceramics with a Bixbyite Structure // Materials. 2019. V. 12. № 3. P. 421. https://doi.org/10.3390/ma12030421
Zinkevich M. Thermodynamics of Rare Earth Sesquioxides // Prog. Mater. Sci. 2007. V. 52. № 4. P. 597–647. https://doi.org/10.1016/j.pmatsci.2006.09.002
Zhang J., Chen H., Wang J., Wang D., Han D., Zhang J., Wang S. Phase Transformation Process of Tb2O3 at Elevated Temperatures // Scr. Mater. 2019. V. 171. P. 108–111. https://doi.org/10.2139/ssrn.3391561
Balabanov S.S., Permin D.A., Rostokina E.Ye., Egorov S.V., Sorokin A.A., Kuznetsov D.D. Synthesis and Structural Characterization of Ultrafine Terbium Oxide Powders // Ceram. Int. 2017. V. 43. № 18. P. 16569–16574. https://doi.org/10.1016/j.ceramint.2017.09.044
Zhang J., Chen H., Wang J., Wang D., Han D., Zhang J., Wang S. Preparation of (Tb1–xLux)2O3 Transparent Ceramics by Solid Solution for Magneto-Optical Application // J. Eur. Ceram. Soc. 2020. V. 41. № 4. P. 2818–2825. https://doi.org/10.1016/j.jeurceramsoc.2020.12.034
Yang M., Zhou D., Xu J., Tian T., Jia R., Wang Z. Fabrication and Magneto-Optical Property of Yttria Stabilized Tb2O3 Transparent Ceramics // J. Eur. Ceram. Soc. 2019. V. 39. № 15. P. 5005–5009. https://doi.org/10.1016/j.jeurceramsoc.2019.07.010
Snetkov I.L., Permin D.A., Balabanov S.S., Palashov O.V. Wavelength Dependence of Verdet Constant of Tb3+:Y2O3 Ceramics // Appl. Phys. Lett. 2016. V. 108. № 16. P. 161905(1–3). https://doi.org/10.1063/1.4947432
Gaume R., He Y., Markosyan A., Byer R.L. Effect of Si-Induced Defects on 1 µm Absorption Losses in Laser-Grade YAG Ceramics // J. Appl. Phys. 2012. V. 111. № 9. 093104. https://doi.org/10.1063/1.4709756
Wang J., Yin D., Ma J., Liu P., Wang Y., Dong Z., Kong L.B., Tang D. Pump Laser Induced Photodarkening in ZrO2-Doped Yb:Y2O3 Laser Ceramics // J. Eur. Ceram. Soc. 2019. V. 39. № 2–3. P. 635–640. https://doi.org/10.1016/j.jeurceramsoc.2018.10.003
Ikesue A., Aung Y.L. Synthesis of Yb:YAG Ceramics without Sintering Additives and Their Performance // J. Am. Ceram. Soc. 2017. V. 100. № 1. P. 26–30. https://doi.org/10.1111/jace.14588
Yin D., Ma J., Liu P., Yao B., Wang J., Dong Z., Kong L.B., Tang D. Submicron-Grained Yb:Lu2O3 Transparent Ceramics with Lasing Quality // J. Am. Ceram. Soc. 2019. V. 102. № 5. P. 2587–2592. https://doi.org/10.1111/jace.16105
Li Q., Wang J., Ma J., Ni M., Yang F., Liu P., Lee K.Y., Hsiang H.-I., Shen D., Tang D. Fabrication of High-Efficiency Yb:Y2O3 Laser Ceramics without Photodarkening // J. Am. Ceram. Soc. 2022. V. 105. № 5. P. 3375–3381. https://doi.org/10.1111/jace.18305
Abu-Zied B.M., Mohamed A.-R.N., Asiri A.M. Effect of Thermal Treatment on the Formation, Textural and Electrical Conductivity Properties of Nanocrystalline Tb4O7 // J. Nanosci. Nanotechnol. 2015. V. 15. № 6. P. 4487–4492. https://doi.org/10.1166/jnn.2015.9605
Fursikov P.V., Abdusalyamova M.N., Makhmudov F.A., Shairmardanov E.N., Kovalev I.D., Kovalev D.Yu., Morgunov R.B., Koplak O.V., Volodin A.A., Khodos I.I., Shulga Y.M. Structural Features and Magnetic Behavior of Nanocrystalline Powders of Terbium Oxide Prepared by the Thermal Decomposition of Terbium Acetate in Air // J. Alloys Compd. 2016. V. 657. P. 163–173. https://doi.org/10.1016/j.jallcom.2015.09.274
Kai F., Bin L., Hongmei C., Shaofan W., Yan W., Yongxing L. Synthesis of Ultrafine TbO1.81 and Tb2O3 Powders for Magneto-Optical Application // J. Synth. Cryst. 2021. V. 50. № 1. P. 80–87.
Kurland H.-D., Grabow J., Stotzel Chr., Muller F.A. Preparation of Ceramic Nanoparticles by CO2 Laser Vaporization // J. Ceram. Sci. Technol. 2014. V. 5. № 4. P. 275–280. https://doi.org/10.4416/JCST2014-00025
Osipov V.V., Platonov V.V., Lisenkov V.V., Tikhonov E.V., Podkin A.V. Study of Nanoparticle Production from Yttrium Oxide by Pulse-Periodic Radiation of Ytterbium Fibre Laser // Appl. Phys. A. 2018. V. 124. P. 3(1–10). https://doi.org/10.1007/s00339-017-1348-9
Snetkov I., Starobor A., Palashov O., Balabanov S., Permin D., Rostokina E. Thermally Induced Effects in a Faraday Isolator on Terbium Sesquioxide (Tb2O3) Ceramics // Opt. Mater. 2021. V. 120. P. 111466(1–4). https://doi.org/10.1016/j.optmat.2021.111466
Глушкова В.Б. Полиморфизм окислов редкоземельных элементов. Л.: Наука, 1967. 132 с.
Porter D.A., Easterling K.E., Sherif M.Y. Phase Transformation in Metals and Alloys. 3rd edn. Boca Raton: CRC Press, 2009. 521 p.
Ishikawa T., Koyama C., Oda H., Saruwatari H., Paradis P.-F. Status of the Electrostatic Levitation Furnace in the ISS – Surface Tension and Viscosity Measurements // Int. J. Microgravity Sci. Appl. 2022. V. 39. № 1. P. 390101(1–12). https://doi.org/10.15011/jasma.39.390101
Hoekstra H.R. Phase Relationships in the Rare Earth Sesquioxides at High Pressure // Inorg. Chem. 1966. V. 5. № 5. P. 754–757. https://doi.org/10.1021/ic50039a013
Накамото К. ИК-спектры и спектры КР неорганических и координационных соединений: Пер. с англ. М.: Мир, 1991. 536 с.
Unal F. A Novel Strong Cyan Luminescence Emission of Tb2O3 Particles // Research Square. 2021. https://doi.org/10.21203/rs.3.rs-319887/v1
Unal F., Kaya F. Modelling of Relation between Synthesis Parameters and Average Crystallite Size of Yb2O3 Nanoparticles Using Box-Behnken Design // Ceram. Int. 2020. V. 46. № 17. P. 26800–26808. https://doi.org/10.1016/j.ceramint.2020.07.155
Cui F., Yu J., Cui T. Decoration of Silica with Tb2O3 Nanoparticles by a Facile Method Free of Additional Catalyst // Chem. Lett. 2015. V. 44. № 11. P. 1500–1502. https://doi.org/10.1246/cl.150722
Куражковская В.С., Боровикова Е.Ю. Инфракрасная и мессбауэровская спектроскопия кристаллов. М.: Геологический факультет, 2008. 98 с.
MacChesney J.B., Williams H.J., Sherwood R.C., Potter J.F. Preparation and Low Temperature Magnetic Properties of the Terbium Oxides // J. Chem. Phys. 1966. V. 44. P. 596–601. https://doi.org/10.1063/1.1726730
Mugiraneza S., Hallas A.M. Tutorial: a Beginner’s Guide to Interpreting Magnetic Susceptibility Data with the Curie-Weiss Law // Commun. Phys. 2022. V. 5. P. 1–12. https://doi.org/10.1038/s42005-022-00853-y
Vickery R.C., Ruben A. Magnetic Susceptibilities of Praseodymium and Terbium Oxides // J. Chem. Soc. 1959. P. 510–513. https://doi.org/10.1039/jr9590000510
Baran S., Duraj R., Hoser A., Penc B., Szytula A. Crystal Structure and Magnetic Properties of Tb11O20 // Acta. Phys. Pol. 2013. V. 123. P. 98–100. https://doi.org/10.12693/APhysPolA.123.98
Balabanov S.S., Permin D.A., Rostokina E.Ye., Egorov S.V., Sorokin A.A. Sinterability of Nanopowders of Terbia Solid Solutions with Scandia, Yttria, and Lutetia // J. Adv. Ceram. 2018. V. 7. P. 362–369. https://doi.org/10.1007/s40145-018-0286-0
